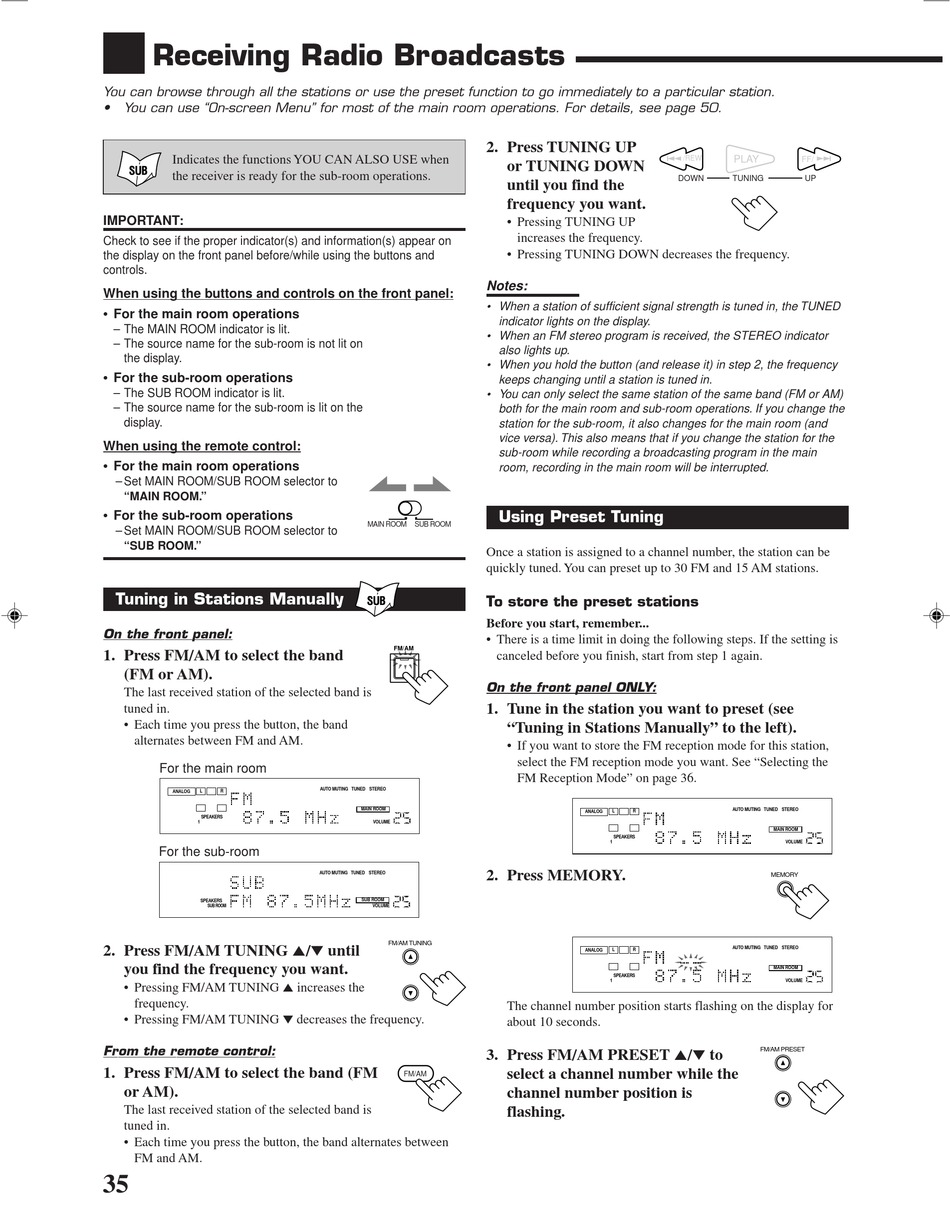

Receiving Radio Broadcasts; Tuning In Stations Manually; Using Preset Tuning - JVC RX-9010VBK Instructions Manual

Receiving Radio Broadcasts

You can browse through all the stations or use the preset function to go immediately to a particular station.
• You can use "On-screen Menu" for most of the main room operations. For details, see page 50.
Indicates the functions YOU CAN ALSO USE when
the receiver is ready for the sub-room operations.
IMPORTANT:
Check to see if the proper indicator(s) and information(s) appear on
the display on the front panel before/while using the buttons and
controls.
When using the buttons and controls on the front panel:
• For the main room operations
– The MAIN ROOM indicator is lit.
– The source name for the sub-room is not lit on
the display.
• For the sub-room operations
– The SUB ROOM indicator is lit.
– The source name for the sub-room is lit on the
display.
When using the remote control:
• For the main room operations
– Set MAIN ROOM/SUB ROOM selector to
"MAIN ROOM."
• For the sub-room operations
– Set MAIN ROOM/SUB ROOM selector to
"SUB ROOM."

Tuning in Stations Manually

On the front panel:
1. Press FM/AM to select the band
(FM or AM).
The last received station of the selected band is
tuned in.
• Each time you press the button, the band
alternates between FM and AM.
For the main room
ANALOG L R
SPEAKERS
1
For the sub-room
SPEAKERS
SUB ROOM
2. Press FM/AM TUNING 5/∞ until
you find the frequency you want.
• Pressing FM/AM TUNING 5 increases the
frequency.
• Pressing FM/AM TUNING ∞ decreases the frequency.
From the remote control:
1. Press FM/AM to select the band (FM
or AM).
The last received station of the selected band is
tuned in.
• Each time you press the button, the band alternates between
FM and AM.
35
MAIN ROOM SUB ROOM
FM/AM
AUTO MUTING TUNED STEREO
MAIN ROOM
VOLUME
AUTO MUTING TUNED STEREO
SUB ROOM
VOLUME
FM/AM TUNING
FM/AM
2. Press TUNING UP
or TUNING DOWN
until you find the
frequency you want.
• Pressing TUNING UP
increases the frequency.
• Pressing TUNING DOWN decreases the frequency.
Notes:
• When a station of sufficient signal strength is tuned in, the TUNED
indicator lights on the display.
• When an FM stereo program is received, the STEREO indicator
also lights up.
• When you hold the button (and release it) in step 2, the frequency
keeps changing until a station is tuned in.
• You can only select the same station of the same band (FM or AM)
both for the main room and sub-room operations. If you change the
station for the sub-room, it also changes for the main room (and
vice versa). This also means that if you change the station for the
sub-room while recording a broadcasting program in the main
room, recording in the main room will be interrupted.

Using Preset Tuning

Once a station is assigned to a channel number, the station can be
quickly tuned. You can preset up to 30 FM and 15 AM stations.
To store the preset stations
Before you start, remember...
• There is a time limit in doing the following steps. If the setting is
canceled before you finish, start from step 1 again.
On the front panel ONLY:
1. Tune in the station you want to preset (see
"Tuning in Stations Manually" to the left).
• If you want to store the FM reception mode for this station,
select the FM reception mode you want. See "Selecting the
FM Reception Mode" on page 36.
ANALOG L R
SPEAKERS
1
2. Press MEMORY.
L R
ANALOG
SPEAKERS
1
The channel number position starts flashing on the display for
about 10 seconds.
3. Press FM/AM PRESET 5/∞ to
select a channel number while the
channel number position is
flashing.
/REW PLAY
FF/
DOWN TUNING UP
AUTO MUTING TUNED STEREO
MAIN ROOM
VOLUME
MEMORY
AUTO MUTING TUNED STEREO
MAIN ROOM
VOLUME
FM/AM PRESET
