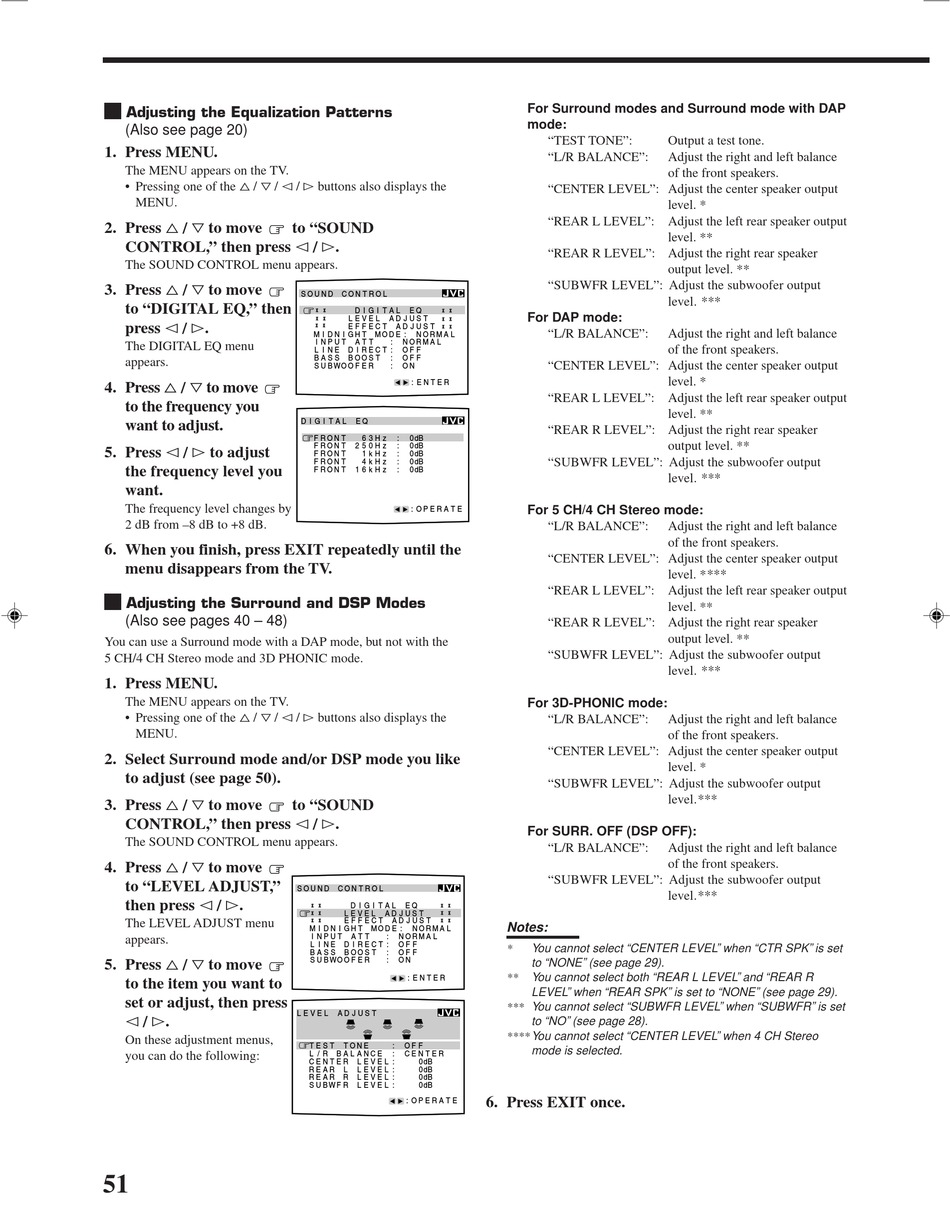

Adjusting the Equalization Patterns

(Also see page 20)
1. Press MENU.
The MENU appears on the TV.
• Pressing one of the % / fi / @ / # buttons also displays the
MENU.
2. Press % / fi to move
CONTROL," then press @ / #.
The SOUND CONTROL menu appears.
3. Press % / fi to move
to "DIGITAL EQ," then
press @ / #.
The DIGITAL EQ menu
appears.
4. Press % / fi to move
to the frequency you
want to adjust.
5. Press @ / # to adjust
the frequency level you
want.
The frequency level changes by
2 dB from –8 dB to +8 dB.
6. When you finish, press EXIT repeatedly until the
menu disappears from the TV.

Adjusting the Surround and DSP Modes

(Also see pages 40 – 48)
You can use a Surround mode with a DAP mode, but not with the
5 CH/4 CH Stereo mode and 3D PHONIC mode.
1. Press MENU.
The MENU appears on the TV.
• Pressing one of the % / fi / @ / # buttons also displays the
MENU.
2. Select Surround mode and/or DSP mode you like
to adjust (see page 50).
3. Press % / fi to move
CONTROL," then press @ / #.
The SOUND CONTROL menu appears.
4. Press % / fi to move
to "LEVEL ADJUST,"
then press @ / #.
The LEVEL ADJUST menu
appears.
5. Press % / fi to move
to the item you want to
set or adjust, then press
@ / #.
On these adjustment menus,
you can do the following:
51
to "SOUND
SOUND CONTROL
DIGITAL EQ
LEVEL ADJUST
EFFECT ADJUST
MIDNIGHT MODE: NORMAL
INPUT ATT : NORMAL
LINE DIRECT: OFF
BASS BOOST : OFF
SUBWOOFER : ON
:ENTER
DIGITAL EQ
FRONT 63Hz : 0 d B
FRONT 250Hz : 0 d B
FRONT 1kHz : 0 d B
FRONT 4kHz : 0 d B
FRONT 16kHz : 0 d B
:OPERATE
to "SOUND
SOUND CONTROL
DIGITAL EQ
LEVEL ADJUST
EFFECT ADJUST
MIDNIGHT MODE: NORMAL
INPUT ATT : NORMAL
LINE DIRECT: OFF
BASS BOOST : OFF
SUBWOOFER : ON
:ENTER
LEVEL ADJUST
TEST TONE : OFF
L/R BALANCE : CENTER
CENTER LEVEL: 0 d B
REAR L LEVEL: 0 d B
REAR R LEVEL: 0 d B
SUBWFR LEVEL: 0 d B
:OPERATE
For Surround modes and Surround mode with DAP
mode:
"TEST TONE":
"L/R BALANCE":
"CENTER LEVEL": Adjust the center speaker output
"REAR L LEVEL": Adjust the left rear speaker output
"REAR R LEVEL": Adjust the right rear speaker
"SUBWFR LEVEL": Adjust the subwoofer output
For DAP mode:
"L/R BALANCE":
"CENTER LEVEL": Adjust the center speaker output
"REAR L LEVEL": Adjust the left rear speaker output
"REAR R LEVEL": Adjust the right rear speaker
"SUBWFR LEVEL": Adjust the subwoofer output
For 5 CH/4 CH Stereo mode:
"L/R BALANCE":
"CENTER LEVEL": Adjust the center speaker output
"REAR L LEVEL": Adjust the left rear speaker output
"REAR R LEVEL": Adjust the right rear speaker
"SUBWFR LEVEL": Adjust the subwoofer output
For 3D-PHONIC mode:
"L/R BALANCE":
"CENTER LEVEL": Adjust the center speaker output
"SUBWFR LEVEL": Adjust the subwoofer output
For SURR. OFF (DSP OFF):
"L/R BALANCE":
"SUBWFR LEVEL": Adjust the subwoofer output
Notes:
You cannot select "CENTER LEVEL" when "CTR SPK" is set
*
to "NONE" (see page 29).
You cannot select both "REAR L LEVEL" and "REAR R
**
LEVEL" when "REAR SPK" is set to "NONE" (see page 29).
*** You cannot select "SUBWFR LEVEL" when "SUBWFR" is set
to "NO" (see page 28).
**** You cannot select "CENTER LEVEL" when 4 CH Stereo
mode is selected.
6. Press EXIT once.
Output a test tone.
Adjust the right and left balance
of the front speakers.
level. *
level. **
output level. **
level. ***
Adjust the right and left balance
of the front speakers.
level. *
level. **
output level. **
level. ***
Adjust the right and left balance
of the front speakers.
level. ****
level. **
output level. **
level. ***
Adjust the right and left balance
of the front speakers.
level. *
level.***
Adjust the right and left balance
of the front speakers.
level.***
