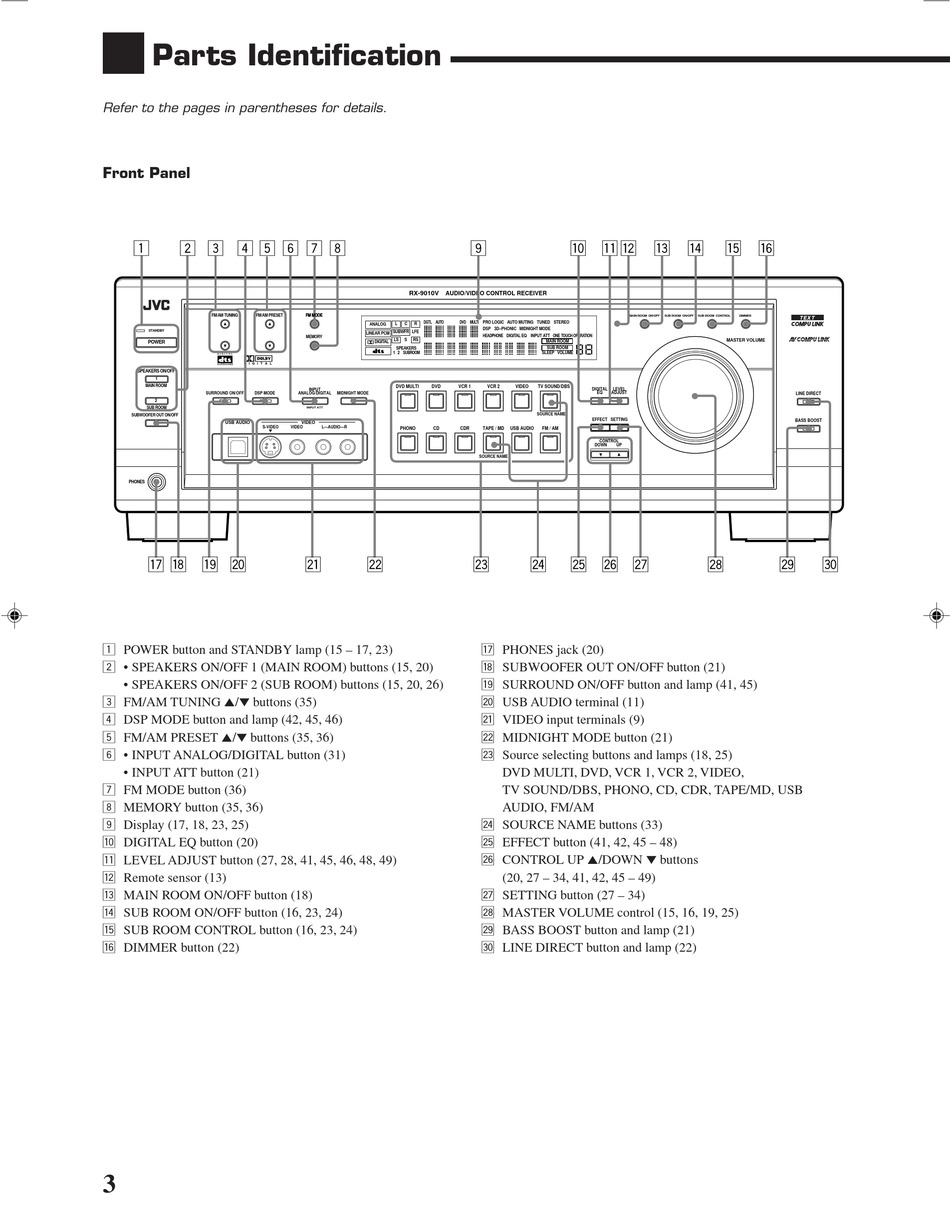

Parts Identification

Refer to the pages in parentheses for details.
Front Panel
1 2 3 4 5
FM/AM TUNING FM/AM PRESET
STANDBY
POWER
D I G I T A L
D I G I T A L
S U R R O U N D
SPEAKERS ON/OFF
1
MAIN ROOM
SURROUND ON/OFF DSP MODE
2
SUB ROOM
SUBWOOFER OUT ON/OFF
USB AUDIO
S-VIDEO
PHONES
u i o ;
1 POWER button and STANDBY lamp (15 – 17, 23)
2 • SPEAKERS ON/OFF 1 (MAIN ROOM) buttons (15, 20)
• SPEAKERS ON/OFF 2 (SUB ROOM) buttons (15, 20, 26)
3 FM/AM TUNING 5/∞ buttons (35)
4 DSP MODE button and lamp (42, 45, 46)
5 FM/AM PRESET 5/∞ buttons (35, 36)
6 • INPUT ANALOG/DIGITAL button (31)
• INPUT ATT button (21)
7 FM MODE button (36)
8 MEMORY button (35, 36)
9 Display (17, 18, 23, 25)
p DIGITAL EQ button (20)
q LEVEL ADJUST button (27, 28, 41, 45, 46, 48, 49)
w Remote sensor (13)
e MAIN ROOM ON/OFF button (18)
r SUB ROOM ON/OFF button (16, 23, 24)
t SUB ROOM CONTROL button (16, 23, 24)
y DIMMER button (22)
3
6 7 8
RX-9010V AUDIO/VIDEO CONTROL RECEIVER
FM MODE FM MODE
DGTL AUTO
ANALOG L C R
SUBWFR LFE
LINEAR PCM
MEMORY
LS S RS
DIGITAL
SPEAKERS
1 2 SUBROOM
DVD MULTI DVD
INPUT
ANALOG/DIGITAL MIDNIGHT MODE
INPUT ATT
VIDEO
VIDEO
L—AUDIO—R
PHONO CD
a s
9 p q w
DVD MULTI PRO LOGIC AUTO MUTING TUNED STEREO
DSP 3D–PHONIC MIDNIGHT MODE
HEADPHONE DIGITAL EQ INPUT ATT ONE TOUCH OPERATION
MAIN ROOM
SUB ROOM
SLEEP VOLUME
VCR 1 VCR 2 VIDEO TV SOUND/DBS
DIGITAL LEVEL
EQ ADJUST
SOURCE NAME
EFFECT SETTING
CDR TAPE / MD USB AUDIO FM / AM
CONTROL
DOWN UP
SOURCE NAME
d f g h
u PHONES jack (20)
i SUBWOOFER OUT ON/OFF button (21)
o SURROUND ON/OFF button and lamp (41, 45)
; USB AUDIO terminal (11)
a VIDEO input terminals (9)
s MIDNIGHT MODE button (21)
d Source selecting buttons and lamps (18, 25)
DVD MULTI, DVD, VCR 1, VCR 2, VIDEO,
TV SOUND/DBS, PHONO, CD, CDR, TAPE/MD, USB
AUDIO, FM/AM
f SOURCE NAME buttons (33)
g EFFECT button (41, 42, 45 – 48)
h CONTROL UP 5/DOWN ∞ buttons
(20, 27 – 34, 41, 42, 45 – 49)
j SETTING button (27 – 34)
k MASTER VOLUME control (15, 16, 19, 25)
l BASS BOOST button and lamp (21)
/ LINE DIRECT button and lamp (22)
e r t y
MAIN ROOM ON/OFF SUB ROOM ON/OFF SUB ROOM CONTROL DIMMER
MASTER VOLUME
j k l
LINE DIRECT
BASS BOOST
/
