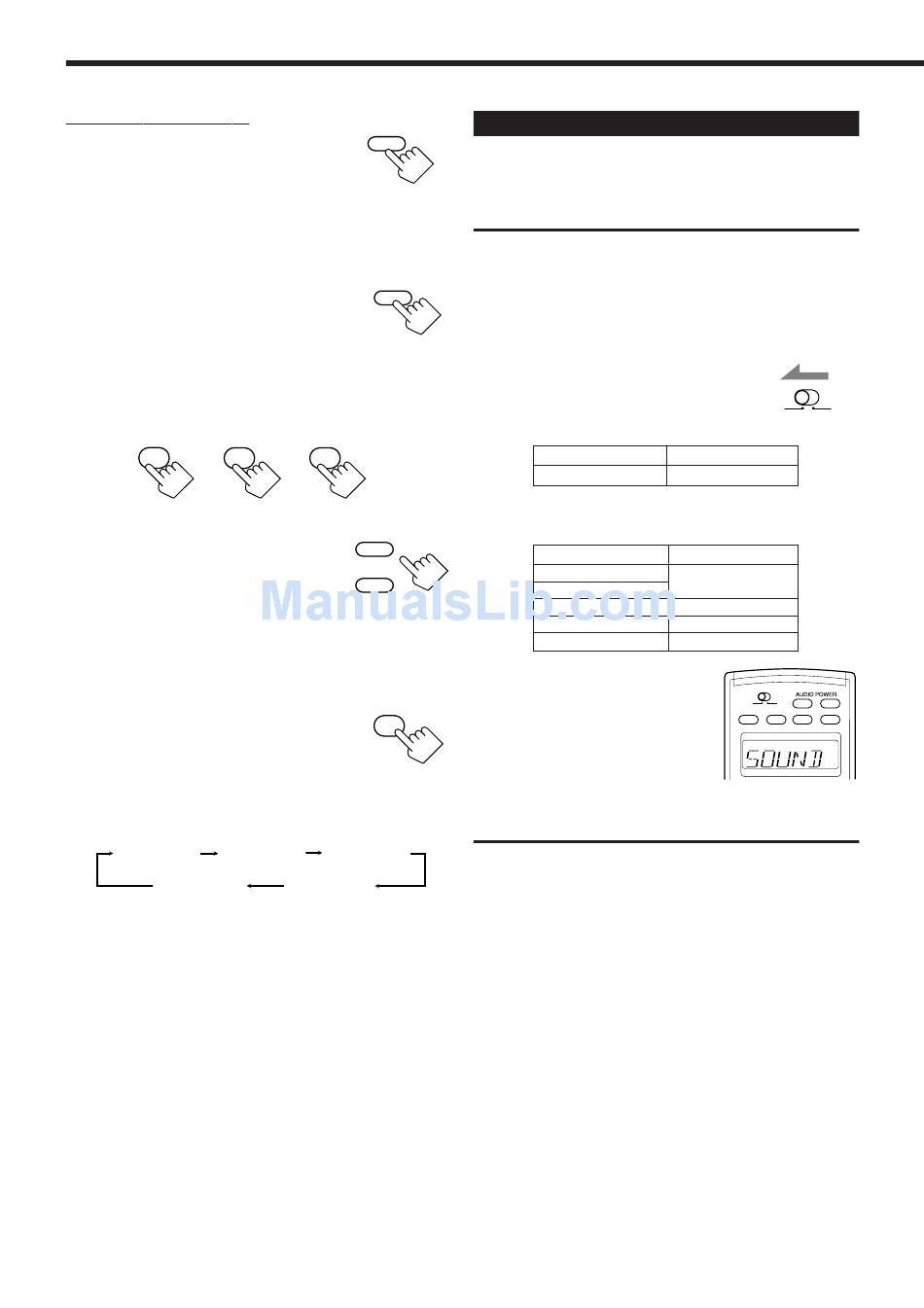

From the remote control:
1. Press DSP MODE repeatedly until
"5CH STEREO*" appears on the
display.
The DSP MODE lamp on the front panel button lights up, and
the DSP indicator also lights up on the display.
* "4CH STEREO" appears on the display when you have set
"CTR SPK" to "NONE." (See page 29.)
2. Press SOUND.
The 10 keys are activated for sound adjustments.
3. Select the speaker you want to adjust.
• To select the center speaker level, press CENTER (for 5CH
STEREO only).
• To select the left rear speaker level, press REAR•L.
• To select the right rear speaker level, press REAR•R.
CENTER
REAR·L
4 7
/P
4. Press LEVEL + or LEVEL – to
adjust the speaker output levels (
–10 dB to +10 dB).
• Each time you press the button, the
indication corresponding to the button
selected in step 3 appears on the display window on the
remote control.
5. Repeat steps 3 and 4 to adjust the other speaker
output levels.
6. Press CENTER TONE to select the
center tone level you want (for 5CH
STEREO only).
• The center tone adjustment affects the mid-frequency
range, which the human voice is mostly made up of.
• Each time you press the button, the display changes to show
the following:
CTR TONE 2
CTR TONE 1
(Softer)
CTR TONE 5
(Sharper)
To make the dialogue softer, select "CTR TONE 1" or "CTR
TONE 2."
To make the dialogue clearer, select "CTR TONE 4" or "CTR
TONE 5."
When "CTR TONE 3" is selected, no adjustment is applied.
47
DSP
MODE
SOUND
REAR·R
8
LEVEL+
LEVEL–
CENTER TONE
+ 10
100 +
CTR TONE 3
(Soft) (Flat)
CTR TONE 4
(Sharp)

Adjusting the 3D-PHONIC Modes

Once you have adjusted the 3D-PHONIC modes, the adjustment is
memorized for each source.
IMPORTANT:
Check to see if the proper indicator(s) and information appear on the
display on the front panel before/while using the buttons and controls.
For the main room operations:
• The MAIN ROOM indicator is lit.
• The source name for the sub-room is not lit on
the display.
• When using the remote control:
– Set MAIN ROOM/SUB ROOM selector to
"MAIN ROOM."
– Check to see if the following information
appear on the display window on the remote
control.
Buttons
SOUND
After pressing SOUND, the following function are
assigned to the specific number buttons:
Buttons
EFFECT
CENTER TONE
CENTER
REAR•L
REAR•R
" " appears on the display
Ex. SOUND
window.
When you press the buttons listed above, the indication appears
for 5 – 10 seconds for your confirmation.
Before you start, remember...
• Make sure that you have set the speaker information correctly
(see page 29).
• There is a time limit in doing the following steps. If the setting is
canceled before you finish, start from step 2 again.
• You cannot adjust the center speaker output level when you have
set "CTR SPK" to "NONE" See page 29.
• To adjust the front speaker output balance and subwoofer output
level, see pages 27 and 28.
MAIN ROOM SUB ROOM
Indications
SOUND
Indications
SOUND
CTR
REARL
REARR
STANDBY ON
MAIN ROOM SUB ROOM
MAIN ROOM SUB ROOM TV/CATV/DBS VCR1
ON/OFF ON/OFF POWER POWER
MAIN ROOM SUB ROOM
