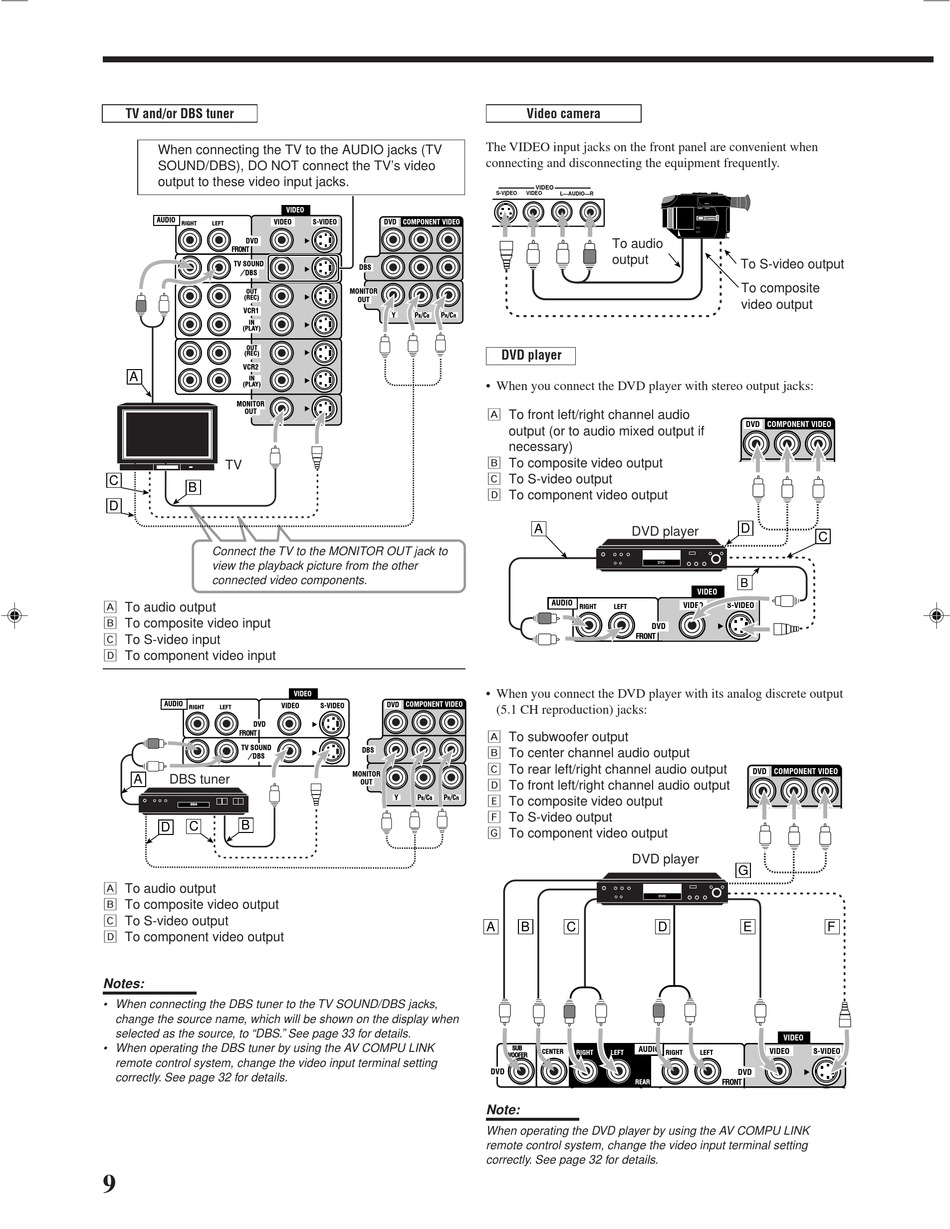

TV and/or DBS tuner
When connecting the TV to the AUDIO jacks (TV
SOUND/DBS), DO NOT connect the TV's video
output to these video input jacks.
AUDIO
RIGHT LEFT
DVD
FRONT
TV SOUND
DBS
OUT
(REC)
VCR1
IN
(PLAY)
OUT
(REC)
VCR2
A
IN
(PLAY)
MONITOR
OUT
TV
C
B
D
Connect the TV to the MONITOR OUT jack to
view the playback picture from the other
connected video components.
Å To audio output
ı To composite video input
Ç To S-video input
Î To component video input
AUDIO
RIGHT LEFT
DVD
FRONT
TV SOUND
DBS
A DBS tuner
DBS
B
C
D
Å To audio output
ı To composite video output
Ç To S-video output
Î To component video output
Notes:
• When connecting the DBS tuner to the TV SOUND/DBS jacks,
change the source name, which will be shown on the display when
selected as the source, to "DBS." See page 33 for details.
• When operating the DBS tuner by using the AV COMPU LINK
remote control system, change the video input terminal setting
correctly. See page 32 for details.
