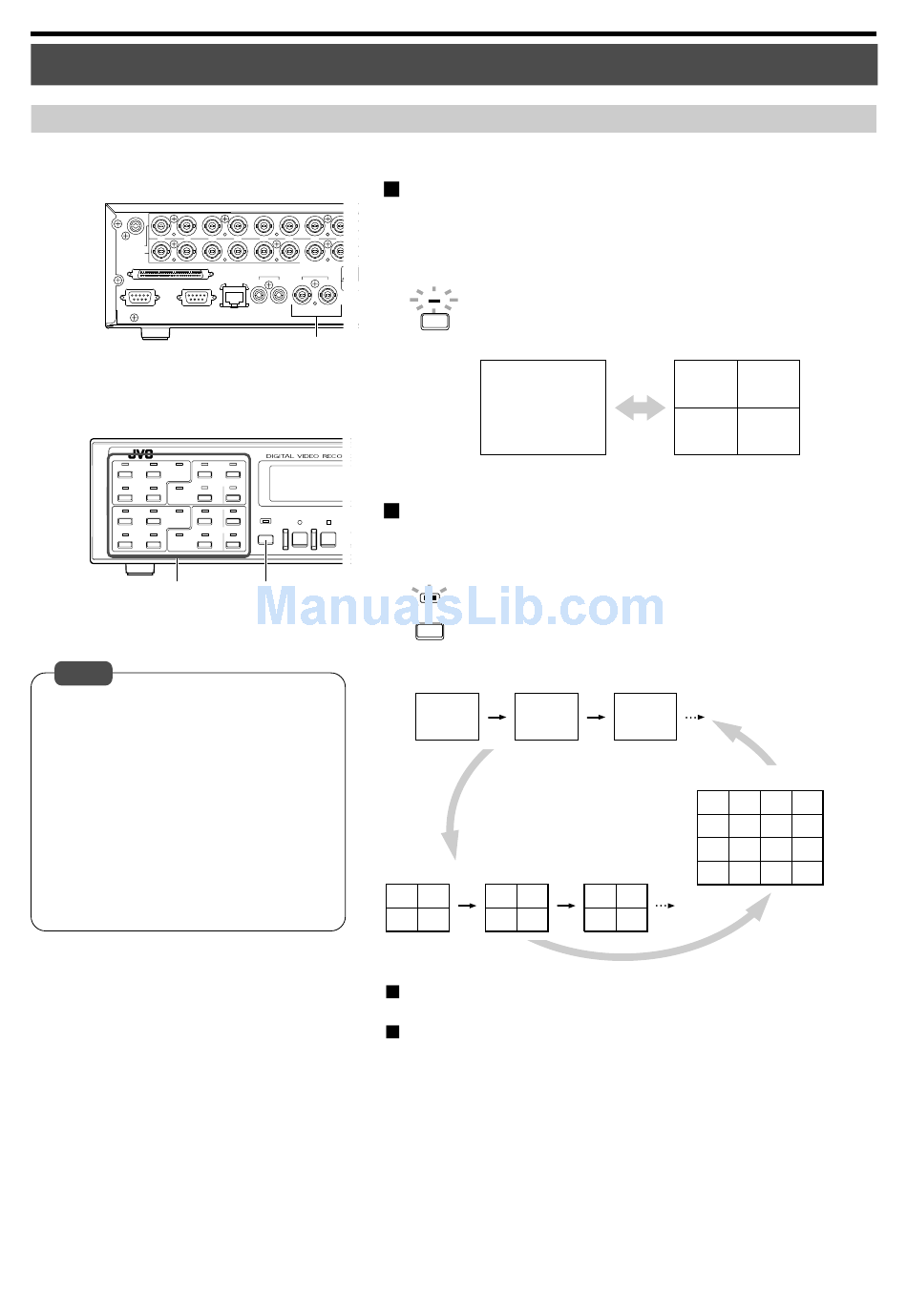

When connecting the monitor to the [VIDEO OUT] terminal

Display of live images, playback of recorded images and display of menu screens on the monitor are possible when it is connected
to the [VIDEO OUT] terminal.
AUDIO IN
1 2
VIDEO IN
THRU OUT
SCSI
RS-232C UPS
1 2 ALARM
SENSOR
3 4 ALARM
SENSOR
9 10 ALARM 13
SENSOR
11 1 ALARM 15
SENSOR
'Camera Selection'
Notes
• Camera Selection buttons can be used to se-
lect cameras only when multiple cameras are
set to "ON" among the "CAMERA 1" ~ "CAM-
ERA 4" items for each "BLOCK" (1-4) in the
"REC MODE" Menu (☞ page 24). When cam-
eras that are set to "OFF" are selected, the
monitor will output a black image. If only 1
camera is set to "ON" in each block, the moni-
tor will only display image of cameras in the
"ON" mode.
• When switching the screen using the [SE-
QUENCE MULTI] button, the display image
prior to switching will freeze for an instant.
3 4 5 6 7 8
AUDIO OUT VIDEO OUT
LAN
1 2 1 2
AVIS:RISQ
ELE
[VIDEO OUT] Terminal
5 6
7 8
14
SEQUENCE
REC STOP
MULTI
16
[SEQUENCE MULTI]
The following screen will be displayed on the
monitor upon pressing the 'Camera Selection' but-
tons:
Lights up
3
: Screen switches in the following order each time the
button is pressed.
CAMERA 3
Single Picture
The following screen will be displayed on the
monitor upon pressing the [SEQUENCE MULTI]
button:
SEQUENCE
MULTI
: Screen switches in the following order each time the
button is pressed.
Single Picture Mode (LED lights up in green)
CAMERA 1 CAMERA 2
Quad Picture Mode (LED lights up in green)
CAMERA 1 CAMERA 2 CAMERA 5 CAMERA 6
CAMERA 3 CAMERA 4 CAMERA 7 CAMERA 8
Refer to page 34 on setting the time interval for switching dis-
plays when in the Single Picture mode.
Refer to page 35 on setting the time interval for switching dis-
plays when in the Quad Picture mode.
CAMERA 1 CAMERA 2
CAMERA 3 CAMERA 4
Quad Picture
CAMERA 3
16 Split Screen Display (LED lights up in orange)
CAMERA 1 CAMERA 2 CAMERA 5 CAMERA 6
CAMERA 3 CAMERA 4
CAMERA 9 CAMERA 10 CAMERA 13 CAMERA 14
CAMERA 11 CAMERA 12 CAMERA 15 CAMERA 16
CAMERA 9 CAMERA 10
CAMERA 11 CAMERA 12
CAMERA 7 CAMERA 8
