6.20 Initial set up procedures

Once your display has been installed and commissioned,
Raymarine recommends that you perform an initial set up
procedure.

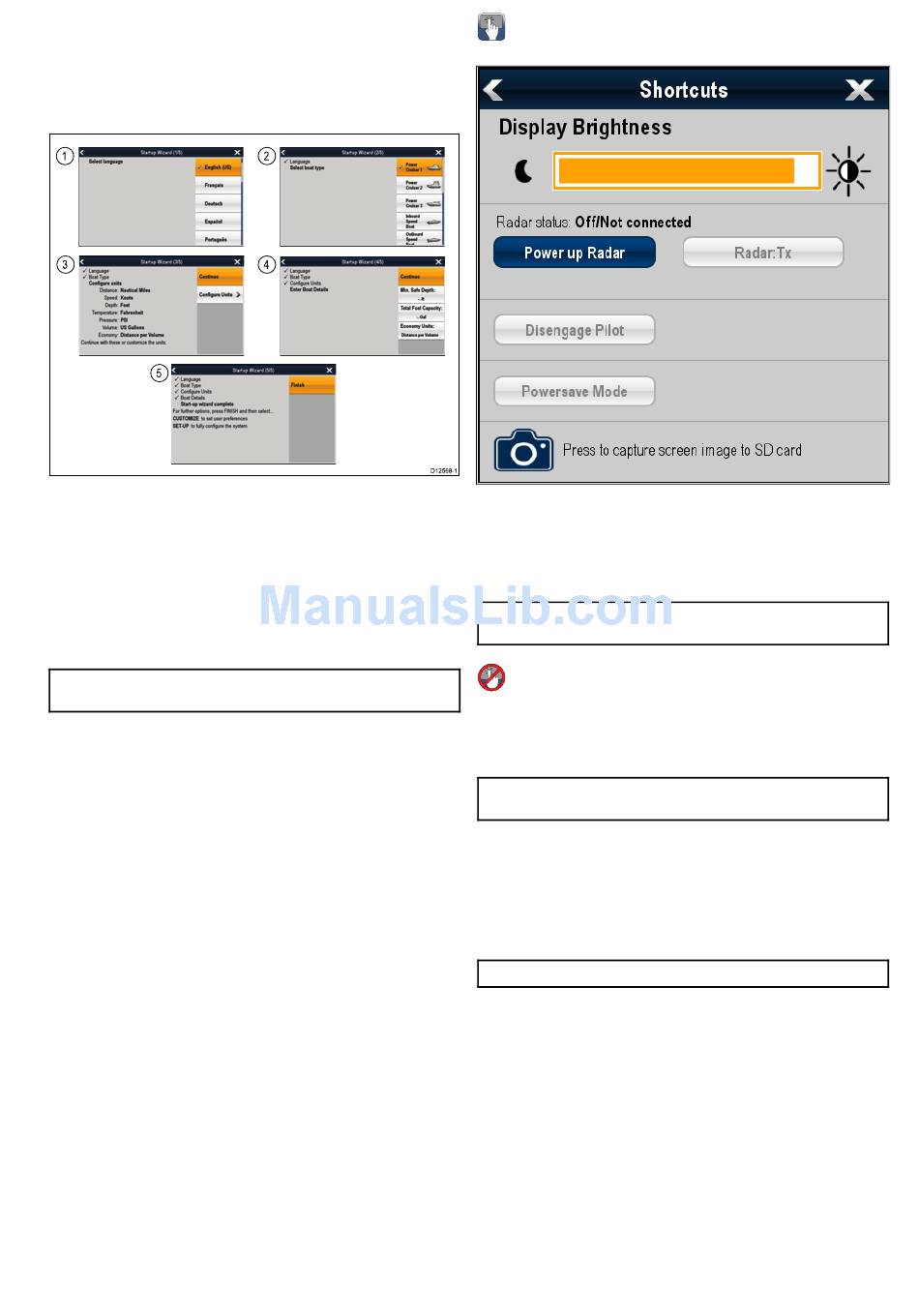

Startup wizard
1
3
5
When you power-up the display for the first time or after a
system reset a Startup Wizard is displayed. The wizard guides
you through the following initial settings:
1. Language selection
2. Vessel type selection
3. Configure units
4. Boat details (number of engines and total fuel capacity.)
5. Finish
Note: These settings can also be set at any time using the
menus accessible from Homescreen > Customize.
Additional settings
In addition to the settings covered by the Wizard, it is also
recommended that the following initial set up tasks are
completed:
• Set your date and time preferences.
• Adjust the display brightness (and set up a shared brightness
scheme if appropriate).
• Designate the data master.
• Select the GPS data source.
• Familiarize yourself with the Simulator Mode.
Setting time and date preferences
With the homescreen displayed:
1. Select Customize.
2. Select Time and Date Set-up.
3. Use the Date Format, Time Format, and Local Time: UTC
menu items to set your time and date preferences.
Getting started
2
4
D12568-1
Adjusting the display brightness — New
a Series and New e Series
1. Press the POWER button once.
The Shortcuts menu is displayed.
2. Adjust the brightness to the required level using the
on-screen brightness slider bar control, or
3. Touch the Sun icon to increase the brightness level or the
Moon icon to decrease the brightness level.
Note: The brightness level can also be increased by pressing
the Power button multiple times.
Adjusting the display brightness
1. Press the POWER button once.
The Shortcuts menu is displayed.
2. Adjust the brightness to the required level using the Rotary
control.
Note: The brightness level can also be increased by pressing
the Power button multiple times.
Touchscreen alignment
If the touchscreen is misaligned to your touch, you can realign it
to improve the accuracy.
Realignment involves a simple exercise to align an on-screen
object with your touch. For best results, perform this exercise
when your vessel is anchored or moored.
Note: This only applies to touchscreen multifunction displays.
Aligning the touchscreen
With the homescreen displayed:
1. Select Set-up.
2. Select Maintenance.
3. Select Touchscreen Alignment.
4. Place your finger over the on-screen object momentarily,
then remove it.
5. Repeat the action a further 3 times.
6. If the operation was successful, an "Alignment Completed"
message is displayed.
7. Select Exit to return to the Maintenance menu.
8. If the operation was unsuccessful at any point during the
alignment exercise, an "Incorrect touch detected" message is
displayed, the alignment exercise is repeated.
9. After 2 failed alignment exercises you may be asked to
perform a precision alignment exercise.
