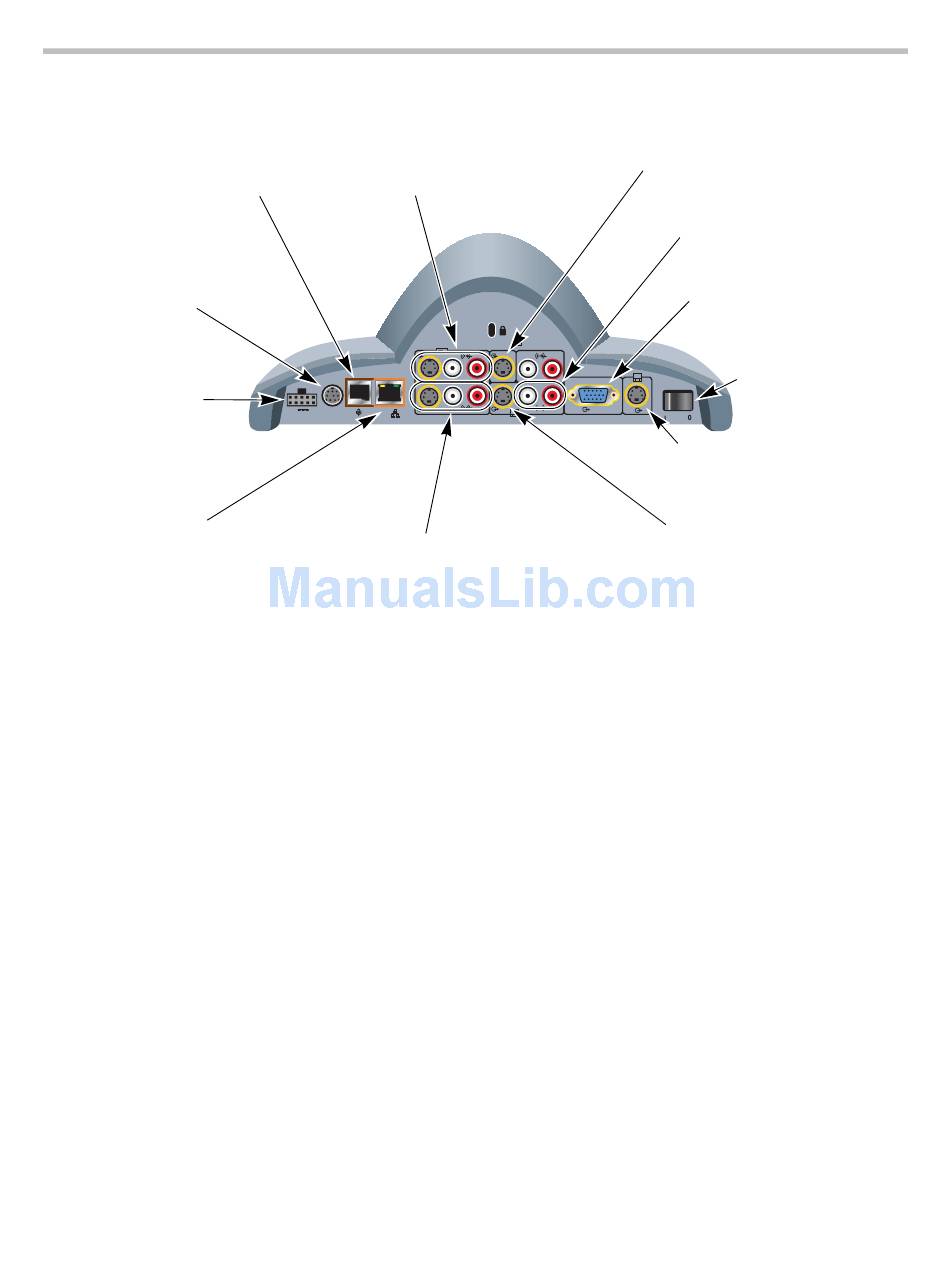

VSX 7000s Back Panel

Conference link
For Polycom microphone,
SoundStation VTX 1000, or
Visual Concert VSX
RS-232 serial port
For touch panel, second
camera control, or other
RS-232 device
Power connector
For subwoofer
(houses power
supply and optional
network interface
module)
LAN port
For IP or SIP calls,
People+Content IP,
and VSX Web
VCR/DVD input to system
For VCR/DVD to play content
into calls
101010
24V 3A
LAN
VCR/DVD output from system
For VCR/DVD to record calls
Setting Up Your System Hardware
S-Video input to system
For additional camera
Audio output from system
For external speaker system
2
2
VGA
1
S-Video output from system
For second S-Video monitor
S-Video output from system
For main monitor
VGA output from system
For VGA monitor
or projector
Power switch
2 - 5
