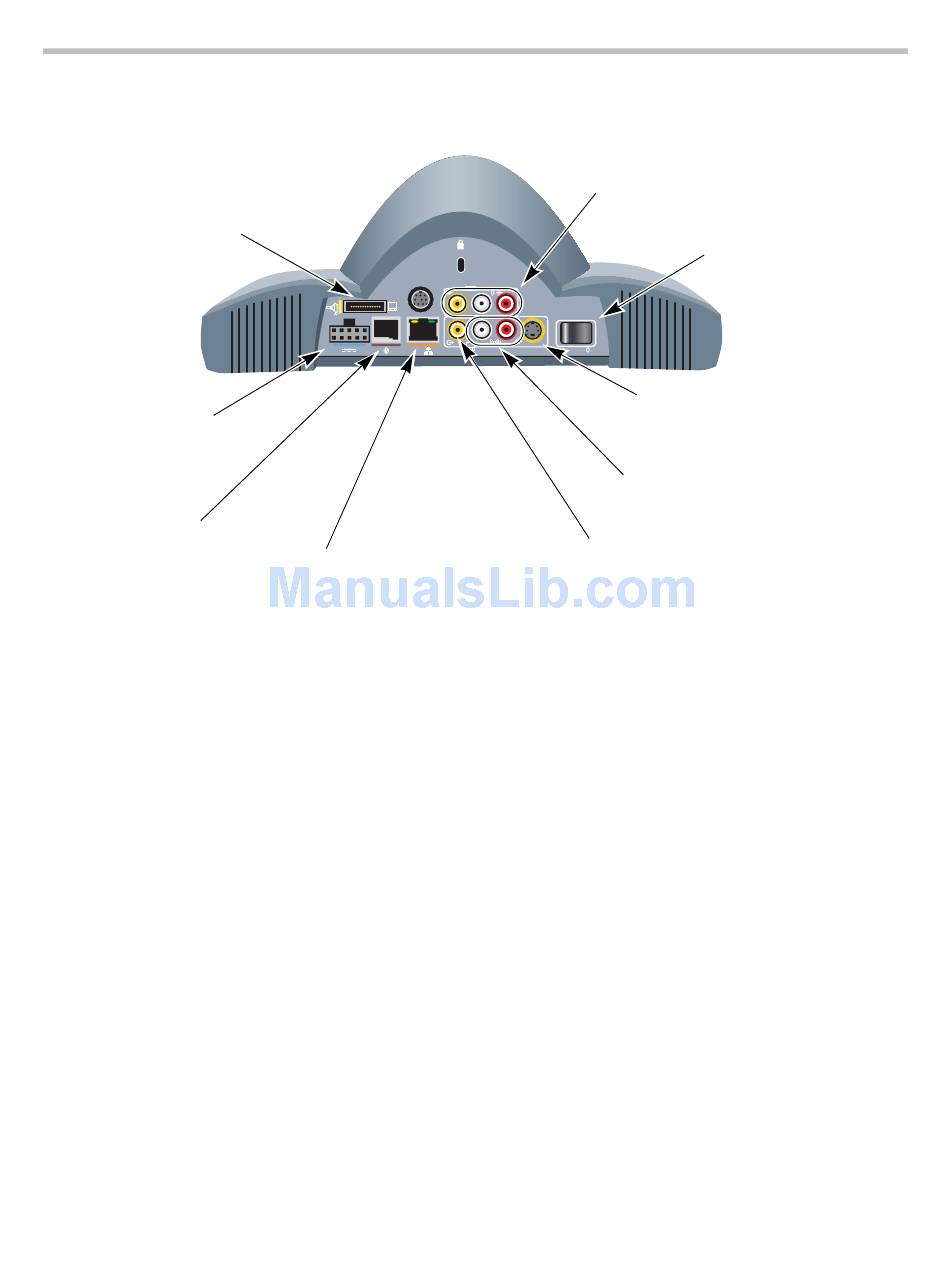

VSX 6000 Back Panel

Additional display connector
For additional display adapter to
connect a monitor or projector
Power connector
For power supply
Conference link
For Polycom microphone,
SoundStation VTX 1000, or
Visual Concert VSX
0101
VGA
2
3
LAN
LAN port
For IP or SIP calls,
People+Content IP,
and VSX Web
VCR/DVD input to system
For VCR/DVD to play
content into calls
1
S-Video output from system
For main monitor
Audio output from system
For VCR/DVD to record call
audio, or for external speaker
system
Composite video output
from system
For VCR/DVD to record
call video, or for
composite TV monitor
Setting Up Your System Hardware
Power switch
2 - 3
