Vsx 5000 Back Panel - Polycom VSX 3000 Administrator's Manual

Administrator's Guide for the VSX Series

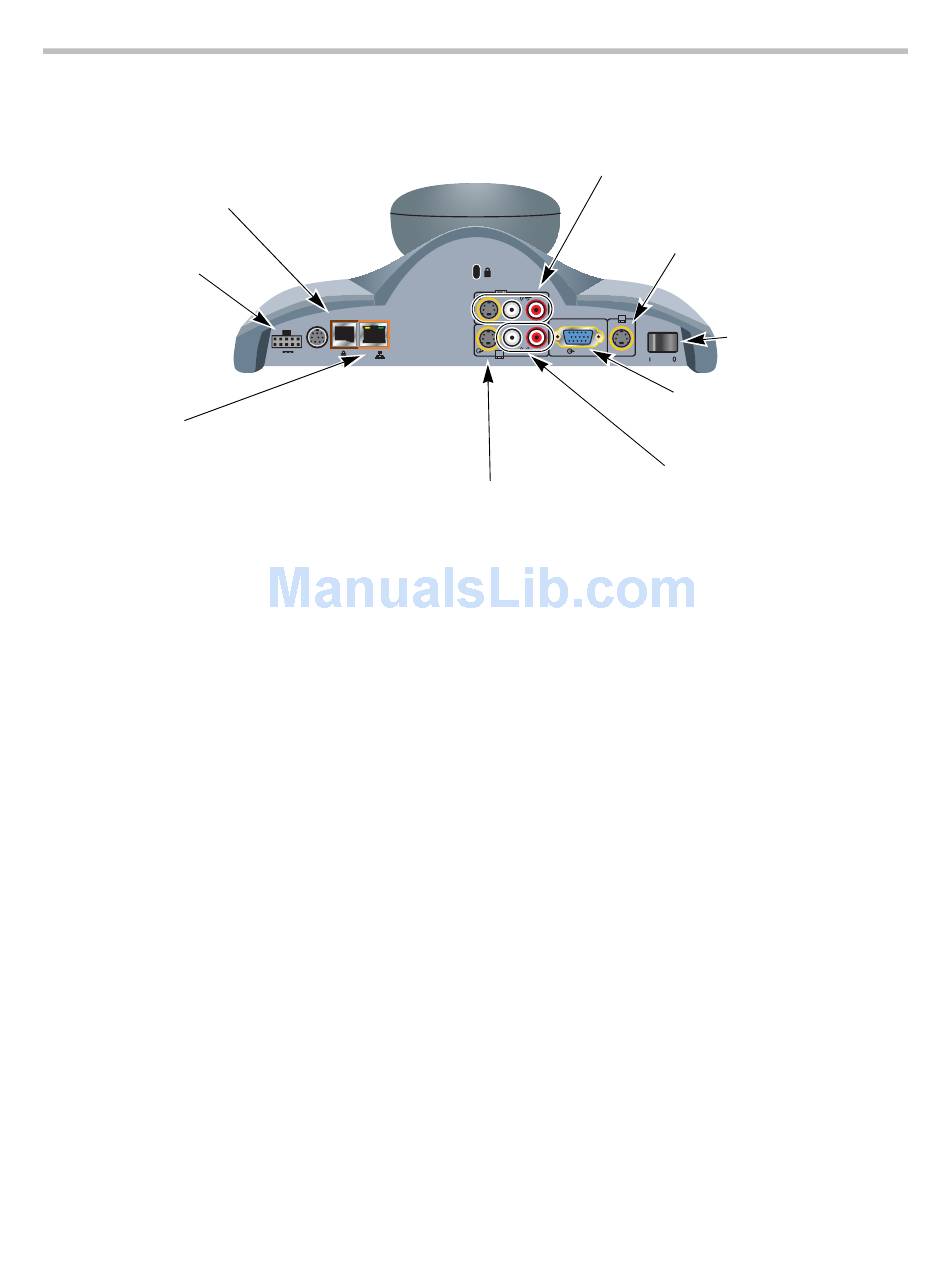

VSX 5000 Back Panel

Conference link
For Polycom microphone,
SoundStation VTX 1000, or
Visual Concert VSX
Power connector
For power supply
LAN port
For IP or SIP calls,
People+Content IP,
and VSX Web
2 - 2
101010
24V 3A
LAN
S-Video output
from system
For main monitor
VCR/DVD input to system
For VCR/DVD to play
content into calls
2
VGA
1
Audio output from system
For main monitor audio, or
for external speaker system
S-Video output from system
For second S-Video monitor
Power switch
VGA output from system
For VGA monitor or projector
