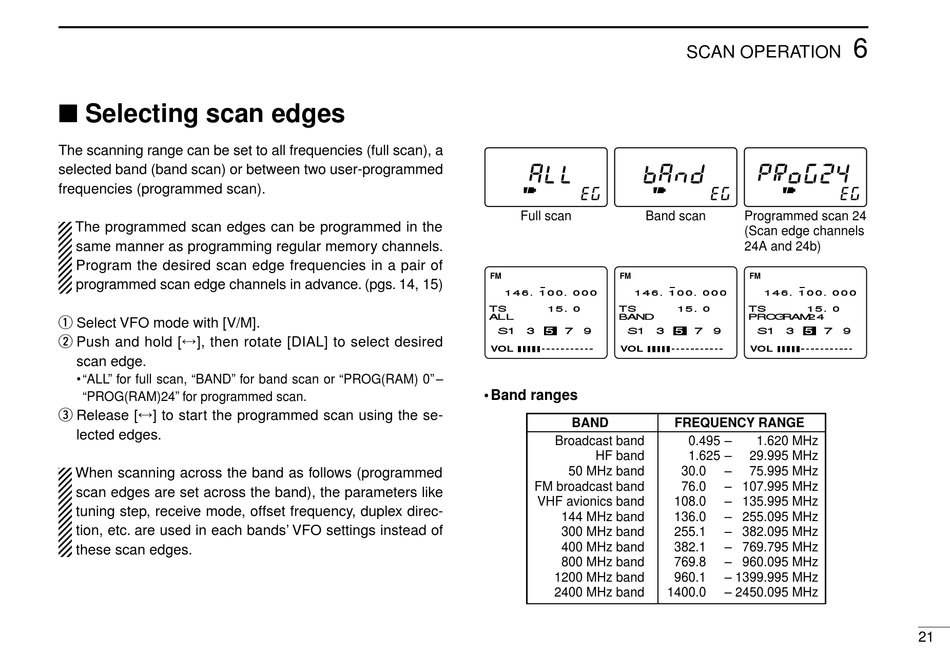

Selecting scan edges

The scanning range can be set to all frequencies (full scan), a
selected band (band scan) or between two user-programmed
frequencies (programmed scan).
The programmed scan edges can be programmed in the
same manner as programming regular memory channels.
Program the desired scan edge frequencies in a pair of
programmed scan edge channels in advance. (pgs. 14, 15)
q Select VFO mode with [V/M].
w Push and hold [↔], then rotate [DIAL] to select desired
scan edge.
• "ALL" for full scan, "BAND" for band scan or "PROG(RAM) 0" –
"PROG(RAM)24" for programmed scan.
e Release [↔] to start the programmed scan using the se-
lected edges.
When scanning across the band as follows (programmed
scan edges are set across the band), the parameters like
tuning step, receive mode, offset frequency, duplex direc-
tion, etc. are used in each bands' VFO settings instead of
these scan edges.
Full scan Band scan
FM FM
146.100.000 146.100.000
TS 15.0 TS
ALL BAND
S1 3 5 7 9 S1 3
VOL VOL
• Band ranges
BAND
Broadcast band
HF band
50 MHz band
FM broadcast band
VHF avionics band
144 MHz band
300 MHz band
400 MHz band
800 MHz band
1200 MHz band
2400 MHz band
SCAN OPERATION
Programmed scan 24
(Scan edge channels
24A and 24b)
FM
146.100.000
15.0 TS 15.0
PROGRAM24
5 7 9 S1 3 5 7 9
VOL
FREQUENCY RANGE
0.495 – 1.620 MHz
1.625 – 29.995 MHz
30.0 – 75.995 MHz
76.0 – 107.995 MHz
108.0 – 135.995 MHz
136.0 – 255.095 MHz
255.1 – 382.095 MHz
382.1 – 769.795 MHz
769.8 – 960.095 MHz
960.1 – 1399.995 MHz
1400.0 – 2450.095 MHz
