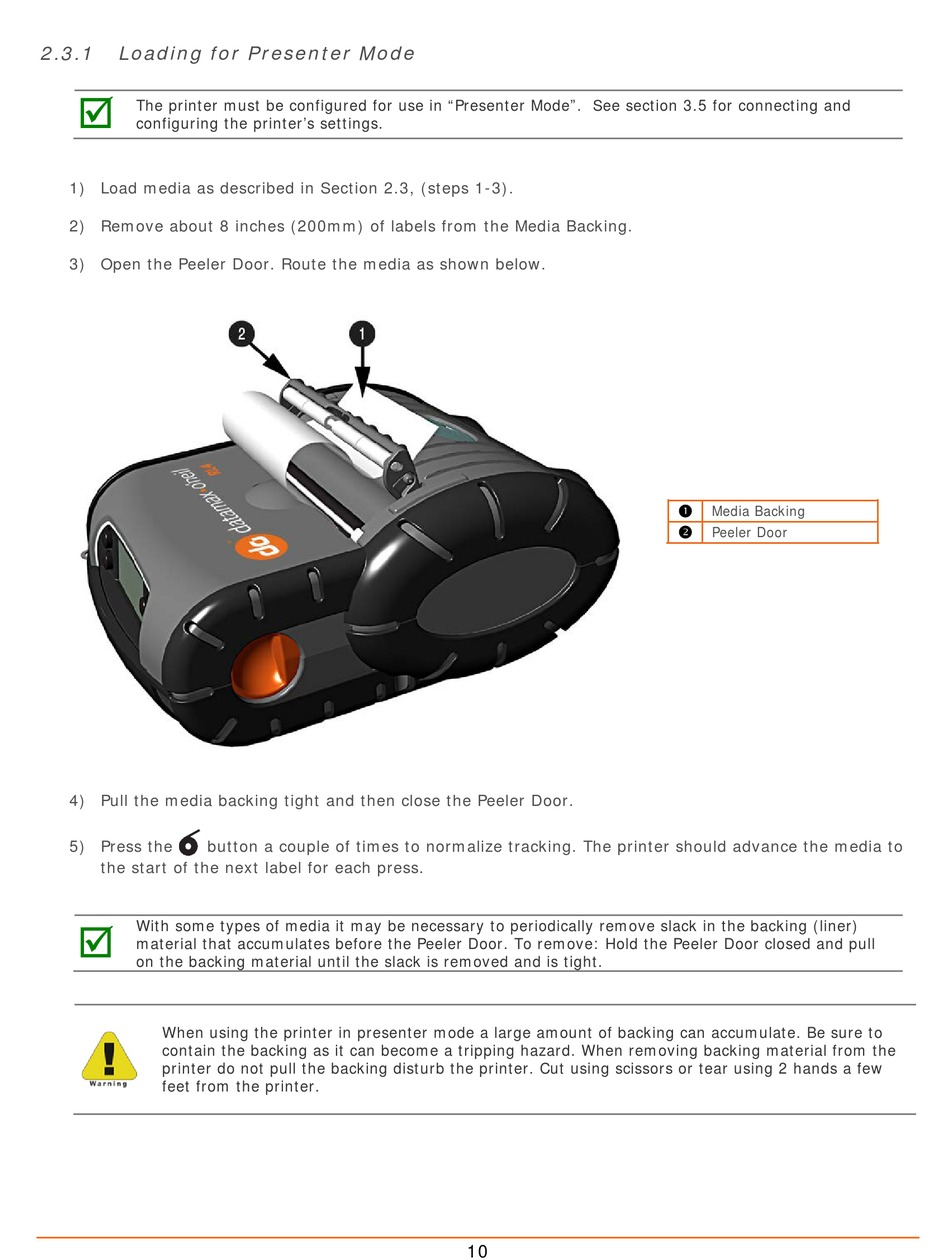

2.3.1
Loading for Presenter Mode
The printer must be configured for use in "Presenter Mode". See section 3.5 for connecting and
configuring the printer's settings.
1) Load media as described in Section 2.3, (steps 1-3).
2) Remove about 8 inches (200mm) of labels from the Media Backing.
3) Open the Peeler Door. Route the media as shown below.
4) Pull the media backing tight and then close the Peeler Door.
5) Press the
button a couple of times to normalize tracking. The printer should advance the media to
the start of the next label for each press.
With some types of media it may be necessary to periodically remove slack in the backing (liner)
material that accumulates before the Peeler Door. To remove: Hold the Peeler Door closed and pull
on the backing material until the slack is removed and is tight.
When using the printer in presenter mode a large amount of backing can accumulate. Be sure to
contain the backing as it can become a tripping hazard. When removing backing material from the
printer do not pull the backing disturb the printer. Cut using scissors or tear using 2 hands a few
feet from the printer.
312
10
Media Backing
Peeler Door
