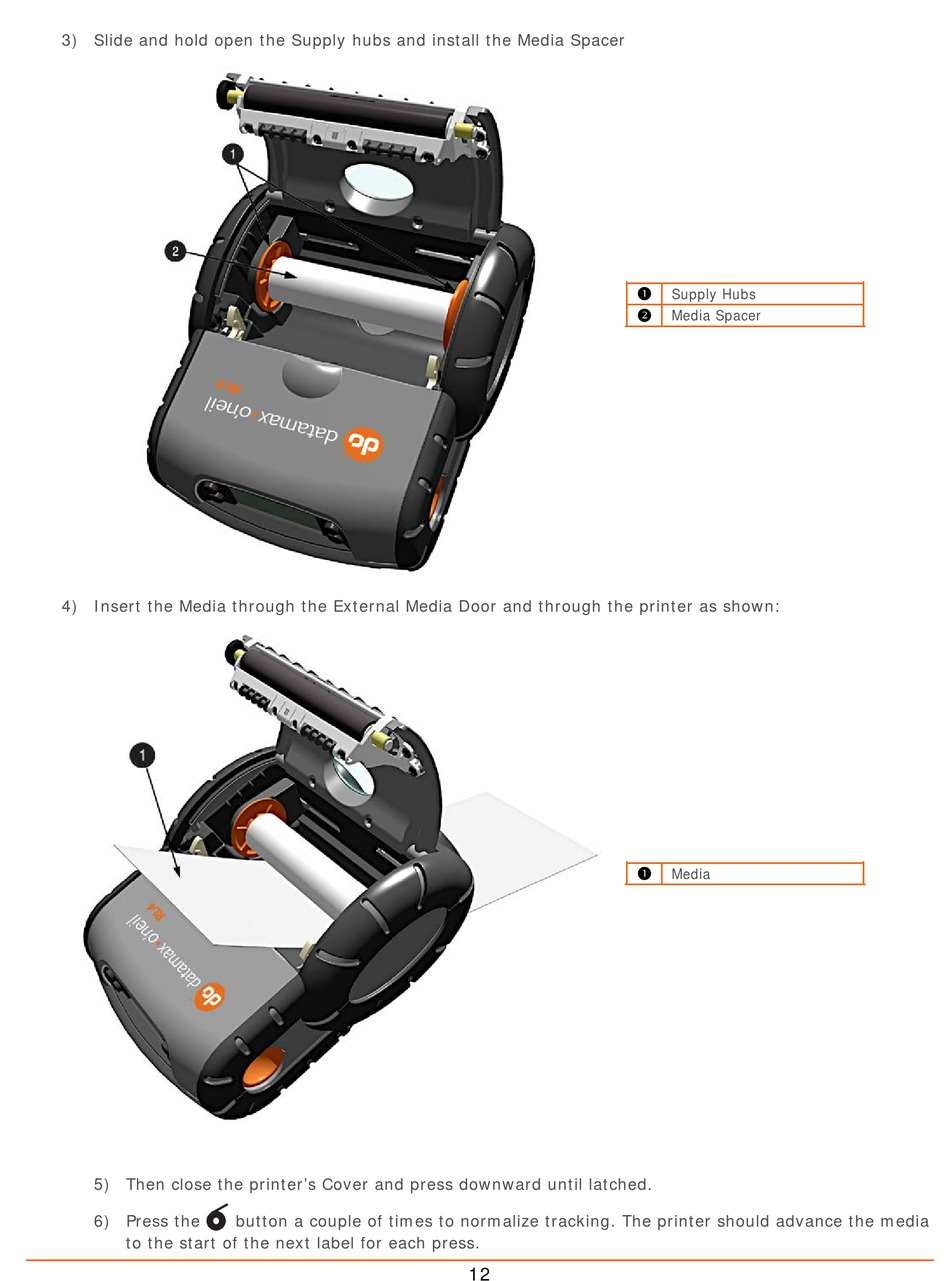

3) Slide and hold open the Supply hubs and install the Media Spacer
4) Insert the Media through the External Media Door and through the printer as shown:
5) Then close the printer's Cover and press downward until latched.
6) Press the
button a couple of times to normalize tracking. The printer should advance the media
to the start of the next label for each press.
12
Supply Hubs
Media Spacer
Media
