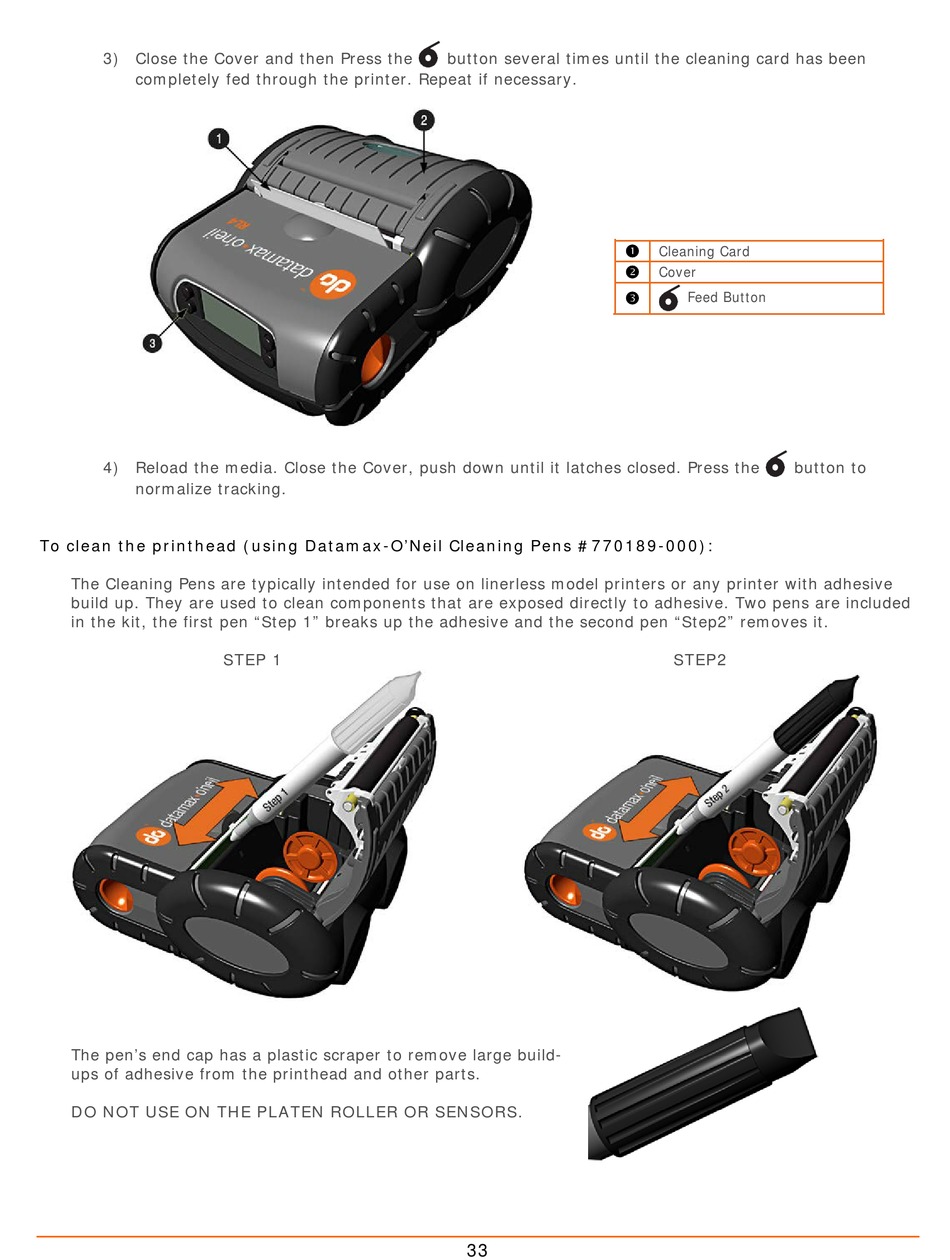

3) Close the Cover and then Press the
completely fed through the printer. Repeat if necessary.
4) Reload the media. Close the Cover, push down until it latches closed. Press the
normalize tracking.
To clean the printhead (using Datamax-O'Neil Cleaning Pens #770189-000):
The Cleaning Pens are typically intended for use on linerless model printers or any printer with adhesive
build up. They are used to clean components that are exposed directly to adhesive. Two pens are included
in the kit, the first pen "Step 1" breaks up the adhesive and the second pen "Step2" removes it.
The pen's end cap has a plastic scraper to remove large build-
ups of adhesive from the printhead and other parts.
DO NOT USE ON THE PLATEN ROLLER OR SENSORS.
STEP 1
button several times until the cleaning card has been
33
Cleaning Card
Cover
Feed Button
button to
STEP2
