GB312 Applications Manual
Note: For high temperature applications add 1 cup
of mineral oil to the trap
Danger: Risk of fatal injury from poisoning.
If the trap is not filled with water or other con-
nections are left open, escaping flue gas can
place lives at risk.
• Fill the trap with water. (or mineral oil on
high temperature applications)
• Seal the trap and flue connections.
• Make sure that the washer and seal are
properly seated in the cap.
Condensate may possibly escape through
the trap vent hole.
• Be sure to run the drain pipe from the trap
so that it slopes downwards.
Danger: Risk of fatal injury from poisoning.
• The boiler's internal trap must be used,
make sure that the condensate from the
flue system drains correctly.
A condensate neutralizer is available as an
accessory. (Buderus part no. - NE0.1)
• Install the neutralizer according to the in-
stallation instructions.
• Fit the trap supplied to the condensate
pan drain outlet.
2
6
3

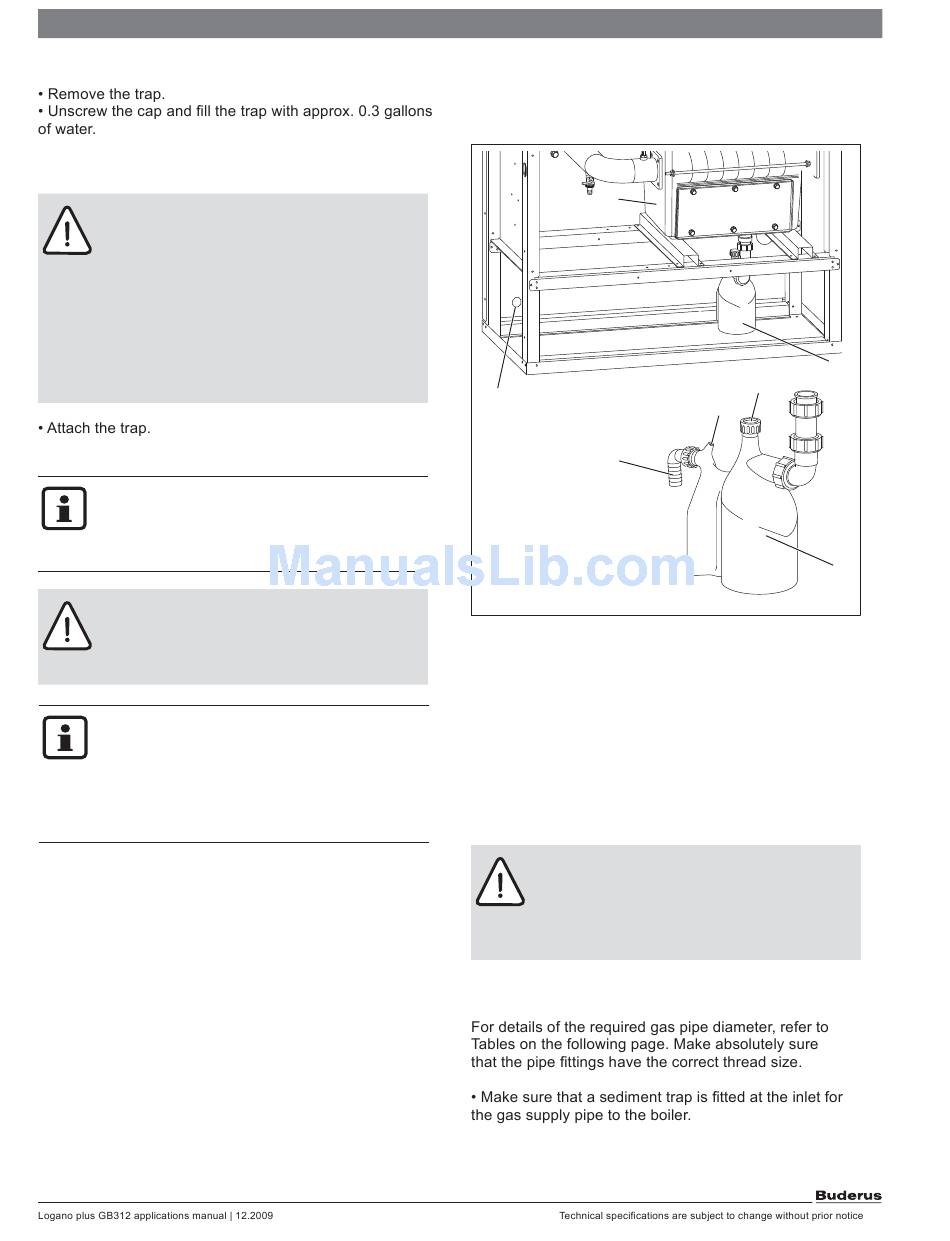

Fig. 19 Installing the condensate drain
1 Trap
2 Condensate pan
3 Trap outlet to neutralizer/waste pipe
4 Trap vent
5 Blanking cap
6 Hole for condensate drain hose

6.5 Connecting the fuel supply

Danger: Risk of fatal injury from the explo-
sion of flammable gases.
• Work on gas components may only be
carried out by qualified and authorized
personnel.
6.5.1 Installing gas supply piping
_
1
5
4
1
7 747 010 720-23.1RS
