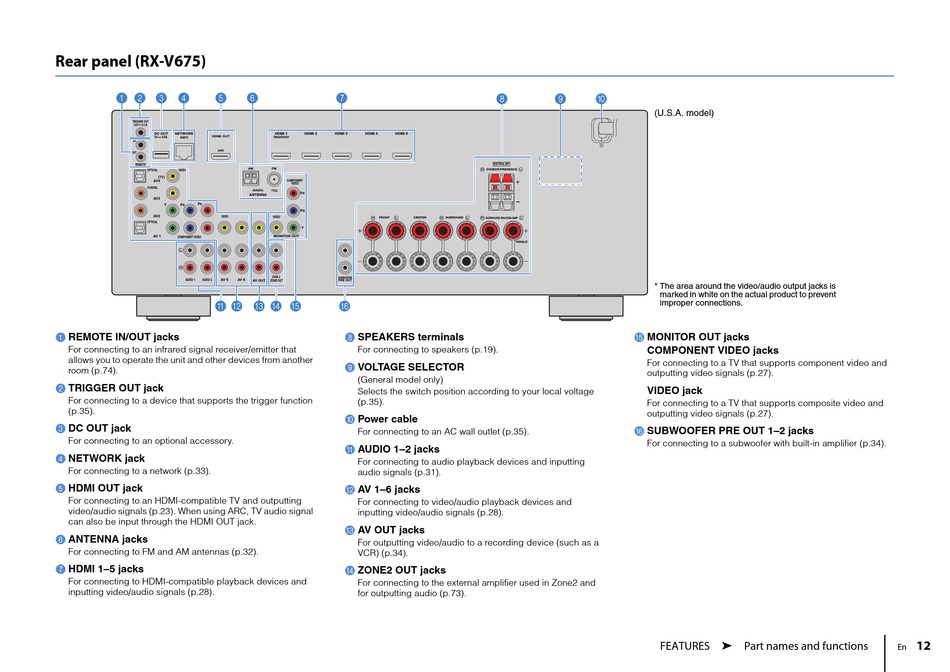

Rear panel (RX-V675)

1 2 3 4 5
TRIGGER OUT
12V 0.1A
DC OUT NETWORK
HDMI OUT
5V 0.5A (NET)
IN
ARC
OUT
REMOTE
OPTICAL VIDEO
(TV)
AV4
COAXIAL
AV3
Y P P R
B
AV2 VIDEO
OPTICAL
AV 1 COMPONENT VIDEO
AUDIO 1 AUDIO 2 AV 5
A B
1
REMOTE IN/OUT jacks
For connecting to an infrared signal receiver/emitter that
allows you to operate the unit and other devices from another
room (p.74).
2
TRIGGER OUT jack
For connecting to a device that supports the trigger function
(p.35).
3
DC OUT jack
For connecting to an optional accessory.
4
NETWORK jack
For connecting to a network (p.33).
5
HDMI OUT jack
For connecting to an HDMI-compatible TV and outputting
video/audio signals (p.23). When using ARC, TV audio signal
can also be input through the HDMI OUT jack.
6
ANTENNA jacks
For connecting to FM and AM antennas (p.32).
7
HDMI 1–5 jacks
For connecting to HDMI-compatible playback devices and
inputting video/audio signals (p.28).
6 7
HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5
(BD/DVD)
AM FM
COMPONENT
VIDEO
(RADIO)
P R
ANTENNA
P
B
VIDEO FRONT CENTER
Y
MONITOR OUT
ZONE 2
SUBWOOFER
AV 6
AV OUT ZONE OUT PRE OUT
C D E F
8
SPEAKERS terminals
For connecting to speakers (p.19).
9
VOLTAGE SELECTOR
(General model only)
Selects the switch position according to your local voltage
(p.35).
0
Power cable
For connecting to an AC wall outlet (p.35).
A
AUDIO 1–2 jacks
For connecting to audio playback devices and inputting
audio signals (p.31).
B
AV 1–6 jacks
For connecting to video/audio playback devices and
inputting video/audio signals (p.28).
C
AV OUT jacks
For outputting video/audio to a recording device (such as a
VCR) (p.34).
D
ZONE2 OUT jacks
For connecting to the external amplifier used in Zone2 and
for outputting audio (p.73).
8 9 :
EXTRA SP
ZONE2/F.PRESENCE
SURROUND SURROUND BACK/BI-AMP
SINGLE
(U.S.A. model)
* The area around the video/audio output jacks is
marked in white on the actual product to prevent
improper connections.
E
MONITOR OUT jacks
COMPONENT VIDEO jacks
For connecting to a TV that supports component video and
outputting video signals (p.27).
VIDEO jack
For connecting to a TV that supports composite video and
outputting video signals (p.27).
F
SUBWOOFER PRE OUT 1–2 jacks
For connecting to a subwoofer with built-in amplifier (p.34).
FEATURES ➤ Part names and functions
