CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Explanation of two Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage“...
SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS All the safety and operating instructions should be read before the Appliance is operated and retained for future reference. 1. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to. 2.
TABLE OF CONTENTS PAGE INTRODUCTION & FEATURES……………………………………… SYSTEM INCLUDES………………………………………………….. CONTROLS AND FUNCTIONS Monitor …........….……………………..……... Camera ...….……………......……….……...…… INSTALLATION Camera ............……………….…..Monitor ..............………..SYSTEM OPERATION Additional camera connection……………………………………. Auto Scanning……………………………………………………… Auto & Manual Viewing Options…………………………………. Selectable Dwell Settings………………………………………… Connecting The Monitor To A VCR ……...………………..……. OPTIONAL ACCESSORIES ............

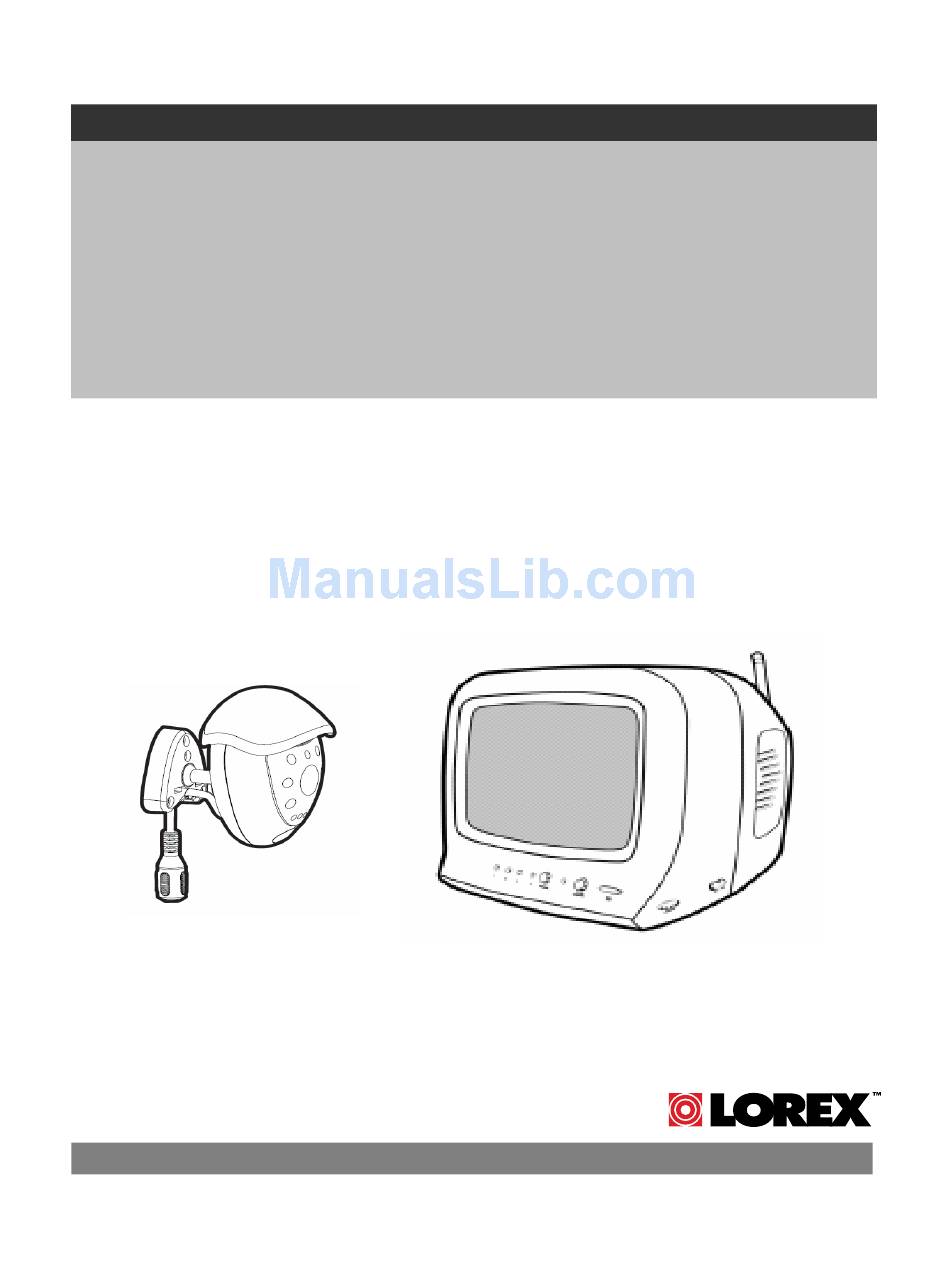

INTRODUCTION: Thank you for purchasing the 2.4 GHz Wireless B&W Video System. This is an ideal solution for monitoring your business or home, or for safeguarding your valuables. The package contains a 5.5” B&W Monitor, and 1 wireless B&W camera. The system allows you to automatically scan between locations with the convenience of connecting up to 4 cameras (additional cameras sold separately).
MONITOR CONTROLS – FRONT & BACK PANEL MONITOR FRONT VIEW MONITOR BACK VIEW 11 12 13 14 Location of Receiver Monitor controls 1. 2.4GHz Antenna - High gain dipole patch antenna receives audio and video signal from the camera. 2. CRT - 5.5” Diagonal Screen 3.
CAMERA CONTROLS Front/Side View 1. Microphone – Built-in condenser microphone provides listen-in audio capability from camera to monitor 2. Lens – B&W CMOS Image Sensor 3. 6 Infrared LED’s – Enhances the picture quality in low light conditions* 4. Channel Selector/Power Button – Selects channels 1-4. Holding this button for 3 seconds turns the Power ON/OFF (by default the camera is ON).
CAMERA INSTALLATION OPTION #1 – Permanent Wall Mount Wall Camera mounted To 9V Power Adapter 1. Attach the stand base to the wall or ceiling where you want to install the camera. Locate a wall stud or ceiling, and secure the bracket using the three supplied screws.
MONITOR INSTALLATION 13.8V 1.0 A AC Adapter DC INPUT Jack Connect the supplied 13.8V AC adapter to the DC INPUT JACK at the rear of the receiver monitor and plug it into an electrical outlet. Make sure the adapter connected to the monitor is labeled monitor. BATTERY CASE &...
OPERATION Camera (1) Connect the power adapter to the camera power input and ensure the camera is set to channel 1. You can turn the camera ON/OFF by holding the Channel button for 3 seconds. An LED light will appear illuminated when the camera is set to “ON”.
AUTO & MANUAL VIEWING OPTIONS This system is preset to Manual mode. In Auto mode, the LED light on the monitor will be ON. To manually view a specific camera location, set the Auto/Manual button to Manual. Then press the channel selector button to navigate between Channels 1-4. Set the Auto/Manual button to Auto in order to have the system automatically rotate between camera locations.
CONNECTING THE MONITOR TO A VCR FOR RECORDING Monitor RCA Cables AC Adapter Connections for recording Connect the supplied audio/video cable from the back of the monitor to the Audio/Video In of the VCR. Please Note: To record, you must select the A/V or AUX channel on your VCR. Did You Know? You have the option of connecting this system to a Time Lapse VCR.
Accessory Camera - Used to view other camera locations Compatible models: SG6110X, SG6223, WL5210X, SG6212 from Lorex / Sylvania / Home Sentinel Time Lapse VCR - Used to record key events. Available in 40 or 1280 Hour Time Lapse VCR TROUBLESHOOTING If the system does not function properly, check the following points.
TECHNICAL SPECIFICATIONS Camera Image sensor CMOS B&W Lens 3.6mm Picture Elements 320 X 240 (B&W) Scanning system 2:1 interlace Scanning frequency 15.734 KHz(H) 59.94Hz (V) Sync. system Internal Negative synchronization 240 Lines (B&W) Resolution 0 Lux @ F2.0 with IR LED’s Min.
CARE AND MAINTENANCE: Please follow these instructions to ensure proper care and maintenance of this system Keep your monitor dry. If it gets wet, wipe it dry immediately. Use and store your unit in normal temperature environment. Extreme temperatures can shorten the life of the electronic devices.
