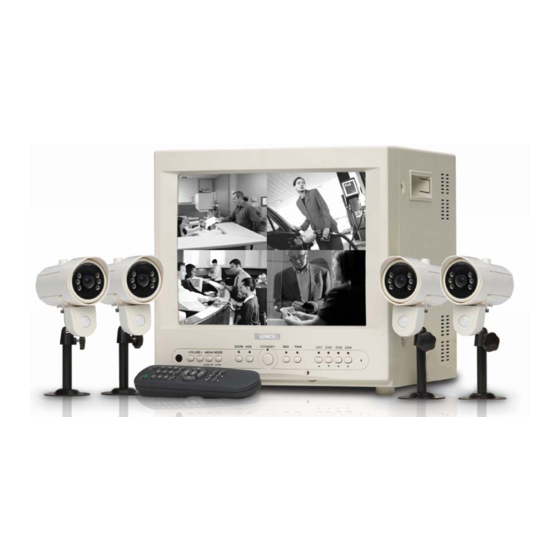

- Page 1 14” 4-CHANNEL B&W QUAD OBSERVATION SYSTEM Instruction Manual English Version1.0 MODEL: SG14Q2144C-A www.lorexcctv.com Copyright © 2006 Lorex Technology Inc...
- Page 2 System. Lorex is committed to providing our customers with a high quality, reliable security product that customers have come to expect from us. With the new Lorex Quad system, you are capable of viewing up to 4 camera locations in real time.
- Page 3 NOTE This equipment has been certified and found to comply with the limits regulated by FCC, EMC and LVD. Therefore, it is designed to provide reasonable protection against interference and will not cause interference with other appliance usage. However, it is imperative that user follows this manual's guidelines to avoid improper usage which may result in damage to the unit, electrical shock and fire hazard or injury.
-
Page 4: General Precautions
GENERAL PRECAUTIONS 1. Read Instructions - All the safety and operating instructions should be read before the product is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the product and in the operating instruction should be adhered to. 4. - Page 5 18. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 19.
-
Page 6: Table Of Contents
10. APPENDIX - A CONNECTING MONITOR TO STANDARD VCR -------------------------16 11. APPENDIX - B CONNECTING TO SLAVE MONITOR ---------------------------------------17 12. APPENDIX - C CONNECTING TO A LOREX TIME LAPSE VCR FOR ALARM REC. --------------------------------------------------------------------------------------18 13. APPENDIX - D CONNECTING TO A LOREX TIME LAPSE VCR FOR NORMAL REC. -
Page 7: Cautions & Features
CAUTIONS 1. All the warnings and instructions of this manual should be followed 2. Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents. Use water damped cloth for cleaning 3. Do not use this unit in very humid and wet places 4. -
Page 8: System Includes
SYSTEM INCLUDES 14” 4-CHANNEL B&W QUAD MONITOR WITH REMOTE CONTROL IMPORTANT NOTE the monitor, it is strongly recommended that the monitor be set to standby mode when not in use for observation. In standby mode, output to a connected time lapse VCR will continue, though no picture will be displayed on the monitor’s screen. -
Page 9: Monitor Controls - Front Panel
MONITOR CONTROLS - FRONT PANEL 1. Infra-Red Receiver – Receives signal from remote control to the monitor. 2/3. Volume – Decreases/Increases volume sound. Press “-” to decrease the sound level. Press “+” to increase the sound level. 4. Menu/Audio – This button serves three functions a. - Page 10 c. PIP/POP Feature – This monitor will allow you to view two locations simultaneously, one being the main channel, the other camera being viewed in picture in picture. To utilize this feature, proceed as follows: Press the Mode/Alrs button, the monitor will automatically switch to PIP feature, pressing this button a second time will switch to POP feature.
- Page 11 12. Channel 3 – In FULL screen mode, if picture is on Camera 3, press this button to ‘Freeze’ the picture image – the ‘F’ letter will appear on the top right hand corner. The LED light located over this button will be ON. Pressing the button a second time will Exit from the ‘Freeze’ mode. 13.
- Page 12 Display Mode - Changes location of screen display (Left/Right and On/Off options). DISPLAY ADJUST DATE / TIME : DATE TIME TYPE : YY/MM/DD LOSS POSITION: RIGHT DISPLAY : ON BOUNDARY : WHITE SELECT ↑↓← →, PUSH MENU KEY Alarm Mode - This screen allows you to change Alarm functions (Alarm ON/OFF) individually. Adjust the duration to which the alarm will occur.
-
Page 13: Monitor Controls - Back Panel
MONITOR CONTROLS - BACK PANEL 1. Power - This button controls power to the entire unit . Depress the side with the ‘•’, to turn power ON. Depress the other side to turn the unit OFF. When this switch is turned On, the screen display will always be in Quad mode. -
Page 14: Setting Menu
SETTING MENU Features of the Remote Control. For more details on specific remote control features, refer to the Monitor features FUNCTION DESCRIPTION POWER Turns Power to monitor ON/OFF MUTE Disconnect the audio from the Camera Allows the user to select individuals cameras Sets monitor to VCR Mode QUAD Sets monitor to Quad Mode... -
Page 15: Standard Wired Camera & Camera Installation
STANDARD WIRED CAMERA Camera Lens – Delivers high quality image by using a 1/4" CMOS Image Sensor PIR Sensor – Detects movement/motion Speaker – Delivers sound from the monitor to the camera Camera Outputs – Connects cable to monitor Bracket – Connects to camera for mounting to walls, ceilings or table Microphone –... -
Page 16: Monitor Connections & Trouble Shooting
MONITOR CONNECTIONS TROUBLE SHOOTING If the system does not function properly, please check the following points. PROBLEM MONITOR Too dark or bright picture NO POWER Poor picture quality Picture but no sound Shrinking picture No Picture CAMERA Picture Flickering or Over Exposed 1. -
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS MONITOR Picture Tube Horizontal resolution Camera Capable Alarm Inputs/Outputs Input Signal Power Source Power Consumption Operating Temperature Color Weight Dimensions STANDARD CAMERA Image Sensor Effective Pixels Scanning System Scanning Frequency Resolution Shutter Speed Sync. System Minimum Illumination Video Output Video Termination Lens Power Supply... -
Page 18: Optional Accessories
OPTIONAL ACCESSORIES The following accessories are available to add to your existing system. CABLE Extends viewing length from Camera to monitor. Available In 65, 100 and 250 ft lengths OBSERVATION CAMERAS Accessory PIR motion sensor observation system camera with 2 way audio TO ORDER THESE ACCESSORY ITEMS OR FOR A COMPLETE LINE OF ACCESSORIES TIME LAPSE VCR... -
Page 19: Appendix - A Connecting Monitor To Standard Vcr
APPENDIX - A CONNECTING MONITOR TO A STANDARD VCR Please see the diagram below for connecting your VCR to the Monitor. NOTE: Ensure the Standard VCR’s channel is set to A/V Mode in order to ensure reception. Consult your VCR’s Owners Manual to set the VCR to this setting. -16-... -
Page 20: Appendix - B Connecting To Slave Monitor
APPENDIX - B CONNECTING TO SLAVE MONITOR Connections to another monitor (e.g. Slave Monitor) can be made through “MONITOR OUT” as shown in the diagram below -17-... -
Page 21: Appendix - C Connecting To A Lorex Time Lapse Vcr For Alarm Rec
APPENDIX - C CONNECTING TO A LOREX TIME LAPSE VCR FOR ALARM RECORDING -18-... -
Page 22: Appendix - D Connecting To A Lorex Time Lapse Vcr For Normal Rec
APPENDIX - D LOREX TIME LAPSE VCR CONNECTING TO A FOR NORMAL RECORDING -19-... -
Page 23: Product Warranty
This warranty is in lieu of other warranties, express or implied, and Lorex neither assumes nor authorizes any person to assume for it any other obligation or liability in correction with the sale or service of the Product. In no event shall Lorex be liable for any special or consequential damages arising from the use of the Product or arising from the malfunctioning or non-functioning of the Product, or for any delay in the performance of this warranty due to any cause beyond its control. -
Page 24: Care And Maintenance
CARE AND MAINTENANCE Please follow the following instructions to ensure proper care and maintenance of this system Keep your monitor and camera dry. If it gets wet, wipe it dry immediately. Use and store your unit in normal temperature environment. Extreme temperatures can shorten the life of the electronic devices. - Page 25 It’s all on the web Product Information Specification Sheets User Manuals Software Upgrades Quick Start Guides Firmware Upgrades V I S I T www.lorexcctv.com www.lorexcctv.com Lorex Technology Inc...
