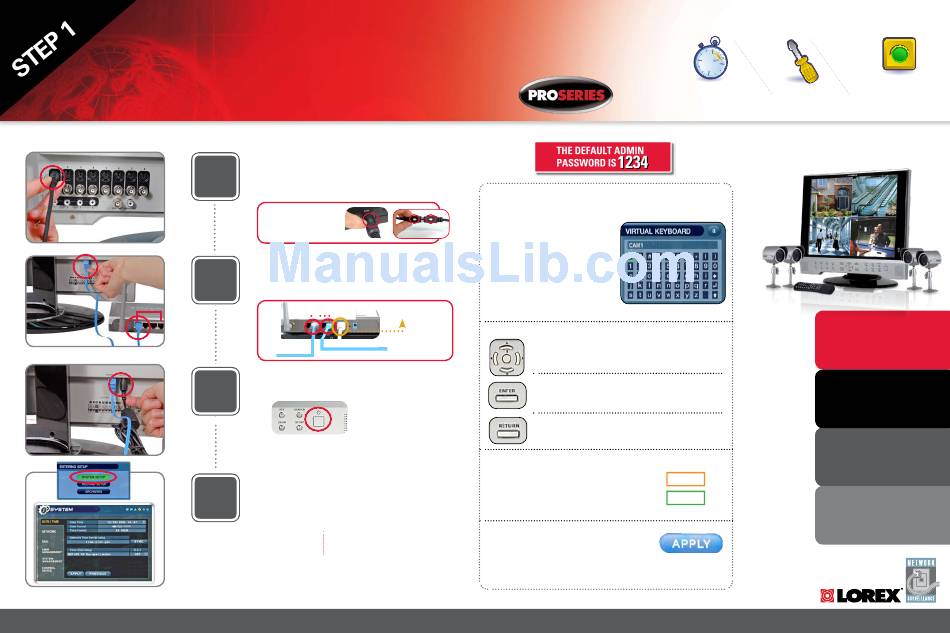

Lorex SG17LD800 Installation Manual

Set up Your Monitor FirSt
1
2
LAN PORTS
3
4
congratulations! You have completed Step 1 successfully. You can now
View, record and playback images on your Monitor.
Information in this document is subject to change without notice. As our products are subject to continuous improvement, Lorex Technology and our subsidiaries reserve the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE © 2007 LOREX. All rights reserved.
SG19LD800/SG17LD800/400 Series Quick Start Guide_R1
connect cameras to the Monitor:
Connect the first camera to the CH1 input. Follow the same steps
to connect the other cameras to the CH2, CH3, CH4 Video inputs*.
* Connect cameras to extension cables by aligning the arrows.
Plug in cameras and cables before mounting the cameras.
NOTE: The arrow mark on top
of the flat side of the camera
and cable connectors should
face UP while inserting to the
Monitor.
connect ethernet cable:
Connect one end of the ethernet cable to one of the router's (not
included) LAN PORTS and the other end to Monitor's Network Port
located at the back of the monitor. See picture below showing a
generic LAN/WAN connection.
LAN (LOCAL AREA NETWORK)
WAN (WIDE
AREA NETWORK)
BACK OF THE ROUTER
TO YOUR MONITOR
TO YOUR COMPUTER
connect power cable:
Connect one end of the Power cord to the monitor, the other end to
an electrical outlet. This unit powers ON once it is plugged in to the
power outlet.
turn on** the lcd
Monitor power
MONITOR FRONT PANEL - POWER BUTTON
** After you see all four (4) camera images on your monitor screen,
remove the protective film from camera(s) and monitor screen.
Set the time and date***:
Click the SETUP button from the front panel of the monitor (or the
remote control) to enter SYSTEM SETUP screen and press EN-
TER to go to MAIN MENU. From the MAIN MENU Scroll down to
SYSTEM and press ENTER to go to the DATE/TIME MENU. Press
ENTER while on DATE/TIME MENU to activate menu options.
MAKE SURE THAT *** Note: If the Date/Time is
THE DATE AND TIME set into the past, a message
ARE SET PRIOR TO
will appear warning that Over-
RECORDING! lapped date(s) will be erased.
Page 1
BaSic inStallation Guide
Time
SYSteM naViGation controlS:
Virtual Keyboard control:
The Virtual Keyboard control becomes
available when keyboard input (A~Z, 0~9)
is needed for entering information such as
Names, Network Information, etc.
• Navigate using the arrow keys on the
Front Panel or Remote Control.
• Use the ENTER key to choose the letters
and numbers.
• Select the APPLY button once the setup is
completed.
Monitor Menu navigation controls:
navigation controls:
Move UP/DOWN/LEFT/RIGHT
Enter Button - Press this button to select and change the values in a
menu option
Return Button - Complete modifications of a menu option; exit a
menu
active option indicator:
Orange Highlight - Indicates that the option is in active
editing mode.
Green Highlight - Indicates that the option is available for
editing. Once the option is highlighted, press the ENTER
key to edit the option (hightlight changes to Orange).
apply:
NOTE: Once changes have been made, select the APPLY
button at the bottom of the screen, and press the ENTER
button on the front panel or remote control. Changes will be
saved at this time - exiting the menu without applying the
changes will result in the changes being lost.
Hand Tools
Tools Skills - Easy
Under 10 Minutes*
Hand Tools
* Installation time may vary based
on application and camera cabling
Skill Level
easy Intermediate
Broadband Router and Com-
puters are Required (for local
and remote monitoring), not
Included.
For detailed setup information,
please refer to your User's
Manual.
For Lorex Client Software
Requirements, please refer to
page 8 of this guide.
Model numbers referenced in
this document represents the
difference in the size of the LCD
monitor being either 17 or 19"
www.lorexcctv.com
