3400, 3440, and 3600 Bar Code Label Printer User's Manual

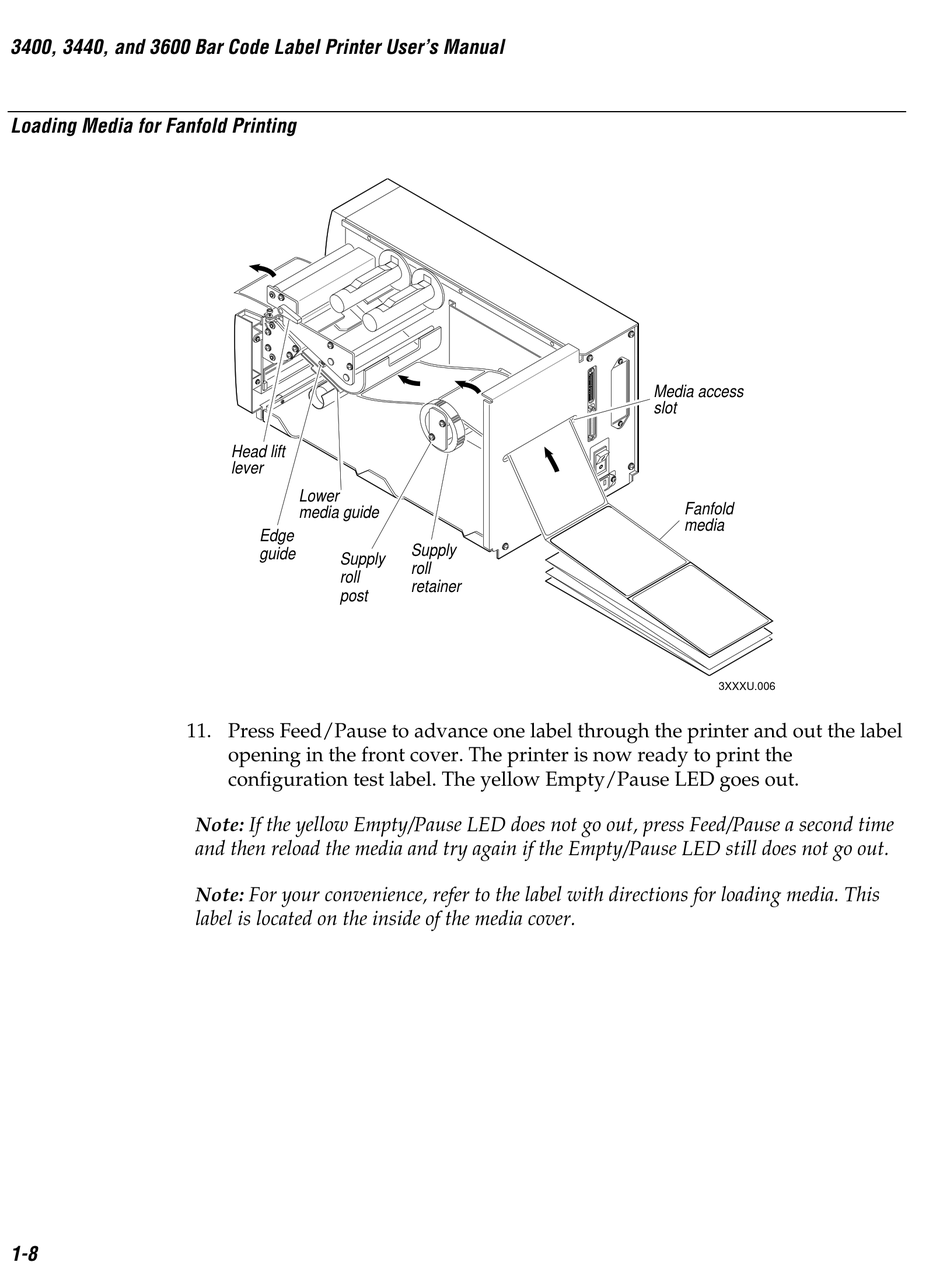

Loading Media for Fanfold Printing
11. Press Feed/Pause to advance one label through the printer and out the label
1-8
Head lift
lever
Lower
media guide
Edge
guide
Supply
roll
post
opening in the front cover. The printer is now ready to print the
configuration test label. The yellow Empty/Pause LED goes out.
Note: If the yellow Empty/Pause LED does not go out, press Feed/Pause a second time
and then reload the media and try again if the Empty/Pause LED still does not go out.
Note: For your convenience, refer to the label with directions for loading media. This
label is located on the inside of the media cover.
* * 1233*
HelvC
Supply
roll
retainer
FG 8pt Italic
Media access
slot
Fanfold
media
3XXXU.006
