3400, 3440, and 3600 Bar Code Label Printer User's Manual
1-6
3. Plug the AC power cord into the receptacle at the rear of the printer. Plug
the other end of the power cord into a grounded wall outlet or surge
protector.
4. Turn the On/Off switch to the on position. When you power on the printer,
the Power On LED lights, the Empty/Pause LED flashes, and the platen
roller advances. The yellow Empty/Pause LED then stays on steady
because you have not loaded media yet.

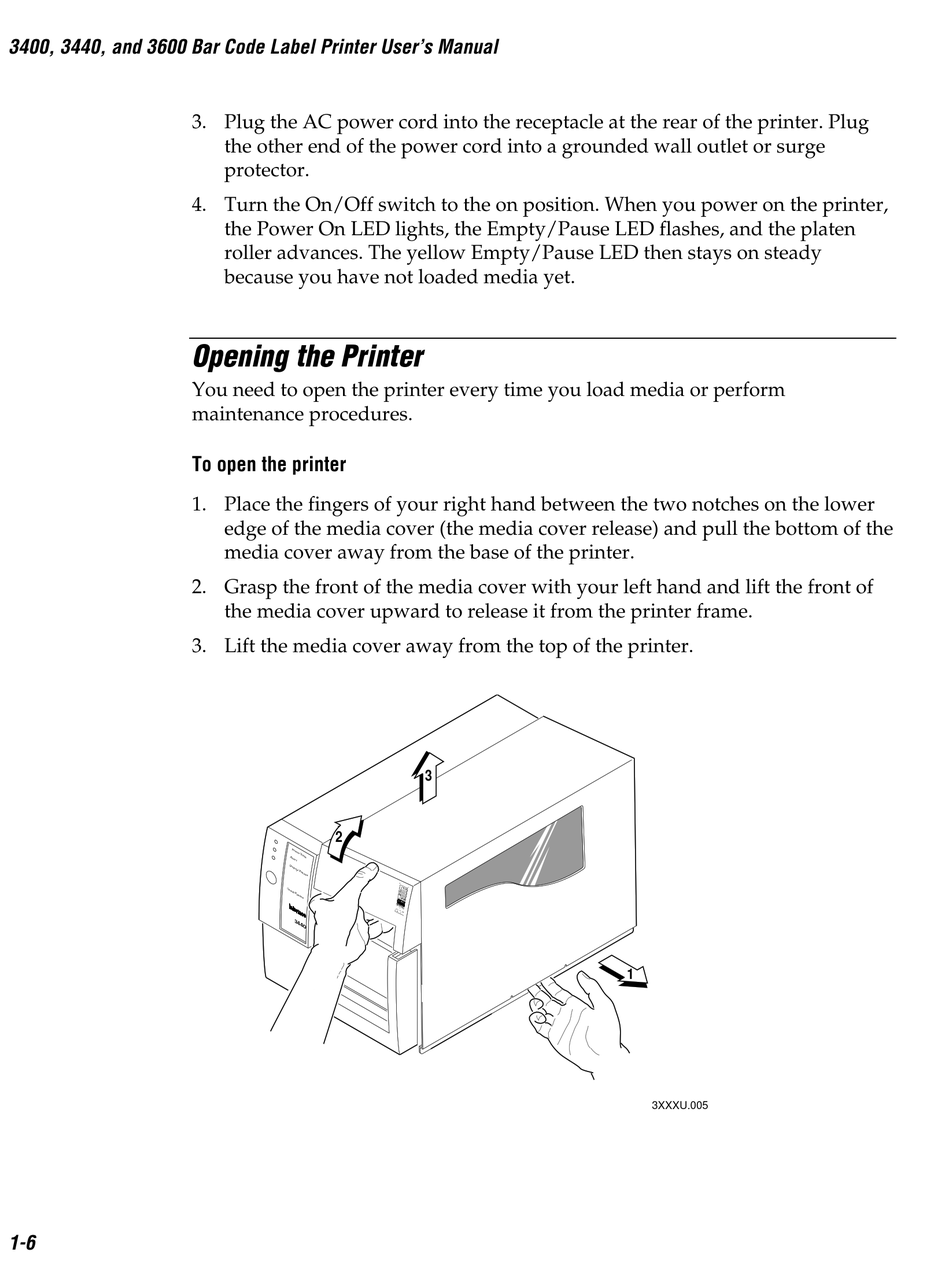

Opening the Printer

You need to open the printer every time you load media or perform
maintenance procedures.
To open the printer
1. Place the fingers of your right hand between the two notches on the lower
edge of the media cover (the media cover release) and pull the bottom of the
media cover away from the base of the printer.
2. Grasp the front of the media cover with your left hand and lift the front of
the media cover upward to release it from the printer frame.
3. Lift the media cover away from the top of the printer.
2
I n t e I n t e
r m e r m e
c c
3 4
4 0
* * 1233*
HelvC
3
FG 8pt Italic
1
3XXXU.005
