Chapter 6 Thermal Transfer Printing
Ribbon Load, cont.
7

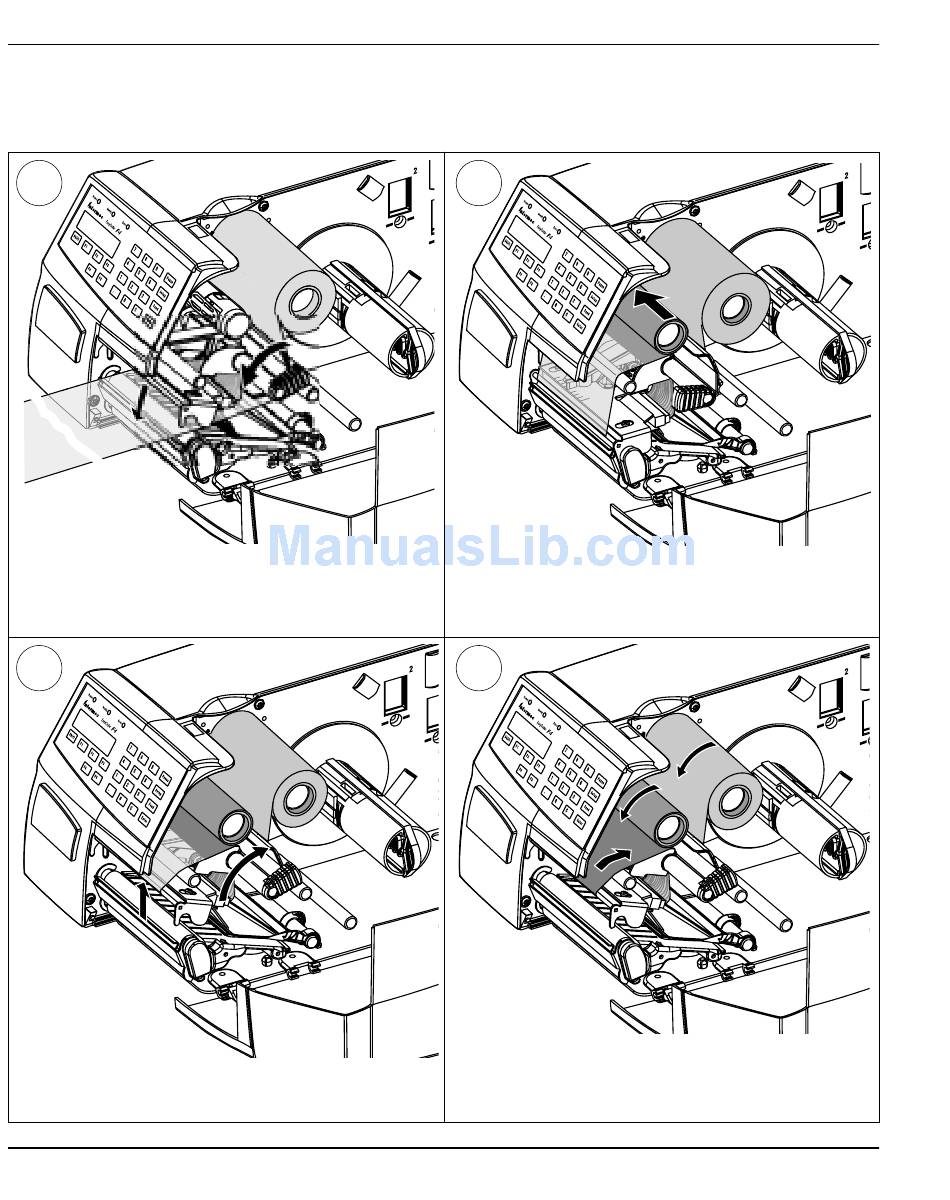

Without releasing the ribbon, turn the print-
head lift lever counterclockwise to engage the
printhead and lock the ribbon.
9
Turn the printhead lift lever clockwise to raise
the printhead and release the ribbon.
42
8
Slide the empty cardboard core onto the
ribbon rewind hub so the ribbon is wound up
when the hub rotates counterclockwise.
10
Manually advance the ribbon until all of the
transparent leader has passed the printhead
and the ribbon becomes tight.
