2.2.4 Onboard Audio

JP12 Onboard Audio
1-2 Enabled (default)
2-3 Disabled
2.2.5 KB/MS Wakeup
JP28 KB/MS Wakeup
1-2 Disabled
2-3 Enabled
2.3 Connectors

2.3.1 Power Cable

The ATX power supply uses 20-pin connector shown below. Make sure you
2-6

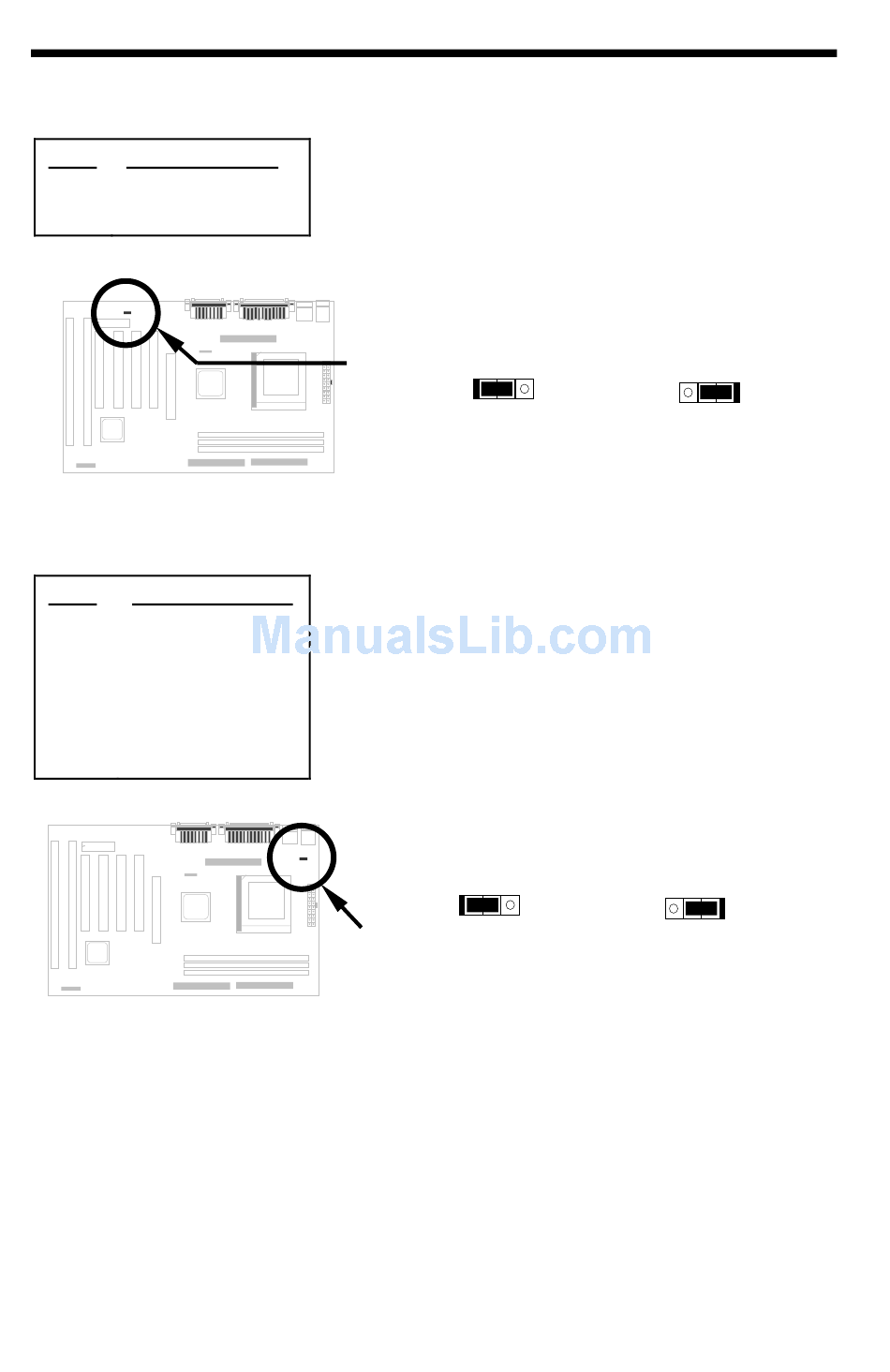

If you want to install another sound card, you have
to disable the onboard audio by setting this
jumper to Disabled.
JP12
1 2 3
Enabled (default)
This jumper is used to enable or disable
Keyboard/Mouse Power ON function. If you select
Enabled, you may decide the wakeup mode from
BIOS Setup. To implement this function, the 5V
Stand By current must be greater than 800mA.
Note that only PS/2 mouse supports Wake On
Mouse function.
JP28
1 2 3
Disabled
JP12
1 2 3
Disabled
JP28
1 2 3
Enabled
