2.3.12 Panel Connector

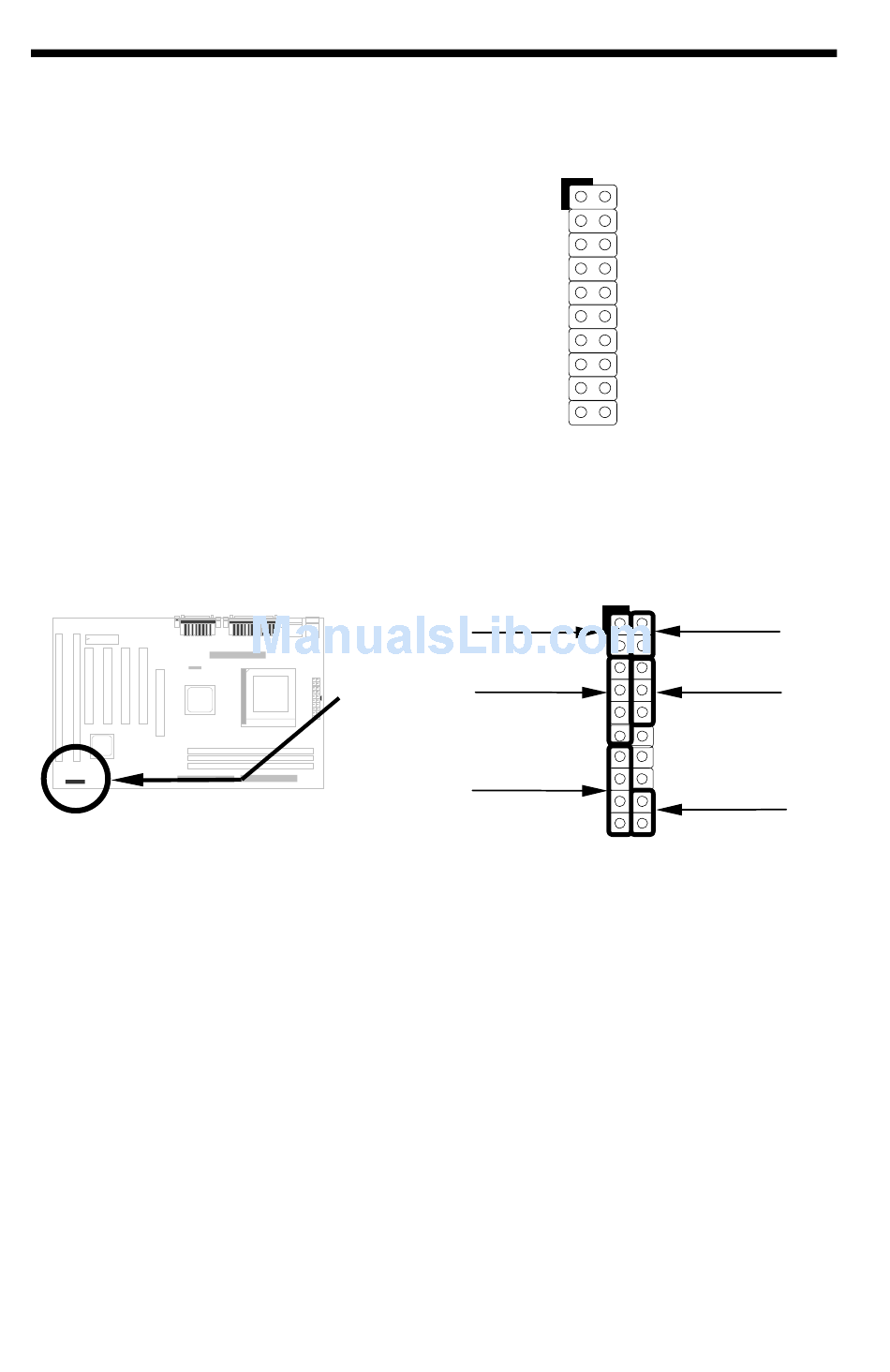

The Panel (multifunction) connector is
a 20-pin connector marked as PANEL
on the board. Attach the power LED,
keylock, speaker, SPWR, IDE LED
and reset switch to the corresponding
pins as shown in the figure. Some
housings have a five-pin connector for
the keylock and power LED. Since
power LED and keylock are aligned
together, you can still use this kind of
connector. If
supports ACPI specification, the ACPI
& Power LED will keep flashing if you
have enabled "suspend mode" item in
BIOS Setup.
your ATX housing
Hardware Installation
1
GND
KEYLOCK
+5V
IDE LED
IDE LED
+5V
+5V
GND
NC
SPEAKER
10 20
PANEL
+
Keylock
IDE LED
+
+
Speaker
PANEL
11
SPWR
GND
ACPI & POWER LED
GND
+5V
NC
NC
GND
RESET
GND
1 11
+
SPWR
+
ACPI &
Power LED
+
Reset
10 20
2-11
