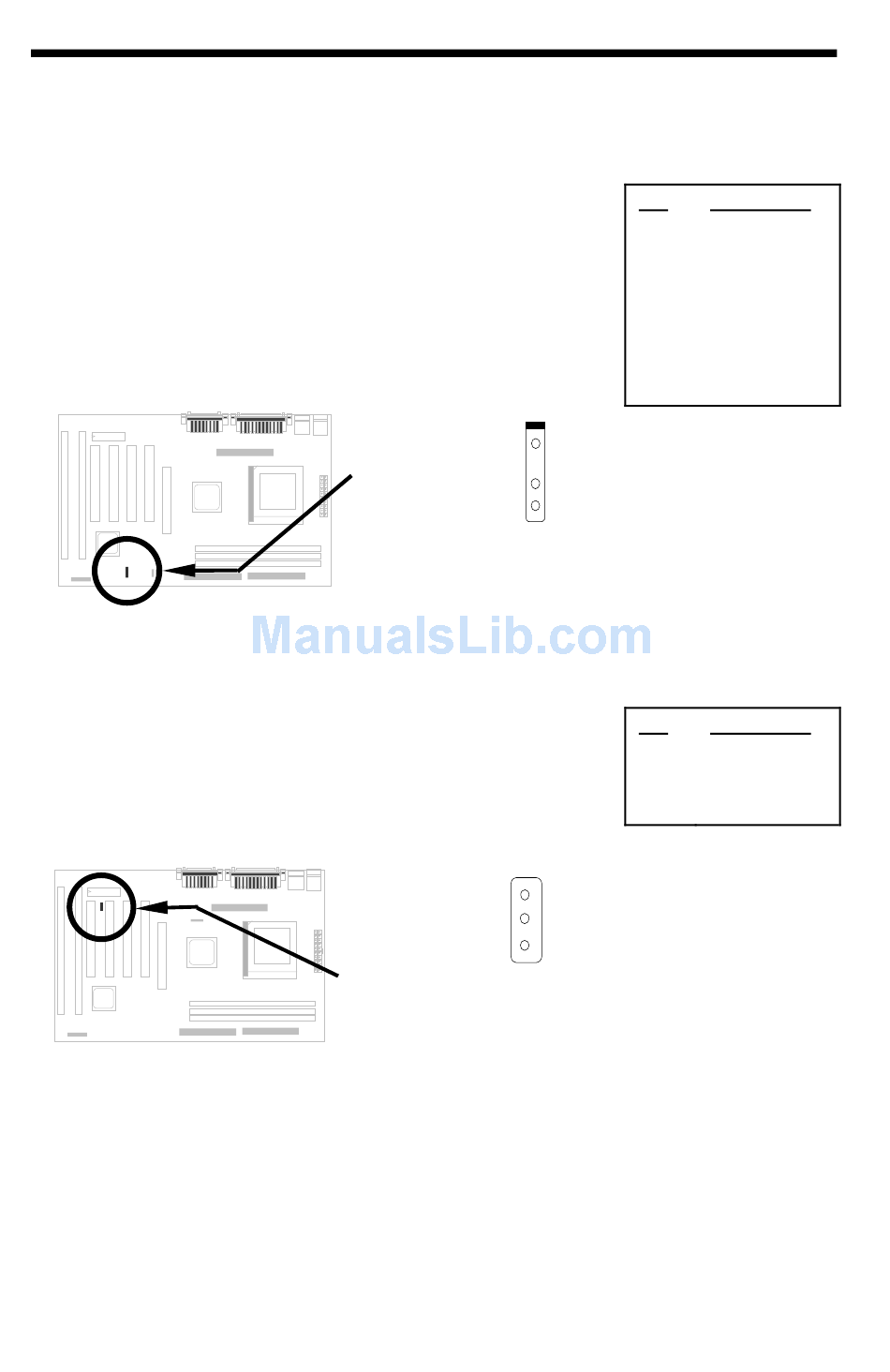

2.3.14 Wake On Modem Connector

This mainboard implements special circuit to support
Modem Ring-On, both Internal Modem Card (AOpen
MP56) and external box Modem are supported. Since
Internal Modem card consumes no power when system
power is off, it is recommended to use Internal Modem.
To use AOpen MP56, connect 4-pin cable from RING
connector of MP56 to WOM connector on the
mainboard.

2.3.15 Wake On LAN Connector

This mainboard implements a WOL connector. To use
Wake On LAN function, you need a network card that
supports this feature. In addition, you also need to
install a network management software, such as ADM.
Hardware Installation
1
2
3
4
WOM
1
2
3
WOL
Pin Description
1 +5V SB
2 NC
3 RING
4 GND
Pin Description
1 +5V SB
2 GND
3 LID
2-13
