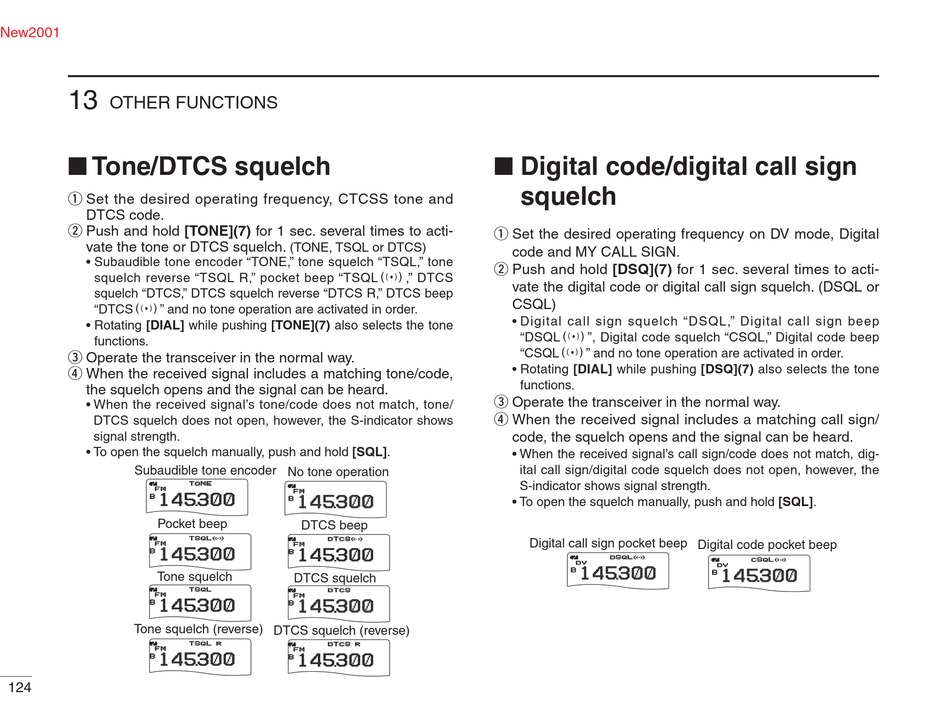

OTHER FUNCTIONS

■ Tone/DTCS squelch

q Set the desired operating frequency, CTCSS tone and
DTCS code.
w Push and hold [TONE](7) for 1 sec. several times to acti-
vate the tone or DTCS squelch.
• Subaudible tone encoder "TONE," tone squelch "TSQL," tone
squelch reverse "TSQL R," pocket beep "TSQLS," DTCS
squelch "DTCS," DTCS squelch reverse "DTCS R," DTCS beep
"DTCSS" and no tone operation are activated in order.
• Rotating [DIAL] while pushing [TONE](7) also selects the tone
functions.
e Operate the transceiver in the normal way.
r When the received signal includes a matching tone/code,
the squelch opens and the signal can be heard.
• When the received signal's tone/code does not match, tone/
DTCS squelch does not open, however, the S-indicator shows
signal strength.
• To open the squelch manually, push and hold [SQL].
Subaudible tone encoder
+DUP +DUP
FM FM
145300 145300
B
MemoName MemoName
Pocket beep
+DUP +DUP
FM FM
145300 145300
B
MemoName MemoName
Tone squelch
+DUP +DUP
FM FM
145300 145300
B
MemoName MemoName
Tone squelch (reverse) DTCS squelch (reverse)
+DUP +DUP
FM FM
145300 145300
B
MemoName MemoName
124
(TONE, TSQL or DTCS)
No tone operation
TONE TONE
+DUP +DUP DTCS DTCS
PRIO WX PRIO WX EMR EMR
FM FM PRIO PRIO WX WX EMR EMR
25 25
145300 145300
B B
PSKIP PSKIP MemoName MemoName
PSKIP PSKIP
DTCS beep
TSQL TSQL
+DUP +DUP DTCS DTCS
PRIO PRIO WX WX EMR EMR
FM FM PRIO WX PRIO WX EMR EMR
145300 145300
25 25
B
MemoName MemoName
PSKIP PSKIP
PSKIP PSKIP
DTCS squelch
TSQL TSQL +DUP +DUP DTCS DTCS
PRIO PRIO WX WX EMR EMR
FM FM PRIO WX PRIO WX EMR EMR
145300 145300
25 25
B
MemoName MemoName
PSKIP PSKIP
PSKIP PSKIP
TSQL R TSQL R
+DUP +DUP DTCS R DTCS R
PRIO WX PRIO WX EMR EMR
FM FM PRIO WX PRIO WX EMR EMR
145300 145300
25 25
B
MemoName MemoName
PSKIP PSKIP
PSKIP PSKIP
■ Digital code/digital call sign
squelch
q Set the desired operating frequency on DV mode, Digital
code and MY CALL SIGN.
w Push and hold [DSQ](7) for 1 sec. several times to acti-
vate the digital code or digital call sign squelch. (DSQL or
CSQL)
• Digital call sign squelch "DSQL," Digital call sign beep
"DSQLS", Digital code squelch "CSQL," Digital code beep
"CSQLS" and no tone operation are activated in order.
• Rotating [DIAL] while pushing [DSQ](7) also selects the tone
functions.
e Operate the transceiver in the normal way.
r When the received signal includes a matching call sign/
code, the squelch opens and the signal can be heard.
• When the received signal's call sign/code does not match, dig-
ital call sign/digital code squelch does not open, however, the
S-indicator shows signal strength.
25 25
• To open the squelch manually, push and hold [SQL].
