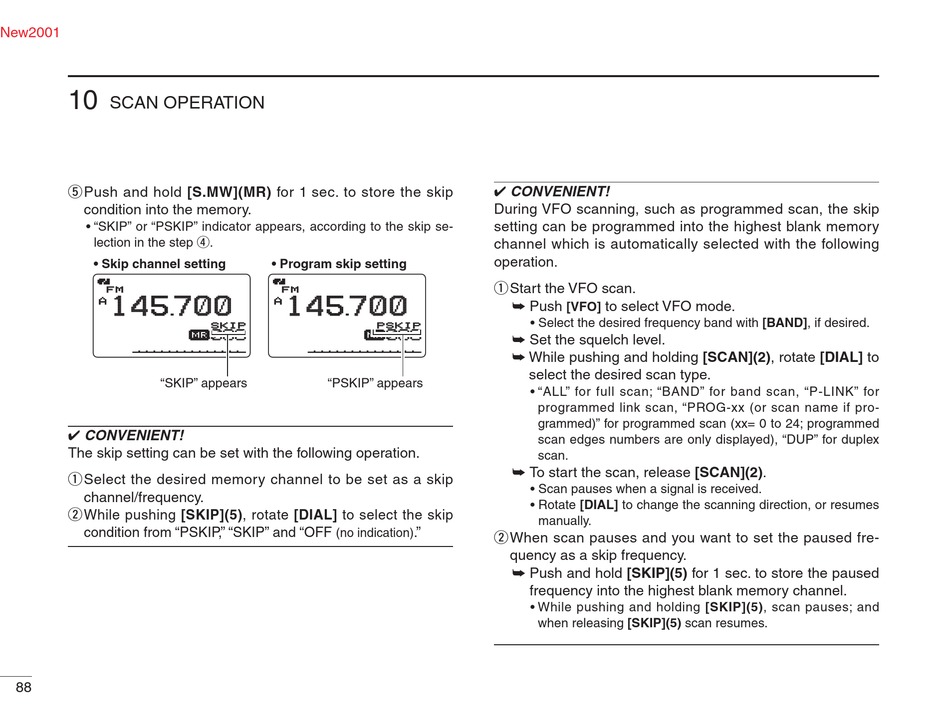

Icom IC-92AD Instruction Manual page 96

10
SCAN OPERATION
t Push and hold [S.MW](MR) for 1 sec. to store the skip
condition into the memory.
• "SKIP" or "PSKIP" indicator appears, according to the skip se-
lection in the step r.
• Skip channel setting
FM FM
14 145 700 700
A
µ
"SKIP" appears
✔ CONVENIENT!
The skip setting can be set with the following operation.
q Select the desired memory channel to be set as a skip
channel/frequency.
w While pushing [SKIP](5), rotate [DIAL] to select the skip
condition from "PSKIP," "SKIP" and "OFF
88
• Program skip setting
FM FM
14 145 700 700
A
SKIP SKIP PSKIP PSKI
033 033 µ 033 033
"PSKIP" appears
(no indication)
✔ CONVENIENT!
During VFO scanning, such as programmed scan, the skip
setting can be programmed into the highest blank memory
channel which is automatically selected with the following
operation.
q Start the VFO scan.
➥ Push
[VFO]
• Select the desired frequency band with [BAND], if desired.
➥ Set the squelch level.
➥ While pushing and holding [SCAN](2), rotate [DIAL] to
select the desired scan type.
• "ALL" for full scan; "BAND" for band scan, "P-LINK" for
programmed link scan, "PROG-xx (or scan name if pro-
grammed)" for programmed scan (xx= 0 to 24; programmed
scan edges numbers are only displayed), "DUP" for duplex
scan.
➥ To start the scan, release [SCAN](2).
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction, or resumes
manually.
."
w When scan pauses and you want to set the paused fre-
quency as a skip frequency.
➥ Push and hold [SKIP](5) for 1 sec. to store the paused
frequency into the highest blank memory channel.
• While pushing and holding [SKIP](5), scan pauses; and
when releasing [SKIP](5) scan resumes.
to select VFO mode.
