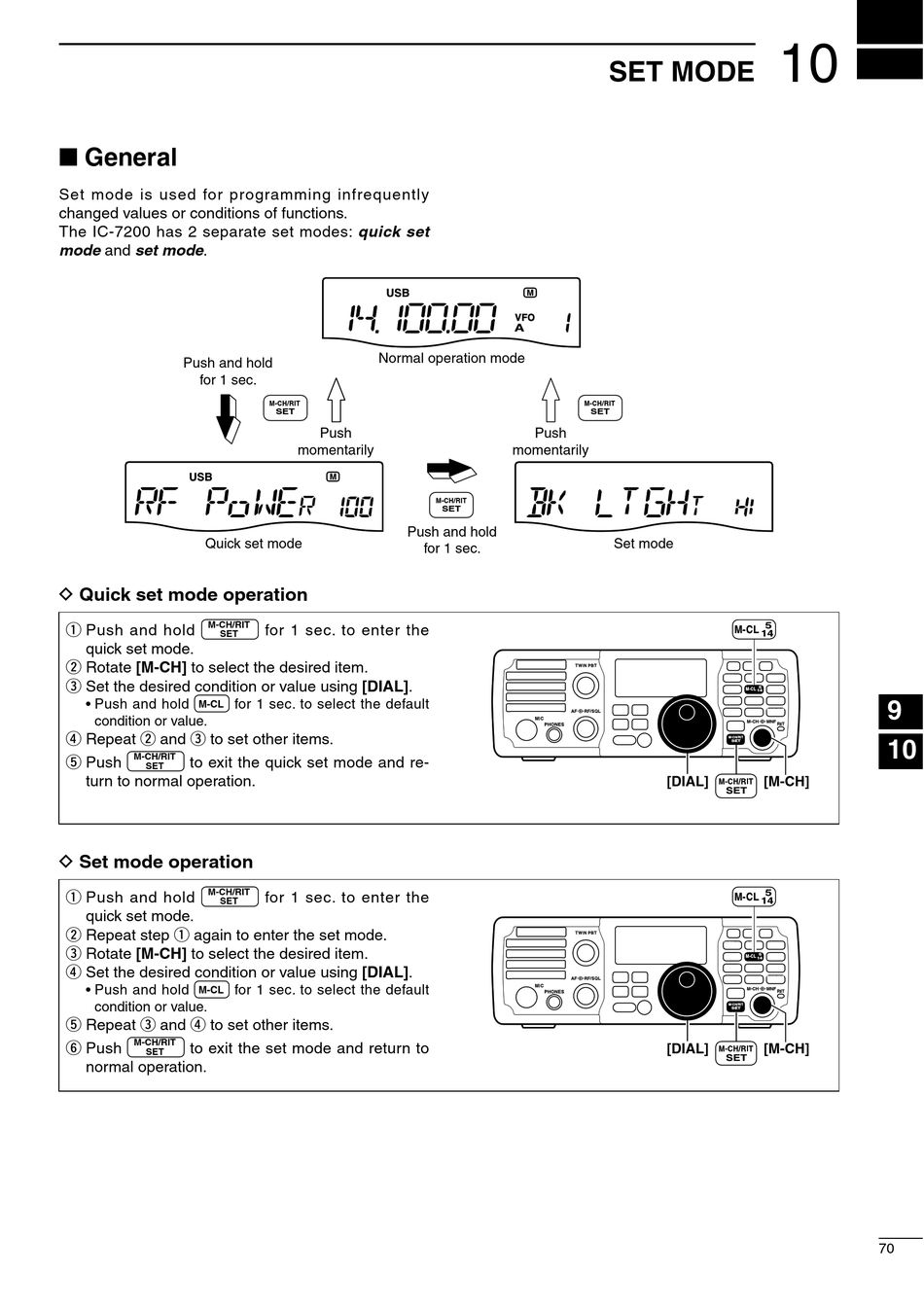

Set Mode; General; D Quick Set Mode Operation; D Set Mode Operation - Icom IC-7200 Instruction Manual

■ General

Set mode is used for programming infrequently
changed values or conditions of functions.
The IC-7200 has 2 separate set modes: quick set
mode and set mode.
Push and hold
for 1 sec.
Quick set mode

D Quick set mode operation

M-CH/RIT
q Push and hold
SET
quick set mode.
w Rotate [M-CH] to select the desired item.
e Set the desired condition or value using [DIAL].
• Push and hold
M-CL
condition or value.
r Repeat w and e to set other items.
M-CH/RIT
t Push to exit the quick set mode and re-
SET
turn to normal operation.

D Set mode operation

M-CH/RIT
q Push and hold
SET
quick set mode.
w Repeat step q again to enter the set mode.
e Rotate [M-CH] to select the desired item.
r Set the desired condition or value using [DIAL].
• Push and hold
M-CL
condition or value.
t Repeat e and r to set other items.
M-CH/RIT
y Push to exit the set mode and return to
SET
normal operation.
Normal operation mode
M-CH/RIT
SET
Push
momentarily
Push and hold
for 1 sec. to enter the
for 1 sec. to select the default
for 1 sec. to enter the
for 1 sec. to select the default
M-CH/RIT
SET
Push
momentarily
M-CH/RIT
SET
for 1 sec.
