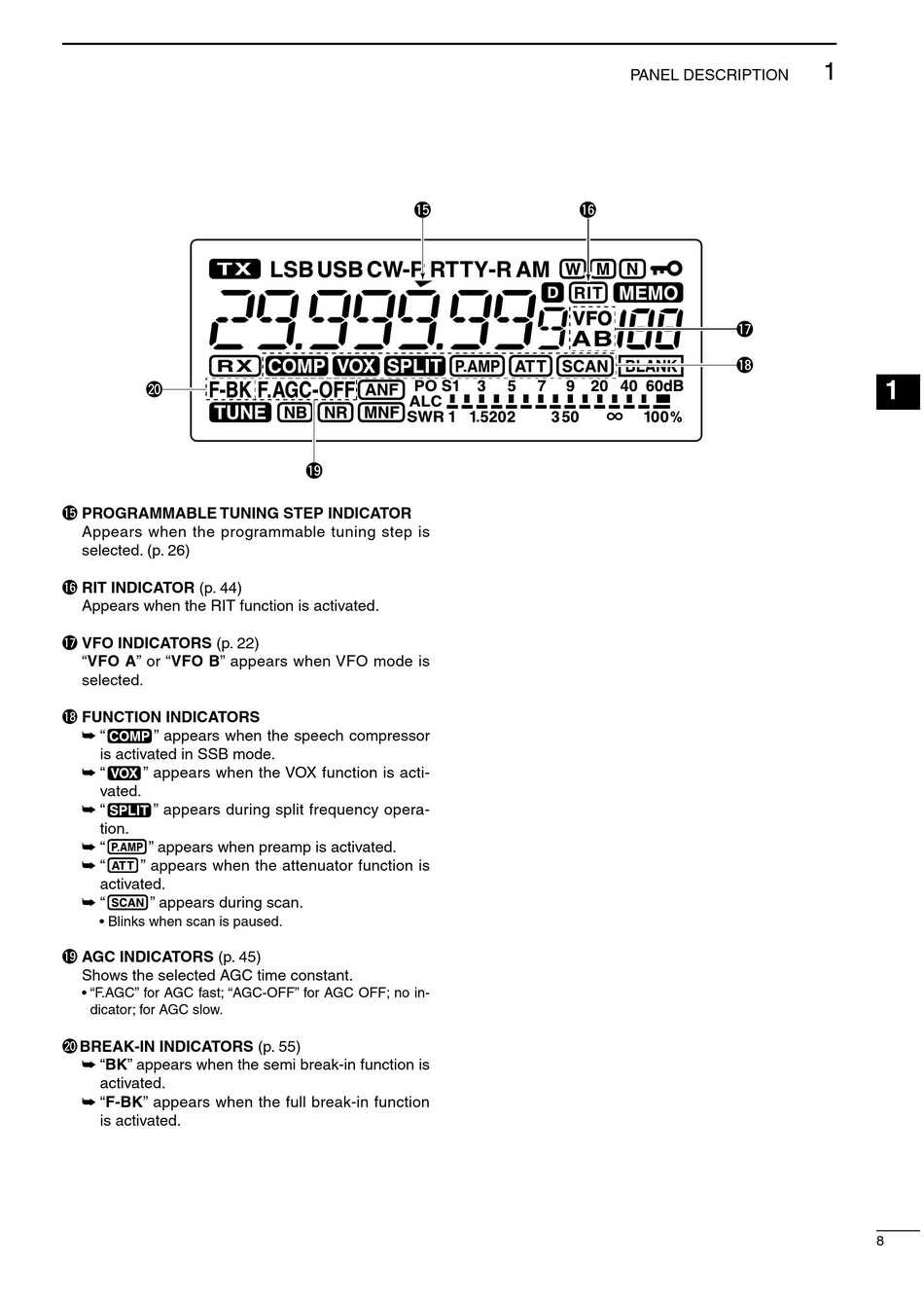

!5 PROGRAMMABLE TUNING STEP INDICATOR
Appears when the programmable tuning step is
selected. (p. 26)
!6 RIT INDICATOR (p. 44)
Appears when the RIT function is activated.
!7 VFO INDICATORS (p. 22)
"VFO A" or "VFO B" appears when VFO mode is
selected.
!8 FUNCTION INDICATORS
➥ " " appears when the speech compressor
is activated in SSB mode.
➥ " " appears when the VOX function is acti-
vated.
➥ " " appears during split frequency opera-
tion.
➥ " " appears when preamp is activated.
➥ " " appears when the attenuator function is
activated.
➥ " " appears during scan.
• Blinks when scan is paused.
!9 AGC INDICATORS (p. 45)
Shows the selected AGC time constant.
• "F.AGC" for AGC fast; "AGC-OFF" for AGC OFF; no in-
dicator; for AGC slow.
@0 BREAK-IN INDICATORS (p. 55)
➥ "BK" appears when the semi break-in function is
activated.
➥ "F-BK" appears when the full break-in function
is activated.
