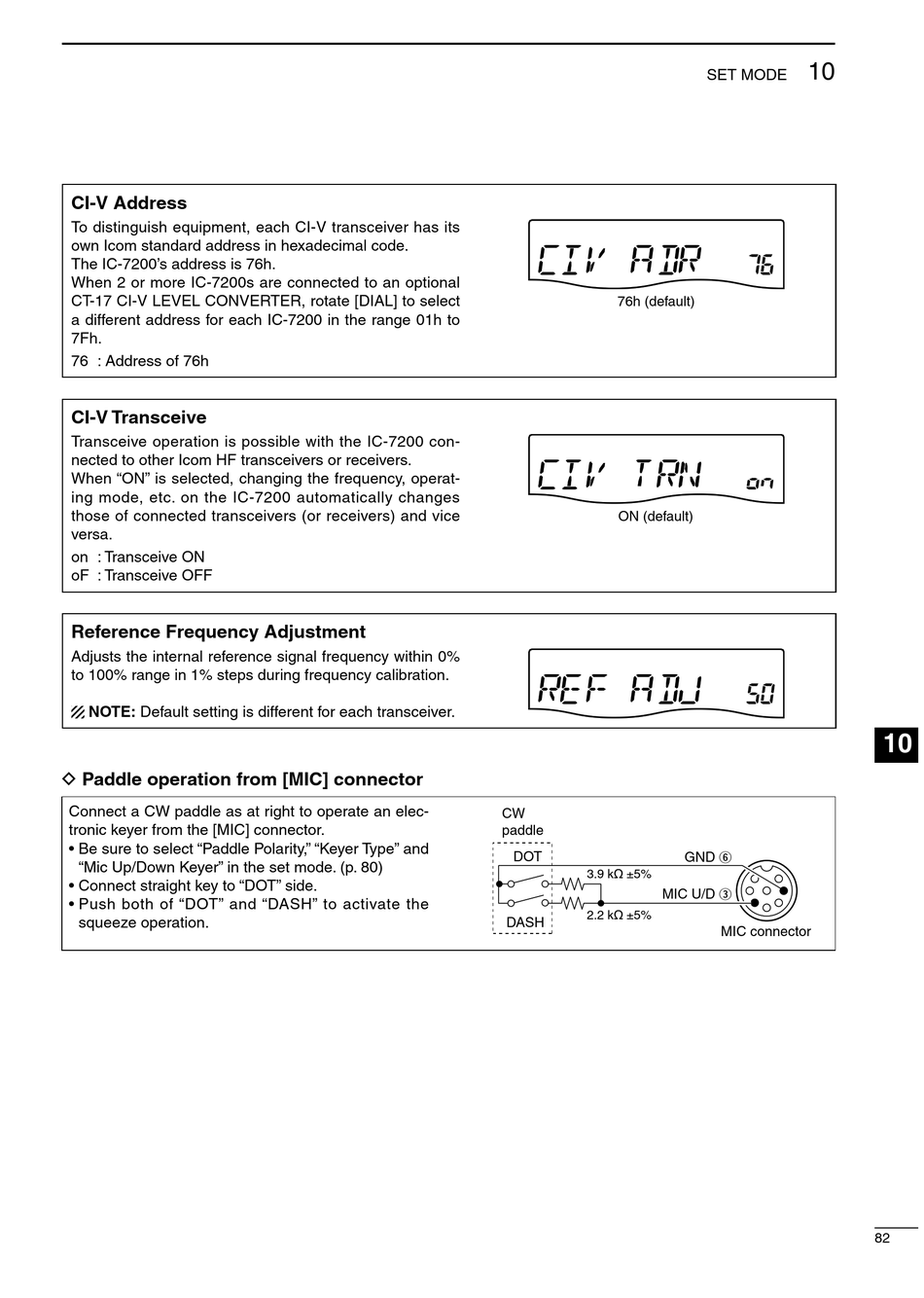

D Paddle Operation From [Mic] Connector - Icom IC-7200 Instruction Manual

CI-V Address
To distinguish equipment, each CI-V transceiver has its
own Icom standard address in hexadecimal code.
The IC-7200's address is 76h.
When 2 or more IC-7200s are connected to an optional
CT-17 CI-V LEVEL CONVERTER, rotate [DIAL] to select
a different address for each IC-7200 in the range 01h to
7Fh.
76 : Address of 76h
CI-V Transceive
Transceive operation is possible with the IC-7200 con-
nected to other Icom HF transceivers or receivers.
When "ON" is selected, changing the frequency, operat-
ing mode, etc. on the IC-7200 automatically changes
those of connected transceivers (or receivers) and vice
versa.
on : Transceive ON
oF : Transceive OFF
Reference Frequency Adjustment
Adjusts the internal reference signal frequency within 0%
to 100% range in 1% steps during frequency calibration.
NOTE: Default setting is different for each transceiver.

D Paddle operation from [MIC] connector

Connect a CW paddle as at right to operate an elec-
tronic keyer from the [MIC] connector.
• Be sure to select "Paddle Polarity," "Keyer Type" and
"Mic Up/Down Keyer" in the set mode. (p. 80)
• Connect straight key to "DOT" side.
• Push both of "DOT" and "DASH" to activate the
squeeze operation.
76h (default)
ON (default)
CW
paddle
DOT
3.9 kø ±5%
MIC U/D
2.2 kø ±5%
DASH
10
SET MODE
GND
y
e
MIC connector
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
