4
RECEIVE AND TRANSMIT

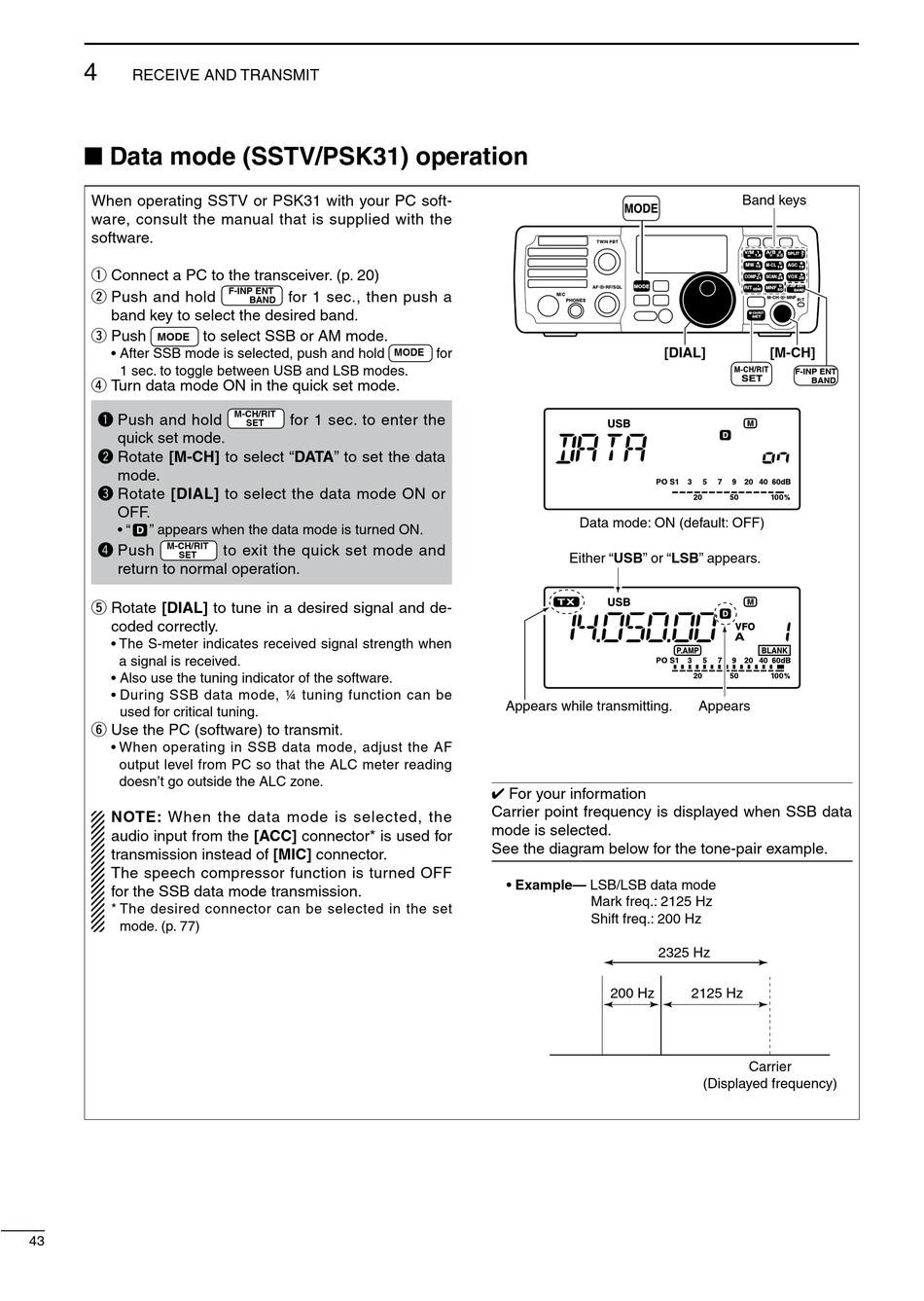

■ Data mode (SSTV/PSK31) operation
When operating SSTV or PSK31 with your PC soft-
ware, consult the manual that is supplied with the
software.
q Connect a PC to the transceiver. (p. 20)
w Push and hold
band key to select the desired band.
e Push
to select SSB or AM mode.
MODE
• After SSB mode is selected, push and hold
1 sec. to toggle between USB and LSB modes.
r Turn data mode ON in the quick set mode.
q Push and hold
quick set mode.
w Rotate [M-CH] to select "DATA" to set the data
mode.
e Rotate [DIAL] to select the data mode ON or
OFF.
• "
" appears when the data mode is turned ON.
M-CH/RIT
r Push
SET
return to normal operation.
t Rotate [DIAL] to tune in a desired signal and de-
coded correctly.
• The S-meter indicates received signal strength when
a signal is received.
• Also use the tuning indicator of the software.
• During SSB data mode, ¼ tuning function can be
used for critical tuning.
y Use the PC (software) to transmit.
• When operating in SSB data mode, adjust the AF
output level from PC so that the ALC meter reading
doesn't go outside the ALC zone.
NOTE: When the data mode is selected, the
audio input from the [ACC] connector* is used for
transmission instead of [MIC] connector.
The speech compressor function is turned OFF
for the SSB data mode transmission.
* The desired connector can be selected in the set
mode. (p. 77)
43
F-INP ENT
for 1 sec., then push a
BAND
MODE
M-CH/RIT
for 1 sec. to enter the
SET
to exit the quick set mode and
for
Data mode: ON (default: OFF)
Either "USB" or "LSB" appears.
Appears while transmitting.
4 For your information
Carrier point frequency is displayed when SSB data
mode is selected.
See the diagram below for the tone-pair example.
• Example— LSB/LSB data mode
Mark freq.: 2125 Hz
Shift freq.: 200 Hz
200 Hz
Band keys
ANF
NB
NR
METER
2
V/M
1
A/B
3
SPLIT
1.8
=
3.5
7
4
5
6
MW
M-CL
AGC
10
14
18
7
8
9
COMP
SCAN
VOX
24
28
21
.
MODE
TS
0
F-INP
ENT
RIT
MNF
GENE
50
BAND
TUNER
FILTER
P.AMP
ATT
M-CH/RIT
SPCH
SET
[DIAL]
[M-CH]
F-INP ENT
Appears
2325 Hz
2125 Hz
Carrier
(Displayed frequency)
BAND
