AT810 Series User Manual

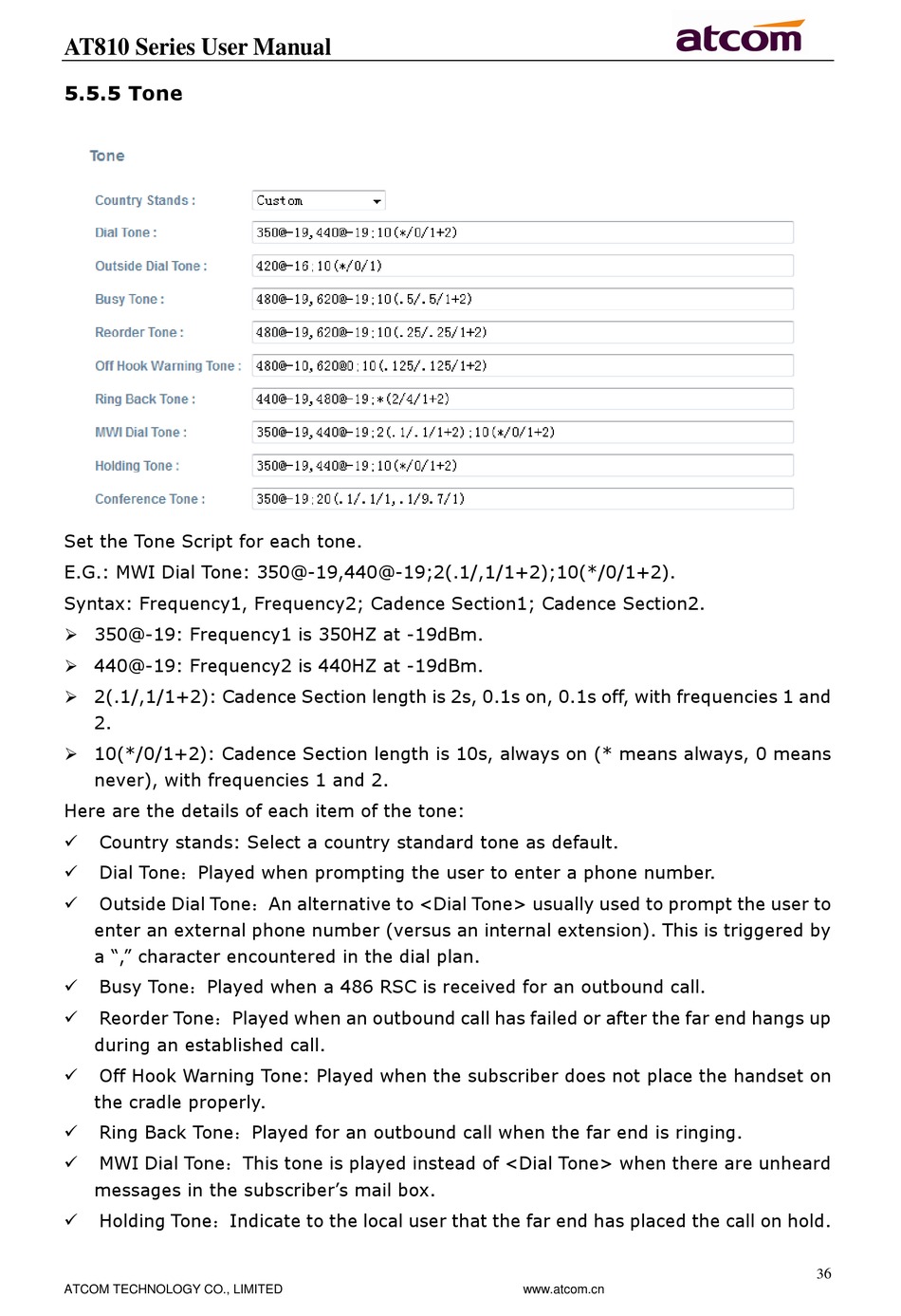

5.5.5 Tone

Set the Tone Script for each tone.
E.G.: MWI Dial Tone: 350@-19,440@-19;2(.1/,1/1+2);10(*/0/1+2).
Syntax: Frequency1, Frequency2; Cadence Section1; Cadence Section2.
 350@-19: Frequency1 is 350HZ at -19dBm.
 440@-19: Frequency2 is 440HZ at -19dBm.
 2(.1/,1/1+2): Cadence Section length is 2s, 0.1s on, 0.1s off, with frequencies 1 and
2.
 10(*/0/1+2): Cadence Section length is 10s, always on (* means always, 0 means
never), with frequencies 1 and 2.
Here are the details of each item of the tone:
Country stands: Select a country standard tone as default.

Dial Tone：Played when prompting the user to enter a phone number.

Outside Dial Tone：An alternative to <Dial Tone> usually used to prompt the user to

enter an external phone number (versus an internal extension). This is triggered by
a "," character encountered in the dial plan.
Busy Tone：Played when a 486 RSC is received for an outbound call.

Reorder Tone：Played when an outbound call has failed or after the far end hangs up

during an established call.
Off Hook Warning Tone: Played when the subscriber does not place the handset on

the cradle properly.
Ring Back Tone：Played for an outbound call when the far end is ringing.

MWI Dial Tone：This tone is played instead of <Dial Tone> when there are unheard

messages in the subscriber's mail box.
Holding Tone：Indicate to the local user that the far end has placed the call on hold.

