Garmin G2000 Cockpit Reference Manual

Integrated flight deck
Hide thumbs Also See for G2000:
Table of Contents

Advertisement

Quick Links

G2000
™
Integrated Flight Deck
Cockpit Reference Guide for the Model T240

Advertisement

Table of Contents
loading

Related Manuals for Garmin G2000

Summary of Contents for Garmin G2000

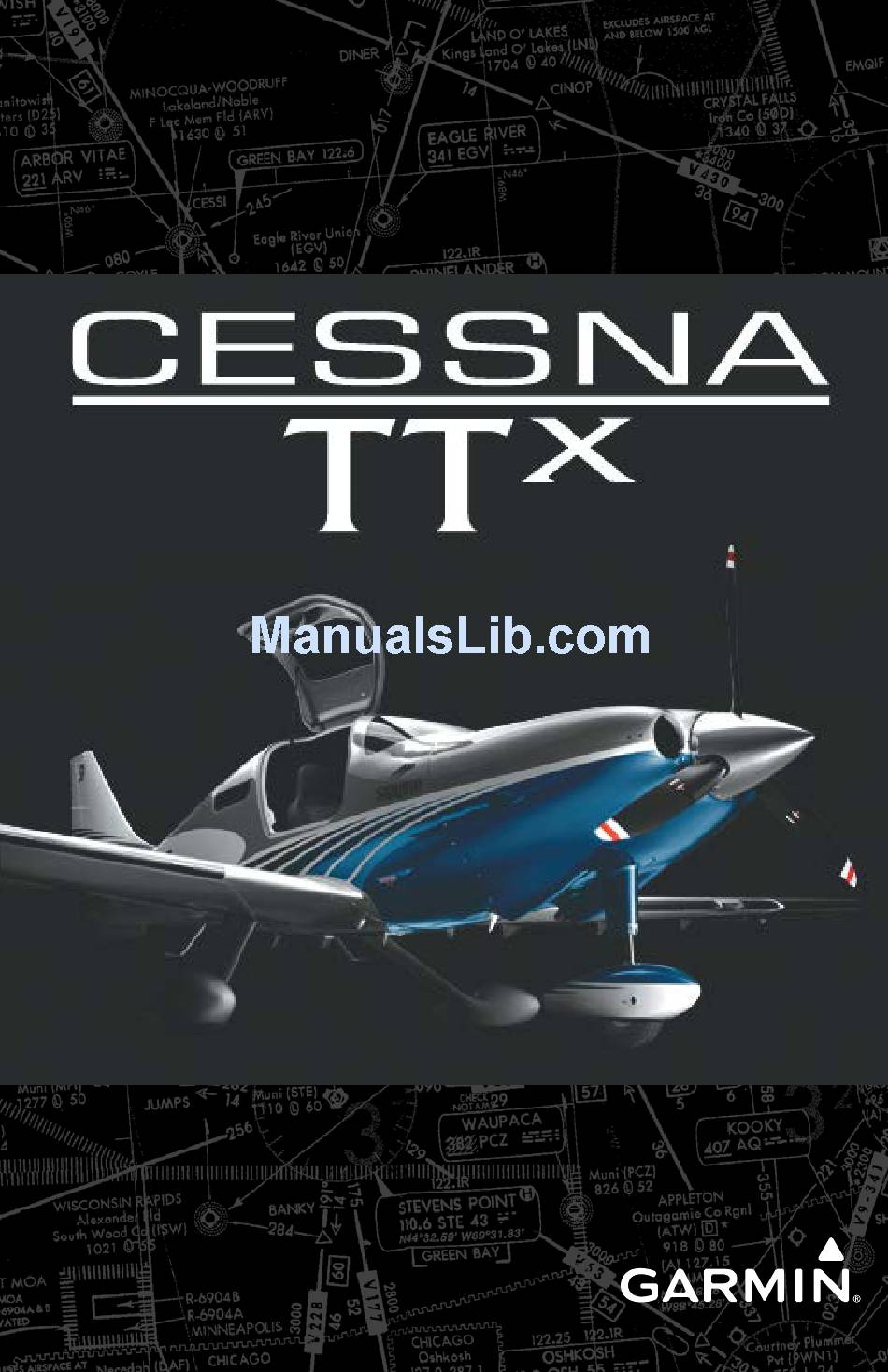

  • Page 1 G2000 ™ Integrated Flight Deck Cockpit Reference Guide for the Model T240...
  • Page 3 FLIGHT INSTRUMENTS ENGINE INDICATION SYSTEM NAV/COM/TRANSPONDER/AUDIO PANEL AUTOMATIC FLIGHT CONTROL SYSTEM FMS NAVIGATION FLIGHT PLANNING PROCEDURES HAZARD AVOIDANCE ADDITIONAL FEATURES ABNORMAL OPERATION ANNUNCIATIONS & ALERTS APPENDIX INDEX...
  • Page 5 Garmin Ltd. or its subsidiaries. ® ® ® These trademarks may not be used without the express permission of Garmin. G2000 , Garmin ™ , and Garmin ESP are trademarks of Garmin Ltd. or its subsidiaries.
  • Page 6 Garmin’s use of the information in the datasets. Some jurisdictions do not allow the limitation or exclusion of implied warranties or liability for incidental or consequential damages so the above limitations or exclusions may not apply to licensee.
  • Page 7 WARNING: Do not use outdated database information. Databases used in the G2000 system must be updated regularly in order to ensure that the information remains current. Pilots using any outdated database do so entirely at their own risk.
  • Page 8 Although unlikely, it may be possible for erroneous operation to occur without a fault indication shown by the G2000. It is thus the responsibility of the pilot to detect such an occurrence by means of cross-checking with all redundant or correlated information available in the cockpit.
  • Page 9 FAA/FCC regulations. NOTE: All visual depictions contained within this document, including screen images of the G2000 panel and displays, are subject to change and may not reflect the most current G2000 system and aviation databases. Depictions of equipment may differ slightly from the actual equipment.
  • Page 10 NOTE: The purpose of this Cockpit Reference Guide is to provide the pilot a resource with which to find operating instructions on the major features of the G2000 system more easily. It is not intended to be a comprehensive operating guide. Complete operating procedures for the system are found in the G2000 Pilot’s Guide for this aircraft.
  • Page 11 Added Crew Profiles to Additional Features section Updated PFD softkeys in the Appendix Added GTC Screen navigation to the Appendix Revision Date of Revision Affected Pages Description May, 2013 Production release RR-1 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 12 Record of Revisions Blank Page RR-2 Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 13: Table Of Contents

    ADF Tuning (Optional) ......................17 DME Tuning (Optional) ......................19 Transponder Operation ......................19 Intercom ............................ 21 Digital Clearance Player ......................25 Entertainment Inputs ......................26 3D Audio ........................... 27 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 14 Activate An Approach in the Active Flight Plan ............... 63 Activate a Vector to Final Approach Fix ................64 Activate A Missed Approach in the Active Flight Plan ........... 64 Temperature Compensated Altitude .................. 65 Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 15 Voice Alerts ..........................120 GDU 1400W Primary Flight Display & Multi Function Display ........121 Database System Messages ....................123 GIA 63W Integrated Avionics Unit System Messages ........... 124 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 16 Database Management ....................... 161 Automatic Database Synchronization Feature .............. 165 Garmin Databases ........................ 168 Magnetic Field Variation Database Update ..............170 Cleaning the Touchscreen ....................172 Index ............................Index-1 Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 17: Flight Instruments

    100-ft increments. When meters are displayed, Selected Altitude is adjusted in 50 meter increments.. If set, the Minimum Descent Altitude/Decision Height (MDA/DH) value is also available for the Selected Altitude. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 18: Displaying Selected Altitude In Meters

    Setup > Avionics Settings. 2) Touch the System Tab. 3) Touch the GPS CDI Data Field. 4) Touch desired setting (2.00 NM, 1.00 NM, 0.30 NM, or AUTO). Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 19: Changing Navigation Angle Setting

    3) Press the bearing softkey again to change the bearing source to FMS. 4) To remove the bearing pointer and information window, press the bearing softkey again. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 20: Set Barometric Minimum Descent Altitude

    From the Home Screen on the Touchscreen Controller, touch Utilities > Speed Bugs. To activate all Vspeed flags, touch the All Bugs On Button. To remove all Vspeed flags, touch the All Bugs Off Button. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 21: Restoring All Vspeed Defaults

    SVT information is shown on the primary flight display (PFD). In addition to SVT enhancement to the PFD, the following features have been added to the PFD: 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 22 Press the PFD Settings Softkey > Attitude Overlays Softkey > Airport Signs Softkey. Airport Signs will cycle on or off with each press of the Airport Signs Softkey. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 23: Engine Indication System

    Turbo Inlet Aileron Trim Display Temperature Cylinder Head Fuel Quantity Dual Voltmeter Anti-Ice Fluid Temperature Quantity (Optional) Fuel Flow Engine Hours Dual Ammeter Flaps Position Display Indicator 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 24: Engine/System Display

    From the Home Screen on the Touchscreen Controller, touch Aircraft Systems > Engine/Sys. NOTE: The Engine/Systems display is shown in Half Mode, and is not available in Full Mode or Reversionary Mode. Engine and Systems Display Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 25 1) From the Home Screen on the Touchscreen Controller, touch Aircraft Systems. 2) Touch the Oxygen Button. When the button annunciator is green, oxygen is enabled, annunciator is gray when disabled. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 26: Fuel Calculations

    GAL USED is set to zero. Fuel Range Remaining Calculation Fuel Used Endurance Calculation Calculation Edit Remaining Fuel Set Fuel Quantity Quantity to Full Fuel Calculations Screen Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 27: Engine Lean Assist Mode

    Touch the Lean Assist Button. The button annunciator is green when Lean Assist Mode is enabled, annunciator is gray when disabled. Peak TIT TIT Deviation from Peak Lean or Rich from Peak Engine Lean Assist Mode (EIS Display) 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 28 Engine Indication System Blank Page Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 29: Nav/Com/Transponder/Audio Panel

    3) If necessary, touch the Sync to Pilot Button to disable synchronizing selections to the pilot. 4) Touch the desired MIC Button on the Audio & Radios Screen to select the COM radio for transmission. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 30: Com Frequency Tuning

    XFER Button to accept the new frequency as the COM1/COM2 active frequency and transfer the previously active frequency to the standby frequency. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 31: Changing Com Frequency Channel Spacing

    2) Touch the Systems Tab (if necessary). Scroll the list to show the COM Channel Spacing button. 3) Touch the COM Channel Spacing button to display the choice of 25.0 kHz or 8.33 kHz. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 32: Simultaneous Com Operation

    2) Touch the NAV1/NAV2 volume slider to select NAV1/NAV2 for tuning. 3) Turn the large and small right knobs to tune the frequency (Large knob increases/decreases MHz; Small knob increases/decreases kHz). Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 33: Adf Tuning (Optional)

    1) Touch the Audio & Radios Button to display the Audio & Radios Screen. 2) Scroll the list to find the ADF. 3) Touch the ADF control button to display the ADF Mode/Tuning Screen. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 34 3) Touch the ADF control button. 4) Touch the XFER Button 1) Touch the Audio & Radios Button on the Touchscreen Controller to display the Audio & Radios Screen. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 35: Dme Tuning (Optional)

    5) Turn the small right knob to enter the next digit, repeat steps 4 and 5 until complete. 6) Touch the Enter Button, or push the small right knob, to enter the new code. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 36 (NO ADSB-OUT). The Mode S Transponder reports aircraft identification as the aircraft FLIGHT ID registration number. The Flight ID cannot be changed by the pilot. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 37: Intercom

    All Intercom Mode In ‘All Intercom’ mode the Pilot, Copilot, and Passengers hear each other and hear the aircraft audio. All Intercom Mode 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 38 Copilot-Passenger Intercom Mode Pilot-Copilot Intercom Mode In ‘Pilot-Copilot’ mode the Pilot and Copilot hear the aircraft audio and each other. The Passengers hear each other. Pilot-Copilot Intercom Mode Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 39 In ‘All Isolate’ mode the Pilot and Copilot hear the aircraft audio. The Copilot has the option to use Split-COM mode. The Passengers hear each other. All Isolate Mode 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 40 Pilot-Passenger/Pilot-Copilot Intercom Mode In ‘Pilot-Passenger/Pilot-Copilot’ mode the Pilot and Copilot hear the aircraft audio and each other. The Passengers hear the Pilot and each other. Pilot-Passenger/Pilot-Copilot Intercom Mode Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 41: Digital Clearance Player

    1) Touch the Audio & Radios Button on the Touchscreen Controller to display the Audio & Radios Screen. 2) If necessary, touch the Pilot Tab. 3) Scroll the list to find Playback. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 42: Entertainment Inputs

    2) If necessary, touch the Copilot Tab or the Pass Tab. 3) If necessary, touch the Sync to Pilot Button to disable synchronizing selections to the pilot. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 43: 3D Audio

    3) Touch the Enable Button for: Pilot L-R Swap, Copilot L-R Swap. A green annunciator indicates L-R Swap is enabled. A gray annunciator indicates L-R Swap is disabled. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 44 Nav/Com/XPDR/Audio Panel Blank Page Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 45: Automatic Flight Control System

    **The selected navigation receiver must have a valid VOR or LOC signal or active FMS course before NAV or APR Key press activates flight director. ***The selected navigation receiver must have a valid LOC signal before BC Key press activates flight director. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 46: Vertical Modes

    **** Level mode can only become activated as a function of Electronic Stability and Protection (ESP). Refer to the Additional Features section for a detailed discussion of the optional ESP feature. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 47: Lateral Modes

    * Level mode can only become activated as a function of Electronic Stability and Protection (ESP). Refer to the Additional Features section for a detailed discussion of the optional ESP feature. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 48 AFCS Blank Page Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 49: Fms Navigation

    9) Press the ENT Key or the small PFD Knob to accept the selection and move the cursor to the OFFSET field. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 50: Activate A Stored Flight Plan

    2) Scroll the list, if necessary, and touch the waypoint selection button to select the destination waypoint for the desired leg. The Waypoint Options Window is displayed. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 51: Stop Navigating A Flight Plan

    The altitude is now displayed only as a reference. It is not used to give vertical guidance. Other displayed altitudes may change due to re-calculations or be rendered invalid as a result of manually changing an altitude to a non-designated altitude. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 52 The pencil icon indicates and is not designated to manual designation or be used in determining manual data entry. vertical speed and deviation guidance. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 53 White Text with Altitude Restriction Bars Cross AT 11,000 ft Temperature Compensated Altitude Cross AT or ABOVE 13,000 ft Unusable/Invalid Altitude Cross AT or BELOW 23,000 ft 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 54 2) Scroll the list, if necessary, and touch a VNAV ALT button to display the VNAV Altitude Window. Touch the Remove VNAV ALT Button. A ‘Remove VNAV altitude?’ window is displayed. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 55 VNAV altitude of nnnnnFT?’ confirmation window is displayed. 4) Touch the Revert Button. The altitude is now the database altitude and is shown in light blue, indicating it is usable for vertical guidance. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 56 FMS Navigation Blank Page Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 57: Flight Planning

    23) Press Enter. 24) Touch the Landing Tab. 25) Touch the Fuel Reserves input button. 26) Use the keypad to input the Fuel Reserves. 27) Touch Enter. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 58: Trip Planning

    Manually selected waypoints (if there is an active flight plan, these Waypoint Mode default to the endpoints of the active leg). Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 59 4) Scroll the list, if necessary, and touch the active flight plan button to display the Select Flight Plan Leg Screen. 5) Touch the Remaining Flight Plan Button to select the mode and return to the Trip Planning Screen. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 60 6) Touch the ending waypoint button to select a waypoint using the keypad and return to the Select Starting and Ending Locations Window. 7) Touch the Accept Button to select the mode and return to the Trip Planning Screen. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 61: Create A User Waypoint

    Use the keypad and the Enter Button to select the radial. g) Touch the DIS Button to display the keypad. h) Use the keypad and the Enter Button to select the distance. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 62: Create A Flight Plan

    3) Select the identifier of the departure waypoint. The active flight plan is modified as each waypoint is entered. Use the keypad and the Enter Button to select a waypoint Identifier. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 63 2) Touch the Catalog Button to display the Flight Plan Catalog Screen. 3) Touch the Create New Catalog Flight Plan Button to display the Edit Stored Flight Plan Screen. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 64: Import A Flight Plan From An Sd Card

    2) From Home, touch Flight Plan > Flight Plan Options > Catalog > Create New Catalog Flight Plan > Flight Plan Options. 3) Touch the Import Button to display the Import Flight Plan Screen. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 65: Insert A Waypoint In The Active Flight Plan

    3) Touch the Load Airway Button to display the Airway Selection Screen. 4) Scroll the list if necessary and touch an airway selection button to select the airway and display the Select Exit Window. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 66: Activating Parallel Track

    8) Touch the Leg Time Button or the Leg Distance Button to display the keypad. Use the keypad and the Enter Button to select the length of the leg. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 67 Enter Button to select the entry angle. 6) Touch the Leg Length Mode Button, and touch the Distance Button or the Time Button to select the length mode. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 68: Invert An Active Flight Plan

    1) From the Home Screen, touch Flight Plan > Flight Plan Options. 2) Touch the Store Button. 3) Touch the OK Button in response to the question “Store XXXX/XXXX into catalog?”. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 69: Insert A Waypoint In A Stored Flight Plan

    4) Touch the Edit Button to display the Edit Stored Flight Plan Screen. 5) Scroll the list if necessary and touch a waypoint selection button to display the Waypoint Options Window. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 70: Removing Flight Plan Items

    Removing an airway from the active flight plan: 1) From the Home Screen, touch Flight Plan. 2) Scroll the list if necessary and touch an airway selection button to display the Airway Options Window. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 71 4) With ‘OK’ highlighted, press the ENT Key. To cancel the request, press the CLR Key, or highlight ‘CANCEL’ and press the ENT Key. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 72 4) Touch the Edit Button. 5) Scroll the list if necessary and touch a departure, arrival, or approach selection button to display the Departure, Arrival, or Approach Options Window. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 73: Invert And Activate A Stored Flight Plan

    2) Touch the Catalog Button to display the Flight Plan Catalog Screen. 3) Touch a stored flight plan button to display the Catalog Options Window. 4) Touch the Delete Button. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 74: Export A Flight Plan To An Sd Card

    7) Touch the Export Button. 8) Touch the OK Button in response to the “Flight Plan Successfully Exported.” prompt to return to the Flight Plan Options Screen. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 75: Procedures

    3) Press the ENT Key or the small PFD Knob. The Select Departure Window is displayed. 4) Use the PFD Knob to select an airport and press the ENT Key or the small PFD Knob. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 76: Load An Arrival Procedure

    11) Touch the Load Button to insert the arrival into the active flight plan. Loading an arrival into the active flight plan using the PFD Controller: 1) Press the PROC Key. The Procedures Window is displayed. 2) Highlight ‘SELECT ARRIVAL’. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 77: Load And/Or Activate An Approach Procedure

    8) Scroll the list if necessary and touch a transition selection button to select the transition. 9) To set the minimums, touch the Minimums Button to display the Minimums Screen. If the minimums were Off, then Baro is automatically selected. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 78 4) Use the PFD Knob to select an airport and press the ENT Key or the small PFD Knob. 5) Select an approach from the list and press the ENT Key or the small PFD Knob. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 79: Activate An Approach In The Active Flight Plan

    1) Press the PROC Key. The Procedures Window is displayed. 2) Highlight ‘ACTIVATE APPROACH’. 3) Press the ENT Key or the small PFD Knob. The approach is activated. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 80: Activate A Vector To Final Approach Fix

    1) Press the PROC Key. 2) Turn the FMS Knob to highlight ‘ACTIVATE MISSED APPROACH’. 3) Press the ENT Key. The approach automatically sequences to the MAHP. Press the Go-Around Button. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 81: Temperature Compensated Altitude

    4) Touch the <airport> Temp Button Use the keypad at the and the Enter Button to select the temperature <airport>. The compensated altitude is computed and shown in the flight plan. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 82 Procedures Blank Page Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 83: Hazard Avoidance

    5) Touch on the Terrain Button, scroll though the list and touch a range button to select the maximum map range at which the system shows terrain data. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 84 3) Touch the Traffic Button to enable/disable the display of traffic. Traffic is enabled when the button annunciator is green, disabled when gray. 4) Touch the Traffic Settings Button to select which traffic symbols are to be shown: Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 85 Traffic labels are enabled when the button annunciator is green, disabled when gray. 6) Touch the Traffic Label range button and scroll to select the maximum map range at which traffic labels are shown. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 86: Lightning Detection System (Optional)

    Strike is less than 6 seconds old Strike is between 6 and 60 seconds old Strike is between 1 and 2 minutes old Strike is between 2 and 3 minutes old Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 87 3) If necessary, scroll to display the Stormscope Lightning Button. 4) Touch the Settings Button. 5) Touch the Clear Stormscope Lightning Button to remove lightning indications on the display. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 88: Siriusxm Weather (Optional)

    4) Scroll though the list and touch a range button to select the maximum map range at which the system shows data for the selected weather product. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 89 Echo Top SiriusXM Lightning Cell Movement SIGMETs/AIRMETs Meteorological Aerodrome Report (METARS) City Forecast Surface Analysis Freezing Levels Winds Aloft County Warnings Cyclone Warnings Icing Potential (CIP and SLD) 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 90: Garmin Connext ™ Weather (Optional)

    Garmin Flight Data Services. Registration is complete when the Registration Information window displays the name of the airframe, tail number, and the serial numbers for the airframe and Iridium unit. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 91 2) Touch the Weather Selection Button. 3) Touch the Connext Weather Button. Button is highlighted and becomes Connext Settings Button. The selected Display Pane shows Connext Weather Display. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 92 Connext Weather > Connext Settings. 2) Touch the Send Immediate Request Button. The system contacts Garmin Flight Data Services and displays the status in the Data Request Window. System displays ‘Completed’ when finished. 3) If desired, touch the Cancel Immediate Request Button while a request is occurring.
  • Page 93 2) Find the desired weather product button in the Overlays window. The weather product is enabled when annunciator on the button is green, disabled when annunciator is gray. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 94 30 minutes. Connext Server Inop The Garmin Connext weather data server will be out of service for at least 30 minutes. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 95 Request Failed - Try Again The weather data request timed-out. Re-send data request. Transfer Preempted The data link is busy. Retry request later. Abnormal Weather Data Request Status Messages 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 96: Traffic Advisory System

    1) From the Home Screen, touch Traffic > Traffic Settings. 2) Touch the Operate Button. The button annunciator is green when operate mode is enabled, gray when disabled. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 97 Below: Displays non-threat and proximity traffic from 2700 feet above the aircraft to 9000 feet below the aircraft. Typically used during descent phase of flight. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 98: Terrain-Svt

    1) From the Home Screen, touch Map > Map Settings > Map Options. 2) If necessary, touch the Map Tab. 3) Scroll to find the Terrain Data Button. 4) Touch the Terrain Data Button to enable/disable terrain data. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 99: Terrain Awareness & Warning System (Taws) Display (Optional)

    TERRAIN AWARENESS & WARNING SYSTEM (TAWS) DISPLAY (OPTIONAL) NOTE: Terrain data is not displayed when the aircraft is outside of the installed terrain database coverage area. NOTE: TAWS operation is only available when the G2000 is configured for a TAWS installation. Displaying terrain on the TAWS Display: From the Home Screen, touch TAWS.
  • Page 100 TAWS alerting is enabled. 1) From the Home Screen, touch Map > Map Settings. 2) If necessary, touch the Sensor Tab. 3) Touch the Relative Terrain Button. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 101 5) Touch the TAWS Inhibit Button. When the annunciator on the button is green, TAWS alerting is inhibited. When the annunciator is gray, TAWS alerting is enabled. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 102 Hazard Avoidance Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 103: Additional Features

    The ChartView database is updated on a 14-day cycle. If the ChartView database is not updated within 70 days of the expiration date, ChartView will no longer function. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 104 3) Touch the Day, Night, or Auto button. The selection is annunciated on the Light Mode Button. When Auto is selected, the display will change to the appropriate day or night setting, dependent on ambient lighting. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 105 3) Touch the Day, Night, or Auto button. The selection is annunciated on the Light Mode Button. When Auto is selected, the display will change to the appropriate day or night setting, dependent on ambient lighting. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 106: Airport Directory

    Now Playing field. Selecting a channel directly: 1) From the Home Screen, touch Services > Music > Channel. 2) The numeric keypad is displayed. Enter the desired channel number. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 107 3) Touch the Favorites Button to view the favorite channel list. 4) Touch the desired channel in the list. The channel is now displayed in the Now Playing field. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 108 This function is active when the annunciator is green. 5) Touch the Back Button to return to the Music Screen. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 109: Text Messaging (Sms) (Optional)

    8) If desired, touch the Reply Again Button to resend the reply. 9) Touch Delete to delete the message from the list. 10) Touching Save Conact saves the contact information in the system contact list. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 110 2) Touch the Inbox Tab. A list of sent or unsent messages is displayed. 3) Touch a message to access the Send Again, Delete, and Save Contact Buttons. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 111 2) Touch the Options Tab. The ‘Sort Messages By’ selections are displayed. 3) Touch the Address Button. A green annunciator indicates an active selection. 4) Touch the Back Button to return to the previously selected message box. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 112: Scheduled Messages

    Entering a scheduled message: 1) From the Home Screen, touch Utilities > Scheduled Messages. 2) Touch the Add Message Button. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 113 2) Touch the name of the message to be deleted. The Message Options Window is displayed. 3) Touch the Delete Message Button. Touch the Delete All Messages Button to delete all saved messages. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 114: Electronic Stability And Protection

    3) Scroll to display the Stability & Protection Button. 4) Touch the Enable Button. A green annunciator indicates ESP is enabled. A gray annunciator indicates ESP is disabled. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 115: Electronic Documents (Optional)

    • Javascript • Logical structure (structuring documents into chapters, paragraphs, headings, footnotes) • Web capture information (annotations for search engines) • Prepress support (annotations for newspapers, etc.) 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 116 (depending on button touched) within the selected pane. Each subsequent touch will rotate the page another 90 degrees. 6) Touch the Brightness Slider to adjust the brightness of the displayed page. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 117 2) Touch the Bookmark Tab to display the Bookmark Window. 3) Touch the X Button next to the bookmark to be deleted. 4) Touch OK on the confirmation screen. 5) Again, touch OK. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 118: Environmental Control Settings

    Touch the + pointer to increase fan speed, or - pointer to decrease fan speed. Each touch increases or decreases ten percent. The manual fan speed setting is displayed above the fan speed slider as a percent of maximum speed. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 119: Crew Profiles

    2) Scroll if necessary, and touch the button for the crew profile to be activated. 3) Touch the Activate Button. When finished, the system displays the name of the selected crew profile in the ‘Active Profile’ window. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 120 1) If necessary, insert an SD card containing a crew profile into the top card slot in the MFD. 2) From the Home Screen, touch Utilities > Crew Profile. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 121: Electronic Checklists (Optional)

    AFM or the Pilot Safety and Warning Supplements document. NOTE: Garmin is not responsible for the content of checklists. User-defined checklists are created by the aircraft manufacturer. Modifications or updates to the checklists are coordinated through the aircraft manufacturer.
  • Page 122 ‘*CHECKLIST NOT FINISHED*’ will be displayed in yellow text. 7) ‘GO TO NEXT CHECKLIST?’ will now be highlighted. 8) Press the small right knob on the Touchscreen Controller to advance to the next checklist. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 123: Abnormal Operation

    REVERSIONARY MODE Should a system detected failure occur in either display, the G2000 automatically enters reversionary mode. In reversionary mode, critical flight instrumentation is combined with engine instrumentation on the remaining display.

  • Page 124: Audio Controller Fail-Safe Operation

    • Selected Altitude • Wind Data – Messages • VNV Target Altitude • Selected Heading Box – Procedures • Selected Course Box – ADF/DME Tuning • Transponder Status Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 125: Dead Reckoning

    Extreme Pitch Indication DEAD RECKONING While in Enroute or Oceanic phase of flight, if the G2000 detects an invalid FMS/ GPS solution or is unable to calculate a FMS/GPS position, the system automatically reverts to Dead Reckoning (DR) Mode. In DR Mode, the G2000 uses its last-known position combined with continuously updated airspeed and heading data (when available) to calculate and display the aircraft’...
  • Page 126 • All Bearing Pointer Distances • Active Flight Plan distances, bearings, and ETE values Also, while the G2000 is in DR Mode, the autopilot will couple to GPS for up to 20 minutes. Terrain Proximity, TERRAIN-SVT, and TAWS are also disabled. Additionally, the accuracy of all nearest information (airports, airspaces, and waypoints) is questionable.

  • Page 127: Annunciations & Alerts

    AVN FAN FAIL One or both of the AVN cooling fans have Single Chime/None failed. BELOW ICING MIN SPD ◊ Aircraft below minimum airspeed for icing Single Chime/None conditions 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 128 Anti-Ice system is operating normally None  A-ICE MAX Anti-Ice system is operating in maximum None  mode AP/TRIM OFF AP/TRIM master switch is in the OFF position None Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 129: Comparator Alerts

    Difference in roll sensors is > 6 degrees. No data from one or both heading sensors. No data from one or both pitch sensors. No data from one or both roll sensors.. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 130: Reversionary Sensor Alerts

    The engine manifold pressure is below 15 in hg. Manifold pressure is below 15 in hg VAPOR SUPPR – Alert to Vapor suppression system should be enabled. turn on vapor suppression Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 131: Afcs Alerts

    Preflight Test Performing preflight system test. Upon completion of the test, the aural alert is heard. Preflight system test has failed. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 132: Terrain-Svt Alerts

    “Terrain System Terrain System Test Fail TERRAIN FAIL Failure” Terrain or Obstacle database unavailable or “Terrain System invalid, invalid software TERRAIN FAIL Failure” configuration, system audio fault Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 133: Taws Alerts

    “Terrain Ahead, Pull Up; Terrain Ahead, Pull Up” Imminent Terrain Terrain Ahead, Pull Up; Impact Warning (ITI) Terrain Ahead, Pull Up” “Terrain, Terrain; Pull Up, Pull Up” 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 134 Ahead” “Caution, Obstacle; Cau- tion, Obstacle” Premature Descent “Too Low, Terrain” Alert Caution (PDA) Altitude Callout None None “Five-Hundred” “500” Excessive Descent “Sink Rate” Rate Caution (EDR) Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 135 GPS signal or out of “TAWS Not None database coverage Available” area Sufficient GPS signal received after loss or None None “TAWS Available” database coverage area entered 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 136: Gdl 69/69A Data Link Receiver Messages

    The aircraft has descended below the preset barometric minimum descent altitude. “Vertical track” The aircraft is one minute from Top of Descent. Issued only when vertical navigation is enabled. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 137: Gdu 1400W Primary Flight Display & Multi Function Display

    The system should be serviced. SW MISMATCH – GDU The MFD and PFD have different software versions software version mismatch. installed. The system should be serviced. Xtalk is off. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 138 The PFD1 voltage is low. The system should be serviced. voltage. Reducing power usage MFD1 VOLTAGE – MFD1 has low voltage. Reducing power The MFD voltage is low. The system should be serviced. usage Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 139: Database System Messages

    Screen to determine versions or regions. Also, check the Avionics Status Screen for a database synchronization function not completed. After synchronization is complete, power must be turned off, then on. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 140: Gia 63W Integrated Avionics Unit System Messages

    The GIA1 and/or GIA2 temperature is too low to temperature too low. operate correctly. Allow units to warm up to operating GIA2 COOLING – GIA2 temperature. temperature too low. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 141 The COM1 and/or COM2 configuration settings do error. Config service req’d. not match backup configuration memory. The system COM2 CONFIG – COM2 config should be serviced. error. Config service req’d. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 142 TRUE NORTH APPROACH – Displayed after passing the first waypoint of a true Change HDG reference to true. north approach when the nav angle is set to ‘AUTO’. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 143 The NAV 1 and/or NAV 2 has incorrect software installed. The system should be serviced. NAV2 MANIFEST – NAV2 software mismatch, communication halted. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 144: Gdc 74A Air Data Computer System Messages

    1 software mismatch, system should be serviced. communication halted. XPDR1 SERVICE – XPDR1 needs service. Return unit for The #1 transponder should be serviced when possible. repair. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 145: Gts 800 Traffic Advisory System Messages

    A fault has occurred in the #1 or #2 GMU 44. Heading occurred. is flagged as invalid. The AHRS uses GPS for backup HDG FAULT – AHRS2 mode operation. The system should be serviced. magnetometer fault has occurred. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 146: Grs 77 Attitude And Heading Reference System Messages

    The system should be serviced. AHRS MAG DB – AHRS The #1 AHRS and #2 AHRS magnetic model database magnetic model database versions do not match. version mismatch. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 147 GRS 2 MANIFEST – The #2 AHRS has incorrect software installed. The GRS2 software mismatch, system should be serviced. communication halted. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 148: Gtc 570 Touchscreen Controller System Messages

    Config service req’d. backup configuration memory. The system should be serviced. GCU1 FAIL – GCU1 is The GCU 275 has failed. The system should be serviced inoperative. when possible. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 149: Gdl 69/69A Satellite Datalink Receiver System Messages

    Return unit for the unit. Certain audio functions may still be available, repair. and the audio controller may still be usable. The system should be serviced when possible. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 150: Gmc 720 Afcs Controller System Messages

    Verify that stored flight plans contain correct waypoint locations. TIMER EXPIRD – Timer has The system notifies the pilot the timer has expired. expired. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 151 – less than 2 nm. position. APR INACTV – Approach is The system notifies the pilot the loaded approach is not active. not active. Activate approach when required. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 152 WGS84 map reference datum and may be positioned in error as displayed. Do not use GPS to navigate to the selected non- WGS84 waypoint. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 153 The SD card was removed from the top card slot of REM – [PFD1 or MFD1] card 1 the PFD or MFD. The SD card needs to be reinserted. was removed. Reinsert card. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 154 The documents on the database cards do not match. See Document Viewer Page for Ensure the aircraft manufacturer installed documents detailed info. on the bottom card of each display match. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 155: Flight Plan Import/Export Messages

    The flight plan has been imported, but must be edited within the system before it can be activated for use. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 156: Crew Profile Import/Export Messages

    Displayed if the maximum number for crew profiles use. Delete a profile before has been reached. importing another.’ ‘Crew profile import failed.’ Displayed if the importing operation fails for any other reason. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 157 Displayed if the filename matches the name of an existing file on the SD card. ‘Crew profile export failed.’ Displayed if the export operation fails. ‘Crew profile export Displayed if the export operation succeeds. succeeded.’ 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 158 Annunciations & Alerts Blank Page Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 159: Appendix

    PFD SOFTKEYS Selected Softkey Names Bezel-Mounted Function (VOR 1 selected for Softkeys (Press) the Active NAV) Disabled Top Level PFD Softkeys Inset Map Settings and CAS Softkeys 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 160 Appendix PFD Settings Softkeys Sensor Softkeys Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 161 Adds or removes the display of map topography on the Inset Map. The softkey annunciator is green when topography is on. When topography is off, the annunciator is gray. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 162 Replaces the Inset Map with a dedicated Inset traffic display. The softkey annunciator is green when the dedicated traffic display on. When the Inset Map is on, the softkey annunciator is gray. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 163 Displays additional PFD settings softkeys. Settings Wind Displays softkeys to select wind data parameters Option 1 Headwind/Tailwind and crosswind components Option 2 Wind direction arrow and speed 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 164 Pressing displays the scroll-up and scroll- down softkeys. CAS Up Pressing scrolls up through the CAS messages CAS Dn Pressing scrolls down through the CAS messages Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 165: Gtc Screens

    Weather source is configured) on the Touchscreen Controller, from which the SiriusXM WEATHER Pane, Connext Weather Pane, and Stromscope Pane may be displayed and controlled. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 166 Accesses Services Menu Screen on Touchscreen Controller. Includes optional Iridium voice telephone phone, contacts, and SiriusXM Satellite Radio controls. Only available when a GSR 56 is installed. Access SiriusXM Satellite Radio controls. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 167 Waypoints. Also allows creation of User Waypoints. Provides information about the nearest Airports, Intersections, VORs, NDBs, User Waypoints, Airspace, ARTCC facilities, Flight Service Stations, and Weather reporting stations. Weather Selection Screen 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 168 Stormscope Settings Screen. ® Shows Connext Weather Pane in the Selected Display Pane. Touch button again to access Connext Weather Settings Screen. Aircraft Systems Screen Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 169 EIS display. Refer to the EIS section for more information about the Lean Assist feature. Enables/disables supplemental oxygen system. Refer to the EIS section for more information. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 170 Accesses the SMS Text Messaging Screen to view, edit, and send text messages via the Iridium satellite telephone. Contacts Screen provides management of contact information. Also provides quick access to calling a stored contact. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 171 Accesses the Minimums screen on the Touchscreen Controller. Provides controls for the Minimum Descent Altitude/Decision Height alerting function. Button displays the current minimums altitude and source if provided. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 172 Turn or press any knob on the Touchscreen Controller to exit Screen Cleaning Mode. Controls for activating, and managing crew profiles. Avionics Settings and Status, Data Link Services registration and status. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 173: Setup Screen

    Shows the SiriusXM Info Screen on the Touchscreen Controller. Used to activate audio and data services from SiriusXM and to verify subscriptions of SiriusXM Weather products. Used to register with Garmin Connext data link services. Also provides information on current Garmin Connext registration. 190-01264-01 Rev. A...
  • Page 174 Shows information for a selected intersection including bearing, distance, and location. Provides VOR information including frequencies and locations. Provides NDB information including frequencies and locations. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 175 Appendix Provides location information for User Waypoints including a list of User Waypoints. Create User Waypoints based on present position or a designated location. Nearest Screen 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 176 Displays information about the nearest ARTCC facilities including bearing, distance, and frequencies. Displays the nearest Flight Service Stations with bearing, distance, and frequency information. Displays the nearest weather reporting sources, bearings, distances, and frequencies. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 177: Database Management

    The system uses Secure Digital (SD) cards to load and store various types of data. For basic flight operations, SD cards are required for database storage as well as Jeppesen navigation and ChartView database updates. Not all SD cards are compatible with the G2000. Use only SD cards supplied by Garmin or the aircraft manufacturer.
  • Page 178 8) From the Home Screen on the Touchscreen Controller, touch Utilities > Setup > Avionics Status. 9) If necessary, touch the Database Tab. The Touchscreen Controller shows a list of displays on which databases reside. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 179 2) Ensure a Supplemental Data Card is inserted into the bottom card slot of each display. 3) Turn the system ON. A prompt is presented on the MFD display: 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 180 5) After the navigation database files are copied to the bottom card, the display will appear. 6) As instructed on the display, press any key to continue. The display will now appear. 7) Press any key to continue. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...

  • Page 181: Automatic Database Synchronization Feature

    (including the standby navigation database) the data is transferred from a single SD card to the remaining SD cards on each GDU, as well as the internal 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 182 3) Touch a button from the list to view database information associated with that display (MFD1, PFD1, and GTC1). 4) Scroll through the database information to view database status. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 183 Screen for the affected GDU or GTC. When an error message is displayed, the prob- lem must be corrected before the synchronization can be completed. A power cycle is required to restart synchronization. Synchronization Error Synchronization Error Message 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 184: Garmin Databases

    Appendix GARMIN DATABASES The following databases are stored on Supplemental Data Cards provided by Garmin: • Expanded basemap • SafeTaxi • Airport Directory (AOPA or AC-U-KWIK) • FliteCharts • Terrain • Obstacle After subscribing to the desired database product, these database products will be downloaded and ultimately stored on three Supplemental Data Cards.

  • Page 185: Updating Garmin Databases

    • Existing Supplemental Database SD Cards (010-00330-42, or -43) from each GDU. In some cases it may be necessary to obtain an unlock code from Garmin in order to make the database product functional. It may also be necessary to have the system configured by a Garmin authorized service facility in order to use some database fea- tures.

  • Page 186: Magnetic Field Variation Database Update

    AHRS is the first to report status to the system. GRS2 may be displayed before GRS1. The order is not important, only that both AHRS be updated. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 187 2) When the upload is complete, the prompt for the next GRS upload is displayed. A database mismatch message, indicates the second GRS has not yet been updated. 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 188: Cleaning The Touchscreen

    DO NOT use chemical cleaning agents. From the Home Screen, touch Utilities > Setup > Screen Cleaning. Clean the touchscreen. Press or turn any knob to go back. Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 189 Engine Manifold Pressure (MAN IN HG) Entertainment audio 92 Cabin temperature 102 ESP 98 Cell 71 Exhaust Gas Temperature (EGT °F) 9 ChartView 87 Checklists 105–106 Clearance player 25 Index-1 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...
  • Page 190 Removing a procedure from a flightplan Level Mode 98 Removing a waypoint from flightplan Lightning 70, 71, 73, 145, 146 Loss of hazard function 108 Reversionary mode 107 ROC 116, 118 Index-2 Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 191 Non-Threat Traffic 80 PA 80 Proximity Advisory 80 TAWS 83, 117 Terrain 123 Terrain inhibit 83, 85 Terrain-SVT 82, 98 Text message 93, 94 Traffic Advisory System 129 Index-3 190-01264-01 Rev. A Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240...

  • Page 192: Index

    Index Blank Page Index-4 Garmin G2000 Cockpit Reference Guide for the Cessna Corvalis T240 190-01264-01 Rev. A...
  • Page 194 Liberty House, Bulls Copse Road Hounsdown Business Park Southampton, SO40 9RB, U.K. p: 44/0870.8501241 f: 44/0870.8501251 Garmin Corporation No. 68, Jangshu 2nd Road Shijr, Taipei County, Taiwan p: 886/2.2642.9199 f: 886/2.2642.9099 www.garmin.com 190-01264-01 Rev. A © 2012-2013 Garmin Ltd. or its subsidiaries...

Table of Contents
