ATN PS-40 Operator's Manual

Night vision front sights
Hide thumbs Also See for PS-40:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual

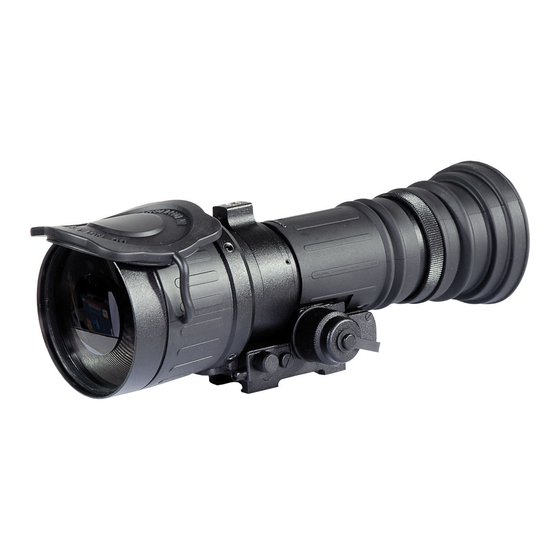

ATN PS-40
ATN PS-40 MGC
NIGHT VISION FRONT SIGHTS
o p e r a t o r ' s m a n u a l
Impor tant Expor t Restrictions ! Commodities,
products, technologies and services contained in
this manual are subject to one or more of the export
control laws and regulations of the U.S. Government
and they fall under the control jurisdiction of either the
US Department of State or the US BIS-Department
of Commerce. It is unlawful and strictly prohibited
to export, or attempt to export or otherwise transfer
or sell any hardware or technical data or furnish any
service to any foreign person, whether abroad or
in the United States, for which a license or written
approval of the U.S. Government is required, without
first obtaining the required license or written approval
from the Department of the U.S. Government having
jurisdiction. Diversion contrary to U.S. law is prohibited.

Advertisement

Table of Contents
loading

Related Manuals for ATN PS-40

Summary of Contents for ATN PS-40

  • Page 1 ATN PS-40 ATN PS-40 MGC NIGHT VISION FRONT SIGHTS o p e r a t o r ’ s m a n u a l Impor tant Expor t Restrictions ! Commodities, products, technologies and services contained in this manual are subject to one or more of the export control laws and regulations of the U.S.
  • Page 2 Manual (PS-40) Revision 1 - January 2009 The information in this manual furnished for information use only, is subject to change without notice, is not to be construed as a commitment by ATN Corp. ATN Corp. assumes no responsibility or liability for any errors or inaccura- cies that may appear in this book.
  • Page 3 STUDY CAREFULLY THIS MANUAL BEFORE TURNING ON AND OPERATING THIS PRODUCT. CAUTIONS The ATN PS-40 night vision unit is a precision electron-optical instrument and requires careful handling. To provide safe use of the sight the following instructions should be observed: •...
  • Page 4 EqUIPMENT LIMITATIONS To avoid physical and equipment damage when using the ATN PS-40, carefully read and understand the following equipment limitations. • The equipment requires some night light (moonlight, star- light, etc.) to operate. The level of equipment performance depends upon the level of light.

  • Page 5: Table Of Contents

    1.1.1. Scope 1.1.2. Reports 1.1.3. Storage 1.1.4. Warranty 1.2. Description and Data 1.2.1. Description 1.2.2. PS-40 Standard Components and Optional Equipment SECTION II. OPERATING INSTRUCTIONS 2.1. Installation Procedures 2.1.1. Battery Installation 2.1.2. Installation on MIL-STD-1913 RAIL 2.1.3. Installation on dayscope objective lens 2.2.
  • Page 6 4.1.2. Frequency of performing PMCS 4.2. Troubleshooting 4.2.1. General 4.2.2. Troubleshooting Procedures 4.3. Maintenance Procedures 4-11 4.3.1. Scope of PS-40 Maintenance 4-11 4.3.2. Cleaning Procedures 4-11 Appendix A. Spare Parts List Appendix B. How to select Scope Mounting System Appendix C. Estimation of ambient illumination level...

  • Page 7: Section I. Introduction

    SECTION I INTRODUCTION...

  • Page 8: General

    This will ensure the sight remains in mission ready condition dur- ing storage. Battery should be stored separately from the sight. The PS-40 should not be placed on the floor, in any area exposed to high temperatures or direct sunlight. Presence of acid and al- kaline vapor, as well as of other aggressive admixtures in the air is unacceptable.

  • Page 9: Warranty

    ATN, at its option, will either repair or replace the product, and such action on the part of ATN shall be the full extent of ATN’s liability, and the Customer’s sole and exclu- sive remedy.
  • Page 10 ATN’s liability hereunder for damages, regardless of the form or action, shall not exceed the fees or other charges paid to ATN by the customer or customer’s dealer. ATN shall not, in any event, be liable for special, indirect, incidental, or consequential damages, including, but not lim-...

  • Page 11: Description And Data

    1.2. DESCRIPTION AND DATA 1.2.1. DESCRIPTION A. Purpose. The PS-40 is an effective night vision system that mounts forward of an existing riflescope/spotting scope (fur- ther referred to as a scope) adding night vision capabilities to daytime target acquisition platform. Advisable dayscope magnification is 1X to 12X (2.5X to 8X is optimum).
  • Page 12 • Is submersible to 10 m for 30 minutes. • Filled with dry nitrogen to prevent internal fogging. The PS-40 is an effective night vision system designed for night operations but does have following limitations: • The sight requires some night light (moonlight, starlight, etc.) to operate.
  • Page 13 Table 1-2. Mechanical Data ITEM DATA Dimensions (Length x Width x 177 x 85 x 83 Height), mm Weight: without Battery 0.84 kg with Remote Control, Light Sup- 0.91 kg pressor and Battery Height of the Sight Axis above Arm Rail: with Quick Release Mount 41.3 mm with Weaver Mount...
  • Page 14 Table 1-4. Optical Data ITEM DATA Objective Lens Focal Length 80 mm Objective Lens F/number 1:1.23 Objective Lens T/number 1:1.8 Focus Range 10 m to infinity Field of View 12˚ Output Lens Exit Pupil Diameter 40 mm Table 1-5. Environmental Data ITEM DATA Operating Temperature...

  • Page 15: Standard Components And Optional Equipment

    1.2.2. PS-40 STANDARD COMPONENTS AND OPTIONAL EqUIPMENT The PS-40 standard components are shown in Figure 1-1 and pre- sented in Table 1-6. Figure 1-1. PS-40 Standard Components Table 1-6. PS-40 Standard Components ITEM DESCRIPTION ATN PS-40/PS-40 MGC Night Vision Front Sight...
  • Page 16 Optional items are shown in Figure 1-2 and listed in Table 1-7. Figure 1-2. PS-40 Optional Equipment 3(4) Table 1-7. PS-40 Optional Equipment ITEM DESCRIPTION PART CODE Adapter for A.R.M.S. Mounts COWSPSAM Weaver Mount ACDNPS40MWVR Scope Mounting System #1 Scope Mounting System #2...

  • Page 17: Section Ii. Operating Instructions

    SECTION II OPERATING INSTRUCTIONS...

  • Page 18: Installation Procedures

    2.1. INSTALLATION PROCEDURES 2.1.1. BATTERY INSTALLATION CAUTION Ensure the function switch is in the off position before installing a battery. Install the battery as follows: A. Observe Figure 2-1 for right position of the threaded insert ac- cording to the battery to be installed. B.

  • Page 19: Installation On Mil-Std-1913 Rail

    Measure the height of the riflescope axis above the rail. Observe table 1-2 for the sight axis height above the rail. If the difference in the axis heights of the PS-40 and riflescope is more than 3 mm it is necessary to replace riflescope mounting rings or monoblock by proper ones.

  • Page 20: Installation On Dayscope Objective Lens

    PS-40 on riflescope/sporting scope objective lens. The systems are equipped with a rail for mounting optional IR illuminator. CAUTION The PS-40 can not be attached to the riflescope/sporting scope that have a focusing ring on the objective lens housing.
  • Page 21 To choose the system # and insert refer to the Table 2-1. For example, the scope mounting system #1 and 47 mm insert are necessary to mount the PS-40 on Leupold 3.5-10x40 riflescope. NOTE Optical axes of the PS-40 and the riflescope should be matched.
  • Page 22 M4x8 and tighten it. E. Loosen the nut of the mounting system. F. Slide the PS-40 with mounting system onto the objective lens of dayscope up to the stop. G. To complete the installation of the mounting system to your dayscope, use a screw driver to tighten the nut of the mounting system.

  • Page 23: Operating Procedures

    2.2. OPERATING PROCEDURES 2.2.1. GENERAL This section contains instructions for placing the PS-40 into opera- tion. The function of controls is explained. CAUTION The PS-40 is a precision electro-optical instrument and must be handled carefully at all times. 2.2.2. CONTROLS AND INDICATORS...

  • Page 24: Operating Procedures

    2.2.3. OPERATING PROCEDURES These procedures should be performed under night light conditions only. CAUTION Use of the PS-40 under high light conditions may damage the image intensifier. A. Make sure the battery is installed as indicated on the sight body.
  • Page 25 (4) Unscrew the battery cap and take out the battery. Replace the battery cap. Do not store the PS-40 with the battery still in it. (5) Return the sight and all accessories to the case.

  • Page 26: Stowage Of

    Do not forget to open the light sensor and put the cap back onto the connector after finishing your mission. 2.2.5. STOWAGE OF PS-40 A. Ensure the PS-40 and all accessories are clean and dry before returning to storage case. B. Replace the objective cap and output cap on the lenses. Re- move the battery.

  • Page 27: Installation And Use Of Accessories

    2.3. INSTALLATION AND USE OF ACCESSORIES 2.3.1. 7/8” WEAVER MOUNT Optional Weaver mount can be used to install the PS-40 on a MIL- STD-1913 rail if mounting rail on the rifle has narrow groves (4 mm). Weaver mount M4x8 Screw Clamp bar Figure 2-7.

  • Page 28: Adapter For A.r.m.s. Mounts

    2.3.2. ADAPTER FOR A.R.M.S. MOUNTS The PS-40 can be installed on MIL-STD-1913 rail by means of using an A.R.M.S. #10 or A.R.M.S. #19 ACOG mounts. Optional adapter is used to attach the sight to the said mounts. A. Loosen and remove two screws (M4x8) that secure the quick release mount to the sight body.

  • Page 29: Platform Ring

    E. After disconnecting the remote control, replace the cap onto the connector. 2.3.4. PLATFORM RING If the PS-40 is installed on MIL-STD-1913 rail, optional platform ring is used for mounting optional IR illuminator on dayscope having mounting diameter 25.4 or 30 mm (see Figure 2-3).
  • Page 30 2.3.7. IR ILLUMINATOR Optional IR450-B4 illuminator provides the capability for opera- tor to use the PS-40 under ex-tremely low light conditions and in total darkness. The IR illuminator can be mounted on rail of the platform ring (Figure 2-3) or of the scope mounting system (Figure 2-5), or on top rail of the B.A.M.

  • Page 31: Section Iii. Operational Defects

    SECTION III OPERATIONAL DEFECTS...

  • Page 32: Zeroing Operational Defects

    Operational defects refer to the reliability of the image intensifi- ers and are an evidence of instability. Their identification shall be a valid reason to immediately refuse to accept the ATN PS-40. These include shading, edge glow, flashing, flickering, and inter- mittent operation.

  • Page 33: Edge Glow

    However, some types of blemishes can get worse over time and interfere with the usabil- ity of the device. If you believe a blemish is a cause for rejection, warranty or repair please ATN or point of purchase for warranty/ repair procedures.
  • Page 34 A bright spot is a small, non-uniform, bright area that may flicker or appear constant (Figure 3-3). Not all bright spots make the ATN PS-40 rejectable. Cup your hand over the lenses to block out all light. If the bright spot re- mains, return the ATN PS-40.
  • Page 35 C. Black Spots. These are cosmetic blemishes in the image intensifiers or dirt or debris between the lenses. Black spots are acceptable as long as they do not interfere with viewing the image. No action is re- quired if this condition is present unless the spots interfere with the usability of the device.
  • Page 36 E. Chicken Wire. An irregular pattern of dark thin lines in the field of view either throughout the image area or in parts of the image area (See Fig- ure 5-5). Under the worst-case condition, these lines will form hexagonal or square-wave shaped lines. This is typically viewed in high light conditions.

  • Page 37: Section Iv. Maintenance Instructions

    SECTION IV MAINTENANCE INSTRUCTIONS...

  • Page 38: Preventive Maintenance Checks And Services (Pmcs)

    PMCS is performed daily when in use to be sure that the sight is ready at all times. Procedures listed in Table 3-1 are a systematic inspection of the PS-40 that will enable you to discover defects that might cause the sight to fail on a mission.
  • Page 39 Table 4-1. Preventive Maintenance Checks and Services SEQ. ITEM TO NOT FULLY MISSION CHECKING PROCEDURE CHECK CAPABLE IF: Check for corrosion, Springs corroded Battery springs tension, cap or damaged. Re- Compart- damaged or retainer tainer broken. Cap ment broken. Check O-ring or O-ring damaged for cuts or damage.
  • Page 40 Table 4-1. Preventive Maintenance Checks and Services SEQ. ITEM TO NOT FULLY MISSION CHECKING PROCEDURE CHECK CAPABLE IF: Check cable and Cable or switch switch for damage. damaged. Check Velcro tape for Velcro tape miss- wear. ing. Remote Ensure the remote Connector dam- Control control connects to...
  • Page 41 CHECK CAPABLE IF: OPERATIONAL CHECkS CAUTION: Activate the PS-40 in daylight with objective lens cap on or low light conditions. NOTES: 1. PMCS checks for daylight conditions are listed below. 2. When looking through the PS-40 with objective lens cap on, observable image has a form of two overlapping zones.
  • Page 42 Table 4-1. Preventive Maintenance Checks and Services SEQ. ITEM TO NOT FULLY MISSION CHECKING PROCEDURE CHECK CAPABLE IF: Take connector cap off. Connect the remote control to the sight. Turn function switch to STB position. Remote Press and hold the re- Green glow absent.
  • Page 43 Threaded Ring Driving Ring Locking Ring M3x6 Screw M2.5x4 Screw Figure 4-1. Focusing Assembly...

  • Page 44: Troubleshooting

    4.2.1. GENERAL This section contains information for locating and removal most of the PS-40 operating troubles which may occur. Each malfunction for an individual component or assembly is followed by a list of tests or inspections that will help determine probable causes and cor- rective action to take.
  • Page 45 Table 4-2. Troubleshooting Procedures PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Cannot Objective and out- Clean thoroughly the achieve the put lenses dirty. lenses surfaces. sharp image (1) Using hex wrench of the object. tighten M3x6 screw which secures driving ring on threaded ring. (2) Point the sight to an object situ-ated at a distance more than 100...
  • Page 46 Table 4-2. Troubleshooting Procedures PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Cannot Focus ring able (1) Loosen three screws achieve the to move along the M2.5x4 more than a turn. sharp image sight body. Locking (2) Tighten the locking of the object ring loose (see ring and fix it with the Figure 3-1).

  • Page 47: Maintenance Procedures

    4.3. MAINTENANCE PROCEDURES 4.3.1. SCOPE OF PS-40 MAINTENANCE The PS-40 maintenance consists of external inspection of its com- ponents for serviceability, cleaning and installation of the standard and optional accessories. Maintenance instructions covered else- where in this manual (PMCS, troubleshooting, etc.) are not repeat- ed in this section.

  • Page 48: Appendix Aspare Parts List

    SPARE PARTS LIST The Spare Parts List is an illustrated catalog of main parts and assemblies completing the Night Vision Attachment PS-40, here in after referred to as PS-40. Therefore, in case of failure of any part or assembly User could replace it by ordering the corresponding part/assembly from the Spare Parts List.
  • Page 49 Table A-1. ATN PS-40 spare parts list PART NO. DESCRIPTION FIG. ITEM AT 146553.700 Accessories 2 (Optional) AT 146553.701 Adapter for A.R.M.S. mount AT 146553.702 7/8” Weaver Mount AT 146533.702 Platform Ring AT 146533.741 Long Rail Adapter AT 146553.703 B.A.M. system AT 146533.555...
  • Page 50 Figure A-2. Accessories 1 (From the kit) 7(8) Figure A-3. Accessories 2 (Optional)

  • Page 51: Appendix B. How To Select Scope Mounting System

    REqUIRED FOR YOUR DAYTIME SCOPE By selecting the appropriate Scope Mounting System (with In- serts) you can mount the PS-40 onto a daytime scope with an ob- jective tube diameter from 47 to 58,7 mm. At the Table 2-1 Scope Mounting System sizes (#1-2) and Insert sizes for different scope examples are provided.
  • Page 52 APPENDIX C ESTIMATION OF AMBIENT ILLUMINATION LEVEL Some of usual natural light conditions and corresponding repre- sentative illumination values are presented in Table C-1. Table C-1. Standard Natural Light Conditions and Illumination Values STANDARD NATURAL LIGHT CONDITIONS ILLUMINATION VALUE, LUX Quarter moon 0.05 Full moon...

  • Page 53: For Technical Information

    FOR TECHNICAL INFORMATION ATN CORP. 1341 San Mateo Avenue South San Francisco, CA 94080 (800) 910-2862 (650) 989-5100 tel. (650) 875-0129 fax www.atncorp.com info@atncorp.com INFO-1...
  • Page 54 INFO-2...
  • Page 55 INFO-3...
  • Page 56 For customer service and technical support, please contact American Technologies Network Corp. North American Office: 1341 San Mateo Avenue South San Francisco, CA 94080 phone: 800-910-2862, 650-989-5100 fax: 650-875-0129 www.atncorp.com ©2010 ATN Corporation...
