Remote Control (Vsx-515) - Pioneer VSX-815-S/-K Operating Instructions Manual

Controls and displays

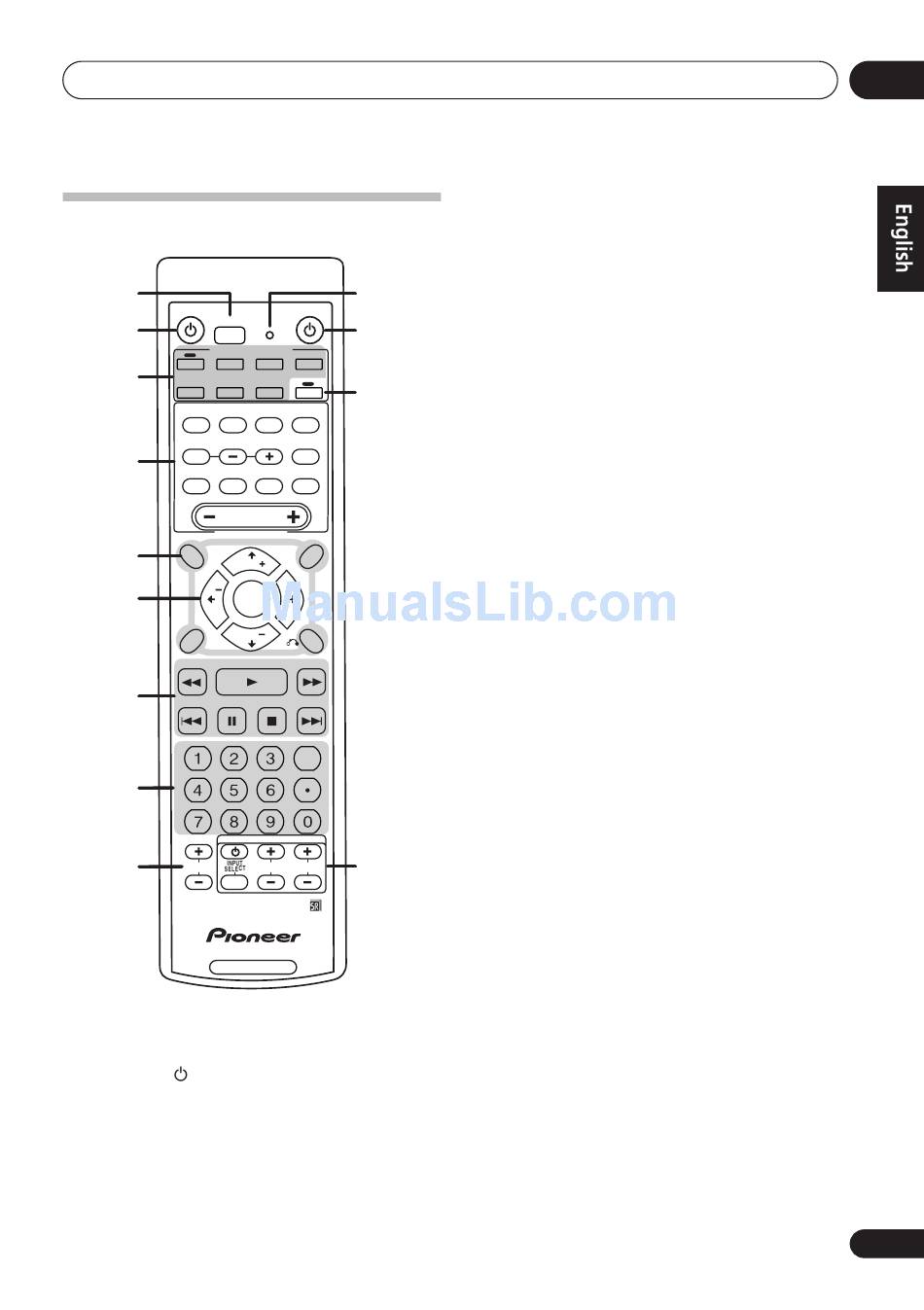

Remote control (VSX-515)

1
RECEIVER
INPUT SELECT
2
MULTI CONTROL
DVD/LD TV / SAT
3
C D CD-R/TAPE
ADVANCED
STANDARD SURROUND
EFFECT
/CH SEL
4
DIALOG E
MUTE
MASTER
VOLUME
RECEIVER CONTROL
TOP MENU
5
DTV MENU
ST
6
ENTER
AUDIO
SYSTEM
SETUP
RETURN BAND DTV ON/OFF
7
DISPLAY CLASS
8
9
CHANNEL
RECEIVER
1 INPUT SELECT
Use to select the input source.
2 RECEIVER
This switches between standby and on for this
receiver.
10
SOURCE
11
DVR/VCR TV CONT
12
TUNER RECEIVER
STEREO/ MIDNIGHT/
DIRECT LOUDNESS
LEVEL SLEEP
ACOUSTIC FL
EQ DIMMER
MENU
TUNE
INPUT ATT
T.EDIT
ST
GUIDE
SUBTITLE
TUNE
RETURN
DTV INFO
MPX D.ACCESS
DISC
ENTER
+10
TV CONTROL
13
CHANNEL VOLUME
3 MULTI CONTROL buttons
Press to select control of other components
(see Controlling the rest of your system on
page 58).
4 RECEIVER CONTROL buttons
STANDARD
Press for Standard decoding and to switch
between the various Pro Logic IIx and
Neo:6 options (page 36).
ADVANCED SURROUND
Use to switch between the various
surround modes (page 37).
STEREO/DIRECT
Switches between direct and stereo
playback. Direct playback bypasses the
tone controls and any other signal
processing for the most accurate
reproduction of a source (page 39). Also
selects the Auto Surround mode (Auto
playback on page 36).
MIDNIGHT/LOUDNESS
Use Midnight when listening to movie
soundtracks at low volume. Use Loudness
to boost the bass and treble at low volume
(page 43).
EFFECT/CH SEL
Press repeatedly to select a channel, then
use LEVEL +/– to adjust the level (see Tip
on page 53). Also adjusts the level of the
Advanced Surround effects (page 37) as
well as Dolby Pro Logic IIx Music (page 38)
and Neo:6 Music parameters (page 38).
You can then use the LEVEL +/– buttons to
make these adjustments.
LEVEL +/–
Use to adjust the effect and channel levels,
as well as to change Dolby Pro Logic IIx
and Neo:6 Music parameter settings.
SLEEP
Use to put the receiver in sleep mode and
select the amount of time before the
receiver turns off (page 45).
