SmartBase MPC600F/MPC400 Chapter 3: Assembly and Disassembly
Disassembly 112. Separation unit
(1) Perform Disassembly 110 to remove the DF cover.
(2) Detach the 2 separation shaft guides from the shaft.
(3) Remove the E-ring (a).
(4) Remove the gear (b).
(5) Remove the left/right busing (c).
(6) Remove the separation unit.
Disassembly 113. Separation guide
(1) Perform Disassembly 112.
(2) Remove the 2 screws (d), and detach the document guide lower cover.
(3) Remove the lever.
(4) Remove the spring (e).
(5) Remove the separation guide.
Document guide
lower cover
Lever
c
b

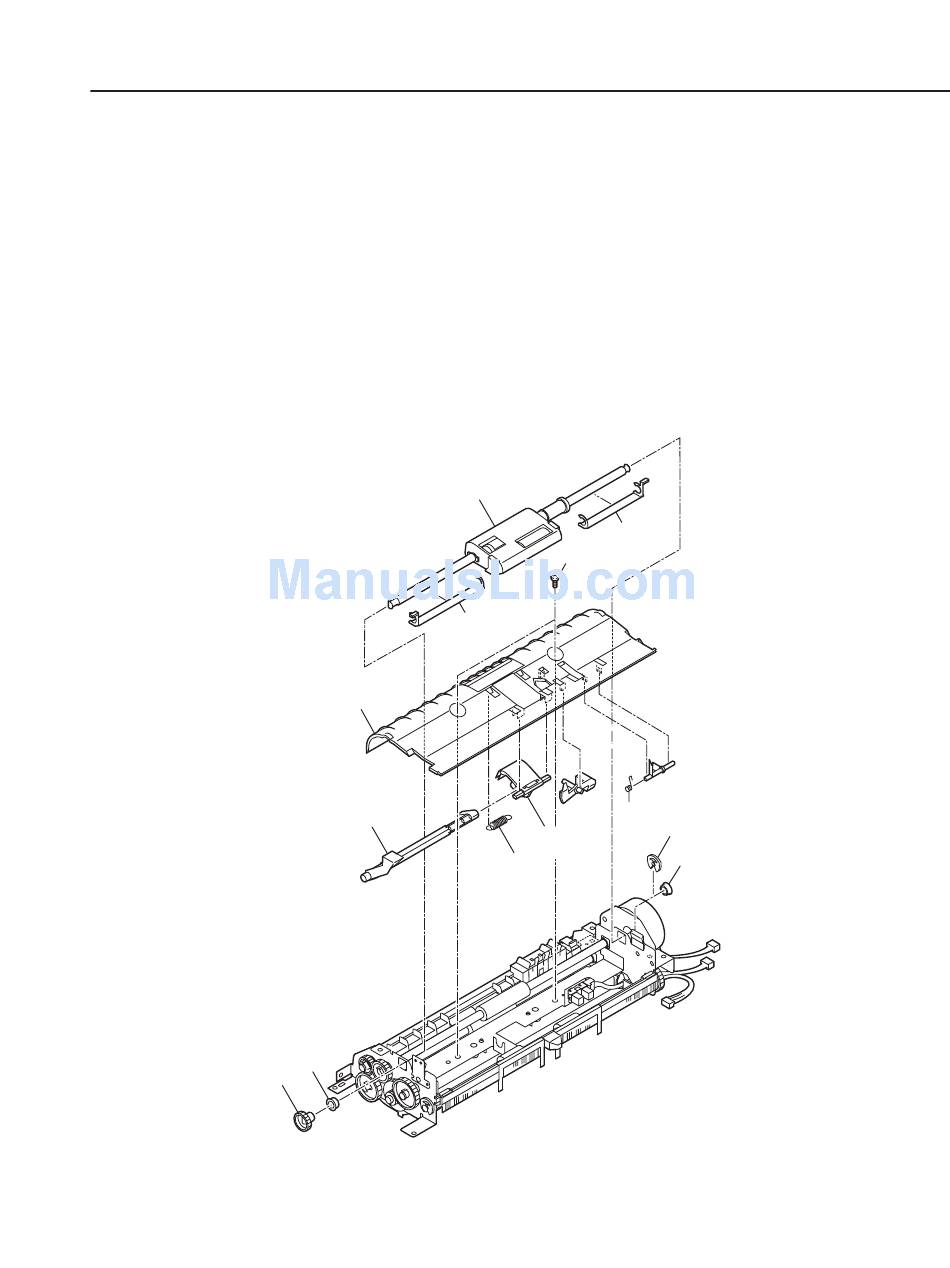

Figure 3-29 Disassembly 112 and Disassembly 113
Separation unit
Separation
shaft guide
d
Separation
shaft guide
Separation
guide
e
3-33
a
c
