Field Replaceable Units (FRUs)
FRU Removal and Replacement

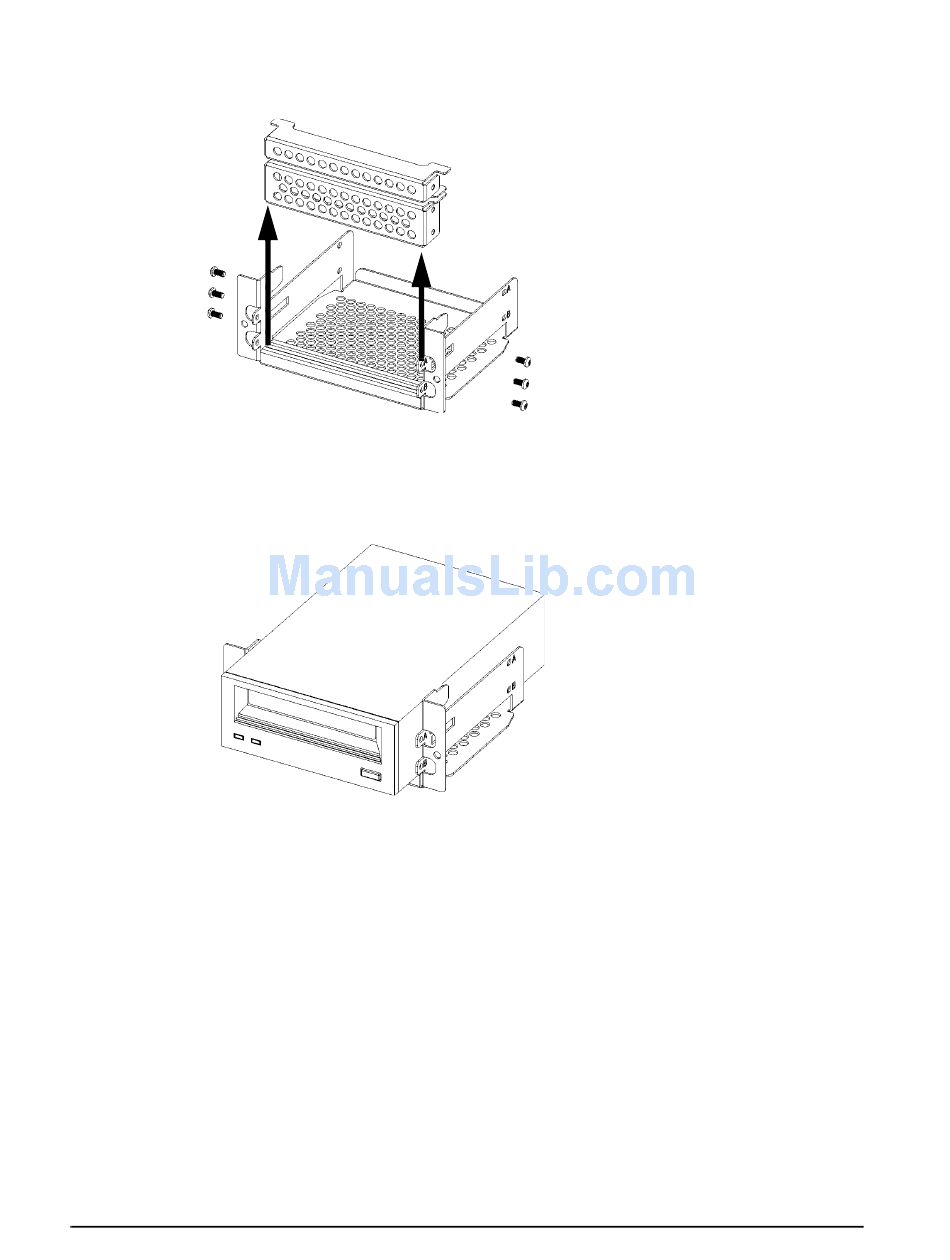

Figure 4-7. Removing the Filler Panels from the Carrier

3. Insert the DDS-3 tape drive into the carrier and secure the drive in the carrier using
four T-10 Torx screws (two on each side).

Figure 4-8. DDS-3 Tape Drive Installed in the Carrier

4. Connect the power and ribbon cables in the drive bay to the rear of the DDS-3 tape
drive.
5. Push the DDS-3 tape/floppy disk drive carrier assembly into the drive bay, taking care
not to pinch the cables. Seat the carrier assembly flush against the front panel.
6. Insert and tighten the two T-15 Torx screws to secure the DDS-3 tape drive to the front
panel of the workstation.
7. Replace the front panel bezel.
8. After rebooting, use SAM to confirm that the DDS-3 tape drive is recognized by the
system.
