3. If you are installing a new DDS-3 tape drive into the empty DDS-3 tape/floppy disk
drive bay:
a. Remove the two T-15 Torx screws securing the DDS-3 tape/floppy disk drive bracket
to the front panel of the workstation.
b. Slide the DDS-3 tape/floppy disk drive bracket out of the chassis guide rails.
c. Remove the filler panels from the DDS-3 tape/floppy disk drive bracket as shown in
Figure 4-13.

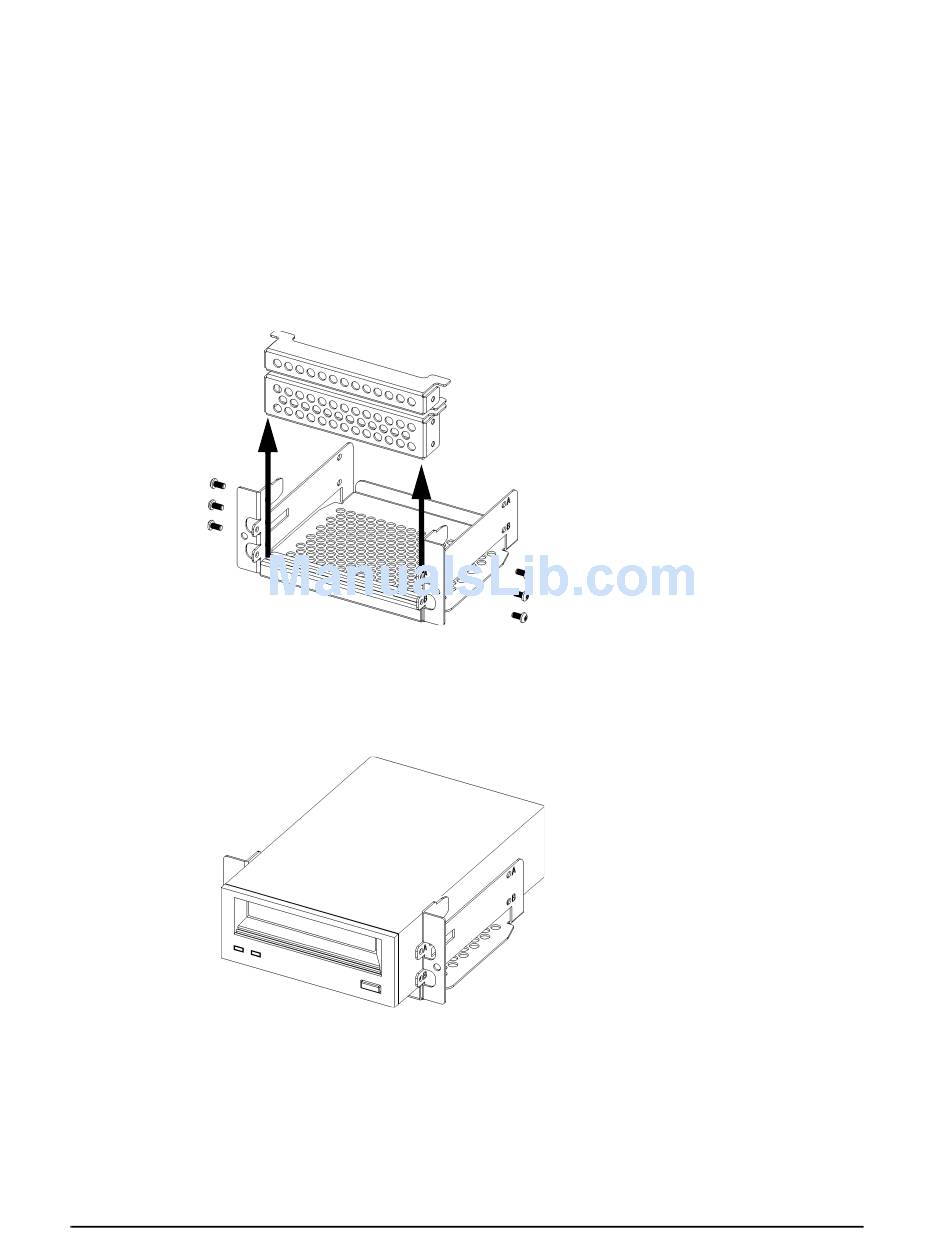

Figure 4-13. Removing the Filler Panels from the Bracket

4. Insert the DDS-3 tape drive into the bracket and secure the drive in the bracket using
four of the six T-10 Torx screws (two on each side).

Figure 4-14. DDS-3 Tape Drive Installed in the Bracket

5. Connect the power and ribbon cables in the drive bay to the rear of the DDS-3 tape
drive.
6. Push the DDS-3 tape/floppy disk drive bracket assembly into the drive bay, taking care
not to pinch the cables. Seat the bracket assembly flush against the front panel.
