JUNOSe 11.1.x Physical Layer Configuration Guide

Configuration Examples

This section provides some configuration examples to illustrate how to use the CLI
commands.

Example 1: Configuring Interfaces in SONET Mode

The following example illustrates how to configure T1 lines on channelized SONET
interfaces, as shown in Figure 11 on page 142.

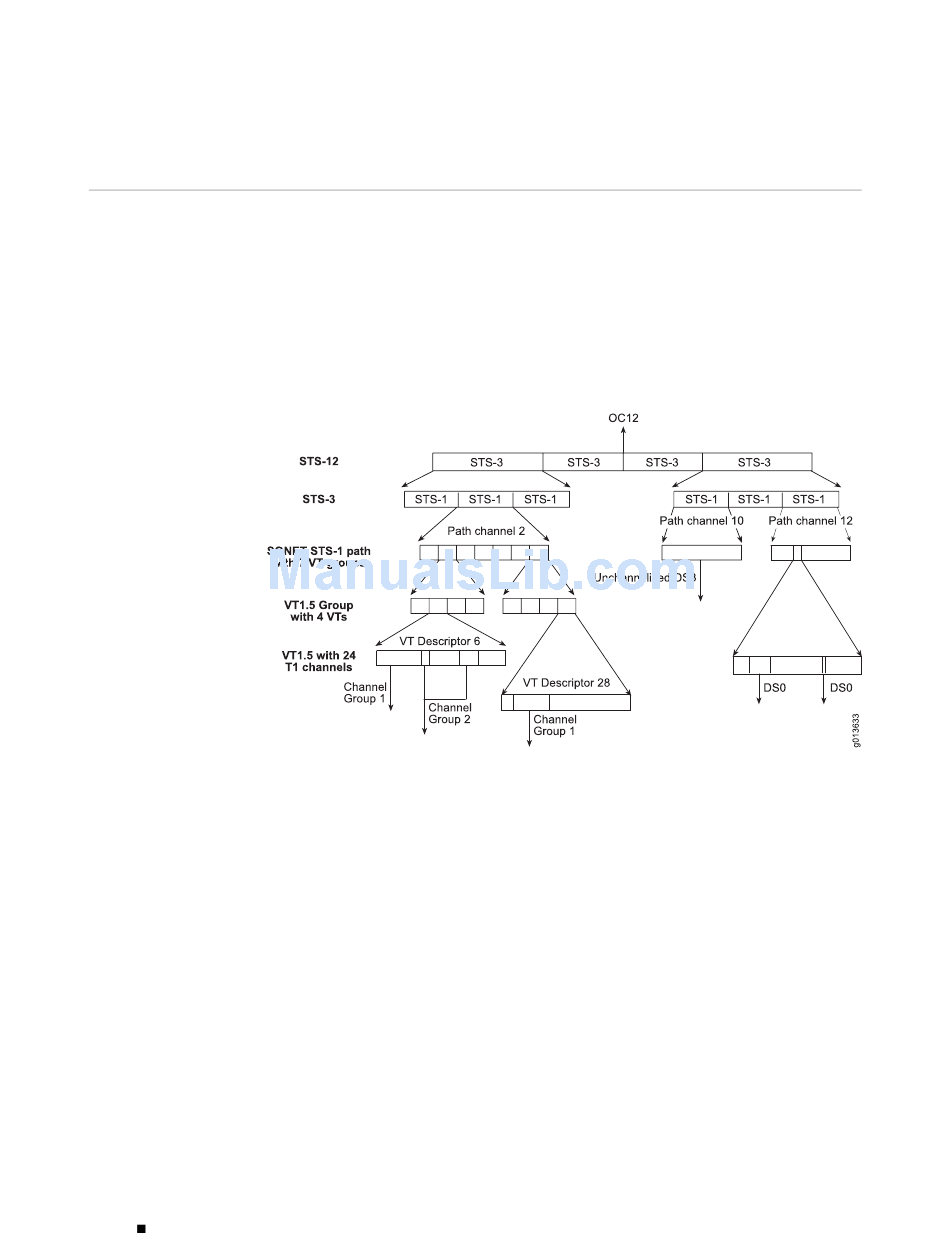

Figure 11: Configuring Fractional T1 in SONET Mode

1.
2.
3.
4.
5.
142
Configuration Examples
Select an OC-12 SONET controller.
host1(config)#controller sonet 4/0
Configure two STS-1 paths.
host1(config-controller)#path 2 oc1 1/2
host1(config-controller)#path 10 oc1 4/1
Configure two VT1.5 tributaries on SONET path channel 2.
host1(config-controller)#path 2 ds1 1/2/2 vt15
host1(config-controller)#path 2 ds1 1/7/4 vt15
Configure two fractional T1 lines on VT 1/2/2 in path 2.
host1(config-controller)#path 2 ds1 1/2/2 channel-group 1 timeslots 1-10
host1(config-controller)#path 2 ds1 1/2/2 channel-group 2 timeslots 11, 21-26
Configure a fractional T1 line on VT 1/7/4 in path 2.
host1(config-controller)#path 2 ds1 1/7/4 channel-group 1 timeslots 2-7
