Programming Console Operations

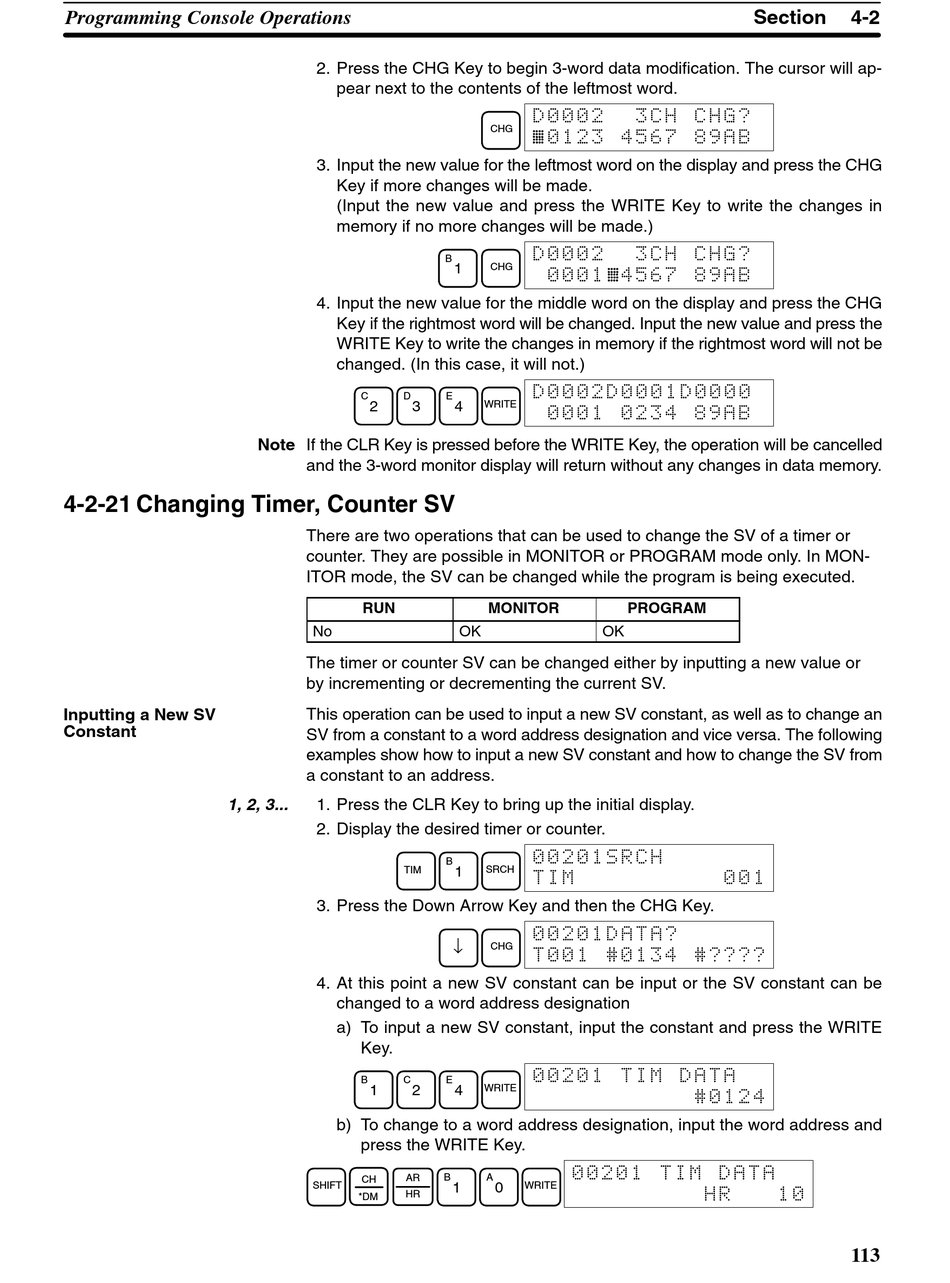

4-2-21 Changing Timer, Counter SV

Inputting a New SV
Constant
1, 2, 3...
2. Press the CHG Key to begin 3-word data modification. The cursor will ap-
pear next to the contents of the leftmost word.
3. Input the new value for the leftmost word on the display and press the CHG
Key if more changes will be made.
(Input the new value and press the WRITE Key to write the changes in
memory if no more changes will be made.)
4. Input the new value for the middle word on the display and press the CHG
Key if the rightmost word will be changed. Input the new value and press the
WRITE Key to write the changes in memory if the rightmost word will not be
changed. (In this case, it will not.)
C D
2 3
Note If the CLR Key is pressed before the WRITE Key, the operation will be cancelled
and the 3-word monitor display will return without any changes in data memory.
There are two operations that can be used to change the SV of a timer or
counter. They are possible in MONITOR or PROGRAM mode only. In MON-
ITOR mode, the SV can be changed while the program is being executed.
RUN
No
The timer or counter SV can be changed either by inputting a new value or
by incrementing or decrementing the current SV.
This operation can be used to input a new SV constant, as well as to change an
SV from a constant to a word address designation and vice versa. The following
examples show how to input a new SV constant and how to change the SV from
a constant to an address.
1. Press the CLR Key to bring up the initial display.
2. Display the desired timer or counter.
TIM
3. Press the Down Arrow Key and then the CHG Key.
4. At this point a new SV constant can be input or the SV constant can be
changed to a word address designation
a) To input a new SV constant, input the constant and press the WRITE
Key.
B C
1 2
b) To change to a word address designation, input the word address and
press the WRITE Key.
AR
CH
SHIFT
HR
*DM
CHG
B
1 CHG
E
4 WRITE
MONITOR
OK OK
B
1 SRCH
↓
CHG
E
4 WRITE
B A
1 0 WRITE
Section
PROGRAM
4-2
113
