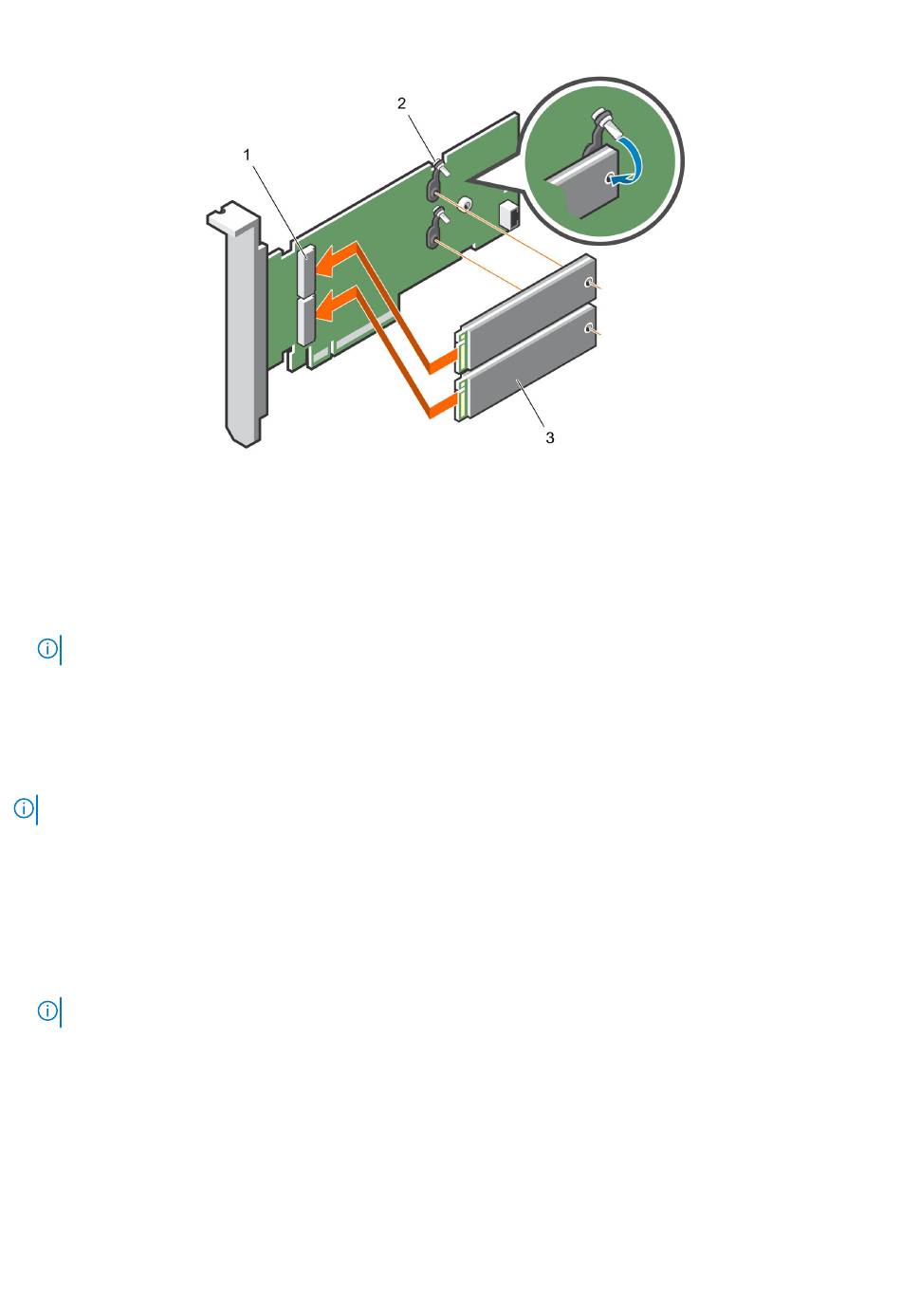

Figure 68. Installing the M.2 SSD module
a. module connector (2)
b. screws (2)
c. modules (2)
Next steps
1. Install the BOSS card.
NOTE:
Installing the BOSS card is similar to installing the expansion card riser.
2.
Install the air
shroud.
3. Follow the procedure listed in
Optional IDSDM or vFlash module
NOTE:
The write-protect switch is on the IDSDM or vFlash module.
Removing the optional IDSDM or vFlash card
Prerequisites
1. Follow the safety guidelines listed in
2. Follow the procedure listed in
3. If you are replacing the IDSDM/vFlash card, remove the MicroSD cards.
NOTE:
Temporarily label each MicroSD card with its corresponding slot number after removal.
Steps
1. Locate the IDSDM/vFlash connector on the system board.
To locate IDSDM/vFlash connector, see the
2. Holding the pull tab, lift the IDSDM/vFlash card out of the system.
After working inside your system
Safety instructions
After working inside your system
System board jumpers and connectors
on page 35.
on page 34.
on page 35.
Installing and removing system components
section.
