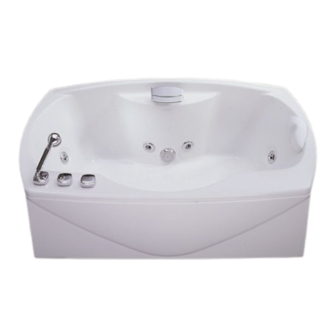

- Page 1 Trocadero Bath Whirlpools: K-1312-N K-1312-H1 Installation information pertaining to international (-JB) models is also included in this manual. E2001 Kohler Co. 114047-2-...
-
Page 2: Important Information
Kohler Co. shall not be liable under its warranty or otherwise for personal injury or damage caused by any such unauthorized modification. -
Page 3: Table Of Contents
Follow the sections that pertain Kohler Co. reserves the right to make changes in to your particular installation. This will help you avoid product characteristics, packaging, or availability at any costly mistakes. -
Page 4: Roughing-In: K-1312-N, K-1312-Jb
40” W x 15” H panel required 6-1/8” 11-1/8” 21” PUMP/CONTROL ACCESS 66” 25-3/8” 42” 33” 68” 3” 16” 18” 3-1/2” 1-1/4” 21” 20” 49” R. 2” 2-7/8” 3/8” CUT-OUT DETAIL 1-1/2” I.P.S. THR’D. 3” 1.25>132 1-1/2” O.D. Kohler Co., Kohler, WI U.S.A. 114047-2-... -
Page 5: Roughing-In: K-1312-H1
30” W x 15” H panel required 6-1/8” 11-1/8” 21” PUMP/CONTROL ACCESS 66” 25-3/8” 42” 33” 68” 3” 16” 18” 3-1/2” 1-1/4” 21” 20” 49” R. 2” CUT-OUT DETAIL 2-7/8” 3/8” 1-1/2” I.P.S. THR’D. 3” 1.25>132 1-1/2” O.D. 114047-2- Kohler Co., Kohler, WI U.S.A. -
Page 6: Product Requirements
S Wall coverings, as necessary S Level S Silicone sealant S Safety shoes S 2x4’s S Safety glasses S Drop cloth S Square S Nails S Screwdriver S Pliers S Utility knife S Tin snips Kohler Co., Kohler, WI U.S.A. 114047-2-... -
Page 7: Clearance Requirements
This bath can also be installed in a corner. If an apron wall without a ledge is desired, the finished apron wall surface must be 1/16” (2mm) under the whirlpool rim. Kohler Co., Kohler, WI U.S.A. 114047-2-... -
Page 8: Plumbing Preparation
Install the drain on the whirlpool according to the drain manufacturer’s instructions. B. PROTECT BATH UNIT Position a drop cloth or similar material in the bottom of the unit. Be careful not to scratch the surface of the product. Kohler Co., Kohler, WI U.S.A. 114047-2-... -
Page 9: Install Whirlpool
Do not hang unit by rim. C. PUMP BANDING STRAP CUT Shipping Bracket (leave attached NOTICE: This step is necessary to make your to bath) Kohler whirlpool operate more quietly. Pump Banding Straps Use tin snips to cut the two banding straps. These banding straps... -
Page 10: Install Plumbing
Open the water valves and check the connections for leaks. Run water into the bath, and check the drain connections for leaks. Kohler Co., Kohler, WI U.S.A. 114047-2-... -
Page 11: Electrical Connections
Jets grounding adapter. Auxiliary Control Your Kohler Whirlpool bath is equipped with a cord and plug. All wiring of the pump and control has been completed at the factory. A licensed electrician must Pump install a GFCI-protected, 120 V, 20 A, grounded outlet. -
Page 12: Field Wiring Compartment - 230 V, 50 Hz
(piping) connections for leaks. Turn on the neck jet feature, and check for any water leakage on the whirlpool’s back side. For additional information on whirlpool operation, see Start-Up Whirlpool instructions on Page 14. Kohler Co., Kohler, WI U.S.A. 114047-2-... -
Page 13: Optional Apron Installation
After the deck is finished, attach the handles and spout to complete the faucet installation according to the faucet manufacturer’s instructions. B. INSTALL WHIRLPOOL TRIM KIT Refer to the installation instructions packed with the trim kit when installing the jet or suction trim. Kohler Co., Kohler, WI U.S.A. 114047-2-... -
Page 14: 13 7 Install Pillow (Models With Neck Jets)
Jet Trim Ensure that the pillow with cover is properly installed before you test the neck jets. Water temperature in the bath should not exceed 104_F (40_C). Kohler Co., Kohler, WI U.S.A. 114047-2-... -
Page 15: Operating Sequence
Decrease pulsing action by pressing Faster key; increase Down/ pulsing action by Slower pressing key. Regulate flow (if More desired) using pump switch. Down/ Less Pump Neck Turn neck jets off. Kohler Co., Kohler, WI U.S.A. 114047-2-... -
Page 16: Troubleshoot Whirlpool System
C. TROUBLESHOOT WHIRLPOOL SYSTEM This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or a qualified electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale distributor. SYMPTOMS PROBABLE CAUSES RECOMMENDED ACTION 1. -
Page 17: Troubleshoot Whirlpool System - Neck Jets
D. TROUBLESHOOT WHIRLPOOL SYSTEM – NECK JETS This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or a qualified electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale distributor. 1. Neck jets do not A. - Page 18 Kohler Co., Kohler, WI U.S.A. 114047-2-...
