Chapter 6: Managing and Monitoring the Firebox

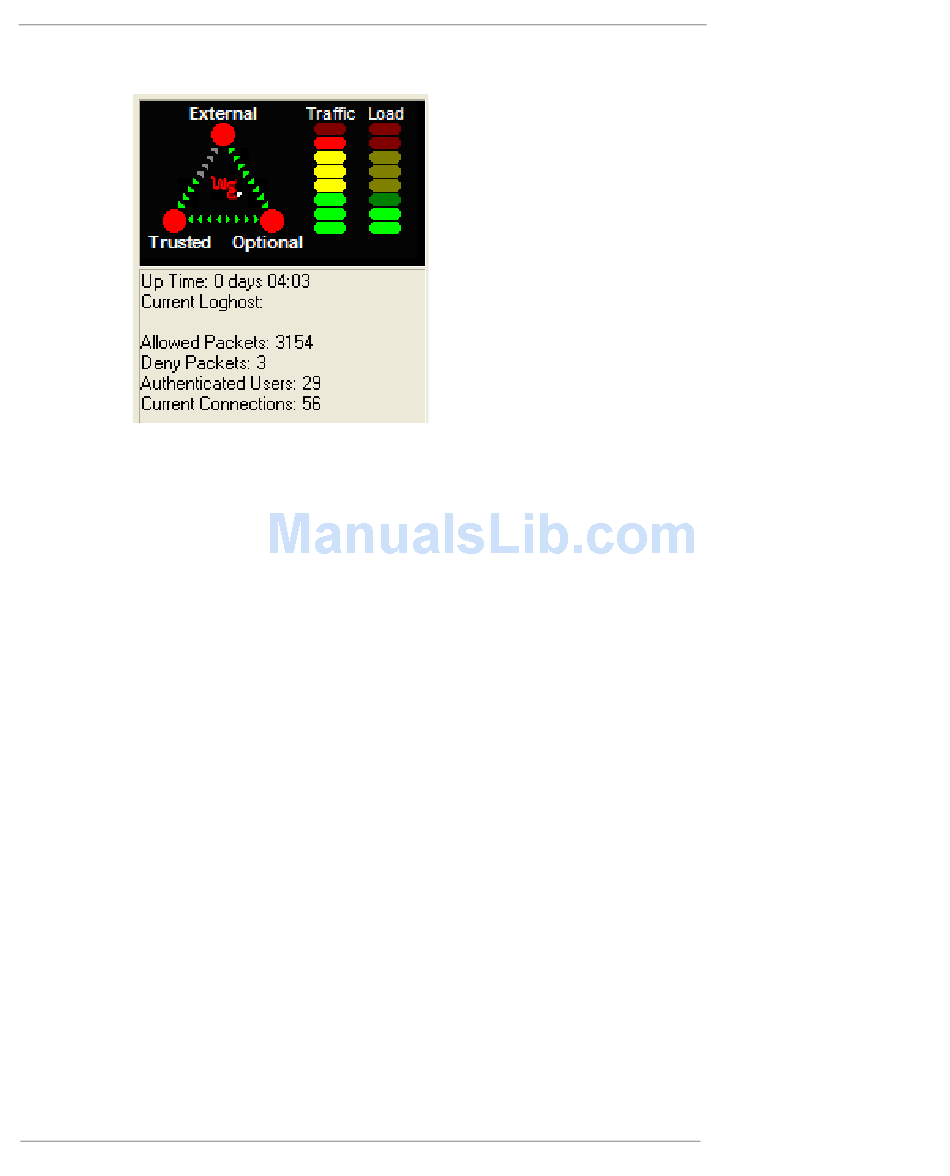

The lights on the display represent those found on the front
panel of the Firebox. The triangle shows the predominant
flows of traffic among the trusted, external, and optional
interfaces. A red corner of the triangle is lit when that inter-
face is blocking packets. The two bar graphs indicate traffic
volume and the proportion of Firebox capacity being used.
For more information on the front panel, see the following
FAQ:
https://support.watchguard.com/advancedfaqs/fbhw_lights.asp

Firebox and VPN tunnel status

The section in System Manager to the right of the front
panel shows the current status of the Firebox and of branch
office and remote user VPN tunnels.
Firebox Status
The following information is displayed under Firebox Sta-
tus, as shown in the following figure:
• Status of the High Availability option. When properly
configured and operational, the IP address of the
standby box appears. If High Availability is installed
76 WatchGuard Firebox System
