Series 90PLUS Operator's Guide

REMOVING THE JOURNAL TAKE-UP ROLL

If you are changing multiple-ply paper, you must remove the journal take-up
roll before installing the supply roll.
1. Open the paper cover.
3
2. Press the FEED button to advance the journal paper past the last journal
entry.

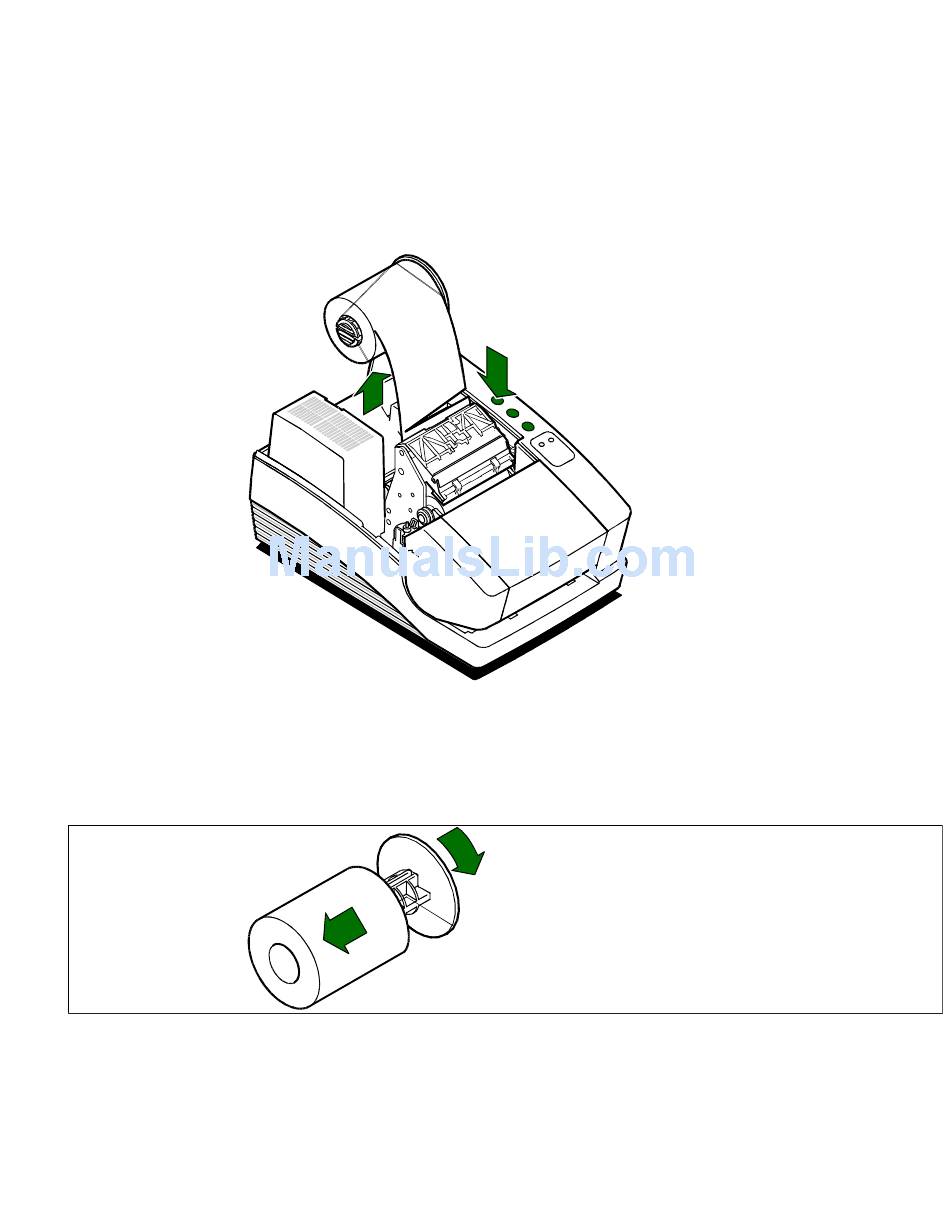

3. Lift the take-up spool from the printer, and cut the paper below the last
journal entry. Be sure that all entries are included.
4
4. Slide the printed journal off the take-up core, and put it in a safe place.
If the paper sticks on the core, hold the paper, and twist the core in the
direction opposite the way the paper is wound.
2
