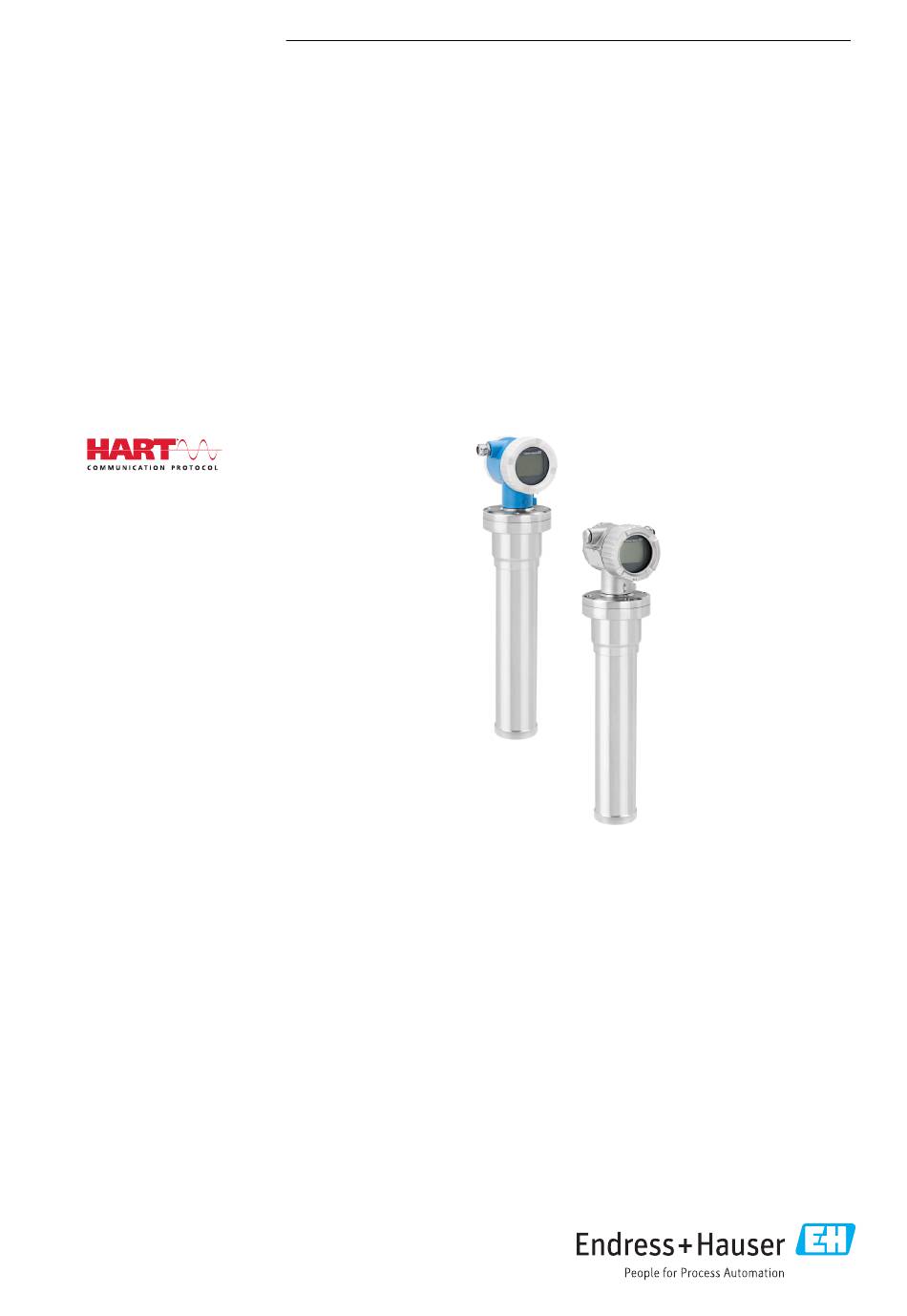

KA01427F/00/EN/03.23-00
71623890
2023-07-10
Products
Brief Operating Instructions

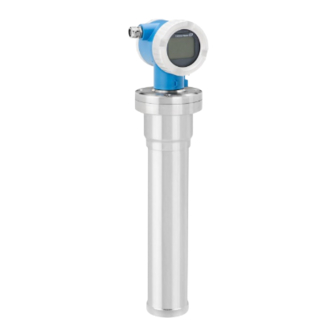

Gammapilot FMG50
HART
Radiometric measuring technology
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information is provided in the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Gammapilot FMG50

Summary of Contents for Endress+Hauser Gammapilot FMG50

  • Page 1 These Brief Operating Instructions are not a substitute for the Operating Instructions pertaining to the device. Detailed information is provided in the Operating Instructions and other documentation. Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smartphone/tablet: Endress+Hauser Operations app...

  • Page 2: Associated Documentation

    Associated documentation Gammapilot FMG50 HART Associated documentation Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 About this document Symbols used 2.1.1 Safety symbols CAUTION This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in minor or medium injury.
  • Page 3 Gammapilot FMG50 HART About this document This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. NOTICE This symbol contains information on procedures and other facts which do not result in personal injury.

  • Page 4: Registered Trademarks

    About this document Gammapilot FMG50 HART Documentation The following document types are available in the Downloads area of the Endress+Hauser website (www.endress.com/downloads): For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter serial number from nameplate.

  • Page 5: Basic Safety Instructions

    Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Basic safety instructions...

  • Page 6: Radiation Protection

    Basic safety instructions Gammapilot FMG50 HART Radiation protection The Gammapilot FMG50 is used in conjunction with a radioactive source, fitted in a source container. The Gammapilot FMG50 does not emit any radioactive radiation. Observe the following instructions when handling radioactive sources: 3.4.1...

  • Page 7: Workplace Safety

    Gammapilot FMG50 HART Basic safety instructions Shielding Ensure the best possible shielding between the radiation source and yourself and all other person. Effective shielding is provided by source containers (FQG60, FQG61/FQG62,FQG63, FQG66) and all high-density materials (lead, iron, concrete etc.).

  • Page 8: Incoming Acceptance And Product Identification

    • Does the data on the nameplate match the order specifications on the delivery note? • If required (see nameplate), are the Safety Instructions (XA) provided? If any one of these conditions is not met, contact your Endress+Hauser Sales Center. 4.1.1...
  • Page 9 (WEEE), our products are marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Such products may not be disposed of as unsorted municipal waste and can be returned to Endress+Hauser for disposal at conditions stipulated in our General Terms and Conditions or as individually agreed.

  • Page 10: Mounting Requirements

    Gammapilot FMG50. Observe the measuring range marks of the device. • The source container and the Gammapilot FMG50 should be mounted as close to the vessel as possible. Any access to the beam must be blocked to ensure that it is not possible to reach into this area.
  • Page 11 Gammapilot FMG50 HART Mounting 5.1.2 Dimensions, weights Gammapilot FMG50 248 (9.76) A0037984 • Version NaI (Tl) 2" : • Total length A: 430 mm (16.93 in) • Total weight: 11.60 kg (25.57 lb) • Measuring range length B: 51 mm (2 in) •...
  • Page 12 Mounting requirements for level measurements Conditions • The Gammapilot FMG50 is mounted vertically for level measurements. • To facilitate installation and commissioning, the Gammapilot FMG50 can be configured and ordered with an additional support (order feature 620, option Q4: "Retaining bracket"). Endress+Hauser...
  • Page 13 Mounting Examples A0037715 Vertical cylinder; the Gammapilot FMG50 is mounted vertically with the detector head pointing either downwards or upwards, the gamma radiation is aligned to the measuring range. Correct: Gammapilot FMG50 mounted outside the tank insulation Incorrect: Gammapilot FMG50 mounted inside the tank insulation...

  • Page 14: Electrical Connection

    Electrical connection Gammapilot FMG50 HART Measuring system arrangement A0018075 Maximum point level detection Minimum point level detection Source container Gammapilot FMG50 Electrical connection Connecting requirements WARNING Note the following before connecting: ‣ If the device is used in hazardous areas, make sure to comply with national standards and the specifications in the Safety Instructions (XAs).

  • Page 15: Connecting The Device

    Gammapilot FMG50 HART Electrical connection A0028908  1 Block diagram of HART connection Device with HART communication HART resistor Power supply Multimeter or ammeter Power supply • Non-Ex: supply voltage: 16 to 35 VDC • Ex i: supply voltage: 16 to 30 VDC The HART communication resistor of 250 Ω...
  • Page 16 Electrical connection Gammapilot FMG50 HART 6.2.1 Direct connection A0038024 Ground terminal for connecting the potential matching line Connect the potential matching line to the ground terminal. A0038877 Connection compartment Release the cover lock to the connection compartment. Unscrew the cover.
  • Page 17 Gammapilot FMG50 HART Electrical connection A0038895  2 Connection terminals and ground terminal in the connection compartment Internal ground terminal (to ground the cable shield) Negative terminal Positive terminal Connect the cable. Tighten the cable glands or cable entries so that they are leak-tight.
  • Page 18 Electrical connection Gammapilot FMG50 HART Material: CuZn, gold-plated contacts of the plug-in jack and plug 6.2.3 Connection with a Harting plug Han7D – + – Han7D – A0019990 Electrical connection for devices with Harting plug Han7D View of the connection on the device...
  • Page 19 Gammapilot FMG50 HART Commissioning ‣ A0039185  3 Options for remote operation via HART protocol PLC (programmable logic controller) Transmitter power supply unit, e.g. RN221N (with communication resistor) Connection for Commubox FXA191, FXA195 and Field Communicator 375, 475 Field Communicator 475 Computer with operating tool (e.g.
  • Page 20 Connect the device with FieldCare or DeviceCare. FieldCare and DeviceCare are available for download at www.software-products.endress.com. To download the software, it is necessary to register in the Endress+Hauser software portal. Endress+Hauser...

  • Page 21: Operation

    Operation via FieldCare/DeviceCare FieldCare/DeviceCare is an Endress+Hauser asset management tool based on FDT technology. With FieldCare/DeviceCare you can configure all Endress+Hauser devices as well as devices from other manufacturers that support the FDT standard. Hardware and software requirements can be found on the Internet: www.de.endress.com ->...
  • Page 22 Commissioning Gammapilot FMG50 HART 7.3.2 Operation via SmartBlue app Requirements Device requirements Commissioning via SmartBlue is only possible if the device has a Bluetooth module. SmartBlue system requirements SmartBlue is available as a download from the Google Play Store for Android devices and from the iTunes Store for iOS devices.
  • Page 23 Gammapilot FMG50 HART Commissioning Start SmartBlue. Select device from livelist displayed. Enter the login data:  User name: admin Password: serial number of the device or ID number of the Bluetooth display An available Bluetooth connection is indicated by a flashing Bluetooth symbol.
  • Page 24 Commissioning Gammapilot FMG50 HART Level basic calibration Calibration time per calibration: 5 min! Reset  Press both keys > 12 s Start background calibration  Press both keys > 3 s The green LED is lit for one second and starts flashing at an interval of 2 s Start empty calibration ...
  • Page 25  7 DeviceCare/FieldCare via service interface (CDI) Computer with DeviceCare/FieldCare operating tool Commubox FXA291 Service interface (CDI) of the device (= Endress+Hauser Common Data Interface) 7.3.5 Operation via WirelessHART SWA70 WirelessHART adapter with the Commubox FXA195 and the "FieldCare/DeviceCare" operating program 7.3.6...
  • Page 28 *71623890* 71623890 www.addresses.endress.com...
