TI01698F/00/EN/01.23-00
71610082
2023-01-02
Products
Technical Information

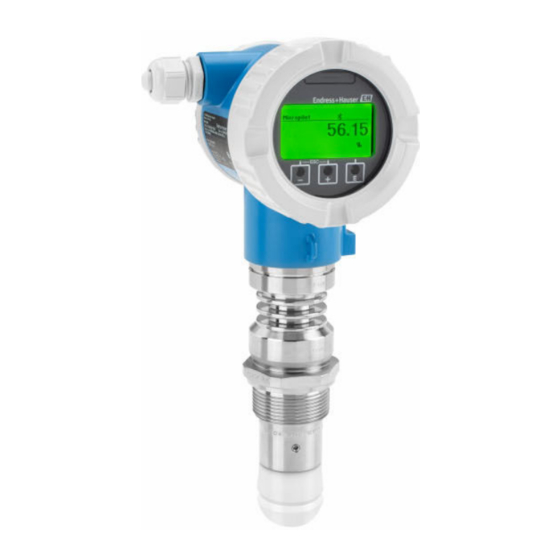

Micropilot FMR60B
PROFINET with Ethernet-APL
Free space radar
Level measurement in liquids
Application
• Continuous, non-contact level measurement of liquids, pastes and sludges
• Process connections: Thread or mounting bracket
• Maximum measuring range: 50 m (164 ft)
• Temperature: –40 to +200 °C (–40 to +392 °F)
• Pressure: –1 to +20 bar (–14.5 to +290 psi)
• Accuracy: ±1 mm (±0.04 in)
Your benefits
• PVDF, PTFE Drip-off or PEEK antenna for small process connections
• Reliable measurement thanks to very good signal focusing, even with small process
connections
• Easy, guided commissioning with intuitive user interface
• Bluetooth® wireless technology for commissioning, operation and maintenance
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot FMR60B

Summary of Contents for Endress+Hauser Micropilot FMR60B

  • Page 1 Products Solutions Services TI01698F/00/EN/01.23-00 71610082 2023-01-02 Technical Information Micropilot FMR60B PROFINET with Ethernet-APL Free space radar Level measurement in liquids Application • Continuous, non-contact level measurement of liquids, pastes and sludges • Process connections: Thread or mounting bracket • Maximum measuring range: 50 m (164 ft) •...

  • Page 2: Table Of Contents

    Micropilot FMR60B PROFINET with Ethernet-APL Table of contents Important document information ....4 Process ........37 Symbols .
  • Page 3 Micropilot FMR60B PROFINET with Ethernet-APL Registered trademarks ..... . 68 Endress+Hauser...

  • Page 4: Important Document Information

    Micropilot FMR60B PROFINET with Ethernet-APL Important document information Symbols Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.

  • Page 5: Graphic Conventions

    Micropilot FMR60B PROFINET with Ethernet-APL Graphic conventions • Installation, explosion and electrical connection drawings are presented in simplified format • Devices, assemblies, components and dimensional drawings are presented in reduced-line format • Dimensional drawings are not to-scale representations; the dimensions indicated are rounded off to 2 decimal places •...

  • Page 6: Input

    Micropilot FMR60B PROFINET with Ethernet-APL D = (c ∆t) / 2 where c is the speed of propagation of the wave. In summary, D can be calculated from the measured difference frequency Δf. D is then used to determine the content of the tank or silo.
  • Page 7 Micropilot FMR60B PROFINET with Ethernet-APL 100% A0051658  3 Usable measuring range Length of antenna + 10 mm (0.4 in) Usable measuring range 50 to 80 mm (1.97 to 3.15 in); medium εr < 2 Vessel height Reference point of measurement, varies depending on the antenna system For further information on the reference point, see →...
  • Page 8 To measure absorbing gases, either use a guided radar, measuring devices with another measuring frequency or another measuring principle. If measurements must be performed in one of these media, please contact Endress+Hauser. For the dielectric constants (DC values) of many media commonly used in industry, please refer •...
  • Page 9 Micropilot FMR60B PROFINET with Ethernet-APL Integrated antenna, PEEK, 40 mm (1.5 in) in storage vessel Media group Measuring range A0 (ε 1.2 to 1.4) 3 m (10 ft) A (ε 1.4 to 1.9) 6 m (20 ft) B (ε 1.9 to 4) 11 m (36 ft) C (ε...
  • Page 10 Micropilot FMR60B PROFINET with Ethernet-APL Integrated antenna, PEEK, 40 mm (1.5 in) in buffer vessel Media group Measuring range A0 (ε 1.2 to 1.4) 1.5 m (5 ft) A (ε 1.4 to 1.9) 3 m (10 ft) B (ε 1.9 to 4) 6 m (20 ft) C (ε...
  • Page 11 Micropilot FMR60B PROFINET with Ethernet-APL Integrated antenna, PEEK, 20 mm (0.75 in) in vessel with agitator Media group Measuring range A (ε 1.4 to 1.9) 1 m (3.3 ft) B (ε 1.9 to 4) 1.5 m (5 ft) C (ε...

  • Page 12: Operating Frequency

    Micropilot FMR60B PROFINET with Ethernet-APL PTFE Drip-off antenna, 50 mm (2 in) in vessel with agitator Media group Measuring range A0 (ε 1.2 to 1.4) 2 m (7 ft) A (ε 1.4 to 1.9) 4 m (13 ft) B (ε...
  • Page 13 Micropilot FMR60B PROFINET with Ethernet-APL Baud rates Automatic 10 Mbit/s with full-duplex detection Cycle times From 32 ms Polarity Auto-polarity for automatic correction of crossed TxD and RxD pairs Media Redundancy Protocol (MRP) System redundancy support System redundancy S2 (2 AR with 1 NAP)

  • Page 14: Power Supply

    Micropilot FMR60B PROFINET with Ethernet-APL Power supply Terminal assignment Single compartment housing A0042594  4 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Dual compartment housing A0042803  5 Connection terminals and ground terminal in the connection compartment...

  • Page 15: Available Device Plugs

    Micropilot FMR60B PROFINET with Ethernet-APL Dual compartment housing, L-form A0045842  6 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Terminals • Supply voltage and internal ground terminal: 0.5 to 2.5 mm (20 to 14 AWG) •...

  • Page 16: Electrical Connection

    Micropilot FMR60B PROFINET with Ethernet-APL Electrical connection Connection examples PROFINET with Ethernet-APL A0045802  8 Connection example for PROFINET with Ethernet-APL Automation system APL field switch Observe cable specifications Transmitter Potential equalization The protective ground on the device must not be connected. If necessary, the potential matching line can be connected to the outer ground terminal of the transmitter before the device is connected.

  • Page 17: Cable Entries

    Micropilot FMR60B PROFINET with Ethernet-APL Cable entries A0046584 Single compartment housing, plastic Single compartment housing, aluminum Single compartment housing, 316L hygiene Dual compartment housing Dual compartment housing, L-form Cable entry Dummy plug The type of cable entry depends on the device version ordered.

  • Page 18: Performance Characteristics

    Micropilot FMR60B PROFINET with Ethernet-APL Depending on the type of port (DC power supply, input/output port) different testing levels according to IEC / DIN EN 61326-1 against transient overvoltages (Surge) are applied (IEC / DIN EN 61000-4-5 Surge): Test level on DC power ports and input/output ports is 1 000 V line to earth Devices with optional overvoltage protection •...

  • Page 19: Measured Value Resolution

    Micropilot FMR60B PROFINET with Ethernet-APL Differing values in near-range applications ∆ [mm (in)] 4 (0.16) 1 (0.04) -1 (-0.04) -4 (-0.16) D [m ( )] 0.8 (2.62) A0032636  9 Maximum measured error in near-range applications Δ Maximum measured error...

  • Page 20: Mounting

    Micropilot FMR60B PROFINET with Ethernet-APL Gas phase Temperature Pressure 1 bar (14.5 psi) 10 bar (145 psi) 25 bar (362 psi) +400 °C (+752 °F) –0.02 % +0.03 % +0.11 % Water (saturated steam) +100 °C (+212 °F) +0.02 % +180 °C (+356 °F)

  • Page 21: Orientation

    Micropilot FMR60B PROFINET with Ethernet-APL Orientation Internal vessel fittings α A0031777 Avoid internal fittings (point level switches, temperature sensors, struts, vacuum rings, heating coils, baffles etc.) inside the signal beam. Pay attention to the beam angle α. Avoiding interference echoes...

  • Page 22: Installation Instructions

    Micropilot FMR60B PROFINET with Ethernet-APL Radial alignment of the antenna Based on the directional characteristic, radial alignment of the antenna is not necessary. Installation instructions Encapsulated antenna, PVDF 40 mm (1.57 in) Information about the mounting nozzle The maximum nozzle length H depends on the nozzle diameter D.

  • Page 23: Beam Angle

    Micropilot FMR60B PROFINET with Ethernet-APL Maximum nozzle length H as a function of the nozzle diameter D D 40 to 50 mm (1.6 to 2 in) 200 mm (8 in) 50 to 80 mm (2 to 3.2 in) 300 mm (12 in) 80 to 100 mm (3.2 to 4 in)
  • Page 24 Micropilot FMR60B PROFINET with Ethernet-APL α α A0031824  10 Relationship between beam angle α, distance D and beamwidth diameter W The beamwidth diameter W depends on the beam angle α and the distance D. Encapsulated antenna, PVDF 40 mm / 1-1/2", α = 8 °...

  • Page 25: Special Mounting Instructions

    Micropilot FMR60B PROFINET with Ethernet-APL Integrated antenna, PEEK 20 mm / 3/4", α 14 ° W = D × 0.26 5 m (16 ft) 1.23 m (4.04 ft) 10 m (33 ft) 2.46 m (8.07 ft) α Integrated antenna, PEEK 40 mm / 1-1/2", α = 8 °...

  • Page 26: Environment

    Micropilot FMR60B PROFINET with Ethernet-APL The material thickness can be a full multiple of the optimum thickness (table); it is important to note, however, that the microwave transparency decreases significantly with increasing material thickness. Optimum material thickness Material Optimum material thickness PE;...
  • Page 27 Micropilot FMR60B PROFINET with Ethernet-APL Plastic housing Plastic housing; process temperature –20 to +150 °C (–4 to +302 °F) A0032024  11 Plastic housing; process temperature –20 to +150 °C (–4 to +302 °F) = T : –20 °C (–4 °F) |  T : +76 °C (+169 °F)
  • Page 28 Micropilot FMR60B PROFINET with Ethernet-APL Restriction to a process temperature of 0 to +200 °C (+32 to +392 °F) with CSA C/US approval and plastic housing A0048826  14 Plastic housing; process temperature 0 to +200 °C (+32 to +392 °F) with CSA C/US approval = T...
  • Page 29 Micropilot FMR60B PROFINET with Ethernet-APL Plastic housing; process temperature –40 to +130 °C (–40 to +266 °F) A0032024  17 Plastic housing; process temperature –40 to +130 °C (–40 to +266 °F) = T : –40 °C (–40 °F) |  T : +76 °C (+169 °F) = T...
  • Page 30 Micropilot FMR60B PROFINET with Ethernet-APL Restriction to a process temperature of 0 to +150 °C (+32 to +302 °F) with CSA C/US approval and plastic housing A0048826  20 Plastic housing; process temperature 0 to +150 °C (+32 to +302 °F) with CSA C/US approval = T...
  • Page 31 Micropilot FMR60B PROFINET with Ethernet-APL Aluminum housing, coated Aluminum housing; process temperature –20 to +150 °C (–4 to +302 °F) A0032024  23 Aluminum housing, coated; process temperature –20 to +150 °C (–4 to +302 °F) = T : –20 °C (–4 °F) |  T : +79 °C (+174 °F)
  • Page 32 Micropilot FMR60B PROFINET with Ethernet-APL Aluminum housing; process temperature –40 to +130 °C (–40 to +266 °F) A0032024  26 Aluminum housing, coated; process temperature –40 to +130 °C (–40 to +266 °F) = T : –40 °C (–40 °F) |  T : +79 °C (+174 °F) = T...
  • Page 33 Micropilot FMR60B PROFINET with Ethernet-APL 316L housing 316L housing; process temperature –20 to +150 °C (–4 to +302 °F) A0032024  29 316L housing; process temperature –20 to +150 °C (–4 to +302 °F) = T : –20 °C (–4 °F) |  T : +77 °C (+171 °F)
  • Page 34 Micropilot FMR60B PROFINET with Ethernet-APL 316L housing; process temperature –40 to +130 °C (–40 to +266 °F) A0032024  32 316L housing; process temperature –40 to +130 °C (–40 to +266 °F) = T : –40 °C (–40 °F) |  T : +77 °C (+171 °F) = T...
  • Page 35 Micropilot FMR60B PROFINET with Ethernet-APL 316L housing, hygiene 316L housing, hygiene; process temperature –20 to +150 °C (–4 to +302 °F) A0032024  35 316L housing, hygiene; process temperature –20 to +150 °C (–4 to +302 °F) = T : –20 °C (–4 °F) |  T : +76 °C (+169 °F)

  • Page 36: Storage Temperature

    Micropilot FMR60B PROFINET with Ethernet-APL 316L housing, hygiene; process temperature –40 to +130 °C (–40 to +266 °F) A0032024  38 316L housing, hygiene; process temperature –40 to +130 °C (–40 to +266 °F) = T : –40 °C (–40 °F) |  T : +76 °C (+169 °F)

  • Page 37: Degree Of Protection

    Micropilot FMR60B PROFINET with Ethernet-APL Degree of protection Test as per IEC 60529 and NEMA 250-2014 Housing IP66/68, NEMA TYPE 4X/6P IP68 test condition: 1.83 m under water for 24 hours. Cable entries • Gland M20, plastic, IP66/68 NEMA TYPE 4X/6P •...
  • Page 38 Micropilot FMR60B PROFINET with Ethernet-APL Encapsulated antenna, PVDF, 40 mm (1.5 in) Process connection thread 1-½" Seal Process pressure range PVDF encapsulated –40 to +80 °C –1 to 3 bar (–14.5 to 43.5 psi) (–40 to +176 °F) PVDF encapsulated –40 to +130 °C...

  • Page 39: Dielectric Constant

    The pressure range may be further restricted in the event of a CRN approval. Dielectric constant For liquids ε ≥  1.2 Contact Endress+Hauser for applications with lower dielectric constants than indicated. Mechanical construction Dimensions The dimensions of the individual components must be added together for the total dimensions. Endress+Hauser...
  • Page 40 Micropilot FMR60B PROFINET with Ethernet-APL Single compartment housing, plastic 94 (3.7) 107.5 (4.23) A0048768  41 Dimensions of single compartment housing, plastic (PBT). Unit of measurement mm (in) Height with cover with plastic viewing window Cover without viewing window Aluminum single compartment housing 101 (3.98)
  • Page 41 Micropilot FMR60B PROFINET with Ethernet-APL 316L single compartment housing, hygiene 92 (3.62) 123 (4.84) A0050364  43 Dimensions of 316L single compartment housing, hygiene. Unit of measurement mm (in) Height with cover with glass viewing window (dust Ex) Height with cover with plastic viewing window...
  • Page 42 Micropilot FMR60B PROFINET with Ethernet-APL Aluminum dual compartment housing 132 (5.2) 121 (4.76) 115 (4.53) 118 (4.65) 64 (2.52) 54 (2.13) 78 (3.07) 143 (5.63) A0038377  44 Dimensions of dual compartment housing. Unit of measurement mm (in) Height with cover with glass viewing window (devices for Ex d/XP, Dust-Ex)
  • Page 43 Micropilot FMR60B PROFINET with Ethernet-APL Aluminum or 316L dual compartment housing, L-form 110 (4.33) 101 (3.98) 140 (5.51) 138 (5.43) A0038381  45 Dimensions of dual compartment housing, L-form. Unit of measurement mm (in) Height with cover with glass viewing window (devices for Ex d/XP, Dust-Ex)
  • Page 44 Micropilot FMR60B PROFINET with Ethernet-APL Encapsulated antenna, PVDF, 40 mm (1.5 in), process connection UNI flange 50 mm 43.7 (1.72) A0048829  47 Dimensions of encapsulated antenna, PVDF, 40 mm (1.5 in), process connection UNI flange. Unit of measurement mm (in)
  • Page 45 Micropilot FMR60B PROFINET with Ethernet-APL UNI flange 4"/DN100/100A 20 (0.79) A0048848  49 Dimensions of UNI flange 4"/DN100/100A. Unit of measurement mm (in) Suitable for ASME B16.5, 4" 150lbs / EN1092-1; DN100 PN16 / JIS B2220; 10K 100A Material: PP, weight 0.70 kg (1.54 lb) UNI flange 6"/DN150/150A...
  • Page 46 Micropilot FMR60B PROFINET with Ethernet-APL Drip-off antenna 50 mm (2 in), threaded process connection 55 mm 42.5 (1.67) A0046479  51 Dimensions of Drip-off antenna 50 mm (2 in), threaded process connection. Unit of measurement mm (in) Process temperature version ≤150 °C (302 °F) Process temperature version ≤200 °C (392 °F)
  • Page 47 Micropilot FMR60B PROFINET with Ethernet-APL Drip-off antenna 50 mm (2 in), UNI flange process connection 42.5 (1.67) A0046480  52 Dimensions of Drip-off antenna 50 mm (2 in), UNI flange process connection. Unit of measurement mm (in) Process temperature version ≤150 °C (302 °F) Process temperature version ≤200 °C (392 °F)
  • Page 48 Micropilot FMR60B PROFINET with Ethernet-APL UNI flange 4"/DN100/100A 20 (0.79) A0048848  54 Dimensions of UNI flange 4"/DN100/100A. Unit of measurement mm (in) Suitable for ASME B16.5, 4" 150lbs / EN1092-1; DN100 PN16 / JIS B2220; 10K 100A Material: • PP, weight 0.70 kg (1.54 lb) •...
  • Page 49 Micropilot FMR60B PROFINET with Ethernet-APL Integrated antenna, PEEK, 20 mm (0.75 in) 36 mm 23.8 (0.94) 32.2 (1.27) A0046481  56 Dimensions; integrated antenna, PEEK, 20 mm (0.75 in); process connection, thread 3/4". Unit of measurement mm (in) Process temperature version ≤150 °C (302 °F) Process temperature version ≤200 °C (392 °F)

  • Page 50: Weight

    Micropilot FMR60B PROFINET with Ethernet-APL Integrated antenna, PEEK, 40 mm (1.5 in) 42.5 (1.67) 54.8 (2.18) A0046482  57 Dimensions; integrated antenna, PEEK, 40 mm (1.5 in); process connection, thread 1-1/2". Unit of measurement mm (in) Process temperature version ≤150 °C (302 °F) Process temperature version ≤200 °C (392 °F)

  • Page 51: Materials

    Micropilot FMR60B PROFINET with Ethernet-APL Materials Materials not in contact with process Plastic housing • Housing: PBT/PC • Dummy cover: PBT/PC • Cover with window: PBT/PC and PC • Cover seal: EPDM • Potential equalization: 316L • Seal under potential equalization: EPDM •...
  • Page 52 Micropilot FMR60B PROFINET with Ethernet-APL Materials in contact with the medium Encapsulated antenna, PVDF, 40 mm (1.5 in) A0046602  58 Material; encapsulated antenna, PVDF, 40 mm (1.5 in) Antenna, PVDF Threaded process connection, PVDF Housing adapter, PBT-GF30 (dust ignition-proof: 304/ 1.4301)
  • Page 53 Micropilot FMR60B PROFINET with Ethernet-APL Integrated antenna, PEEK, 20 mm (0.75 in) A0046605  60 Material; integrated antenna, PEEK, 20 mm (0.75 in) Antenna: PEEK, seal material can be selected (order option) Process connection: 316L / 1.4404 Housing adapter: 316L / 1.4404 Integrated antenna, PEEK, 40 mm (1.5 in)

  • Page 54: Display And User Interface

    Micropilot FMR60B PROFINET with Ethernet-APL Display and user interface Operating concept Operator-oriented menu structure for user-specific tasks • Guidance • Diagnostics • Application • System Fast and safe commissioning • Interactive wizard with graphical user interface for guided commissioning in FieldCare, DeviceCare or DTM, AMS and PDM-based third-party tools or SmartBlue •...

  • Page 55: Local Display

    Micropilot FMR60B PROFINET with Ethernet-APL Local display Device display (optional) Functions: • Display of measured values and fault and notice messages • Background lighting, which switches from green to red in the event of an error • The device display can be removed for easier operation A0039284 ...

  • Page 56: System Integration

    A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) Via Web browser Function scope Thanks to the integrated Web server the device can be operated and configured via a Web browser.

  • Page 57: Ce Mark

    Micropilot FMR60B PROFINET with Ethernet-APL CE mark The measuring system meets the legal requirements of the applicable EU directives. These are listed in the corresponding EU Declaration of Conformity together with the standards applied. The manufacturer confirms successful testing of the device by affixing to it the CE mark.

  • Page 58: En 302372 Radio Standard

    Micropilot FMR60B PROFINET with Ethernet-APL Astronomy stations Country Name of the station Latitude Longitude Germany Effelsberg 50° 31'   32" North 06° 53'   00" East Finland Metsähovi 60° 13'   04" North 24° 23'   37" East Tuorla 60° 24'   56" North 24° 26'   31" East France Plateau de Bure 44° 38'  ...

  • Page 59: Industry Canada

    Micropilot FMR60B PROFINET with Ethernet-APL Industry Canada Canada CNR-Gen Section 7.1.3 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 60: Ordering Information

    • Automatic verification of exclusion criteria • Automatic creation of the order code and its breakdown in PDF or Excel output format • Ability to order directly in the Endress+Hauser Online Shop Calibration Factory calibration certificate The calibration points are spread evenly over the measuring range (0 to 100 %).

  • Page 61: Test, Certificate, Declaration

    Condition Monitoring system and the in-situ verification of devices in the application. The application package can be ordered together with the device or can be activated subsequently with an activation code. Detailed information on the order code is available via the Endress+Hauser website www.endress.com...

  • Page 62: Accessories

    Micropilot FMR60B PROFINET with Ethernet-APL The verification result is Passed or Failed. The verification data is saved in the device on a "First In, First Out" basis (FIFO) and optionally saved on a PC with the FieldCare asset management software or in the Netilion Library.

  • Page 63: Plastic Weather Protection Cover

    Micropilot FMR60B PROFINET with Ethernet-APL 228.9 (9.01) 136.4 (5.37) 92.5 (3.64) 170.5 (6.71) 81 (3.19) 103 (4.06) A0039231  65 Dimensions. Unit of measurement mm (in) Material • Weather protection cover: 316L • Clamping screw: A4 • Holder: 316L Order number for accessories:...
  • Page 64 Micropilot FMR60B PROFINET with Ethernet-APL A0048745  67 Ceiling or wall mounting There is no conductive connection between the mounting bracket and the transmitter housing. The bracket should be included in local potential equalization to prevent any electrostatic charge. Fasten only to stable materials (e.g. metal, brick, concrete) with suitable fastening fixtures (provided by the customer).

  • Page 65: M12 Socket

    Micropilot FMR60B PROFINET with Ethernet-APL Scope of delivery A0049050  69 Scope of delivery of mounting bracket, adjustable 1 × mounting bracket, 316L (1.4404) 2 × holder, 316L (1.4404) 6 × screws, A4 4 × lock washer, A4 M12 socket A0051231 ...

  • Page 66: Remote Display Fhx50B

    Micropilot FMR60B PROFINET with Ethernet-APL A0051233  72 M12 socket, angled, cable M12 socket, angled, 5 m (16 ft) cable • M12 socket material: • Body: TPU • Union nut: nickel-plated die-cast zinc • Cable material: • Cable Li Y YM 4×0.34 mm (20 AWG) •...

  • Page 67: Gas-Tight Feedthrough

    For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. Endress+Hauser...

  • Page 68: Document Function

    Registered trademark of the PROFIBUS User Organization, Karlsruhe, Germany Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®...
  • Page 72 *71610082* 71610082 www.addresses.endress.com...
