Page 2 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
Page 3: Table Of Contents
8.1.1 Local operation ....48 3.1.1 Levelflex FMP56/FMP57 ..8.1.2 Operation with remote display and 3.1.2 Electronics housing .
Page 4 12.9 Protecting settings from unauthorized access . 99 (CHANNEL) in an AI Block ....68 Index tables of Endress+Hauser parameters . . 69 Diagnostics and troubleshooting . . 100 9.6.1...
Page 5 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Table of contents 17.3 "Setup" menu ......133 17.3.1 "Mapping" wizard ....139 17.3.2 "Analog input 1 to 5"...
Page 6: Important Document Information
Important document information Levelflex FMP56, FMP57 FOUNDATION Fieldbus Important document information Purpose of this document These Operating Instructions contain all the information that is required in the various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.
Page 7: Symbols For Certain Types Of Information And Graphics
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Important document information Flat blade screwdriver Torx screwdriver Allen key Open-ended wrench 1.2.4 Symbols for certain types of information and graphics Permitted Procedures, processes or actions that are permitted Preferred Procedures, processes or actions that are preferred Forbidden...
Page 8: Documentation
For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. 1.3.1 Technical Information (TI)
Page 9: Registered Trademarks
Registration-pending trademark of the FieldComm Group, Austin, Texas, USA Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®...
Page 10 Important document information Levelflex FMP56, FMP57 FOUNDATION Fieldbus TRI-CLAMP® Registered trademark of Ladish & Co., Inc., Kenosha, USA Endress+Hauser...
Page 11: Basic Safety Instructions
The manufacturer is not liable for damage caused by improper or non-intended use. Clarification of borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.
Page 12: Workplace Safety
Basic safety instructions Levelflex FMP56, FMP57 FOUNDATION Fieldbus Workplace safety When working on and with the device: ‣ Wear the required protective equipment according to federal or national regulations. Operational safety Risk of injury! ‣ Operate the device only if it is in proper technical condition, free from errors and faults.
Page 13: Product Description

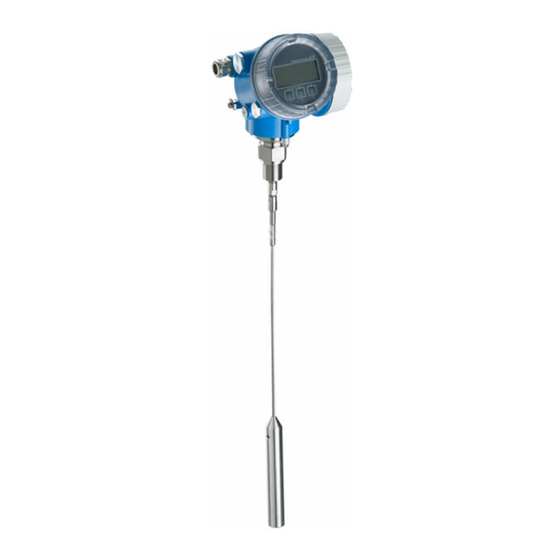

Levelflex FMP56, FMP57 FOUNDATION Fieldbus Product description Product description Product design 3.1.1 Levelflex FMP56/FMP57 A0012470  1 Design of the Levelflex Electronics housing Process connection (here as an example: flange) Rope probe End-of-probe weight Rod probe Endress+Hauser...
Page 14: Electronics Housing
Product description Levelflex FMP56, FMP57 FOUNDATION Fieldbus 3.1.2 Electronics housing A0012422  2 Design of the electronics housing Electronics compartment cover Display module Main electronics module Cable glands (1 or 2, depending on instrument version) Nameplate I/O electronics module Terminals (pluggable spring terminals)
Page 15: Incoming Acceptance And Product
• Do the nameplate data match the ordering information on the delivery note? • If required (see nameplate): are the Safety Instructions (XA) provided? If one of these conditions is not met, please contact your Endress+Hauser sales office. Product identification The following options are available for the identification of the measuring device: •...
Page 16: Nameplate
Incoming acceptance and product identification Levelflex FMP56, FMP57 FOUNDATION Fieldbus 4.2.1 Nameplate 92 (3.62) Order code: Ser. no.: Ext. ord. cd.: MWP: LN = Lref = Mat.: DeviceID: Dev.Rev.: if modification see sep. label Date: A0010725  3 Nameplate of the Levelflex; engineering unit: mm (in)
Page 17: Storage, Transport
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Storage, transport Storage, transport Storage temperature • Permitted storage temperature: –40 to +80 °C (–40 to +176 °F) • Use original packaging. Transporting the product to the measuring point WARNING Housing or rod may become damaged or pull off.
Page 18: Mounting
Mounting Levelflex FMP56, FMP57 FOUNDATION Fieldbus Mounting Mounting requirements 6.1.1 Suitable mounting position A0021468  4 Installation conditions for Levelflex Spacing requirements when mounting • Distance (A) between the vessel wall and rod and rope probes: • For smooth metallic walls: > 50 mm (2 in) •...
Page 19 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Mounting Additional conditions • When mounting outdoors, a weather protection cover (1) can be used to protect the device against extreme weather conditions. • In metallic vessels, preferably do not mount the probe in the center of the vessel (2), as this would lead to increased interference echoes.
Page 20: Mounting Under Confined Conditions
Mounting Levelflex FMP56, FMP57 FOUNDATION Fieldbus 6.1.2 Mounting under confined conditions Mounting with remote probe The device version with a remote probe is suitable for applications with restricted mounting space. In this case, the electronics housing is mounted at a separate position from the probe.
Page 21: Notes On The Mechanical Load Of The
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Mounting 6.1.3 Notes on the mechanical load of the probe Tensile load Bulk solids exert tensile forces on rope probes which increase with: • The probe length, i.e. the maximum cover • The bulk density of the product •...
Page 22 Mounting Levelflex FMP56, FMP57 FOUNDATION Fieldbus L [m] A0017171  6 Polyethylene pellets in metal silo with smooth walls; tensile load as a function of level L for rope diameters 6 mm (0.24 in) and 4 mm (0.16 in) Silo diameter 12 m (40 ft)
Page 23 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Mounting L [m] A0017173  8 Cement in metal silo with smooth walls; tensile load as a function of level L for rope diameters 6 mm (0.24 in) and 4 mm (0.16 in) Silo diameter 12 m (40 ft)
Page 24 Mounting Levelflex FMP56, FMP57 FOUNDATION Fieldbus Lateral loading capacity (flexural strength) of rod probes FMP57 Rod 16mm (0.63") 316L 30 Nm Endress+Hauser...
Page 25: Information Concerning The Process Connection
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Mounting 6.1.4 Information concerning the process connection Probes are mounted on the process connection with threaded connections or flanges. If there is the danger with this installation that the probe end moves so much that it occasionally touches the vessel floor or cone, the probe may need to be shortened at the lower end and fixed in place.
Page 26 Mounting Levelflex FMP56, FMP57 FOUNDATION Fieldbus FMP57 Rope, Ø 4 mm (0.16 in) Length H: 94 mm (3.7 in) Rope, Ø 6 mm (0.24 in) Length H: 135 mm (5.3 in) • Permissible nozzle diameter: ≤ 150 mm (6 in) For larger diameters, the near-range measuring capability may be reduced.
Page 27: Securing The Probe
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Mounting 6.1.5 Securing the probe Securing rope probes A0012609 Rope sag: ≥ 10 mm/(1 m probe length) [0.12 in/(1 ft probe length)] Reliably grounded end of probe Reliably insulated end of probe Fastener in female thread of probe end weight Insulated fastening kit •...
Page 28 Mounting Levelflex FMP56, FMP57 FOUNDATION Fieldbus Securing rod probes • For WHG approval: A support is required for probe lengths ≥ 3 m (10 ft). • In general, rod probes must be secured in the event of horizontal flow (e.g. from an agitator) or strong vibrations.
Page 29: Special Installation Situations
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Mounting 6.1.6 Special installation situations Concrete silos Installation in a thick concrete ceiling, for example, should be flush with the lower edge. Alternatively, the probe can also be installed in a pipe that must not protrude over the lower edge of the silo ceiling.
Page 30 Mounting Levelflex FMP56, FMP57 FOUNDATION Fieldbus Mounting from the side mm (in) A0014140 • If installation from above is not possible, the device can also be mounted from the side • Always secure the rope probe in this case • Support the rod and coax probe if the lateral load-bearing capacity is exceeded •...
Page 31 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Mounting Non-metal vessels A0012527 Non-metal vessel Metal sheet or metal flange To ensure good measurement results when mounting on non-metal vessels • Use a device with a metal flange (minimum size DN50/2"). • Alternatively: at the process connection, mount a metal sheet with a diameter of at least 200 mm (8 in) at a right angle to the probe.
Page 32 Mounting Levelflex FMP56, FMP57 FOUNDATION Fieldbus Vessel with thermal insulation If process temperatures are high, the device must be included in normal vessel insulation (1) in order to prevent the electronics heating up as a result of thermal radiation or convection. The insulation may not go beyond the points labeled "MAX" in the drawings.
Page 33: Mounting The Measuring Device
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Mounting Mounting the measuring device 6.2.1 Tool list AF 8 mm AF 36 mm AF 55 mm 3 mm 6 mm 4 mm • To shorten rope probes: use a saw or bolt cutters • To shorten rod or coax probes: use a saw •...
Page 34 Mounting Levelflex FMP56, FMP57 FOUNDATION Fieldbus Rope material 316 • A: 6 mm (0.24 in) • B: 70.5 mm (2.78 in) • C: 4 mm; 15 Nm (11.06 lbf ft) Rope material PA > steel • A: 6 mm (0.24 in) •...
Page 35: Mounting The Device
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Mounting A0014241 Field for the new probe length For documentation purposes, enter the new probe length into the quick reference guide which can be found in the electronics housing behind the display module. 6.2.3 Mounting the device...
Page 36: Mounting The "Sensor, Remote" Version
Mounting Levelflex FMP56, FMP57 FOUNDATION Fieldbus Mounting devices with a flange If a seal is used to mount the device, use uncoated metal screws to ensure good electrical contact between the process flange and the probe flange. Mounting rope probes NOTICE Electrostatic discharge can damage the electronics.
Page 37 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Mounting CAUTION Mechanical stress can damage the plugs of the connection cable or cause them to become loose. ‣ Mount the probe and the electronics housing securely before connecting the connecting cable. ‣ Lay the connecting cable in such a way that it is not exposed to mechanical stress.
Page 38: Turning The Transmitter Housing
Mounting Levelflex FMP56, FMP57 FOUNDATION Fieldbus 6 Nm 6 Nm (4.42 lbf ft) (4.42 lbf ft) = 100 (4) = 100 (4) 6 Nm 6 Nm (4.42 lbf ft) (4.42 lbf ft) A0014794  13 Connecting the connecting cable. The cable can be connected in the following ways:. Unit of...
Page 39: Turning The Display
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Mounting 6.2.6 Turning the display Opening the cover 3 mm A0021430 1. Loosen the screw of the securing clamp of the electronics compartment cover using an Allen key (3 mm) and turn the clamp 90 ° counterclockwise.
Page 40 Mounting Levelflex FMP56, FMP57 FOUNDATION Fieldbus  Does the device comply with the measuring point specifications? • Process temperature • Process pressure • Ambient temperature range • Measuring range  Are the measuring point identification and labeling correct (visual inspection)? ...
Page 41: Electrical Connection
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Electrical connection Electrical connection Connecting requirements 7.1.1 Terminal assignment Terminal assignment, 4-wire: 4 to 20 mA HART (90 to 253 V A0036519  14 Terminal assignment, 4-wire: 4 to 20 mAHART (90 to 253 V...
Page 42 Electrical connection Levelflex FMP56, FMP57 FOUNDATION Fieldbus Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus A0036500  15 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus Without integrated overvoltage protection With integrated overvoltage protection Connection, PROFIBUS PA / FOUNDATION Fieldbus: terminals 1 and 2, without integrated overvoltage...
Page 43: Cable Specification
≥60 °C (140 °F): use cable for temperature T +20 K. FOUNDATION Fieldbus Endress+Hauser recommends using twisted, shielded two-wire cables. For further information on the cable specifications, see Operating Instructions BA00013S "FOUNDATION Fieldbus Overview", FOUNDATION Fieldbus Guideline and IEC 61158-2 (MBP).
Page 44: Supply Voltage
< 1.5 pF Nominal arrest impulse voltage (8/20 μs) 10 kA External overvoltage protection module HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. For detailed information please refer to the following documents: • HAW562: TI01012K • HAW569: TI01013K...
Page 45: Connecting The Device
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Electrical connection Connecting the device WARNING Explosion Hazard! ‣ Observe applicable national standards. ‣ Comply with the specifications in the Safety Instructions (XA). ‣ Use specified cable glands only. ‣ Check to ensure that the power supply matches the information on the nameplate.
Page 46: Plug-In Spring-Force Terminals
Electrical connection Levelflex FMP56, FMP57 FOUNDATION Fieldbus 5. Connect the cable according to the terminal assignment.  A0034682 6. If using shielded cables: Connect the cable shield to the ground terminal. 7.2.3 Plug-in spring-force terminals The electrical connection of device versions without an integrated overvoltage protection is via plug-in spring-force terminals.
Page 47 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Electrical connection  Do the mounted cables have adequate strain relief? Are all the cable glands installed, firmly tightened and leak-tight?  Does the supply voltage match the specifications on the nameplate?  Is the terminal assignment correct? If necessary, has a protective ground connection been established?
Page 48: Operation Methods
Operation methods Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operation methods Overview 8.1.1 Local operation Operation Pushbuttons Touch Control with Order code for Option C "SD02" Option E "SD03" "Display; Operation" A0036312 A0036313 Display 4-line display 4-line display elements white background lighting; switches to red in...
Page 49: Operation With Remote Display And Operating Module Fhx50
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operation methods 8.1.2 Operation with remote display and operating module FHX50 A0036314  22 FHX50 operating options Display and operating module SD03, optical keys; can be operated through the glass of the cover Display and operating module SD02, push buttons; cover must be removed 8.1.3...
Page 50 High Speed Ethernet FF-H1 FOUNDATION Fieldbus-H1 Linking Device FF-HSE/FF-H1 Bus Power Supply Safety Barrier Bus Terminator Via service interface (CDI) A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) Endress+Hauser...
Page 51: Structure And Function Of The Operating Menu
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operation methods Structure and function of the operating menu 8.2.1 Structure of the operating menu Menu Submenu / Meaning parameter Language Defines the operating language of the local display Commissioning Launches the interactive wizard for guided commissioning.
Page 52 Operation methods Levelflex FMP56, FMP57 FOUNDATION Fieldbus Menu Submenu / Meaning parameter Communication Contains all parameters needed to configure the digital communication interface. Diagnostics Contains all parameters needed to detect and analyze operational errors. If you are operating via operating tools (e.g. FieldCare), the "Language" parameter is located under "Setup ...
Page 53: User Roles And Related Access Authorization
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operation methods 8.2.2 User roles and related access authorization The two user roles Operator and Maintenance have different write access to the parameters if a device-specific access code has been defined. This protects the device...
Page 54 Operation methods Levelflex FMP56, FMP57 FOUNDATION Fieldbus Disabling write protection via access code If the  symbol appears in front of a parameter on the local display, the parameter is write-protected by a device-specific access code and its value cannot currently be changed via the local display →...
Page 55 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operation methods XXXXXXXXXXXXX WP SIM 3 mm A0021474 1. Loosen the securing clamp. 2. Unscrew the electronics compartment cover. 3. Pull out the display module with a gentle rotational movement. To make it easier to access the write protection switch, attach the display module to the edge of the electronics compartment.
Page 56 Operation methods Levelflex FMP56, FMP57 FOUNDATION Fieldbus 4. Setting the write protection switch (WP) on the main electronics module to the ON position enables hardware write protection. Setting the write protection switch (WP) on the main electronics module to the OFF position (factory setting) disables hardware write protection.
Page 57 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operation methods Enabling and disabling the keypad lock Access to the entire operating menu via local operation can be locked via the keypad lock. When access is locked, it is no longer possible to navigate through the operating menu or change the values of individual parameters.
Page 58: Display And Operating Module
Operation methods Levelflex FMP56, FMP57 FOUNDATION Fieldbus Display and operating module 8.3.1 Display User ABC_ DEFG HIJK LMNO PQRS TUVW A0012635  24 Display format on the display and operating module Measured value display (1 value max. size) 1.1 Header containing tag and error symbol (if an error is active) 1.2 Measured value symbols...
Page 59 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operation methods Display symbols for the submenus Symbol Meaning Display/operat. Is displayed: • In the main menu next to the "Display/operat." selection A0018367 • In the header on the left in the "Display/operat." menu Setup Is displayed: •...
Page 60 Operation methods Levelflex FMP56, FMP57 FOUNDATION Fieldbus Measured value symbols Symbol Meaning Measured values Level A0032892 Distance A0032893 Current output A0032908 Measured current A0032894 Terminal voltage A0032895 Electronics or sensor temperature A0032896 Measuring channels Measuring channel 1 A0032897 Measuring channel 2...
Page 61: Operating Elements
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operation methods 8.3.2 Operating elements Meaning Minus key In a menu, submenu Moves the selection bar upwards in a picklist. A0018330 In the text and numeric editor In the input mask, moves the selection bar to the left (backwards).
Page 62: Entering Numbers And Text
Operation methods Levelflex FMP56, FMP57 FOUNDATION Fieldbus 8.3.3 Entering numbers and text Numeric editor Text editor User ABC_ DEFG HIJK LMNO PQRS TUVW A0013999 A0013941 Editing view Display area of the entered values Input mask Operating elements Input mask The following input and operating symbols are available in the input mask of the numeric...
Page 63: Opening The Context Menu
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operation methods Toggle • Between upper-case and lower-case letters • For entering numbers A0013981 • For entering special characters Confirms selection. A0013985 Switches to the selection of the correction tools. A0013987 Exits the input without applying the changes.
Page 64 Operation methods Levelflex FMP56, FMP57 FOUNDATION Fieldbus 3. Press  to confirm the selection.  The selected menu opens. Endress+Hauser...
Page 65: Envelope Curve Display On The Display And Operating Module
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operation methods 8.3.5 Envelope curve display on the display and operating module In order to assess the measuring signal, the envelope curve and - if a mapping has been recorded - the mapping curve can be shown on the display and operating module:...
Page 66: Integration Into A Foundation
Integration into a FOUNDATION Fieldbus network Levelflex FMP56, FMP57 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network Device Description (DD) You require the following to configure a device and integrate it into an FF network: • An FF configuration program •...
Page 67: Block Model
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network – EH_Levelflex_xxxxxxxxxx – RESOURCE_xxxxxxxxxxx (RB2) SETUP_ xxxxxxxxxxx (TRDSUP) ADV_SETUP_ xxxxxxxxxxx (TRDASUP) DISPLAY_ xxxxxxxxxxx (TRDDISP) DIAGNOSTIC_ xxxxxxxxxxx (TRDDIAG) EXPERT_CONFIG_ xxxxxxxxxxx (TRDEXP) EXPERT_INFO_ xxxxxxxxxxx (TRDEXPIN) SERVICE_SENSOR_ xxxxxxxxxxx (TRDSRVSB) SERVICE_INFO_ xxxxxxxxxxx (TRDSRVIF)
Page 68: Block Configuration When Device Is Delivered
The guideline provides an overview of the standard function blocks that are described in FOUNDATION Fieldbus Specifications FF 890 - 894. It is designed to help operators use the blocks implemented in the Endress+Hauser field devices. 9.4.2 Block configuration when device is delivered Device_01 4841.000...
Page 69: Index Tables Of Endress+Hauser Parameters
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network Channel Measured value Interface distance Calculated DC value Terminal voltage Sensor debug 32785 Absolute EOP amplitude 32786 Absolute echo amplitude 32787 Absolute interface amplitude 32856 Distance 32885 Elektronic temperature...
Page 70: Advanced Setup Transducer Block
Integration into a FOUNDATION Fieldbus network Levelflex FMP56, FMP57 FOUNDATION Fieldbus Name Label Index Data type Size Storage Write MODE_BL Description (Bytes) Class access locking_status Locking status BIT_ENU Dynamic →  142 medium_type_ro Medium type ENUM16 Static →  144 9.6.2...
Page 71: Display Transducer Block
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network Name Label Index Data type Size Storage Write MODE_BLK Description (Bytes) Class access locking_status Locking status BIT_ENUM16 2 Dynamic →  142 decimal_places_menu Decimal places menu ENUM16 Static AUTO →...
Page 72: Expert Configuration Transducer
Integration into a FOUNDATION Fieldbus network Levelflex FMP56, FMP57 FOUNDATION Fieldbus Name Label Index Data type Size Storage Write MODE_BLK Description (Bytes) Class access diagnostics_3 Diagnostics 3 UINT32 Static →  185 diagnostics_4 Diagnostics 4 UINT32 Static →  185...
Page 73 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network Name Label Index Data type Size (Bytes) Storage Class Write access MODE_BLK broken_probe_detection Broken probe detection ENUM16 Static AUTO gpc_mode GPC mode ENUM16 Static reference_echo_threshold Reference echo threshold FLOAT...
Page 74: Expert Information Transducer
Integration into a FOUNDATION Fieldbus network Levelflex FMP56, FMP57 FOUNDATION Fieldbus Name Label Index Data type Size (Bytes) Storage Class Write access MODE_BLK fixed_value_input_2_interface Fixed value input 2 interface FLOAT Static distance_unit_ro Distance unit ENUM16 Static level_unit_ro Level unit ENUM16...
Page 75: Service Sensor Transducer Block
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network Name Label Index Data type Size (Bytes) Storage Class Write MODE_BLK access time_max_level Time max. level STRING Dynamic max_level_value Max. level value FLOAT Dynamic AUTO time_min_level Time min. level...
Page 76: Data Transfer Transducer Block
Integration into a FOUNDATION Fieldbus network Levelflex FMP56, FMP57 FOUNDATION Fieldbus 9.6.9 Data Transfer Transducer Block The parameters of the Data Transfer Transducer Block are described in GP01015F: "Levelflex FMP5x - Description of Device Parameters - FOUNDATION Fieldbus" Name Label...
Page 77: Methods
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network Name Label Index Data type Size (Bytes) Storage Class Write access MODE_BLK init_map_point_number UINT16 Static AUTO max_not_assoc_track UINT16 Static AUTO ref_max_dist Ref max. dist. FLOAT Static AUTO ref_min_dist Ref min. dist.
Page 78: Commissioning Using The Commissioning Wizard
Commissioning using the Commissioning Wizard Levelflex FMP56, FMP57 FOUNDATION Fieldbus Commissioning using the Commissioning Wizard A Wizard is provided in FieldCare and DeviceCare that guides the user through the initial commissioning process. 1. Connect the device with FieldCare or DeviceCare.
Page 79: Commissioning Via Operating
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Commissioning via operating menu Commissioning via operating menu 11.1 Function check Before commissioning your measuring point, ensure that the post-installation and post- connection checks have been performed: 11.2 Setting the operating language Factory setting: English or ordered local language X X X X X X X 20.50...
Page 80: Configuring Level Measurement
Commissioning via operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus 11.3 Configuring level measurement 20 mA 100% 4 mA A0012838  28 Configuration parameters for level measurement in bulk solids Probe length Reference point of measurement Distance Level Empty calibration (= zero point) Full calibration (= span) If the ε...
Page 81 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Commissioning via operating menu 10. Operation via operating tool: Navigate to: Setup → Confirm distance  Compare the distance displayed with the actual value to start recording an interference echo map (where applicable). Endress+Hauser...
Page 82: Recording The Reference Envelope Curve
Commissioning via operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus 11.4 Recording the reference envelope curve After the measurement has been configured, it is recommended to record the current envelope curve as a reference envelope curve. This can then be used later for diagnostic purposes.
Page 83: Configuring The Local Display
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Commissioning via operating menu 11.5 Configuring the local display 11.5.1 Factory setting of local display for level measurements Parameter Factory setting for devices with 1 current Factory setting for devices with 2 current output outputs Format display 1 value, max.
Page 84: Configuration Management
Commissioning via operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus 11.6 Configuration management After commissioning, you can save the current device configuration, copy it to another measuring point or restore the previous device configuration. You can do so using the Configuration management parameter and the options available.
Page 85: Protecting Settings From Unauthorized Access
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Commissioning via operating menu 11.7 Protecting settings from unauthorized access The settings can be protected from unauthorized access in two ways: • Locking via parameters (software locking) • Locking via write protection switch (hardware locking)
Page 86: Commissioning
Commissioning (block-oriented operation) Levelflex FMP56, FMP57 FOUNDATION Fieldbus Commissioning (block-oriented operation) 12.1 Function check Before commissioning your measuring point, ensure that the post-installation and post- connection checks have been performed: • "Post-installation check" checklist →  39 • "Post-connection check" checklist →  46 12.2...
Page 87: Configuring The Analog Input Blocks
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Commissioning (block-oriented operation) 12.2.4 Configuring the Analog Input Blocks The device has 2 Analog Input Blocks that can be assigned as required to the various process variables. Factory setting Analog Input Block CHANNEL AI 1...
Page 88: Selecting The Language
Commissioning (block-oriented operation) Levelflex FMP56, FMP57 FOUNDATION Fieldbus XD_SCALE OUT_SCALE EU_100 EU_0 EU_100 EU_0 OUT_VALUE A0017338  30 Scaling the measured value in the AI Block • If you have selected the Direct mode in the L_TYPE parameter, you cannot change the values and units for XD_SCALE and OUT_SCALE.
Page 89: Configuring Level Measurement
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Commissioning (block-oriented operation) 12.5 Configuring level measurement The Setup method can also be used to configure the measurement. This method can be called via the SETUP Transducer Block (TRDSUP). 20 mA 100% 4 mA A0012838 ...
Page 90: Configuring The Local Display
Commissioning (block-oriented operation) Levelflex FMP56, FMP57 FOUNDATION Fieldbus Step Block Parameter Action SETUP (TRDSUP) Signal quality Displays the signal quality of the analyzed level (signal_quality) echo. SETUP (TRDSUP) Confirm distance Compare the distance displayed with the actual (confirm_distance) value to start recording an interference echo map.
Page 91 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Commissioning (block-oriented operation) Options Description 265: Compare The device configuration saved in the display module is compared to the current device configuration of the HistoROM. 32848: Delete data The backup copy of the device configuration is deleted from the display module of backup the device.
Page 92: Configuring Event Behavior According To Foundation Fieldbus Specification Ff912
Commissioning (block-oriented operation) Levelflex FMP56, FMP57 FOUNDATION Fieldbus 12.8 Configuring event behavior according to FOUNDATION Fieldbus specification FF912 The device complies with FOUNDATION Fieldbus specification FF912. Among other things this means that: • The diagnostic category as per NAMUR Recommendation NE107 is transmitted over the fieldbus in a format that is independent of the manufacturer: •...
Page 93 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Commissioning (block-oriented operation) 12.8.1 Event groups The diagnostic events are divided into 16 groups according to the source and the weighting. A default event category is assigned to each group at the factory. Here, one bit of the assignment parameters belongs to every event group.
Page 94 Commissioning (block-oriented operation) Levelflex FMP56, FMP57 FOUNDATION Fieldbus Event weighting Default event category Event source Events in this group Configuration S441: Current output 1 Process • S801: Energy too low • S825: Operating temperature • S921: Change of reference • S942: In safety distance •...
Page 95: Assignment Parameters
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Commissioning (block-oriented operation) 12.8.2 Assignment parameters Event categories are assigned to the event groups via four assignment parameters. These are located in the RESOURCE (RB2) Block: • FD_FAIL_MAP: For the Failure (F) event category • FD_CHECK_MAP: For the Function check (C) event category •...
Page 96 Commissioning (block-oriented operation) Levelflex FMP56, FMP57 FOUNDATION Fieldbus incompatible. These should be categorized as Function check (C) and no longer as Failure (F). In the FieldCare navigation window, navigate to Expert → Communication → Field diagnostics → Alarm detection enable.
Page 97 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Commissioning (block-oriented operation)  33 The "Fail Map" and "Check Map" columns after the change Please ensure that the corresponding bit is set in at least one of the assignment parameters for each event group. Otherwise no category will be transmitted with the event over the bus, and the control system will therefore generally ignore the presence of the event.
Page 98: Configurable Area
Commissioning (block-oriented operation) Levelflex FMP56, FMP57 FOUNDATION Fieldbus 12.8.3 Configurable area The event category can be individually defined for the following events - irrespective of the event group they are assigned to in the default setting: • F941: Lost echo •...
Page 99: The Bus
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Commissioning (block-oriented operation) Go to the Offspec Map column and check the check box for the corresponding bit (here: Configurable Area Bit 1). Press ENTER to confirm your entries. A change to the In safety distance error category does not affect an error that already exists.
Page 100: Diagnostics And Troubleshooting
Diagnostics and troubleshooting Levelflex FMP56, FMP57 FOUNDATION Fieldbus Diagnostics and troubleshooting 13.1 General troubleshooting 13.1.1 General errors Error Possible cause Solution Device does not respond. Supply voltage not connected. Connect the correct voltage. The cables do not contact the Ensure electrical contact between terminals properly.
Page 101: Parametrization Errors
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Diagnostics and troubleshooting 13.1.2 Parametrization errors Parametrization errors for level measurements Problem Possible cause Remedy Measured value is incorrect If measured distance (Setup • Check the Empty calibration → Distance) matches the real parameter (→  133) and correct if distance: necessary.
Page 102: Diagnostic Information On Local Display
Diagnostics and troubleshooting Levelflex FMP56, FMP57 FOUNDATION Fieldbus 13.2 Diagnostic information on local display 13.2.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the measured value display.
Page 103 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Diagnostics and troubleshooting Diagnostic event and event text The fault can be identified by means of the diagnostic event. The event text helps you by providing information about the fault. In addition, the associated status symbol is displayed in front of the diagnostic event.
Page 104: Calling Up Remedial Measures
Diagnostics and troubleshooting Levelflex FMP56, FMP57 FOUNDATION Fieldbus 13.2.2 Calling up remedial measures X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage Diagnostics 2...
Page 105: Diagnostic Event In The Operating Tool
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Diagnostics and troubleshooting 13.3 Diagnostic event in the operating tool If a diagnostic event is present in the device, the status signal appears in the top left status in the operating tool along with the corresponding symbol for event level in accordance with NAMUR NE 107: •...
Page 106: Diagnostic Messages In The Diagnostic Transducer Block (Trddiag)
Diagnostics and troubleshooting Levelflex FMP56, FMP57 FOUNDATION Fieldbus 3. Click "Save as ..." and save a PDF of the protocol.  The protocol contains the diagnostic messages and remedy information. C: Via the "Eventlist / Extended HistoROM" function Select the "Eventlist / Extended HistoROM" function.
Page 107: Event Logbook
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Diagnostics and troubleshooting 13.6 Event logbook 13.6.1 Event history A chronological overview of the event messages that have occurred is provided in the Event list submenu Navigation path Diagnostics → Event logbook → Event list A maximum of 100 event messages can be displayed in chronological order.
Page 108 Diagnostics and troubleshooting Levelflex FMP56, FMP57 FOUNDATION Fieldbus Info number Info name I1092 Trend data deleted I1110 Write protection switch changed I1137 Electronic changed I1151 History reset I1154 Reset terminal voltage min/max I1155 Reset electronic temperature I1156 Memory error trend...
Page 109: Firmware History
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Diagnostics and troubleshooting 13.7 Firmware history Date Firmware Modifications Documentation (FMP56, FMP57, FOUNDATION Fieldbus) version Operating Instructions Description of Device Technical Information Parameters 04.2012 01.00.zz Original software BA01055F/00/EN/01.12 GP01015F/00/EN/01.12 TI01004F/00/EN/14.12 05.2015 01.01.zz • Support of SD03 BA01055F/00/EN/03.15...
Page 110: Maintenance
Maintenance Levelflex FMP56, FMP57 FOUNDATION Fieldbus Maintenance No special maintenance work is required. 14.1 Exterior cleaning When cleaning the exterior, always use cleaning agents that do not corrode the surface of the housing and the seals. 14.2 General cleaning instructions Dirt or buildup may form on the probe depending on the application.
Page 111: Repair
General information 15.1.1 Repair concept Under the Endress+Hauser repair concept, devices have a modular design and repairs can be carried out by Endress+Hauser Service or by properly trained customers. Spare parts are grouped into logical kits with the associated replacement instructions.
Page 112: Spare Parts
Repair Levelflex FMP56, FMP57 FOUNDATION Fieldbus 15.2 Spare parts • Some replaceable measuring device components are identified by means of a spare part nameplate. This contains information about the spare part. • In the connection compartment cover of the device there is a spare part nameplate which contains the following information: •...
Page 113: Accessories
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Accessories Accessories 16.1 Device-specific accessories 16.1.1 Weather protection cover The weather protection cover can be ordered together with the device via the "Accessory enclosed" product structure. A0015466  36 Height. Unit of measurement mm (in) 299 (11.8)
Page 114: Mounting Bracket For Electronics
Accessories Levelflex FMP56, FMP57 FOUNDATION Fieldbus 16.1.2 Mounting bracket for electronics housing Accessories Description Mounting bracket for electronics housing ø42...60 (1.65...2.36) 127...140 122 (4.8) (5...5.51) 161 (6.34) 162...175 (6.38...6.89) A0014793  38 Mounting bracket for electronics housing; engineering unit: mm (in)
Page 115: Rod Extension / Centering Device
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Accessories 16.1.3 Rod extension / centering device Accessories Description Rod extension / centering device HMP40 • Suitable for: FMP57 • Permitted temperature at lower edge of nozzle: • without centering disk: no restriction • with centering disk: -40 to +150 °C...
Page 116: Mounting Kit, Insulated
Accessories Levelflex FMP56, FMP57 FOUNDATION Fieldbus 16.1.4 Mounting kit, insulated Accessories Description Mounting kit, insulated suitable for • FMP56 • FMP57 A0013586  39 Scope of delivery of mounting kit: Insulation sleeve Eye bolt To secure rope probes so that they are reliably insulated.
Page 117: Overvoltage Protection
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Accessories Technical data • Material: • Plastic PBT • 316L/1.4404 • Aluminum • Degree of protection: IP68 / NEMA 6P and IP66 / NEMA 4x • Suitable for display modules: • SD02 (push buttons) • SD03 (touch control) •...
Page 118: Bluetooth Module Bt10 For Hart
Accessories Levelflex FMP56, FMP57 FOUNDATION Fieldbus A0021734 Technical data • Resistance per channel: 2 × 0.5 Ω • Threshold DC voltage: 400 to 700 V • Threshold surge voltage: < 800 V • Capacitance at 1 MHz: < 1.5 pF • Nominal leakage current (8/20 μs): 10 kA •...
Page 119: Communication-Specific Accessories
For details, see the "Special Documentation" SD02252F 16.2 Communication-specific accessories Commubox FXA291 Connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) and the USB port of a computer or laptop Order number: 51516983 For details, see "Technical Information" TI00405C Field Xpert SFX350 Field Xpert SFX350 is a mobile computer for commissioning and maintenance.
Page 120: System Components
Accessories Levelflex FMP56, FMP57 FOUNDATION Fieldbus 16.4 System components Memograph M graphic data manager The Memograph M graphic data manager provides information on all the relevant process variables. Measured values are recorded correctly, limit values are monitored and measuring points analyzed. The data are stored in the 256 MB internal memory and also on a SD card or USB stick.
Page 121: Operating Menu
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Operating menu 17.1 Overview of the operating menu (display module) Navigation  Operating menu Language  Setup →  140 Distance unit Bin type Empty calibration Full calibration Level Distance Signal quality ‣...
Page 122 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Access status display →  142 Enter access code →  143 ‣ →  144 Level Medium type →  144 Medium property →  144 Process property →  145 →  146...
Page 123 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Ramp at echo lost →  160 →  147 Blocking distance ‣ Probe settings →  162 Probe grounded →  162 ‣ Probe length correction →  164 Confirm probe length →...
Page 124 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Display damping →  174 Header →  174 →  175 Header text Separator →  175 Number format →  175 Decimal places menu →  175 →  176 Backlight Contrast display →...
Page 125 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu ‣ Event logbook →  186 Filter options ‣ Event list →  186 ‣ Device information →  187 Device tag →  187 Serial number →  187 Firmware version →  187 Device name →...
Page 126 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Clear logging data →  193 ‣ Display channel 1 to 4 →  194 ‣ →  197 Simulation Assign measurement variable →  198 Process variable value →  198 Switch output simulation →...
Page 127: Overview Of The Operating Menu
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu 17.2 Overview of the operating menu (operating tool) Navigation  Operating menu  Setup →  140 Distance unit Bin type Empty calibration Full calibration Level Distance Signal quality Confirm distance Present mapping...
Page 128 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Medium property →  144 Process property →  145 →  146 Advanced process conditions Level unit →  147 Blocking distance →  147 Level correction →  148 ‣ →  150...
Page 129 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu ‣ Probe settings →  162 →  162 Probe grounded Present probe length →  162 Confirm probe length →  163 ‣ Switch output →  165 Switch output function →  165 Assign status →...
Page 130 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Separator →  175 Number format →  175 →  175 Decimal places menu Backlight →  176 Contrast display →  176 ‣ Configuration backup display →  177 →  177...
Page 131 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu ‣ Device information →  187 →  187 Device tag Serial number →  187 Firmware version →  187 Device name →  188 Order code →  188 Extended order code 1 to 3 →...
Page 132 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Switch output simulation →  198 Switch status →  199 →  199 Simulation device alarm ‣ Device check →  200 Start device check →  200 Result device check →  200 →...
Page 133: Setup" Menu
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu 17.3 "Setup" menu • : Indicates how to navigate to the parameter using the display and operating module • : Indicates how to navigate to the parameter using operating tools (e.g. FieldCare) •...
Page 134 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Additional information A0013180  40 Empty calibration (E) for level measurements in bulk solids. Full calibration  Navigation  Setup → Full calibr. Description Span: max. level - min level. User entry Depending on the probe...
Page 135 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Additional information A0013196  42 Level in case of bulk solid measurements The unit is defined in the Level unit parameter (→  147). Distance Navigation  Setup → Distance Description Displays the measured distance D between the reference point (lower edge of the flange or threaded connection) and the level.
Page 136 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Signal quality Navigation  Setup → Signal quality Description Displays the signal quality of the evaluated echo. Additional information Meaning of the display options • Strong The evaluated echo exceeds the threshold by at least 10 mV.
Page 137 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu • Distance too small To be selected if the measured distance is smaller than the actual distance. The device searches for the next echo and returns to the Confirm distance parameter. The distance is recalculated and displayed.
Page 138 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Record map  Navigation  Setup → Record map Prerequisite Confirm distance (→  136) = Manual map or Distance too small Description Start recording of the map. Selection • No • Record map •...
Page 139: Mapping" Wizard
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu 17.3.1 "Mapping" wizard The Mapping wizard is only available when operating via the local display. When operating via an operating tool, all parameters concerning the mapping are located directly in the Setup menu (→  133).
Page 140: Analog Input 1 To 5" Submenu
Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus 17.3.2 "Analog input 1 to 5" submenu There is an Analog inputs submenu for every AI block of the device. The AI block is used to configure the measured value transmission to the bus.
Page 141 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Process Value Filter Time Navigation  Setup → Analog inputs → Analog input 1 to 7 → PV Filter Time Description Use this function to enter the filter time specification for the filtering of the unconverted input value (PV).
Page 142: Advanced Setup" Submenu
Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus 17.3.3 "Advanced setup" submenu Navigation  Setup → Advanced setup Locking status Navigation  Setup → Advanced setup → Locking status Description Indicates the write protection with the highest priority that is currently active.
Page 143 • If no key is pressed for 10 minutes or the user goes from the navigation and editing mode back to the measured value display mode, the device automatically locks the write- protected parameters after another 60 s. Please contact your Endress+Hauser Sales Center if you lose your access code. Endress+Hauser...
Page 144 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus "Level" submenu Navigation  Setup → Advanced setup → Level Medium type  Navigation  Setup → Advanced setup → Level → Medium type Description Specify type of medium. User interface • Liquid •...
Page 145 • Dielectric constant (DC value) Compendium CP01076F • The Endress+Hauser "DC Values app" (available for Android and iOS) If EOP level evaluation = Fix DC, the exact dielectric constant must be specified in the DC value parameter. The Medium property parameter therefore does not apply in this case.
Page 146 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus For "Operating mode" = "Level" and "Medium type" = "Solid" Process property Step response time / s Very fast > 100 m (333 ft) /h Fast > 10 m (33 ft) /h Standard < 10 m (33 ft) /h Medium <...
Page 147 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Level unit  Navigation  Setup → Advanced setup → Level → Level unit Description Select level unit. Selection SI units US units • % • ft • m • in • mm...
Page 148 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus A0013221  44 Blocking distance (UB) for bulk solid measurements Level correction  Navigation  Setup → Advanced setup → Level → Level correction Description Specify level correction (if required). User entry –200 000.0 to 200 000.0 % Additional information The value specified in this parameter is added to the measured level (before linearization).
Page 149 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu "Linearization" submenu 100% L‘ I‘ L‘ 100% L‘1 L‘2 L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ A0016084  45 Linearization: Conversion of the level and, if applicable, interface into a volume or a weight; the...
Page 150 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Structure of the submenu on the local display Navigation  Setup → Advanced setup → Linearization ‣ Linearization Linearization type Unit after linearization Free text Maximum value Diameter Intermediate height Table mode ‣...
Page 151 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Structure of the submenu in the operating tool (e.g. FieldCare) Navigation  Setup → Advanced setup → Linearization ‣ Linearization Linearization type Unit after linearization Free text Level linearized Maximum value Diameter Intermediate height...
Page 152 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Description of the parameters Navigation  Setup → Advanced setup → Linearization Linearization type  Navigation  Setup → Advanced setup → Linearization → Lineariz. type Description Select linearization type. Selection • None •...
Page 153 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Meaning of the options • None The level is output in the level unit without being converted (linearized) beforehand. • Linear The output value (volume/weight) is proportional to the level L. This applies, for example, to vertical cylindrical tanks and silos.
Page 154 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Description Select the unit for the linearized value. Selection Selection/input (uint16) • 1095 = [short Ton] • 1094 = [lb] • 1088 = [kg] • 1092 = [Ton] • 1048 = [US Gal.] •...
Page 155 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu User entry Up to 32 alphanumerical characters (letters, numbers, special characters) Level linearized Navigation  Setup → Advanced setup → Linearization → Level linearized Description Displays linearized level. Additional information The unit is defined by the Unit after linearization parameter →  153.
Page 156 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Intermediate height  Navigation  Setup → Advanced setup → Linearization → Intermed. height Prerequisite Linearization type (→  152) has one of the following values: • Pyramid bottom • Conical bottom • Angled bottom...
Page 157 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Conditions the linearization table must meet: • The table may consist of up to 32 pairs of values "Level - Linearized Value". • The table must be monotonic (monotonically increasing or decreasing). • The first linearization point must refer to the minimum level.
Page 158 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Level (Semiautomatic) Navigation  Setup → Advanced setup → Linearization → Level Prerequisite • Linearization type (→  152) = Table • Table mode (→  156) = Semiautomatic Description Displays measured level (value before linearization). This value is transmitted to the table.
Page 159 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu "Safety settings" submenu Navigation  Setup → Advanced setup → Safety sett. Output echo lost  Navigation  Setup → Advanced setup → Safety sett. → Output echo lost Description Output signal in case of a lost echo.
Page 160 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Ramp at echo lost  Navigation  Setup → Advanced setup → Safety sett. → Ramp echo lost Prerequisite Output echo lost (→  159) = Ramp at echo lost Description Slope of the ramp in the case of a lost echo...
Page 161 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu due to a level change during operation. Signals which are already in the blocking distance when the device is switched on, are ignored. This behavior is only valid if the following two conditions are met: •...
Page 162 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus "Probe settings" submenu The Probe settings submenu helps to ensure that the end of probe signal within the envelope curve is correctly assigned by the evaluation algorithm. The assignment is correct if the length of probe indicated by the device matches the acutal lenght of the probe. The automatic probe length correction can only be performed if the probe is installed in the vessel and is completely uncovered (no medium).
Page 163 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Confirm probe length  Navigation  Setup → Advanced setup → Probe settings → Confirm length Description Select, whether the value displayed in the Present probe length parameter →  162 matches the actual length of the probe. Based on this input, the device performs a probe length correction.
Page 164 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus "Probe length correction" wizard The Probe length correction wizard is only available when operating via the local display. When operating via an operating tool, all parameters concerning the probe length correction are located directly in the Probe settings submenu (→  162).
Page 165 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu "Switch output" submenu The Switch output submenu (→  165) is only visible for devices with switch output. Navigation  Setup → Advanced setup → Switch output Switch output function  Navigation  Setup → Advanced setup → Switch output → Switch out funct Description Select function for switch output.
Page 166 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus • Digital output 1 • Digital output 2 • Digital output 3 • Digital output 4 • Digital output 5 • Digital output 6 • Digital output 7 • Digital output 8 Additional information The Digital output AD 1 and Digital output AD 2 options refer to the Advanced Diagnostic Blocks.
Page 167 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Switch-on value  Navigation  Setup → Advanced setup → Switch output → Switch-on value Prerequisite Switch output function (→  165) = Limit Description Enter measured value for the switch-on point. User entry...
Page 168 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus A0015586 Switch-on value Switch-off value Output closed (conductive) Output opened (non-conductive) Switch-on delay  Navigation  Setup → Advanced setup → Switch output → Switch-on delay Prerequisite • Switch output function (→  165) = Limit •...
Page 169 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Switch-off delay  Navigation  Setup → Advanced setup → Switch output → Switch-off delay Prerequisite • Switch output function (→  165) = Limit • Assign limit (→  166) ≠ Off Description Define delay for the switch-off of status output.
Page 170 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Additional information Meaning of the options • No The behavior of the switch output is as described above. • Yes The states Open and Closed are inverted as compared to the description above.
Page 171 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu "Display" submenu Display submenu is only visible if a display module is connected to the device. Navigation  Setup → Advanced setup → Display Language Navigation  Setup → Advanced setup → Display → Language Description Set display language.
Page 172 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Additional information 4841.000 Â A0019963  48 "Format display" = "1 value, max. size" Â 93.5 % Â 159.0 A0019964  49 "Format display" = "1 bargraph + 1 value" Â 93.5 Â...
Page 173 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Value 1 to 4 display  Navigation  Setup → Advanced setup → Display → Value 1 display Description Select the measured value that is shown on the local display. Selection • Level linearized •...
Page 174 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Display interval Navigation  Setup → Advanced setup → Display → Display interval Description Set time measured values are shown on display if display alternates between values. User entry 1 to 10 s...
Page 175 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Header text  Navigation  Setup → Advanced setup → Display → Header text Prerequisite Header (→  174) = Free text Description Enter display header text. User entry Character string comprising numbers, letters and special characters (12) Additional information The number of characters which can be displayed depends on the characters used.
Page 176 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Additional information • Is only valid for numbers in the operating menu (e.g. Empty calibration, Full calibration), but not for the measured value display. The number of decimal places for the measured value display is defined in the Decimal places 1 to 4 →  173 parameters.
Page 177 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu "Configuration backup display" submenu This submenu is only visible if a display module is connected to the device. The configuration of the device can be saved to the display module at a certain point of time (backup).
Page 178 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Additional information Meaning of the options • Cancel No action is executed and the user exits the parameter. • Execute backup A backup copy of the current device configuration in the HistoROM (built-in in the device) is saved to the display module of the device.
Page 179 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Additional information Meaning of the display options • Settings identical The current device configuration of the HistoROM is identical to the backup copy in the display module. • Settings not identical The current device configuration of the HistoROM is not identical to the backup copy in the display module.
Page 180 Enter access code parameter (→  143). Please contact your Endress+Hauser Sales Center if you lose the access code. If operating via the local display: the new access code is only valid once it has been confirmed in the Confirm access code parameter (→...
Page 181 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu • Of customer settings All customer parameters are reset to their factory setting. Service parameters, however, remain unchanged. • To transducer defaults Every measurment-related parameter is reset to its factory setting. Service parameters and communication-related parameters, however, remain unchanged.
Page 182 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus "Define access code" wizard The Define access code wizard is only available when operating via the local display. When operating via an operating tool, the Define access code parameter is located directly in the Administration submenu. The Confirm access code parameter is not available for operation via operating tool.
Page 183: Diagnostics" Menu
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu 17.4 "Diagnostics" menu Navigation  Diagnostics Actual diagnostics Navigation  Diagnostics → Actual diagnos. Description Displays current diagnostic message. Additional information The display consists of: • Symbol for event behavior • Code for diagnostic behavior •...
Page 184 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Timestamp Navigation  Diagnostics → Timestamp Operating time from restart Navigation  Diagnostics → Time fr. restart Description Displays the time the device has been in operation since the last device restart. Operating time Navigation ...
Page 185: Diagnostic List" Submenu
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu 17.4.1 "Diagnostic list" submenu Navigation  Diagnostics → Diagnostic list Diagnostics 1 to 5 Navigation  Diagnostics → Diagnostic list → Diagnostics 1 Description Display the current diagnostics messages with the highest to fifth-highest priority.
Page 186: Event Logbook" Submenu
Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus 17.4.2 "Event logbook" submenu The Event logbook submenu is only available when operating via the local display. When operating via FieldCare, the event list can be displayed in the FieldCare function "Event List / HistoROM".
Page 187: Device Information" Submenu
Diagnostics → Device info → Serial number Additional information Uses of the serial number • To identify the device quickly, e.g. when contacting Endress+Hauser. • To obtain specific information on the device using the Device Viewer: www.endress.com/deviceviewer The serial number is also indicated on the nameplate.
Page 188 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Device name Navigation  Diagnostics → Device info → Device name  Diagnostics → Device info → Device name Order code  Navigation  Diagnostics → Device info → Order code  Diagnostics → Device info → Order code...
Page 189: Measured Values" Submenu
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu 17.4.4 "Measured values" submenu Navigation  Diagnostics → Measured val. Distance Navigation  Diagnostics → Measured val. → Distance Description Displays the measured distance D between the reference point (lower edge of the flange or threaded connection) and the level.
Page 190: Analog Input 1 To 5" Submenu
Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Terminal voltage 1 Navigation  Diagnostics → Measured val. → Terminal volt. 1 17.4.5 "Analog input 1 to 5" submenu There is an Analog inputs submenu for every AI block of the device. The AI block is used to configure the measured value transmission to the bus.
Page 191 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu • Terminal voltage • Thickness upper layer • Calculated DC value • Analog output adv. diagnostics 2 • Analog output adv. diagnostics 1 Status Navigation  Diagnostics → Analog inputs → Analog input 1 to 7 → Status...
Page 192: Data Logging" Submenu
Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus 17.4.6 "Data logging" submenu Navigation  Diagnostics → Data logging Assign channel 1 to 4  Navigation  Diagnostics → Data logging → Assign chan. 1 to 4 Selection • Off • Level linearized •...
Page 193 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Logging interval  Navigation  Diagnostics → Data logging → Logging interval  Diagnostics → Data logging → Logging interval User entry 1.0 to 3 600.0 s Additional information This parameter defines the interval between the individual data points in the data log, and thus the maximum loggable process time T •...
Page 194 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus "Display channel 1 to 4" submenu The Display channel 1 to 4 submenus are only available for operation via the local display. When operating via FieldCare, the logging diagram can be displayed in the FieldCare function "Event List / HistoROM"...
Page 195: Simulation" Submenu
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu 17.4.7 "Simulation" submenu The Simulation submenu is used to simulate specific measuring values or other conditions. This helps to check the correct configuration of the device and connected control units. Conditions which can be simulated...
Page 196 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus 3. Pull out the display module with a gentle rotation movement. To make it easier to access the SIM switch, attach the display module to the edge of the electronics compartment.  Display module is attached to the edge of the electronics compartment.
Page 197 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Structure of the submenu Navigation  Expert → Diagnostics → Simulation ‣ Simulation Assign measurement variable →  198 Process variable value →  198 Switch output simulation →  198 Switch status →...
Page 198 Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus Description of parameters Navigation  Expert → Diagnostics → Simulation Assign measurement variable  Navigation  Expert → Diagnostics → Simulation → Assign meas.var. Selection • Off • Level • Interface • Level linearized •...
Page 199 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Switch status  Navigation  Expert → Diagnostics → Simulation → Switch status Prerequisite Switch output simulation (→  198) = On Description Select the status of the status output for the simulation.
Page 200: Device Check" Submenu
Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus 17.4.8 "Device check" submenu Navigation  Diagnostics → Device check Start device check  Navigation  Diagnostics → Device check → Start dev. check Description Start a device check. Selection • No • Yes Additional information In the case of a lost echo a device check can not be performed.
Page 201 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Operating menu Level signal Navigation  Diagnostics → Device check → Level signal Prerequisite Device check has been performed. Description Displays result of the device check for the level signal. User interface • Check not done •...
Page 202: Heartbeat" Submenu
Operating menu Levelflex FMP56, FMP57 FOUNDATION Fieldbus 17.4.9 "Heartbeat" submenu The Heartbeat submenu is only available via FieldCare or DeviceCare. It contains the wizards which are part of the Heartbeat Verification and Heartbeat Monitoring application packages. Detailed description SD01872F Navigation ...
Page 203: Index
Levelflex FMP56, FMP57 FOUNDATION Fieldbus Index Index Define the access code ......53 Device check (Submenu) ..... 200 Access authorization to parameters Device information (Submenu) .
Page 204 Index Levelflex FMP56, FMP57 FOUNDATION Fieldbus Field of application Media ........11 Residual risks .
Page 205 Levelflex FMP56, FMP57 FOUNDATION Fieldbus Index Shortening ......33 System components ......120 Safety instructions Table mode (Parameter) .
Page 206 *71603690* 71603690 www.addresses.endress.com...

This manual is also suitable for:

Levelflex fmp57

Endress+Hauser Levelflex FMP56 Operating Instructions Manual

Quick Links

Related Manuals for Endress+Hauser Levelflex FMP56

Summary of Contents for Endress+Hauser Levelflex FMP56

This manual is also suitable for:

Table of Contents
