TI01303F/00/EN/07.20
71496291
2020-09-25
Products
Technical Information

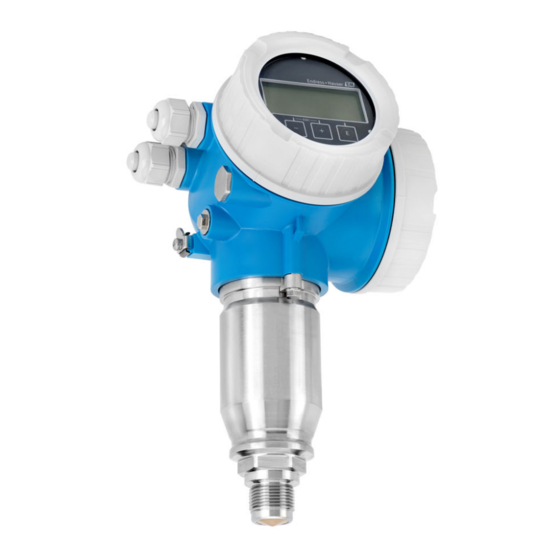

Micropilot FMR62
Free space radar
Level measurement in liquids
Application
• Continuous, non-contact level measurement of liquids,
pastes and sludges
• Integrated PEEK antenna or PTFE-plated, flush-mounted antenna
• Maximum measuring range: 80 m (262 ft)
• Temperature: –40 to +200 °C (–40 to +392 °F)
• Pressure: –1 to +25 bar (–14.5 to +362.6 psi)
• Accuracy: ± 1 mm (0.04 in)
• Linearity protocol (3-point, 5-point)
Your benefits
• Reliable measurement thanks to improved focusing and small beam angle,
particularly in vessels with many internal fittings
• Compact design enables installation in the case of small vessels and small process
connections
• Safety by design - ensures highest safety
• Easy, guided commissioning with intuitive user interface
• Bluetooth® wireless technology for commissioning, operation and maintenance via
free iOS / Android app SmartBlue
• Maximum reliability thanks to multi-echo tracking
• HistoROM configuration memory makes for easier commissioning,
maintenance and diagnostics
• SIL2 as per IEC 61508, SIL3 for homogeneous or diverse redundancy
• Easy proof testing for SIL and WHG
• RFID TAG - easy identification of measuring points for improved data access
• Heartbeat Technology
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot FMR62

Summary of Contents for Endress+Hauser Micropilot FMR62

  • Page 1 Products Solutions Services TI01303F/00/EN/07.20 71496291 2020-09-25 Technical Information Micropilot FMR62 Free space radar Level measurement in liquids Application • Continuous, non-contact level measurement of liquids, pastes and sludges • Integrated PEEK antenna or PTFE-plated, flush-mounted antenna • Maximum measuring range: 80 m (262 ft) •...

  • Page 2: Table Of Contents

    Micropilot FMR62 Table of contents Important document information ....4 Ambient temperature limits .....
  • Page 3 Micropilot FMR62 Ordering information ..... . . 75 Ordering information ......75 3-point linearity protocol .

  • Page 4: Important Document Information

    Micropilot FMR62 Important document information Document function These Operating Instructions provide all of the information that is required in various phases of the life cycle of the device including: • Product identification • Incoming acceptance • Storage • Installation • Connection •...

  • Page 5: Terms And Abbreviations

    Document type "Safety Instructions" Nominal pressure FieldCare Scalable software tool for device configuration and integrated plant asset management solutions DeviceCare Universal configuration software for Endress+Hauser HART, PROFIBUS, FOUNDATION Fieldbus and Ethernet field devices Device Type Manager Device Description for HART communication protocol ε...
  • Page 6 Registration-pending trademark of the FieldComm Group, Austin, Texas, USA Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®...

  • Page 7: Function And System Design

    Micropilot FMR62 Function and system design Measuring principle The Micropilot is a "downward-looking" measuring system, operating based on the frequency modulated continuous wave method (FMCW). The antenna emits an electromagnetic wave at a continuously varying frequency. This wave is reflected by the product and received again by the antenna.

  • Page 8: Input

    To measure absorbing gases, either use a guided radar, measuring devices with another measuring frequency or another measuring principle. If measurements must be performed in one of these media, please contact Endress+Hauser. For dielectric constants (DC values) of many media commonly used in various industries refer •...
  • Page 9 Micropilot FMR62 FMR62 Antenna: integrated, PEEK, 20mm/ 3/4" Storage vessel Buffer vessel Vessel with agitator A0034565 A0034567 A0034566 Calm surface (e.g. bottom filling, filling Turbulent surface (e.g. filling from above, agitators, baffles Moving surface (e.g. continuous free via immersion tube or rare filling from etc.)
  • Page 10 Micropilot FMR62 FMR62 Antenna: integrated, PEEK, 40mm/ 1-1/2" Storage vessel Buffer vessel Vessel with agitator A0034565 A0034567 A0034566 Calm surface (e.g. bottom filling, filling Turbulent surface (e.g. filling from above, agitators, baffles Moving surface (e.g. continuous free via immersion tube or rare filling from etc.)
  • Page 11 Micropilot FMR62 FMR62 Antenna: PTFE cladded flush mount 50mm/2" Storage vessel Buffer vessel Vessel with agitator A0034565 A0034567 A0034566 Calm surface (e.g. bottom filling, filling Turbulent surface (e.g. filling from above, agitators, baffles Moving surface (e.g. continuous free via immersion tube or rare filling from etc.)
  • Page 12 Micropilot FMR62 FMR62 Antenna: PTFE cladded flush mount 80mm/3" Storage vessel Buffer vessel Vessel with agitator A0034565 A0034567 A0034566 Calm surface (e.g. bottom filling, filling Turbulent surface (e.g. filling from above, agitators, baffles Moving surface (e.g. continuous free via immersion tube or rare filling from etc.)

  • Page 13: Operating Frequency

    Micropilot FMR62 FMR62 Antenna: PTFE cladded flush mount 80mm/3" Stilling well Bypass A0043046 A0043045 Moving surface (e.g. continuous free filling from above, mixing jets) Calm surface (e.g. bottom filling, filling via immersion tube or rare filling from above) A0, A, B, C, D...

  • Page 14: Output

    Micropilot FMR62 Output Output signal HART • Signal coding: FSK ±0.5 mA over current signal • Data transmission rate: 1 200 Bit/s • Galvanic isolation: Bluetooth® wireless technology • Device version: Order code 610 "Accessory mounted", option NF "Bluetooth" • Operation / configuration: Via the SmartBlue app •...

  • Page 15: Signal On Alarm

    Micropilot FMR62 Signal on alarm Depending on the interface, failure information is displayed as follows: • Current output • Choice of failure mode (in accordance with NAMUR Recommendation NE 43): Minimum alarm: 3.6 mA Maximum alarm (= factory setting): 22 mA •...
  • Page 16 Micropilot FMR62 Multidrop current 4.0 mA Time for connection setup 30 s Endress+Hauser...

  • Page 17: Power Supply

    Micropilot FMR62 Power supply Terminal assignment Terminal assignment 2-wire: 4-20 mA HART A0036498  3 Terminal assignment 2-wire: 4-20 mA HART Without integrated overvoltage protection With integrated overvoltage protection Connection 4-20 mA HART passive: terminals 1 and 2, without integrated overvoltage protection...
  • Page 18 Micropilot FMR62 Terminal assignment 2-wire: 4-20 mA HART, switch output A0036500  5 Terminal assignment 2-wire: 4-20 mA HART, switch output Without integrated overvoltage protection With integrated overvoltage protection Connection 4-20 mA HART passive: terminals 1 and 2, without integrated overvoltage protection...
  • Page 19 Micropilot FMR62 Terminal assignment 2-wire: 4-20 mA HART, 4-20 mA A0036500  7 Terminal assignment 2-wire: 4-20 mA HART, 4-20 mA Without integrated overvoltage protection With integrated overvoltage protection Connection current output 1, 4-20 mA HART passive: terminals 1 and 2, without integrated overvoltage...
  • Page 20 Micropilot FMR62 Connection examples for the switch output For HART devices, the switch output is available as an option. A0015909  9 Connection of a relay A0015910  10 Connection to a digital input Pull-up resistor Digital input For optimum interference immunity we recommend to connect an external resistor (internal resistance of the relay or pull-up resistor) of <...

  • Page 21: Device Plugs

    Micropilot FMR62 Device plugs In device versions with a device plug (M12 or 7/8"), it is not necessary to open the housing in order to connect the signal cable. A0011175  11 Pin assignment of M12 plug Signal + Not assigned Signal –...

  • Page 22: Supply Voltage

    Micropilot FMR62 Supply voltage An external power supply is necessary. Various power supply units can be ordered as an accessory from Endress+Hauser. 2-wire, 4-20 mA HART, passive "Power "Approval" Terminal Maximum load R, supply, voltage U at Depends on the supply voltage output"...

  • Page 23: Power Consumption

    Micropilot FMR62 "Power "Approval" Terminal Maximum load R, supply, voltage U at Depends on the supply voltage output" device of power supply unit 16 to 30 V R [ ] W 2-wire; 4-20 mA HART, 4-20 mA U 0 [V]...

  • Page 24: Cable Entries

    400 to 700 V Threshold impulse voltage < 800 V Capacitance at 1 MHz < 1.5 pF Nominal arrest impulse voltage (8/20 μs) 10 kA External overvoltage protection module HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. Endress+Hauser...

  • Page 25: Performance Characteristics

    Micropilot FMR62 Performance characteristics Reference operating • Temperature = +24 °C (+75 °F) ±5 °C (±9 °F) conditions • Pressure = 960 mbar abs. (14 psia) ±100 mbar (±1.45 psi) • Humidity = 60 % ±15 % • Reflector: metal plate with diameter ≥ 1 m (40 in) •...

  • Page 26: Influence Of Ambient Temperature

    Micropilot FMR62 The following step response times apply (in accordance with DIN EN IEC 61298-2 / DIN EN IEC 60770-1) when damping is switched off: –1 • Measuring rate ≥ 1.3 s at U ≥ 24 V • Step response time < 3.6 s...

  • Page 27: Installation

    Micropilot FMR62 Installation Installation conditions Orientation - Liquid media A0016882 • Recommended distance A wall - nozzle outer edge: ~ 1/6 of the vessel diameter. However, the device must not under any circumstances be mounted closer than 15 cm (5.91 in) to the tank wall.
  • Page 28 Micropilot FMR62 Internal vessel fittings α A0031777 Avoid the location of internal fittings (limit switches, temperature sensors, struts, vacuum rings, heating coils, baffles etc.) inside the signal beam. Take the beam angle into account. Endress+Hauser...
  • Page 29 Micropilot FMR62 Avoiding interference echoes α A0031813 Metal deflector plates, installed at an angle to scatter the radar signals, help prevent interference echoes. Optimization options • Antenna size The larger the antenna the smaller the beam angle α, resulting in fewer interference echoes.
  • Page 30 Micropilot FMR62 Beam diameter W as a function of beam angle α and distance D. Integrated, PEEK 20 mm / 3/4" antenna, α 14 ° W = D × 0.25 Integrated, PEEK 40 mm / 1-1/2" antenna, α 8 °...

  • Page 31: Free-Space Installation In Vessel

    • The end of the nozzle must be smooth and free from burrs. The edge of the nozzle should be rounded if possible. • Mapping must be performed. • Please contact Endress+Hauser for applications with nozzles that are higher than indicated in the table. Information concerning threaded connections •...
  • Page 32 • The end of the nozzle must be smooth and free from burrs. The edge of the nozzle should be rounded if possible. • Mapping must be performed. • Please contact Endress+Hauser for applications with nozzles that are higher than indicated in the table. Mounting cladded flanges Note the following for cladded flanges: •...

  • Page 33: Installation In Stilling Well

    Micropilot FMR62 Flange size Number of screws Tightening torque DN100/PN16 40 to 60 Nm DN150/PN16 75 to 115 Nm ASME 2"/150lbs 40 to 55 Nm 3"/150lbs 65 to 95 Nm 3"/300lbs 40 to 55 Nm 4"/150lbs 45 to 70 Nm 4"/300lbs...
  • Page 34 Micropilot FMR62 100% A0042913  16 Example of stilling well design. Unit of measurement mm (in) Micropilot FMR62 80mm/3" antenna Stilling well with slots Full bore ball valve e.g. welding neck flange DIN2633 Borehole always deburred Ø bore max. 1/10 Ø pipe; on one side or drilled through Slot width max.

  • Page 35: Installation In The Bypass

    Micropilot FMR62 Installation in the bypass A0042914  17 Installation in the bypass Tank connectors Measurements can be performed through an open full bore ball valve without any problems. Recommendations for the bypass • Metal (no enamel plastic or enamel liner).

  • Page 36: Container With Heat Insulation

    100% A0042915  18 Example of bypass design. Unit of measurement mm (in) Micropilot FMR62; 80mm/3" antenna Full bore ball valve Minimum distance to upper connecting pipe: 400 mm (15.7 in) e.g. welding neck flange DIN2633 Diameter of connecting pipes as small as possible Do not weld through the pipe wall;...

  • Page 37: Turning The Transmitter Housing

    Micropilot FMR62 If process temperatures are high, the device should be included in the usual container insulation system (2) to prevent the electronics from heating as a result of thermal radiation or convection. The insulation should not be higher than the neck of the device (1).

  • Page 38: Post-Installation Check

    Micropilot FMR62 Pull out the display module with a gentle rotational movement. Turn the display module to the desired position: max. 8 × 45 ° in each direction. Feed the coiled cable into the gap between the housing and main electronics module and plug the display module into the electronics compartment until it engages.

  • Page 39: Environment

    Micropilot FMR62 Environment Ambient temperature range Measuring device –40 to +80 °C (–40 to +176 °F) Local display –20 to +70 °C (–4 to +158 °F), the readability of the display may be impaired at temperatures outside the temperature range.

  • Page 40: Storage Temperature

    Micropilot FMR62 FMR62 Antenna • GE: Integrated, PEEK, 3/4" • GF: Integrated, PEEK, 1-1/2" • GM: PTFE cladded flush mount DN50 • GN: PTFE cladded flush mount DN80 Seal • A5: FKM Viton GLT, –40 to 150 °C (–40 to 302 °F) •...

  • Page 41: Vibration Resistance

    Micropilot FMR62 Vibration resistance DIN EN 60068-2-64 IEC 60068-2-64 at 5 to 2 000 Hz: 1.5 (m/s A limited vibration resistance applies according DIN EN 60068-2-64/IEC 60068-2-64 at 5 to 2 000 Hz of 0.39 (m/s /Hz, if the following order features are selected in the product structure at the same time: •...

  • Page 42: Process

    Micropilot FMR62 Process Process temperature, process The pressure ranges indicated can be reduced by the choice of process connection. The nominal pressure pressure (PN) indicated on the nameplate refers to a reference temperature of 20 °C, and of 100 °F for ASME flanges. Observe pressure-temperature dependency.
  • Page 43 Micropilot FMR62 FMR62, integrated antenna PEEK, 200 °C (392 °F) [bar] ([psi]) 20 (290) 0 (0) -1 (-14.5) [°C] +200 ([°F]) (-40) (-4) (+32) (+392) A0032183  20 FMR62: Permitted range for process temperature and process pressure, integrated antenna, PEEK (feature 070: GE, GF), 200 °C (392 °F)
  • Page 44 Micropilot FMR62 FMR62, Tri-Clamp 2" process connection Feature 100 "Process Feature 90 Process temperature Process pressure range connection" "Seal" range Tri-Clamp ISO2852 F5, PTFE –40 to +150 °C TDK: DN40-51 (2") cladded (–40 to +302 °F) –1 to 16 bar (–14.5 to 232 psi) F6, PTFE –40 to +200 °C...

  • Page 45: Dielectric Constant

    For liquids ε ≥ 1.9 Please contact Endress+Hauser for applications with lower dielectric constants than indicated. For dielectric constants (DC values) of many media commonly used in various industries refer • the Endress+Hauser DC manual (CP01076F) • the Endress+Hauser "DC Values App" (available for Android and iOS)

  • Page 46: Minimum Level For Low Dielectric Constants

    Micropilot FMR62 Minimum level for low 80 mm (3.15 in) above the bottom of the tank dielectric constants • This minimum level applies for media with ε ≤ 4 • The tank bottom may be visible through the medium at lower levels. For this reason, the accuracy is reduced in this range.

  • Page 47: Mechanical Construction

    Micropilot FMR62 Mechanical construction Dimensions Dimensions of the electronics housing 98 (3.86)* 78 (3.07) 90 (3.54) A0011666  24 Housing GT18 (316L). Unit of measurement mm (in) *For devices with integrated overvoltage protection. 99 (3.9)* 78 (3.07) 90 (3.54) A0011346 ...
  • Page 48 Micropilot FMR62 FMR62: Integrated antenna, PEEK, 20mm / 3/4" ø32.2 (1.27) ø23.8 (0.94) A0031557  27 Dimensions of integrated antenna, PEEK, 20mm / 3/4"; process connection thread 3/4". Unit of measurement mm (in) Seal: FKM Viton GLT, -40 to 150°C/-40 to 302°F or FFKM Kalrez, -20 to 150°C/-4 to 302°F Seal: FKM Viton GLT, -40 to 200°C/-40 to 392°F or FFKM Kalrez, -20 to 200°C/-4 to 392°F...
  • Page 49 Micropilot FMR62 FMR62: Integrated antenna, PEEK, 40mm / 1-1/2" ø54.8 (2.18) ø42.5 (1.67) A0032787  28 Dimensions of integrated antenna, PEEK, 40mm / 1-1/2"; process connection thread 1-1/2". Unit of measurement mm (in) Seal: FKM Viton GLT, -40 to 150°C/-40 to 302°F or FFKM Kalrez, -20 to 150°C/-4 to 302°F Seal: FKM Viton GLT, -40 to 200°C/-40 to 392°F or FFKM Kalrez, -20 to 200°C/-4 to 392°F...
  • Page 50 Micropilot FMR62 FMR62: Flush-mounted antenna with sanitary adapter DIN11851, PTFE-clad øD1 øD2 A0032175  29 Dimensions of antenna with sanitary adapter DIN11851, PTFE-clad. Unit of measurement mm (in) Seal: PTFE cladded, -40 to 150°C/-40 to 302°F Seal: PTFE cladded, -40 to 200°C/-40 to 392°F...
  • Page 51 Micropilot FMR62 FMR62: Flush-mounted antenna with Tri-Clamp connection, PTFE-clad øD1 øD2 øD3 A0032176  30 Dimensions of antenna with Tri-Clamp connection, PTFE-clad. Unit of measurement mm (in) Seal: PTFE cladded, -40 to 150°C/-40 to 302°F Seal: PTFE cladded, -40 to 200°C/-40 to 392°F...
  • Page 52 Micropilot FMR62 FMR62: Flush-mounted antenna with flange EN1092-1, ASME B16.5 or JIS B2220; PTFE-clad øD1 øD2 øD3 A0032177  31 Dimensions of antenna with flange EN1092-1, ASME B16.5 or JIS B2220; PTFE-clad. Unit of measurement mm (in) Seal: PTFE cladded, -40 to 150°C/-40 to 302°F Seal: PTFE cladded, -40 to 200°C/-40 to 392°F...
  • Page 53 Micropilot FMR62 Feature 100 "Process connection" ØD2 ØD3 CGK: 138 mm (5.43 in) 200 mm (7.87 in) 20 mm (0.79 in) DN80 PN10/16, PTFE>316L CHK: 158 mm (6.22 in) 220 mm (8.66 in) 20 mm (0.79 in) DN100 PN10/16, PTFE>316L CJK: 212 mm (8.35 in)

  • Page 54: Weight

    Micropilot FMR62 Weight Housing Part Weight GT18 housing - stainless steel Approx. 4.5 kg (9.9 lb) GT19 housing - plastic Approx. 1.2 kg (2.7 lb) GT20 housing - aluminum Approx. 1.9 kg (4.2 lb) Antenna and process connection Device Antenna...

  • Page 55: Materials: Housing Gt18 (Stainless Steel, Corrosion- Resistant)

    Micropilot FMR62 Materials: Housing GT18 (stainless steel, corrosion- resistant) A0036037 No. Component part Material Housing CF3M similar to 316L/1.4404 2.1 Electronics compartment cover • Cover: CF3M (similar to 316L/ 1.4404) • Window: glass • Cover seal: NBR • Window seal: NBR •...

  • Page 56: Materials: Gt19 Housing (Plastic)

    Micropilot FMR62 Materials: GT19 housing (plastic) A0013788 No. Component part Material Housing 2.1 Electronics compartment cover • Sight glass: PC • Rim: PBT-PC • Cover seal: EPDM • Thread coating: graphite-based lubricant varnish 2.2 Connection compartment cover • Cover: PBT •...

  • Page 57: Materials: Gt20 Housing

    Micropilot FMR62 Materials: GT20 housing (die-cast aluminum, powder- coated) A0036037 No. Component part Material Housing, RAL 5012 (blue) • Housing: AlSi10Mg(<0.1% Cu) • Coating: polyester 2.1 Electronics compartment cover, RAL 7035 (gray) • Cover: AlSi10Mg(<0.1% Cu) • Window: glass • Cover seal: NBR •...
  • Page 58 Micropilot FMR62 No. Component part Material Ground terminal • Screw: A2 • Spring washer: A2 • Clamp: 304 (1.4301) • Bracket: 304 (1.4301) Adhesive nameplate Plastic In the version with the M12 plug, the seal material is Viton (different from standard).
  • Page 59 Micropilot FMR62 Component part Material Process connection 316L / 1.4404 , PTFE cladded DIN11851 slotted-nut 304L / 1.4307 Endress+Hauser...

  • Page 60: Materials: Weather Protection Cover

    Micropilot FMR62 Materials: Weather protection cover A0015473 Component: Material Protection cover: 316L (1.4404) Rubber molded part (4x): EPDM Tensioning screw: 316L (1.4404) + carbon thread Holder: 316L (1.4404) Ground terminal • Screw: A4 • Spring washer: A4 • Clamp: 316L (1.4404) •...

  • Page 61: Operability

    Micropilot FMR62 Operability Operating concept Operator-oriented menu structure for user-specific tasks • Commissioning • Operation • Diagnostics • Expert level Operating languages • English • Deutsch • Français • Español • Italiano • Nederlands • Portuguesa • Polski • русский язык (Russian) •...

  • Page 62: Local Operation

    Micropilot FMR62 Local operation Operation Pushbuttons Touch Control with Order code for Option C "SD02" Option E "SD03" "Display; Operation" A0036312 A0036313 Display 4-line display 4-line display elements white background lighting; switches to red in event of device error Format for displaying measured variables and status variables can be individually configured Permitted ambient temperature for the display: –20 to +70 °C (–4 to +158 °F)

  • Page 63: Operation Via Bluetooth® Wireless Technology

    Micropilot FMR62 Operation via Bluetooth® Requirements wireless technology A0036790  33 Device with Bluetooth module Electronics housing of the device Bluetooth module This operation option is only available for devices with Bluetooth module. There are the following options: • The device has been ordered with a Bluetooth module: Feature 610 "Accessory Mounted", option NF "Bluetooth"...

  • Page 64: Remote Operation

    Field Xpert SFX350/SFX370 VIATOR Bluetooth modem with connecting cable Transmitter DeviceCare/FieldCare via service interface (CDI) A0032466  36 DeviceCare/FieldCare via service interface (CDI) Service interface (CDI) of the instrument (= Endress+Hauser Common Data Interface) Commubox FXA291 Computer with DeviceCare/FieldCare operating tool Endress+Hauser...

  • Page 65: Supplycare Inventory Management Software

    Micropilot FMR62 SupplyCare inventory SupplyCare is a web-based operating program for coordinating the flow of material and information along the supply chain. SupplyCare provides a comprehensive overview of the levels of management software geographically distributed tanks and silos, for instance, providing complete transparency over the current inventory situation, regardless of time and location.
  • Page 66 Micropilot FMR62 A0034288  37 Example of inventory management platform with SupplyCare Enterprise SCE30B SupplyCare Enterprise (via Web browser) SupplyCare Enterprise installation SupplyCare Enterprise on mobile devices (via Web browser) Ethernet/WLAN/UMTS Fieldgate FXA42 Power supply 24 V DC Modbus TCP via Ethernet as server/client...
  • Page 67 Micropilot FMR62 Cloud-based application: SupplyCare Hosting SupplyCare Hosting is offered as a hosting service (software as a service). Here, the software is installed within the Endress+Hauser IT infrastructure and made available to the user in the Endress +Hauser portal. A0034289 ...

  • Page 68: Certificates And Approvals

    CE mark in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. The measuring system complies with the substance restrictions of the Restriction on Hazardous RoHS Substances Directive 2011/65/EU (RoHS 2).

  • Page 69: Nace Mr 0175 / Iso 15156

    Micropilot FMR62 3A and EHEDG approval for versions with Tri-Clamp and DIN11851 process connections. To avoid any risk of contamination, install the device according to the “Hygienic Equipment Design Criteria (HDC)” which was published by the Subgroup "Design Principles" of the EHEDG on April 8 2004.

  • Page 70: Radio Standard En 302372

    Micropilot FMR62 Astronomy stations Country Name of the station Latitude Longitude Germany Effelsberg 50°31' 3 2" North 06°53' 0 0" East Finland Metsähovi 60°13' 0 4" North 24°23' 3 7" East Tuorla 60°24' 5 6" North 24°26' 3 1" East...

  • Page 71: Japanese Radio Approval

    Micropilot FMR62 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 72 Micropilot FMR62 Feature 100 in the product structure Process connection Tri-Clamp ISO2852 DN70-76.1 (3"), PTFE>316L Tri-Clamp ISO2852 DN101.6 (4"), PTFE>316L • For some process connections which are not listed in the product structure a CRN approval is available on request.

  • Page 73: Test, Certificate

    Micropilot FMR62 Test, certificate Feature 580 "Test, Description certificate" 3.1 Material certificate, wetted metal parts, EN10204-3.1 inspection certificate Declaration of Conformity NACE MR0175, wetted metal parts 3.1 Material certificate, pressurized parts, EN10204-3.1 inspection certificate Declaration of Conformity NACE MR0103, wetted metal parts...

  • Page 74: Other Standards And Guidelines

    Micropilot FMR62 Other standards and • EN 60529 Degrees of protection provided by enclosures (IP code) guidelines • EN 61010-1 Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use • IEC/EN 61326 "Emission in accordance with Class A requirements". Electromagnetic compatibility (EMC requirements).

  • Page 75: Ordering Information

    • Automatic creation of the order code and its breakdown in PDF or Excel output format • Ability to order directly in the Endress+Hauser Online Shop The following points must be considered if option F3 (3-point linearity protocol) was selected in 3-point linearity protocol feature 550 ("Calibration").

  • Page 76: Customer-Specific Configuration

    Micropilot FMR62 The 5 points of the linearity protocol are evenly distributed over the measuring range (0 to 100 %). The Empty calibration (E) and Full calibration (F) must be specified to define the measuring range . If this information is missing, antenna-dependent default values are used instead.

  • Page 77: Tagging (Tag)

    Micropilot FMR62 Tagging (TAG) Ordering feature 895: Marking Option Z1: Tagging (TAG), see additional spec. Position of the measuring To be selected in the additional specifications: point marking • Tag plate Stainless Steel • Self-adhesive paper label • Supplied label/plate •...

  • Page 78: Heartbeat Monitoring

    Micropilot FMR62 Device functionality checked on demand • Verification of the correct functioning of the measuring device within specifications. • The verification result provides information about the condition of the device: Passed or Failed. • The results are documented in a verification report.
  • Page 79 Micropilot FMR62 Advantages • Early detection of changes (trends) to ensure plant availability and product quality. • Use of information for the proactive planning of measures (e.g. cleaning/maintenance). • Identification of undesirable process conditions as the basis to optimizing the facility and the processes.

  • Page 80: Accessories

    Micropilot FMR62 Accessories Device-specific accessories Weather protection cover Accessory Description Weather protection cover A0015466 300 (11.8) 275 (10.8) 255.1 (10) 164 (6.46) A0015472  40 Weather protection cover; Dimensions: mm (in)  The weather protection cover can be ordered together with the device (product structure, feature 620 "Accessory Enclosed", option PB "Weather Protection Cover").
  • Page 81 Micropilot FMR62 Remote display FHX50 Accessories Description Remote display FHX50 A0019128 • Material: • Plastic PBT • 316L/1.4404 • Aluminum • Degree of protection: IP68 / NEMA 6P and IP66 / NEMA 4x • Suitable for display modules: • SD02 (push buttons) •...
  • Page 82 Micropilot FMR62 Overvoltage protection Accessories Description Overvoltage protection for 2-wire devices OVP10 (1-channel) OVP20 (2-channel) A0021734 Technical data • Resistance per channel: 2 × 0.5 Ω • Threshold DC voltage: 400 to 700 V • Threshold surge voltage: < 800 V • Capacitance at 1 MHz: < 1.5 pF •...
  • Page 83 Micropilot FMR62 Bluetooth module for HART devices Accessory Description Bluetooth module A0036493 • Quick and easy commissioning via SmartBlue (app) • No additional tools or adapters required • Signal curve via SmartBlue (app) • Encrypted single point-to-point data transmission (tested by Fraunhofer institue) and password protected communication via Bluetooth®...

  • Page 84: Communication-Specific Accessories

    For details, see "Technical Information" TI00404F Commubox FXA291 Connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) and the USB port of a computer or laptop Order number: 51516983 For details, see "Technical Information" TI00405C...

  • Page 85: Service-Specific Accessories

    For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Brief Operating Instructions...
  • Page 88 *71496291* 71496291 www.addresses.endress.com...
