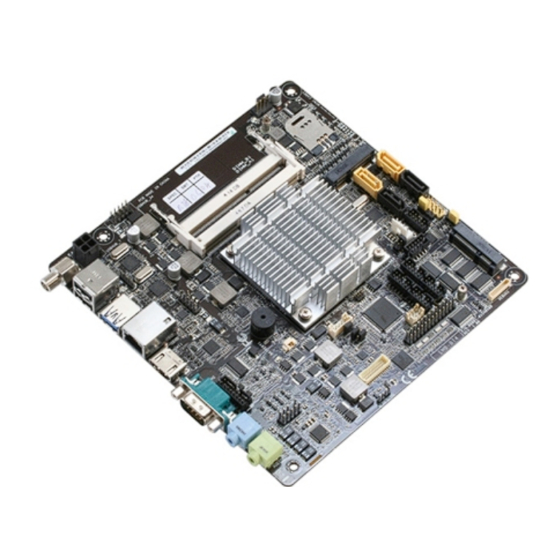

Aaeon EMB-BT4 Manual

Industrial motherboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EMB-BT4

Advertisement

Table of Contents
loading

Related Manuals for Aaeon EMB-BT4

Summary of Contents for Aaeon EMB-BT4

  • Page 1 EMB-BT4...
  • Page 2 E10155 First Edition April 2015 Copyright Notice This document is copyrighted, 2015. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer.

  • Page 3: Table Of Contents

    Contents Chapter 1 Product overview Package contents................. 1-1 Features ..................1-1 Specifications ................1-2 Chapter 2 Motherboard information Before you proceed ..............2-1 Motherboard layout ..............2-2 Screw size ..................2-4 2.3.1 Component side .............. 2-4 2.3.2 Solder side ..............2-5 Central Processing Unit (CPU) ...........
  • Page 4 3.4.1 North Bridge Configuration ..........3-8 3.4.2 South Bridge Configuration ..........3-8 Security menu ................3-9 3.5.1 Administrator Password ..........3-9 3.5.2 User Password ..............3-9 Boot menu .................. 3-10 Boot Configuration ............... 3-10 Save & Exit menu ............... 3-11 Appendix Notices .......................A-1...

  • Page 5: Chapter 1 Product Overview

    Chapter 1 Product overview Package contents Check your industrial motherboard package for the following items. 1 x Industrial Motherboard 1 x SATA Cable 1 x I/O Shield 1 x Support CD If any of the above items is damaged or missing, contact your distributor or sales representative immediately.

  • Page 6: Specifications

    6.7 in. x 6.7 in. (17.0 cm x 17.0 cm) Gross weight 1.1 lb (0.5 Kg) Operating F~140 F (0 C~60 temperature Storage temperature F~185 F (-40 C~85 Operating humidity 0%~90% relative humidity, non-condensing Power compliance Compliant with Eup/ErP Certificate CE/FCC (continued on the next page) EMB-BT4...
  • Page 7 DISPLAY Chipset Intel® HD Graphics Up to 1920x1200@60Hz for VGA Resolution Up to 1920x1200@60Hz for HDMI Up to 1920x1080@60Hz, Dual Channel 18/24-bit (via CH7511) for LVDS/eDP Output interface 1 x LVDS 1 x VGA 1 x HDMI 2 x SATA 6.0Gb/s ports Storage 2 x SATA 3.0Gb/s ports (1 colay with Full Size Mini Card) 1 x SATA power connector...
  • Page 8 EMB-BT4...

  • Page 9: Chapter 2 Motherboard Information

    Chapter 2 Motherboard information Before you proceed Take note of the following precautions before you install motherboard components or change any motherboard settings. CAUTION! • Unplug the power cord from the wall socket before touching any component. • Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity. • Hold components by the edges to avoid touching the ICs on them. • Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.

  • Page 10: Motherboard Layout

    DDR3L_DIMM_A1 (64bit, 204-pin module) USB3_1 USBHUB_56 MINI_CARD1 LAN2 8111G HDMI1 Place this side towards the rear 1442K 1061 of the chassis BATTERY1 SPI1 VGA1 DIO1 64Mb LED2 INV1 BIOS COM1 Super LINE KBMS1 AAFP1 LVDS1 Audio1 CHRONTEL LPT1 CH7511 15 14 EMB-BT4...
  • Page 11 Connectors/Jumpers/Slots Page 12VDC connector (4-pin EATX_PWR1) 2-14 USB 2.0 connector (10-1 pin USBHUB_34, USBHUB_56 and USBHUB_7) 2-19 SO-DIMM memory slots Standby Power LED (SB_PWR_LED1, Main_PWR_LED2) 2-11 Chassis fan connectors (4-pin CHA_FAN1) 2-15 COM1 Ring/+5V/+12V selection (6-pin J1) 2-10 SATA power connector (SATA_PWR1) 2-17 Minicard connector (MINI_CARD1, MINI_CARD2) 2-19 10. Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1, SATA6G_2) 2-17 11. Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1, SATA3G_2) 2-23 12. System panel connector (10-1 pin F_PANEL) 2-16 13. Clear RTC RAM (CLRTC) 14. Digital I/O connector (DIO1) 2-22 15. Serial port connectors (10-1 pin COM1, COM3~6) 2-21 16. PS/2 keyboard and mouse connector (KBMS1) 2-22 17. LPT connector 2-20 18.

  • Page 12: Screw Size

    170.18 165.74 167.11 160.91 165.48 160.02 150.81 157.65 147.98 152.51 141.22 141.73 137.51 135.57 128.40 113.00 98.55 96.35 97.92 80.55 76.01 68.98 61.60 67.30 42.04 64.58 37.85 54.62 23.11 16.31 16.04 22.81 12.63 11.84 9.85 10.70 2.10 0.00 16.16 EMB-BT4...

  • Page 13: Solder Side

    2.3.2 Solder side 170.18 165.10 165.10 121.85 121.85 70.85 70.85 33.02 10.16 0.00 Chapter 2: Motherboard information...

  • Page 14: Central Processing Unit (Cpu)

    Central Processing Unit (CPU) This motherboard comes with an Intel® J1900/N2807 processor. EMB-BT4 CPU System memory This motherboard comes with two Double Data Rate 3 Low Voltage (DDR3L) Small Outline Dual Inline Memory Modules (SO-DIMM) socket. The figure illustrates the location of the DDR3L DIMM socket: DDR3L DIMM_B1 DDR3L DIMM_A1 EMB-BT4 204-pin DDR3L DIMM sockets NOTE: Use the SO-DIMM_A1 slot when inserting only one SO-DIMM. EMB-BT4...

  • Page 15: Installing A Dimm

    2.5.1 Installing a DIMM To install a SO-DIMM To remove a SO-DIMM Chapter 2: Motherboard information...

  • Page 16: Jumpers

    Jumpers Clear RTC RAM (CLRTC) This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords. CLRTC Normal Clear RTC1 (Default) EMB-BT4 Clear RTC RAM To erase the RTC RAM: 1. Turn OFF the computer and unplug the power cord. 2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5~10 seconds, then move the cap back to pins 1-2. 3. Plug the power cord and turn ON the computer. 4. Hold down the <Del> key during the boot process and enter BIOS setup to reenter data. CAUTION! Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure! NOTES: •...
  • Page 17 COM1 Ring/+5V/+12V selector (6-pin J1) +12V Ring (Default) EMB-BT4 COM1 Ring/+5V/+12V Selection Setting Pins +12V Ring (Default) Inverter voltage selection (3-pin J2) +12V (Default) EMB-BT4 Inverter Voltage Selection Setting Pins +12V +5V (Default) Chapter 2: Motherboard information...
  • Page 18 Inverter Backlight Control of Inverter selector (3-pin J3) DC CTL PWM CTL (Default) EMB-BT4 Mode Selection for Back Light Control of Inverter Setting Pins DC Voltage Control (Default) PWM Control LVDS panel voltage selection (3-pin J4) (Default) EMB-BT4 LVDS Panel Voltage Selection Setting Pins...

  • Page 19: Onboard Leds

    Onboard LEDs Standby Power LED The motherboard comes with a standby power LED that lights up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LED. SB_PWR1 Standby Power Powered Off SB_PWR2 Main Power Main Power Off EMB-BT4 Onboard LEDs Chapter 2: Motherboard information 2-11...

  • Page 20: Connectors

    ® • USB 3.0 devices can be used for data storage only. • We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for a faster and better performance from your USB 3.0 devices. LAN2 (RJ-45) ports. This port allows Gigabit connection to a Local Area Network (LAN) through a network hub. Refer to the table below for the LAN2 port LED indications. LAN port LED indications Speed Activity Link ACT/LINK LED SPEED LED Status Description Status Description No link 10 Mbps connection Linked ORANGE 100 Mbps connection ORANGE Data activity 1 Gbps connection BLINKING GREEN LAN port EMB-BT4 2-12...
  • Page 21 HDMI port. This port is for a High-Definition Multimedia Interface (HDMI) connector, and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected content. Serial port (COM2). This port connects a modem, or other devices that conform with serial specification. This serial port also supports RS-232 (COM2 is optional). Line In port (light blue). This port connects the tape, CD, DVD player, or other audio sources. Line Out port (lime). This port connects to a headphone or a speaker. Chapter 2: Motherboard information 2-13...

  • Page 22: Internal Connectors

    2.8.2 Internal connectors 12VDC power connectors (4-pin EATX_PWR1) This connector is for an EATX power supply plug. The power supply plug is designed to fit this connector in only one orientation. Find the proper orientation and push down firmly until the connector completely fits. EATX_PWR1 PIN 1 EMB-BT4 ATX power connector IMPORTANT: • For a fully configured system, we recommend that you use a power supply unit (PSU) that complies with ATX 12V Specification 2.0 (or later version). • DO NOT forget to connect the 4-pin ATX +12V power plug. Otherwise, the system will not have enough power. • We recommend that you use a PSU with higher power output when configuring a system with more power-consuming devices. The system may become unstable or may not boot up if the power is inadequate.
  • Page 23 CAUTION: Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors! Front panel audio connector (10-1 pin AAFP) This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector. AAFP PIN 1 HD-audio-compliant Legacy AC’97 pin definition compliant definition EMB-BT4 Front panel audio connector IMPORTANT: We recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard’s high-definition audio capability. Chapter 2: Motherboard information 2-15...
  • Page 24 System panel connector (10-1 pin F_PANEL) This connector supports several chassis-mounted functions. F_PANEL (NC) HWRST# Ground PWR_LED- HDD_LED- PWR_LED+ HDD_LED+ PIN 1 EMB-BT4 System panel connector • System power LED (2-pin PWR_LED) This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode. • Hard disk drive activity LED (2-pin HDD_LED) This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this connector. The HDD LED lights up or flashes when data is read from or written to the HDD. • ATX power button/soft-off button (2-pin PWR_BTN) This 2-pin connector is for the system power button.
  • Page 25 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1, SATA6G_2) ThIS connector connects to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s signal cables. RSATA_RXP2 RSATA_TXP1 RSATA_RXN2 RSATA_TXN1 RSATA_TXN2 RSATA_RXN1 RSATA_TXP2 RSATA_RXP1 EMB-BT4 SATA 6.0Gb/s connectors IMPORTANT: • You must install Windows XP Service Pack 3 or later version before using ® Serial ATA hard disk drives. • When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI]. See section 3.3.7 IDE Configuration for details. SATA power connector (4-pin SATA_PWR1) This connector is for the SATA power cable. The power cable plug is designed to fit this connector in only one orientation. Find the proper...
  • Page 26 LVDS connector (30-pin LVDS1) This connector is for an LCD monitor that supports Low-Voltage Differential Signaling (LVDS) interface. LVDS1 PIN 1 EMB-BT4 LVDS connector Backlight inverter power connector (5-pin INV1) Connect the backlight inverter power cable to this connector. INV1 PIN1 EMB-BT4 Inverter connector IMPORTANT: The backlight inverter power connector supports 1A current to the maximum. EMB-BT4 2-18...
  • Page 27 Minicard connector Use this connector to connect a Minicard reader. MINI_CARD1 MINI_CARD2 EMB-BT4 MINICARD connectors NOTE: The Mini-card module is purchased separately. 10. USB 2.0 connector (10-1 pin USBHUB_34, USBHUB_56 and USBHUB_7) These USB connectors comply with USB 2.0 specifications. USBHUB_34 PIN 1 USBHUB_7 USBHUB_56 (NC) USB6+ USB5+ USB6- USB5- USBD+ USBD- PIN 1 PIN 1 EMB-BT4 USB2.0 connectors Never connect a 1394 cable to the USB connector. Doing so will damage the...
  • Page 28 11. BIOS programmable connector (8-pin SPI) Use this connector to flash the BIOS ROM. PIN 1 EMB-BT4 BIOS Programmable Connector 12. LPT connector (26-1 pin LPT1) The LPT (Line Printing Terminal) connector supports devices such as a printer. LPT is standardized as IEEE 1284, which is the parallel port interface on IBM PC-compatible computers. LPT1 EMB-BT4 Parallel Port Connector EMB-BT4 2-20...
  • Page 29 COM5 COM3 COM1 PIN 1 PIN 1 PIN 1 COM6 COM4 PIN 1 PIN 1 EMB-BT4 Serial Port connector NOTE: • The COM module is purchased separately. • COM1 also supports RS-232 / RS-422 / RS-485. See the table below and section 3.3.2 Super IO Configuration for details. Signal Signal DCD (422TXD-/485DATA-) RXD (422RXD+) TXD (422TXD+/485DATA+)
  • Page 30 14. Digital I/O connector (10-pin DIO1) This connector includes 8 I/O lines (In/Out programmable). All of the Digital I/O lines are programmable and each I/O pin can be individually programmed to support various devices. PIN 1 EMB-BT4 DIO connector 15. PS/2 keyboard/mouse connector (6-pin KBMS1) This connector is for an IBM PS/2-compatible keyboard or mouse. KBMS1 PIN 1 EMB-BT4 Series PS/2 keyboard/mouse connector EMB-BT4 2-22...
  • Page 31 16. Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1, SATA3G_2) These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via Serial ATA 3.0 Gb/s signal cables. RSATA_RXP2 RSATA_TXP1 RSATA_RXN2 RSATA_TXN1 RSATA_TXN2 RSATA_RXN1 RSATA_TXP2 RSATA_RXP1 EMB-BT4 SATA 3.0Gb/s connectors NOTE: • You must install Windows® XP Service Pack 3 or later version before using Serial ATA hard disk drives. • When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI]. See section 3.3.7 IDE Configuration for details 18. VGA connector (16-pin VGA) This 16-pin connector is for a VGA monitor or other VGA-compatible devices. VGA1...
  • Page 32 EMB-BT4 2-24...

  • Page 33: Chapter 3 Bios Setup

    Chapter 3 BIOS setup BIOS setup Use the BIOS Setup to update the BIOS or configure settings. The BIOS screens include navigation keys and help to guide you in using the BIOS Setup program. Entering BIOS Setup at startup To enter BIOS Setup at startup: Press <Delete>...

  • Page 34: Menu Bar

    The Main menu provides you an overview of the basic system information, and allows you to set the system date, time, language, and security settings. 3.2.1 System Date [Day MM/DD/YYYY] Allows you to set the system date. 3.2.2 System Time [HH:MM:SS] Allows you to set the system time. EMB-BT4...

  • Page 35: Advanced Menu

    Advanced menu The Advanced menu items allow you to change the settings for the CPU and other system devices. Be cautious when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction. 3.3.1 Power Management Power Mode [ATX Type] Select power supply mode.

  • Page 36: Cpu Configuration

    [Auto] [IO=3F8h; IRQ=4] [IO=3F8h; IRQ=3,4;] [IO=2F8h; IRQ=3,4;] [IO=3E8h; IRQ=3,4;] [IO=2E8h; IRQ=3,4;] Parallel Port Configuration The sub-items in this menu allow you to set the parallel port configuration. Parallel Port [Enabled] Allows you to enable or disable the parallel port (LPT/LPTE). Configuration options: [Enabled] [Disabled] EMB-BT4...

  • Page 37: Dynamic Digital Io

    Change Settings [Auto] Allows you to select an optimal setting for Super I/O devices. Configuration options: [Auto] [IO=378h; IRQ=7;] [IO=378h; IRQ=7;] [IO=278h; IRQ=7;] [IO=3BCh; IRQ=7;] [IO=378h;] [IO=278h;] [IO=3BCh;] Device Mode [STD Printer Mode] Allows you to select the Printer Port mode. Configuration options: [STD Printer Mode] [SPP Mode] [EPP-1.9 and SPP Mode] [EPP-1.7 and SPP Mode] [ECP Mode] [ECP and EPP 1.9 Mode] [ ECP and EPP 1.7 Mode] 3.3.4...

  • Page 38: Hardware Monitor

    [Auto by RPM]. Manual Setting [3000] Specify fixed RPM. Input value range: [500~15000] Manual Setting is the only item available when Chassis Smart Fan Control is set to [Manual by RPM]. Manual Setting [100] Specify fixed Duty-Cycle. Input value range: [0~100] EMB-BT4...

  • Page 39: Ide Configuration

    Manual Setting is the only item available when Chassis Smart Fan Control is set to [Manual by Duty-Cycle]. 3.3.8 IDE Configuration Serial-ATA (SATA) [Enabled] Allows you to enable or disable Serial-ATA. Configuration options: [Enabled] [Disabled] SATA Mode [AHCI Mode] Allows you to set the SATA configuration. [AHCI Mode] Set to [AHCI] when you want the SATA hard disk drives to use AHCI (Advanced Host Controller Interface).

  • Page 40: Chipset Menu

    Backlight Invert [Normal] Allows you to select the backlight control type of LVDS. Configuration options: [Normal] [Invert] 3.4.2 South Bridge Configuration XHCI Mode [Enabled] Allows you to enable or disable the mode of xHCI controller operation. Configuration options: [Disabled] [Enabled] EMB-BT4...

  • Page 41: Security Menu

    USB 2.0 (EHCI) Support [Disabled] This item becomes configurable when you set the previous item to [Disabled] and allows you to enable or disable USB2.0 (EHCI) support. Configuration options: [Disabled] [Enabled] PCI Express Port 0~3 [Enabled] Configuration options: [Disabled] [Enabled] Speed [Gen2] Configuration options: [Auto] [Gen 1] [Gen 2] Security menu...

  • Page 42: Boot Menu

    • To select the boot device during system startup, press <F7> during POST. • To access Windows OS in Safe Mode, do any of the following: Press <F5> during POST. Press <F8> after POST. EMB-BT4 3-10...

  • Page 43: Save & Exit Menu

    Boot Override These items displays the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system. Click an item to start booting from the selected device. Save & Exit menu Save Changes and Reset Once you are finished making your selections, choose this option from the Save &...
  • Page 44 EMB-BT4 3-12...

  • Page 45: Appendix

    Check local regulations for disposal of electronic products. DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. EMB-BT4...
  • Page 46 印 刷 電 路 板 及 其 × ○ ○ ○ ○ ○ 電子組件 外 部 信 號 連 接 頭 × ○ ○ ○ ○ ○ 及線材 ○： 表示該有毒有害物質在該部件所有均質材料中的含量均在 SJ/T 11363- 2006 標准規定的限量要求以下。 ×： 表示該有毒有害物質至少在該部件的某一均質材料中的含量超出 SJ/T 11363-2006 標准規定的限量要求，然該部件仍符合歐盟指令 2002/95/ EC 的規范。 備註：此產品所標示之環保使用期限，係指在一般正常使用狀況下。 EMB-BT4...
