Aaeon EMB-BSW1 Manual

Industrial
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EMB-BSW1

Advertisement

Table of Contents
loading

Related Manuals for Aaeon EMB-BSW1

Summary of Contents for Aaeon EMB-BSW1

  • Page 1 EMB-BSW1...
  • Page 2 E11481 First Edition March 2016 Copyright Notice This document is copyrighted, 2016. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer.

  • Page 3: Table Of Contents

    Contents Chapter 1: Product overview Package contents ................. 1-1 Features ..................1-1 1.3 Specifications ................1-2 Chapter 2: Motherboard information Before you proceed ..............2-1 Motherboard layout ..............2-2 Screw size ..................2-4 2.3.1 Component side .............. 2-4 2.3.2 Solder side ..............2-5 Central Processing Unit (CPU) ...........
  • Page 4 Contents Security menu ................3-6 3.5.1 Administrator Password ..........3-6 3.5.2 User Password ..............3-7 Boot menu ..................3-7 3.6.1 Boot Configuration ............3-7 3.6.2 Boot Option Priorities ............3-8 Save & Exit menu ................. 3-8 Appendix Notices .......................A-1...

  • Page 5: Chapter 1: Product Overview

    Chapter 1 Product overview Package contents Check your industrial motherboard package for the following items. 1 x Industrial Motherboard 1 x SATA cable 1 x SATA power cable 1 x I/O shield 1 x Support DVD NOTE: If any of the above items are damaged or missing, contact your distributor or sales representative immediately.

  • Page 6: Specifications

    12-24V DC (wide range: 12V-5% ~ 24V+10%) Operating F~140 F (0 C~60 temperature Operating humidity 0%~90% relative humidity, non-condensing Certificate CE, FCC (Class A) Form factor Mini-ITX form factor: 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm) Weight 1.1 lb (0.5 Kg) (continued on the next page) EMB-BSW1...
  • Page 7 Storage 3 x SATA 6Gb/s 1 x SATA power connector (5V / 12V @1A) 2 x USB 3.0 ports (at back panel) 2 x USB 3.0 ports (internal box header) 4 x USB 2.0 ports (2 ports for header, 2 ports for minicard) 4 x USB 2.0 ports via ASIX MCS9990 (internal box header) (Default: No) Display I/O 1 x LVDS (eDP optional by BOM change), 2 x HDMI...
  • Page 8 Others Supported OS Windows 7 32-bit ® Windows 8.1 32-bit / 64-bit ® Windows 10 64-bit ® Linux Fedora Accessories 1 x SATA cable 1 x SATA power cable 1 x I/O shield 1 x Support DVD NOTE: Specifications are subject to change without notice. EMB-BSW1...

  • Page 9: Chapter 2: Motherboard Information

    The motherboard comes with one standby power LED and main power LED that light up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LEDs. LED2 Main Power Powered Off EMB-BSW1 EMB-BSW1 Onboard LEDs Chapter 2: Motherboard information...

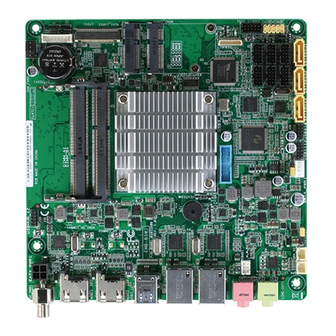

  • Page 10: Motherboard Layout

    CAUTION! Do not overtighten the screws! Doing so can damage the motherboard. 17.0cm(6.7in) CHA_FAN1 INV1 USBHUB_12 DC_PWR1 EATX_PWR1 HDMI LED2 DDR3L DIMM_A1 (64bit, 204-pin module) CH7511 DDR3L DIMM_B1 (64bit, 204-pin module) HDMI MINI_CARD2 EMB-BSW1 USB3_12 MINI_CARD1 Intel ® Braswell Intel ® SPI1 i211AT LAN1 Intel ® LAN2 USB3_34 i211AT...
  • Page 11 Connectors/Jumpers/Slots/LEDs Page EATX power connector (4-pin EATX_PWR1) 2-12 USB 2.0 connectors (10-pin USBHUB_12, USB9~12) 2-13 DDR3L DIMM slots SPI programming connector (8-pin SPI1) 2-15 Chassis fan connector (4-pin CHA_FAN1) 2-11 Backlight inverter power connector (5-pin INV1) 2-16 Inverter backlight control mode selection (3-pin J3) LVDS panel voltage selection (3-pin J1) Inverter voltage selection (3-pin J2) LVDS connector (40-pin LVDS1) 2-14 Embedded display port (40-pin EDP1) 2-11 Mini Card slots (MINICARD1, MINICARD2) 2-15 Main and standby power LEDs (LED1, LED2) COM1 Ring/+5V/+12V selection jumper (6-pin J4) AT Mode selection (3-pin ATMODE) Digital I/O connector (10-pin DIO1) 2-16 System panel connector (10-1 pin F_PANEL1) 2-12 Serial port connectors (9-pin COM1~6) 2-17 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~3) 2-13 SATA power connector (4-pin SATA_PWR1) 2-16 Clear RTC RAM (3-pin CLRTC1) USB 3.0 connector (20-1 pin USB3_34) 2-14 Chassis intrusion jumper (4-1 pin CHASSIS1) Internal audio connectors (2-pin SPK_L1, SPK_R1) 2-18 PS/2 keyboard/mouse connector (6-pin KBMS1) 2-15...

  • Page 12: Screw Size

    Screw size 2.3.1 Component side EMB-BSW1...

  • Page 13: Solder Side

    2.3.2 Solder side Chapter 2: Motherboard information...

  • Page 14: Central Processing Unit (Cpu)

    Central Processing Unit (CPU) The motherboard comes with an integrated Intel Braswell processor N3710/ ® N3060. EMB-BSW1 Intel ® Braswell EMB-BSW1 onboard CPU System memory This motherboard comes with two Double Data Rate 3 Low Voltage (DDR3L) Small Outline Dual Inline Memory Modules (SO-DIMM) sockets. The figure illustrates the location of the DDR3L DIMM sockets: DIMM_A1 DIMM_B1 EMB-BSW1 EMB-BSW1 204-pin DDR3L SO-DIMM sockets Installing a DIMM To install a DIMM To remove a DIMM EMB-BSW1...

  • Page 15: Jumpers

    To erase the RTC RAM: 1. Turn OFF the computer and unplug the power cord. 2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5~10 seconds, then move the cap back to pins 1-2. 3. Plug the power cord and turn ON the computer. 4. Hold down the <Del> key during the boot process and enter BIOS setup to reenter data. CAUTION! Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure! NOTE: If the steps above do not help, remove the onboard battery and move the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery. LVDS panel voltage selection (3-pin J1) EMB-BSW1 (Default) EMB-BSW1 LVDS Panel Voltage Selection Pins +3V (Default) Chapter 2: Motherboard information...
  • Page 16 EMB-BSW1 Inverter Voltage Selection Pins +12V +5V (Default) Inverter backlight control mode selection (3-pin J3) EMB-BSW1 DC mode PWM mode (Default) EMB-BSW1 Mode Selection for Back Light Control of Inverter Pins DC mode (Default) PWM mode COM1 Ring/+5V/+12V selection (6-pin J4) EMB-BSW1 +12V Ring...
  • Page 17 ATX mode (Default) Chassis intrusion jumper (4-1 pin CHASSIS1) This connector is for a chassis-mounted intrusion detection sensor or switch. Connect one end of the chassis intrusion sensor or switch cable to this connector. The chassis intrusion sensor or switch sends a high-level signal to this connector when a chassis component is removed or replaced. The signal is then generated as a chassis intrusion event. Move the jumper cap to pins 1-2 when you intend to use the chassis intrusion detection feature. CHASSIS1 EMB-BSW1 PIN1 EMB-BSW1 Chassis intrusion connector Pins Enables the chassis intrusion detection feature Disables the chassis intrusion detection feature (Default) Chapter 2: Motherboard information...

  • Page 18: Connectors

    Link LED ACT/LINK LED SPEED LED Status Description Status Description No link 10 Mbps connection GREEN Linked ORANGE 100 Mbps connection BLINKING Data activity GREEN 1 Gbps connection LAN port Microphone port (pink). This port connects to a microphone. Line Out port (lime). This port connects to a headphone or a speaker. In the 4-channel and 6-channel configurations, the function of this port becomes Front Speaker Out. EMB-BSW1 2-10...

  • Page 19: Internal Connectors

    Chassis fan connector (4-pin CHA_FAN1) Connect the fan cable to the fan connector on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector. CHA_FAN1 EMB-BSW1 EMB-BSW1 Chassis fan connector CAUTION: DO NOT forget to connect the fan cable to the fan connector. Insufficient air flow inside the system may damage the motherboard components. This is not a jumper! DO NOT place a jumper cap on the fan connector.
  • Page 20 (NC) RSTCON#_PANEL PWRBTN# PWR_LED- HDD_LED- EMB-BSW1 PWR_LED+ HDD_LED+ PIN 1 EMB-BSW1 System panel connector • System power LED (2-pin +PWR_LED1) This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode. • Hard disk drive activity LED (2-pin +HD_LED-) This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this connector. The IDE LED lights up or flashes when data is...
  • Page 21 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1~3) This connector connects to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s signal cables. EMB-BSW1 EMB-BSW1 SATA 6.0Gb/s connectors USB 2.0 connectors (10-pin USBHUB_12, USB9~12) These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 specification that supports up to 480 Mbps connection speed. USBHUB_12 PIN 1 USB1112 USB910 EMB-BSW1 PIN 1 PIN 1 EMB-BSW1 USB2.0 connectors CAUTION! Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard! NOTE: The USB module cable is purchased separately.
  • Page 22 USB 3.0 connector (20-1 pin USB3_34) This connector allows you to connect a USB 3.0 module for additional USB 3.0 front or rear panel ports. With an installed USB 3.0 module, you can enjoy all the benefits of USB 3.0 including faster data transfer speeds of up to 5 Gbps, faster charging time for USB-chargeable devices, optimized power efficiency, and backward compatibility with USB 2.0. USB3_34 PIN 1 EMB-BSW1 EMB-BSW1 USB3.0 Front panel connector The USB 3.0 module is purchased separately. LVDS connector (40-pin LVDS1) This connector is for an LCD monitor that supports Low-voltage differential signaling (LVDS) interface. LVDS1 +V_PANEL SPD1 +V_PANEL +V_PANEL +BLVCC +BLVCC LVDS1_D0- +BLVCC LVDS1_D0+ LVDS1_CLK- LVDS1_D1- LVDS1_CLK+...
  • Page 23 PIN 1 EMB-BSW1 PS/2 keyboard/mouse connector 10. Minicard connectors Use these connectors to connect a Minicard device. MINICARD2 MINICARD1 EMB-BSW1 EMB-BSW1 MINICARD connectors NOTE: The Minicard device is purchased separately. 11. SPI flash programmable connector (8-pin SPI1) Use this connector to flash BIOS SPI ROM. SPI1 (NC) (NC) SPI_MOSI SPI_MISO SPI_CLK SPI_CS# EMB-BSW1 +1.8V_SPI PIN 1 EMB-BSW1 SPI programming connector Chapter 2: Motherboard information 2-15...
  • Page 24 IO Port Configuration > DIO Port 1~8. See section 3.3.8 Digital IO Port Configuration for details. 13. SATA power connector (4-pin SATA_PWR1) This connector is for the SATA power cable. The power cable plug is designed to fit this connector in only one orientation. Find the proper orientation and push down firmly until the connector completely fit. SATA_PWR1 EMB-BSW1 EMB-BSW1 SATA power connector 14. Backlight inverter power connector (5-pin INV1) Connect the backlight inverter power cable to this connector. INV1 BLDN#_R BLUP#_R EMB-BSW1 +BLVCC +BLVCC...
  • Page 25 PIN 1 PIN 1 COM1 COM4 PIN 1 PIN 1 COM2 COM5 PIN 1 PIN 1 COM3 COM6 EMB-BSW1 EMB-BSW1 Serial port connectors NOTES: • The COM module is purchased separately. • COM1 also supports RS-232 / RS-422 / RS-485. See the table below and section 3.3.6 SIO Configuration for details. Signal Signal DCD (422TXD-/485DATA-) RXD (422RXD+) TXD (422TXD+/485DATA+) DTR (422RXD-) RI/+12V/+5V N.C.
  • Page 26 16. Internal audio connectors (2-pin SPK_L1, SPK_R1) These 2-pin connectors are for audio connections. Connect the audio cable to these connectors for Line Out and Rear Speaker Out functions. SPK_L1 SPK_R1 EMB-BSW1 PIN 1 PIN 1 EMB-BSW1 internal audio connectors EMB-BSW1 2-18...

  • Page 27: Chapter 3: Bios Setup

    Chapter 3 BIOS setup BIOS setup Use the BIOS Setup to update the BIOS or configure settings. The BIOS screens include navigation keys and help to guide you in using the BIOS Setup program. Entering BIOS Setup at startup To enter BIOS Setup at startup: Press <Delete>...

  • Page 28: Main Menu

    CPU Configuration The items in this menu show CPU-related information. Intel Virtualization Technology [Enabled] [Enabled] Allows a hardware platform to run multiple operating systems separately and simultaneously, enabling one system to virtually function as several systems. [Disabled] Disables this function. EMB-BSW1...

  • Page 29: Sata Configuration

    3.3.2 SATA Configuration While entering Setup, the BIOS automatically detects the presence of SATA devices. The SATA Port items show Not Present if no SATA device is installed to the corresponding SATA port. 3.3.3 USB Configuration The items in this menu allow you to change the USB-related features. The USB Devices item shows the auto-detected values.

  • Page 30: Trusted Computing

    Allows you to enable or disable the serial port (COM). Configuration options: [Enabled] [Disabled] Possible [Use Automatic Settings] Allows you to select the Serial Port base address. Configuration options: [Use Automatic Settings] [IO=3F8h; IRQ=4] [IO=2F8h; IRQ=3;] Mode [RS232] Allows you to select COM RS Mode. Configuration options: [RS232] [RS422] [RS485] EMB-BSW1...

  • Page 31: Power Management

    Serial Port 2~6 The sub-items in this menu allow you to set the serial port configuration. Use This Device [Enabled] Allows you to enable or disable the serial port (COM). Configuration options: [Enabled] [Disabled] Possible [Use Automatic Settings] Allows you to select the Serial Port base address. Configuration options: [Use Automatic Settings] [IO=3F8h;...

  • Page 32: Chipset Menu

    BIOS setup program. To set an administrator password: Select the Administrator Password item and press <Enter>. From the Create New Password box, key in a password, then press <Enter>. Confirm the password when prompted. EMB-BSW1...

  • Page 33: User Password

    To change an administrator password: Select the Administrator Password item and press <Enter>. From the Enter Current Password box, key in the current password, then press <Enter>. From the Create New Password box, key in a new password, then press <Enter>.

  • Page 34: Boot Option Priorities

    This option allows you to exit the Setup program without saving your changes. When you select this option or if you press <Esc>, a confirmation window appears. Select Yes to discard changes and reboot system. Restore Defaults Save or restore User Defaults to all setup options. EMB-BSW1...

  • Page 35: Appendix

    Appendix Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received including interference that may cause undesired operation.
  • Page 36 ○ ○ ○ ○ 外部信號連接頭 × ○ ○ ○ ○ ○ 及線材 中央處理器與內 × ○ ○ ○ ○ ○ 存 本表格依據 SJ/T 11364 的規定編制。 ○： 表示該有害物質在該部件所有均質材料中的含量均在 GB/T 26572 規 定的限量要求以下。 ×： 表示該有害物質至少在該部件的某一均質材料中的含量超出 GB/T 26572 規定的限量要求，然該部件仍符合歐盟指令 2011/65/EU 的 規范。 備註：此產品所標示之環保使用期限，係指在一般正常使用狀況下。 EMB-BSW1...
